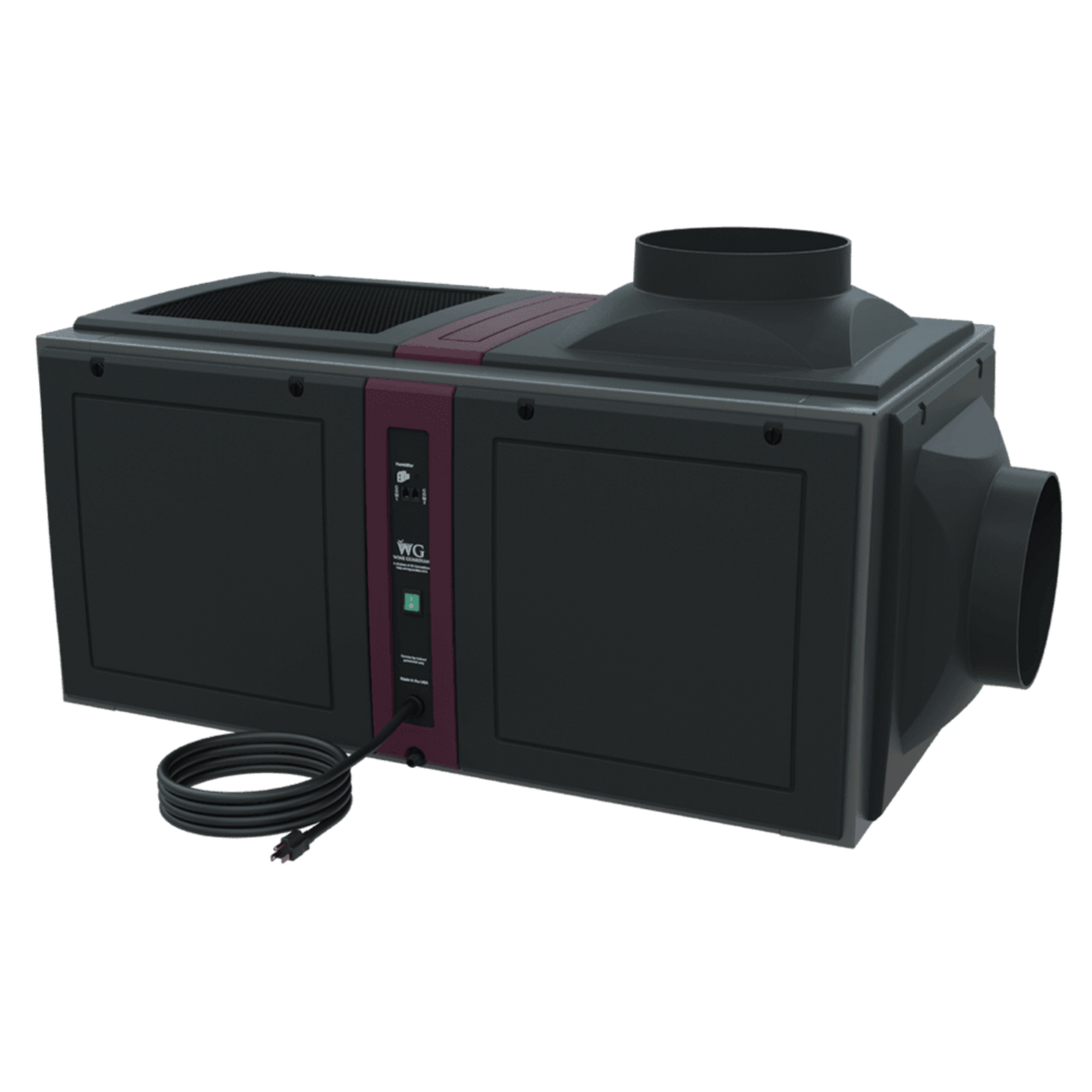

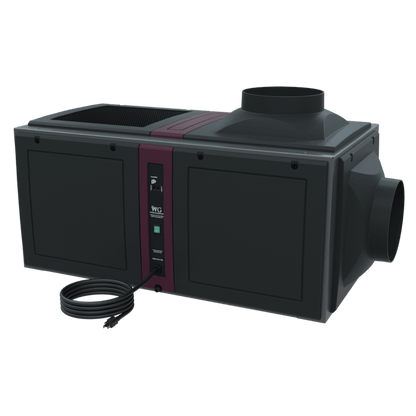

Wine Guardian D200WC Ducted Wine Cellar Cooling Unit Water Cooled - 60 HZ - 99H0257-21
Looking for a high-performance cooling solution for your large wine cellar? Explore the capabilities of the Wine Guardian D200WC Ducted Wine Cellar Cooling Unit Water Cooled - 60 HZ!
Ensure optimal conditions for your wine collection with the Wine Guardian D200WC. Designed for large residential and commercial wine cellars ranging from 1,500 to 7,000 cubic feet, this water-cooled ducted unit offers exceptional cooling power. Operating at 60Hz, suitable for North American standards, it delivers a substantial capacity of up to 14,100 BTU/h (1.85 Kilowatts).
Features
Efficient Cooling: Water-cooled system ideal for spaces with consistent water availability.
Self-Contained Design: Complete unit with evaporator, fans, compressor, condenser, and controls.
Flexible Installation: Ducted configuration for versatile setup options.
Quiet Operation: Engineered for minimal noise, ensuring a tranquil environment.
Specifications
Line Frequency:
60 HZ
Capacity:
8000 – 15680 BTU
Volume:
1500 – 7000 ft³
Length:
41.5"
Width:
22.5"
Height:
19"
Weight:
206 lbs
Electrical:
208-230/1/60
Video
What Our Experts Think
Water-Cooled Efficiency: The Wine Guardian D200WC uses water cooling technology for highly efficient performance, reducing energy consumption compared to air-cooled systems.
Ideal for Large Cellars: Perfect for large wine cellars, offering reliable and consistent temperature and humidity control to protect your wine collection.
Ducted Design: Integrates easily with ductwork, providing flexibility in installation and allowing for a streamlined setup.
Low Noise Operation: Operates quietly, making it an excellent choice for environments where noise is a concern.
Energy Efficient: Uses water cooling to reduce electricity usage, helping to keep operating costs low while maintaining optimal cellar conditions.
Durable & Reliable: Built with high-quality materials to ensure long-lasting, trouble-free operation over time.
Advanced Monitoring: Equipped with sophisticated controls for precise temperature and humidity adjustments.
Q&A
Q: What is the Wine Guardian D200WC Cooling Unit? A: The D200WC is a water-cooled, ducted cooling unit designed for wine cellars, offering efficient temperature and humidity control.
Q: What is the cooling capacity of the D200WC? A: It effectively cools wine cellars up to 2,000 cubic feet in size.
Q: How does the water cooling feature work? A: The D200WC uses water as a cooling medium, providing more energy-efficient operation and ideal for environments where air cooling is less effective.
Q: Is installation flexible? A: Yes, the unit is designed for ducted installation, with supply and return air options, allowing flexibility in cellar setup.
Q: Does it control both temperature and humidity? A: Yes, it maintains the optimal temperature and humidity levels required for wine storage.
Q: How quiet is the Wine Guardian D200WC? A: The D200WC operates quietly, making it ideal for both residential and commercial wine storage.
Q: Is it energy efficient? A: Yes, as a water-cooled unit, the D200WC provides energy-efficient performance while maintaining reliable cooling.
Maintenance Tips
Clean Air Filters: Clean or replace the air filters every 1-2 months to ensure proper airflow and cooling efficiency.
Inspect Water Supply: Check the water supply and ensure it is clean and at the correct pressure for the unit to function properly.
Clean Coils: Clean the evaporator and condenser coils annually to remove dirt and debris that could impact cooling performance.
Check Condensate Drain: Regularly inspect and clear the condensate drain line to prevent water buildup or leakage.
Monitor Temperature and Humidity: Verify the thermostat and humidity settings regularly to maintain optimal wine storage conditions.
Inspect Water Cooled Components: Ensure the water-cooled system components (e.g., water pump and cooling tower) are functioning and not blocked.
Annual Professional Service: Schedule yearly maintenance for refrigerant levels, water system checks, and overall system performance.
Ensure Unobstructed Airflow: Keep the cooling unit and ducts clear of obstructions to ensure efficient airflow and cooling.
