8 x SOK Battery 206Ah 12V LiFePO4 Deep Cycle Batteries | 8 x 2,636wH Lithium Solar Batteries | 1,648Ah / 21.08kWh
The SOK 206Ah Lithium Deep Cycle battery is one of the best selling batteries for a reason, bang for your buck. No fluff, this battery does what you want and will last a ridiculous 4000-8000 cycles! Perfect for Vanlife, RV's, Off-grid cabins and more. Order yours today!
Your order includes 8 x SOK 206ah batteries + all of the necessary cables for your choice of a 12V / 24V or 48V configuration. Best bang for your buck 824Ah / 10.5kWh lithium battery bank available today!
Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.
Smart battery management system with low temperature cut off protection, even in very cold locations so you don’t have to worry about moving the battery to your bedroom!

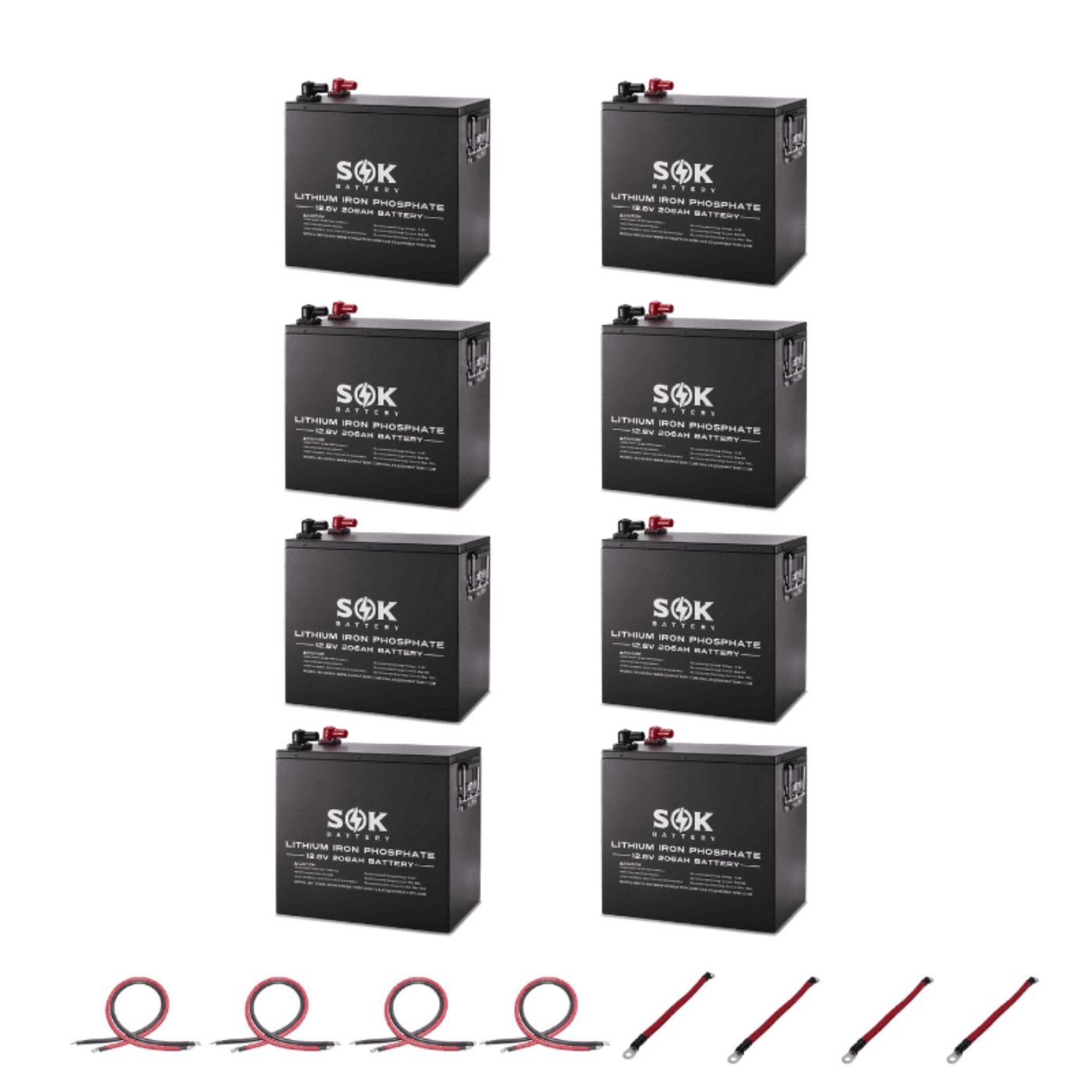

What's Included With Your 8 x SOK 206Ah Battery Order?
- 8 x SOK 206Ah LiFePO4 Batteries / 1,648Ah / 21.08kWh - 7-Year Warranty
- Complete Battery Cable Sets: Choice of 12V / 24V / 48V
- Choose your voltage configuration & we provide proper cabling:
12V
- 1 x 4/0AWG 5/6' lugs SET (R&B) 3ft
- 7 x 4/0AWG 5/6' lugs SET (R&B) 2ft
24V
- 1 x 4/0AWG 5/6' lugs SET (R&B) 3ft
- 3 x 4/0AWG 5/6' lugs SET (R&B) 2ft
- 4 x 4/0AWG 5/6' lugs RED 1ft
48V
- 1 x 4/0AWG 5/6' lugs SET (R&B) 3ft
- 1 x 4/0AWG 5/6' lugs SET (R&B) 2ft
- 6 x 4/0AWG 5/6' lugs RED 1ft
Features:
- Ships from Houston warehouse!
- 206Ah 12V LiFePO4 Deep Cycle Lithium Iron Phosphate Battery.
- Built-in Smart Battery Management System
- 4000~8000 Cycles Life Span & Maintenance-free
- Over Charging or Discharging Protection.
- Over Current & Short Circuit Protection.
- Detachable Cover, Replaceable BMS or Cells.
- High & Low temperature disconnects
- 7-Year Warranty
- Lifetime customer support
- Charge Voltage: 14.6V
- Max Charge Current: 50 A
- Max Discharge Current: 100 A
8 x SOK 206AH Battery - Physical Size:
- Dimensions: 10.83*7.87*11.22 Inchs
- Weight: 47.6 lbs.
- Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity
Specs
Electrical Performance
|
Mechanical Performance
|
Nominal Voltage
|
12.8 V
|
Dimension
|
11.42*7.87*11.02 In
|
Nominal Capacity
|
206Ah
|
Weight
|
47.6 lbs
|
Capacity @ 20A
|
494 Min
|
Terminal Type
|
M8
|
Energy
|
2636 Wh
|
Case Materials
|
Metal Box
|
Resistance
|
≤28mΩ @ 50% SOC
|
Waterproof
|
IP50
|
Self Discharge
|
<3% / Month
|
|
|
Cells
|
Prismatic
|
|
|
Discharge Performance
|
Charge Performace
|
Max Continuous Discharge Current
|
100 A
|
Recommended Charge Current
|
40A
|
Peak Discharge Current
|
200 A(3 Seconds)
|
Max Charge Current
|
50 A
|
BMS Discharge Cut-off Current
|
320A~340A
|
Recommended Charge Voltage
|
14.6 V
|
Recommended Low Voltage Disconnect
|
11.2 V
|
BMS Charge Cut-off Voltage
|
<14.6 V
|
BMS Discharge Cut-off Voltage
|
>10.4 V
|
Reconnect Voltage
|
>14.6 V
|
Reconnect Voltage
|
>11.6 V
|
Balancing Voltage
|
<14.4 v
|
Short Circuit Protection
|
200 ~ 500 μs
|
Max Batteries in Series
|
4
|
Temperature Performance
|
Discharge Temperature
|
-22°F ~ 140°F
|
Charge Temperature
|
32°F ~ 140°F
|
Storage Temperature
|
-22°F ~ 140°F
|
BMS High Temperature Cut-off
|
140°F
|
BMS Low Temperature Cut-off
|
32°F
|
|
What Our Experts Think
The 8 x SOK Battery 206Ah 12V LiFePO4 Deep Cycle Batteries offer an advanced and highly efficient energy storage solution for off-grid power systems, solar energy setups, and RV or marine applications. Here’s why they’re highly recommended:
-
High Capacity (1,648Ah / 21.08kWh): With a total of 21.08kWh capacity, these batteries provide substantial power, making them perfect for large-scale energy storage needs, such as powering homes, cabins, RVs, or solar energy systems.
-
LiFePO4 Technology: Built with Lithium Iron Phosphate (LiFePO4) cells, known for their safety, long lifespan, and high efficiency, these batteries deliver a reliable and stable energy source.
-
Deep Cycle Design: Specifically designed for deep-cycle applications, these batteries can withstand frequent discharges and recharge cycles, ensuring longevity and dependable performance over time.
-
High Energy Density: These 206Ah batteries offer high energy density, which means you can store more power in a smaller space, making them ideal for compact, off-grid systems.
-
Superior Efficiency: With an energy efficiency rate of around 98%, these batteries are designed to minimize energy loss and maximize power output, reducing overall system costs.
-
Safe and Reliable: LiFePO4 technology is one of the safest battery chemistries available, with built-in protection against overcharging, over-discharging, and short circuits.
-
Scalable System: This package includes eight 12V batteries, which can be easily expanded or customized to meet varying energy needs, allowing for flexibility in both small and large systems.
Q&A
Q: What are the 8 x SOK Battery 206Ah 12V LiFePO4 Deep Cycle Batteries?
A: The 8 x SOK Battery 206Ah 12V LiFePO4 Deep Cycle Batteries are high-capacity lithium batteries, each offering 206Ah and 2,636Wh, providing a combined total of 1,648Ah and 21.08kWh for reliable, long-lasting power storage in solar or off-grid systems.
Q: What makes them special?
A: These batteries use LiFePO4 technology for enhanced safety, long cycle life (over 4,000 charge/discharge cycles), and high efficiency, making them an excellent choice for energy storage in large systems like solar or RV setups.
Q: Who are they suitable for?
A: Perfect for off-grid homes, RVs, solar energy storage systems, and commercial energy solutions that require reliable and sustainable power storage with a long service life.
Q: How can I purchase them?
A: Available now with fast shipping options for your energy storage needs.
Maintenance Tips
-
Regular Charging: Always charge the batteries at the recommended voltage using a compatible charger. Avoid overcharging or deep discharging (below 20% capacity) to prolong battery lifespan.
-
Monitor Battery Voltage: Regularly check the battery voltage to ensure it is within the manufacturer’s recommended range. Avoid letting the voltage go too low as it can damage the cells and reduce capacity.
-
Maintain Proper Storage Conditions: If the batteries are not in use, store them in a cool, dry place away from direct sunlight. Ideal storage temperature is between 32°F (0°C) and 77°F (25°C). Store them at around 50% charge to prevent over-discharging while in storage.
-
Avoid Extreme Temperatures: Keep the batteries away from extreme temperatures (both hot and cold) to ensure optimal performance. High temperatures can cause over-heating and shorten battery life, while cold temperatures can reduce capacity temporarily.
-
Regular Inspections: Periodically inspect the batteries for any visible signs of damage, such as swelling, leaks, or corrosion around terminals. If any damage is detected, stop using the battery and consult the manufacturer.
-
Clean Terminals: Clean the battery terminals periodically to prevent corrosion. Use a dry cloth or brush, and avoid using water directly on the terminals. If corrosion is present, clean with a baking soda solution and ensure terminals are dry before reconnecting.
-
Battery Management System (BMS) Monitoring: Ensure the Battery Management System (BMS) is functioning properly, as it helps protect the battery from overcharging, over-discharging, and temperature fluctuations. Check the BMS periodically for any error codes or warnings.
-
Avoid Deep Discharges: Try to keep the battery charge between 20% and 80% for optimal life. Deep discharges can reduce the number of charge cycles and affect long-term performance.
-
Use a Quality Charge Controller: If you're using the batteries in a solar setup, make sure to use a charge controller designed for lithium batteries to prevent overcharging and maintain battery health.
-
Battery Load Test: Perform regular load tests to check the health of the batteries and ensure they can handle the power demands. If performance drops significantly, it may be time to replace the batteries.
-
Ensure Proper Wiring: Ensure all wiring and connections are tight and free of corrosion. Loose or corroded connections can cause inefficiencies or overheating, reducing battery life and performance.
-
Monitor System Performance: If using the batteries as part of a solar energy system, regularly monitor the system's performance, including energy production and consumption. This helps in ensuring the batteries are being used effectively.
