Rich Solar 24V - 800AH - 20.4kWh Lithium Battery Bank - RS-B24100x8
The ALPHA 4 LITE is a 24V 100Ah lithium battery built and packed with RICH SOLAR’s premium LiFePO4 cells. Built to withstand extreme temperatures and handle deep discharges, this lithium battery is ready to be your go-to battery for any off-grid needs.
Whether you’re looking to set up backup power for your family home or go boondocking off-grid, you can be sure you have reliable power available. With its low maintenance, lightweight build, and powerful discharge cycles, the ALPHA 4 LITE is the battery for you.

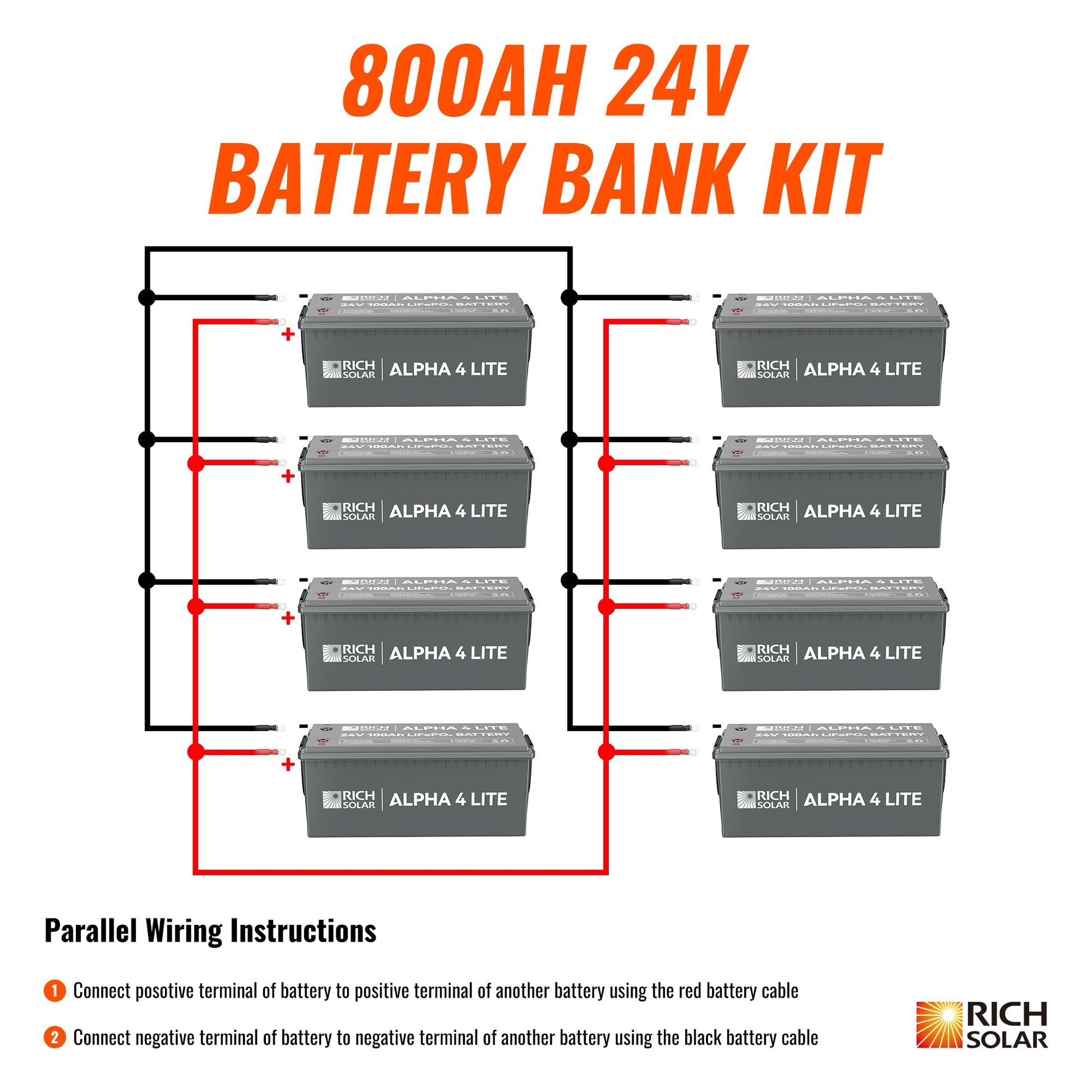

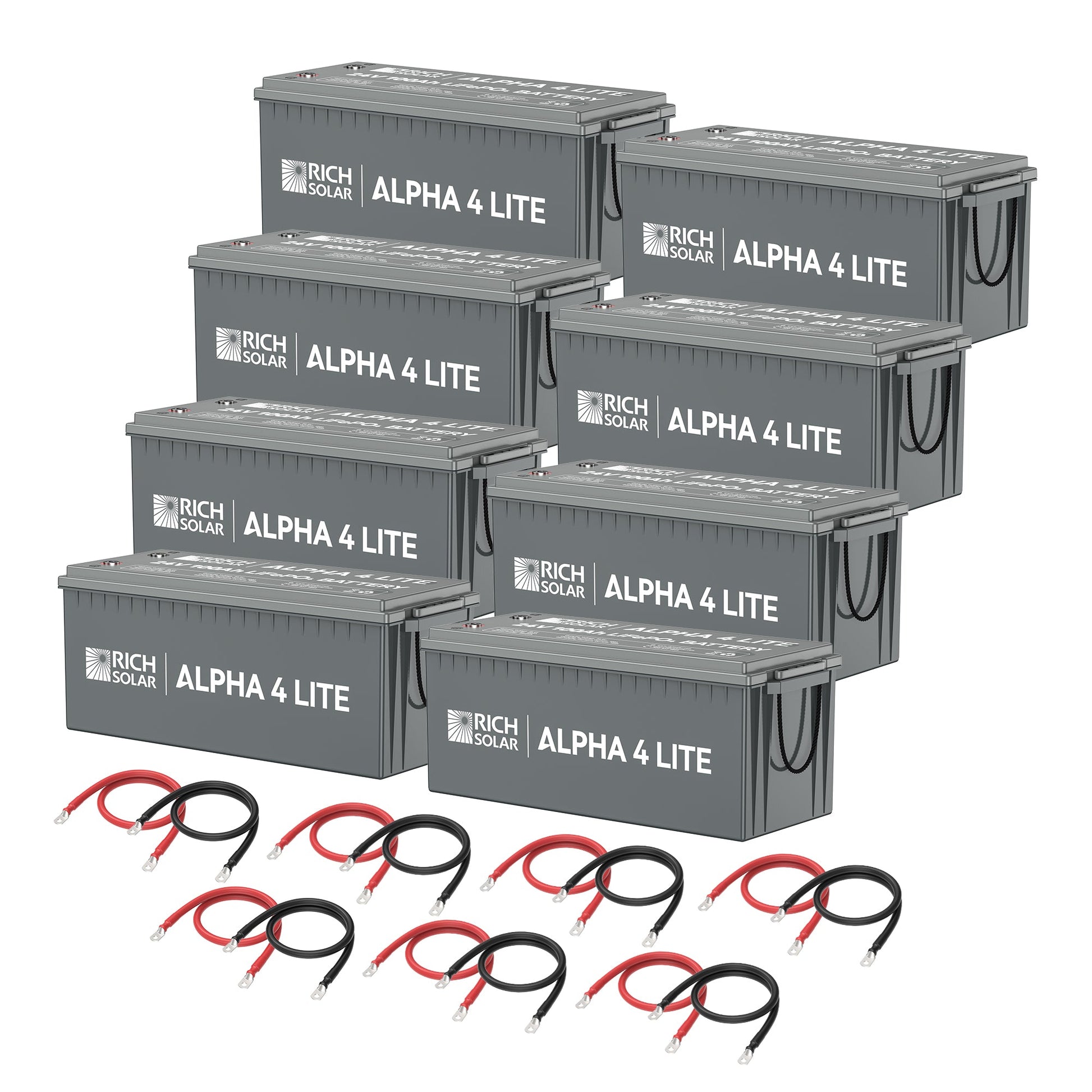

- 8 × 24V 100AH ALPHA 4 LITE LiFePO4 Battery
- 14 × 1ft 2 AWG Battery Cables
Features
- Extremely high number of charge/discharge cycles
- > 10-Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high-temperature performance
- Green energy without metal contaminants
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Overcharge/discharge protection
- Overcurrent & short circuit protection
- High & low temperature disconnects
- Charge Voltage: 28.8V
- Max Charge Current: 100A
- Max Discharge Current: 100A
- Battery Dimensions (L×W×H): 20.9×8.1×8.5 in
- Weight: 52.9 lb
BMS Safety Protection
- Every LiFePO4 cell is individually fused for safety and efficiency. If any cell fails, the isolated fuse prevents damage to the other cells, allowing the battery to continue functioning normally.
- Other BMS Features include:
- Convenient removable carry handle
- Lightweight
- Short circuit protection
- Overcharge/over-discharge protection
- Excessive heat protection
Specifications
Battery
-
Nominal Voltage: 25.6V
-
Nominal Capacity: 100Ah
-
Minimum Capacity: 99.5Ah
-
Cycle Life: >4000 cycles
Operating Specifications
-
Capacity: 100Ah
-
Energy: 2560 Watt Hours
-
Charge Voltage: 28.8V
-
Continuous Discharge Current: 100A
-
Self Discharge: <5%/month
Temperature Performance
-
Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
-
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
-
Storage Temperature: 14°F–113°F / -10℃–45℃, 90％RH Max (More than 3 months)
Physical Specifications
-
Battery Dimensions (L×W×H): 20.9×8.1×8.5 in
-
Weight: 52.9 lb
BMS Operation
Over Charge Protection
-
Over charge detection voltage: 3.75V±0.05V
-
Over charge detection delay time: 1000ms±500ms
-
Over charge recovery voltage: 3.55V±0.05V
Over Discharge Protection
-
Over discharge detection voltage: 2.20V±0.08V
-
Over discharge detection delay time: 1000ms±500ms
-
Over discharge recovery voltage: 2.70V±0.10V
What our Experts Think
-
Exceptional energy storage capacity with 20.4kWh of usable LiFePO4 power, making it an excellent choice for large off-grid homes, whole-home backup systems, cabins, workshops, and high-demand solar installations.
-
Built for long-term value, featuring premium lithium iron phosphate (LiFePO4) cells rated for 4,000+ cycles and an expected lifespan of over 10 years with proper maintenance.
-
Advanced battery protection comes from an integrated smart BMS that safeguards against overcharging, over-discharging, short circuits, overcurrent, and extreme temperatures, helping maximize reliability and battery health.
-
Highly scalable and modular, this battery bank combines eight 24V 100Ah batteries, allowing easier transportation, installation, future expansion, and maintenance compared to a single large battery unit.
-
Ideal for solar energy storage, delivering stable voltage output, low self-discharge, and dependable performance in both hot and cold operating environments.
-
Best suited for users who need serious backup power, including extended outages, off-grid living, RV compounds, agricultural sites, and energy-independent solar systems where reliability is critical.
Q&A
Q: What is the Rich Solar 24V 800Ah 20.4kWh Lithium Battery Bank?
A: The Rich Solar RS-B24100x8 is a high-capacity 24V LiFePO4 battery bank with 800Ah (20.4kWh) of energy storage for solar systems, off-grid power, RVs, cabins, and home backup applications.
Q: How much energy storage does this battery bank provide?
A: It delivers 20.4kWh of energy storage, allowing you to power essential appliances, store solar energy, and maintain backup power during outages.
Q: Why choose LiFePO4 battery technology?
A: LiFePO4 batteries offer long cycle life, enhanced safety, fast charging, low maintenance, and reliable performance compared to traditional lead-acid batteries.
Q: Is this battery bank suitable for solar energy systems?
A: Yes. It is designed for solar energy storage, off-grid installations, backup power systems, and renewable energy applications.
Q: Does the battery bank include built-in safety protection?
A: Yes. An advanced Battery Management System (BMS) helps protect against overcharging, over-discharging, overcurrent, short circuits, and temperature-related issues.
Q: How long does the battery bank last?
A: With proper use, the LiFePO4 battery bank can provide thousands of charge cycles and years of dependable energy storage performance.
Q: What applications is the RS-B24100x8 best for?
A: It is ideal for whole-home backup power, off-grid cabins, solar energy storage, RV power systems, workshops, and emergency power solutions.
Maintenance Tips
- Keep batteries within the recommended temperature range; avoid charging below 32°F (0°C) and protect from prolonged extreme heat.
- Use a compatible 24V LiFePO4 charger/inverter with the correct charge voltage setting (28.8V).
- Avoid leaving the battery bank at 0% state of charge for extended periods; recharge promptly after deep discharges.
- For long-term storage, keep batteries at a partial charge and store in a cool, dry location.
- Inspect battery cables, terminals, and connections regularly for tightness, corrosion, or damage.
- Ensure adequate ventilation around the battery bank and keep it free from dust, moisture, and debris.
- Monitor system performance periodically through your inverter or battery monitoring system to identify abnormal voltage or temperature conditions early.
- Do not exceed the battery bank’s rated charge or discharge limits; rely on the built-in Battery Management System (BMS) for protection.
- Keep firmware and inverter settings updated according to manufacturer recommendations when applicable.
