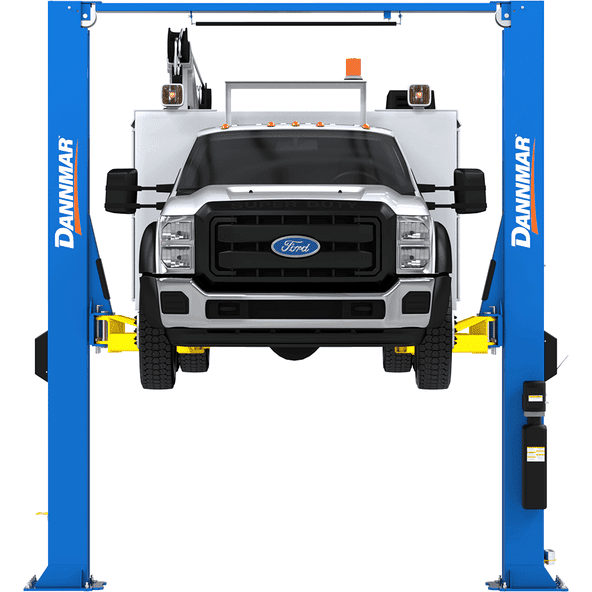

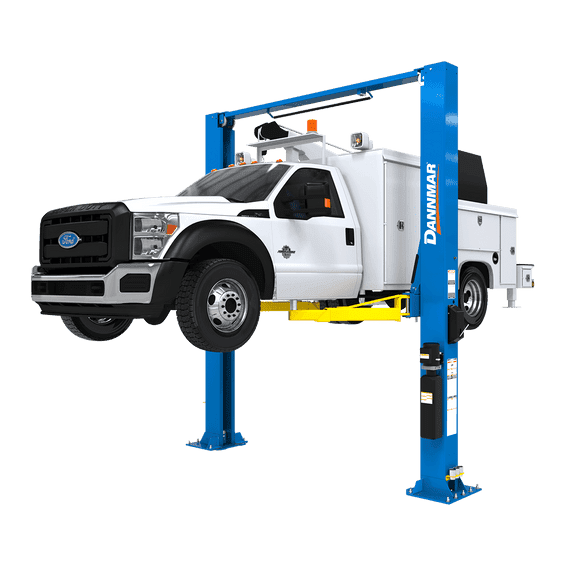

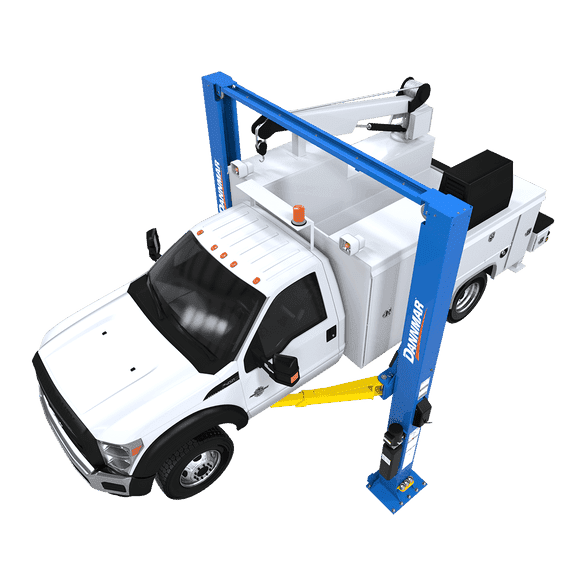

Dannmar D2-15C 15,000-lbs. Capacity Heavy-Duty Two-Post Lift / Symmetric Clearfloor / Triple-Telescoping Arms
Dannmar has the two-post lift you need with large-by-huge lifting power. If many of your truck customers have a variety of 1-ton diesels (or larger) with 4-wheel drive and extra equipment, you might want to consider Dannmar’s two-post D2-15C. This lift is capable of raising a 15,000 lb. vehicle and is well suited for heavy-duty lifting. Plus the two columns are placed farther apart to clear far-reaching towing mirrors. And the good news is that of course this lift also works well on many passenger cars.
Features
15,000-lb. lifting capacity
Padded overhead safety shutoff bar
Single-point safety release
Dual direct-drive hydraulic cylinders
Dual-synchro equalization system for equal lifting
Oversized 53” tall carriage for superior strength
Electric / hydraulic power system
Oversized A36 steel base plates
Self-lubricating Dura-glide UHMW polyethylene bearings
Safety locks in each column spaced every 3”
Automatic arm restraints
Heavy-duty 1/2” aircraft-quality equalizer cables
Specifications
| Actual Door Height (in.) |
96" |
| Actual Door Thickness (in.) : 3" |
3" |
| Style |
Asymmetric |
| SKU# |
5175313 |
| Lifting Capacity |
15,000 lbs. (6,804 kg) |
| Lowered Height + Pad |
6.5" (108 mm) |
| Max. Lift Height (Top Lock) |
83" (2,032 mm) |
| Max. Rise |
69" (1,753 mm) |
| Height Overall |
168.75" (4,286 mm) |
| Width Overall |
155.25" (3,943 mm) |
| Width Outside Columns |
142.5" (3,620 mm) |
