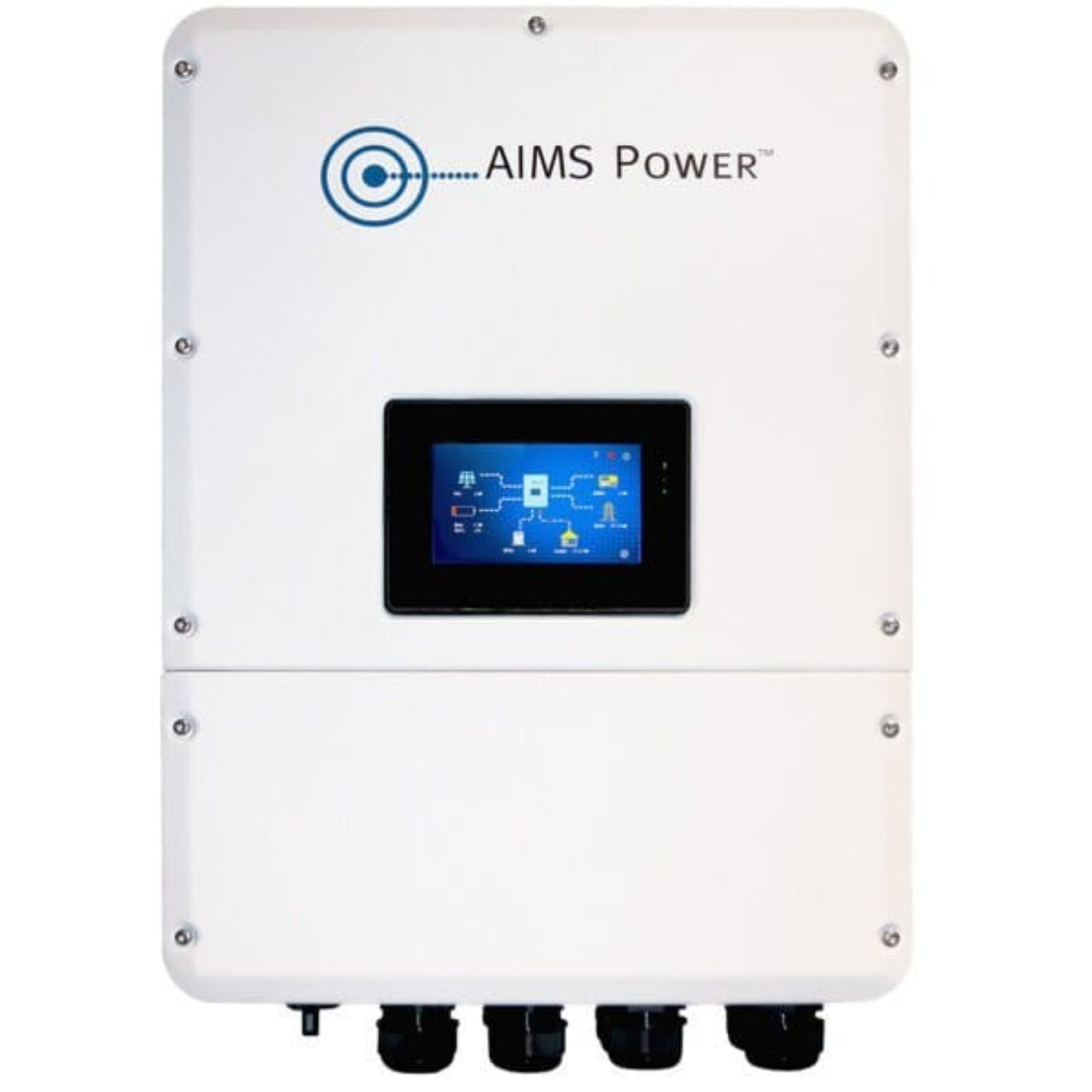

The NEW REVOLUTIONARY AIMS Power Hybrid Inverter gives you total control of your power. It combines solar power and battery backup into one complete, easy to use solution, that provides FREE power and independence from the grid. In addition, the AIMS Power Hybrid Inverter can reduce or eliminate electric bills, provides power during outages, and allows customers to monitor their system from anywhere.

With the easy to use digital touch screen display, the hybrid inverter can be set up using the following simple modes for your convenience:
Self-Use – The panels will power the electrical loads first, for FREE and any excess energy is then used to recharge a battery bank. The remaining energy will go back to the grid.

  • Stackable (Max 6)

  • Direct 3 string PV input

  • IP65 NEMA4X rated for outdoor installation

  • 10-year warranty

  • Customizable DC input voltage for various battery types including lithium and lead

  • Free USA based tech support

  • Wide programmable voltage input range

  • Generator input for backup 240VAC

  • Wide PV input voltage range

  • Load sharing

  • Isolated emergency backup output for defined loads

  • Configurable charge and load times based on local utility recommendations

  • Loaded with safety features

  • Large 5-inch color LCD

  • RS485, CAN, Wi-Fi, 4G

  • Extremely efficient

  • FCC Part 15 Class

PV INPUT PIHY9600 9600 WATT (9.6kW)
Max Input Power (kW) 15
Max PV Voltage (V) 660
MPPT Range (V) 80-550
Nominal Voltage 360
Startup Voltage 100
Max Input Current (A) 15.5 x 3
Max Short Current (A) 26 x 3
BATTERY PORT
Max Charge/Discharge Power (kW) 11.5 | 10.3
Max Charge/Discharge Current(A) 50
Battery Common Voltage (V) 230
Battery Voltage Range(V) 80- 495
Battery Type Lithium | Lead
AC GRID
Max Continuous Power(kVA) 9.6
Max Continuous Current(A) 40 | 46.5
Nominal Grid Voltage (V) 211 to 264 @ 240 | 183 to 229 @ 208 (not 3 phase, split phase)
Nominal Grid Frequency (Hz) 60
Output Power Factor .99 adjustable
Current THD(%) <3
AC BACK-UP & GENERATOR
Max Continuous Power(kVA) 9.6
Max Continuous Current(A) 41 | 46.5
Max Peak Currenty (A)(10 min) 47.9 | 49.5
Max Peak Power(kVA)(10 min) 11.5 | 10.3
Nominal AC Voltage L-L(V) 240 | 208 (not 3 phase)
Nominal AC Voltage L-N(V) 120 | 120
Nominal AC Frequency(Hz) 60
Switching Time(ms) <10
Voltage THD(%) <3
EFFICIENCY
CED Efficiency(%) 97
Max Efficiency(%) 97.6
PV to Battery Efficiency(%) 98.1
Battery between AC Efficiency(%) 96.8
PROTECTION
PV Reverse Polarity Protection YES
Battery Reverse Polarity Protection YES
Over Current/Voltage Protection YES
Anti-Islanding Protection YES
AC Short Circuit Protection YES
Residual Current Detection YES
Ground Fault Monitoring YES
Insulation Resister Detection YES
PV Arc Detection YES
Rapid Shut Down YES
Enclosure Protect Level IP65 | NEMA4X
GENERAL DATA
Cooling Thermal Fan
Relative Humidity 0-100%
Operating Temerature Range -25 to 60C | -77 to 140F
Operating Altitude < 4000 m | <13123 ft without derating
Noise Emission (dB) <40
Stanby Consumption (W) <10
Mounting Wall Bracket
Communication with RSD SUNSPEC
Display & Communication Interfaces Full Color LED, RS485, CAN, Wi-Fi
Certification & Approvals UL 1741 SA | CSA 2202 No. 107-01 |UL 1998 | Rules21 | HECO Rule 14 | IP65 | CEC
EMC FCC Part 15 Class B
Dimensions: 23 3/4″ x 15 3/4″ x 9 1/4″ 55 lbs
  • High Power Capacity: Delivers 9.6 kW output, perfect for powering large residential or commercial systems.
  • Maximized Solar Utilization: Supports up to 15 kW solar input, ensuring efficient energy use and reduced grid reliance.
  • Dual Application: Seamlessly integrates into both grid-tied and off-grid systems for versatile energy management.
  • Space-Saving Design: Combines inverter and charger in one compact unit, simplifying installation and reducing clutter.
  • Reliable Durability: Built to withstand demanding environments, ensuring consistent performance over time.
  • User-Friendly Installation: Streamlined setup process makes it accessible for professional or DIY installations.

Q: What is the power output of the PIHY9600?
A: It delivers a robust 9.6 kW of power output for high-energy demands.

Q: How much solar input does this inverter support?
A: The PIHY9600 supports up to 15 kW of solar input, maximizing energy efficiency.

Q: Can it be used for both off-grid and grid-tied systems?
A: Yes, it is compatible with both off-grid and grid-tied applications for versatile use.

Q: Is the PIHY9600 easy to install?
A: Absolutely, its integrated design simplifies installation, saving time and effort.

Q: Does the inverter withstand harsh conditions?
A: Yes, it’s built with durable materials to ensure reliable performance in tough environments.

  • Keep Vents Clear: Regularly clean vents to ensure proper airflow and prevent overheating.
  • Inspect Connections: Check all wiring and terminals for signs of wear, corrosion, or loose connections.
  • Monitor Performance: Periodically review system performance to identify and address any irregularities.
  • Protect from Moisture: Ensure the inverter is in a dry, well-ventilated location to avoid damage.
  • Firmware Updates: Stay up to date with the latest firmware for optimal functionality.
  • Professional Servicing: Schedule annual inspections with a certified technician to maintain peak performance.
