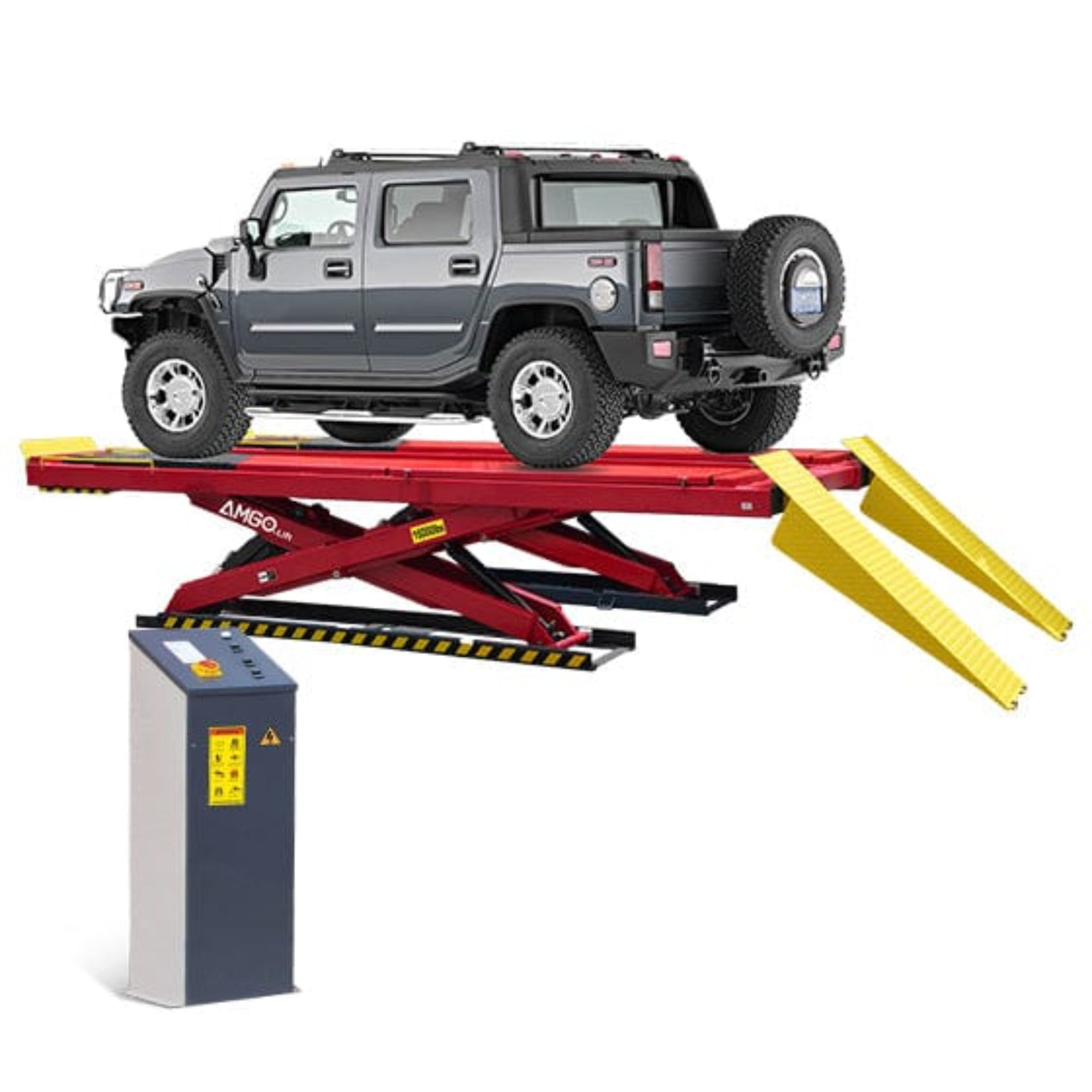

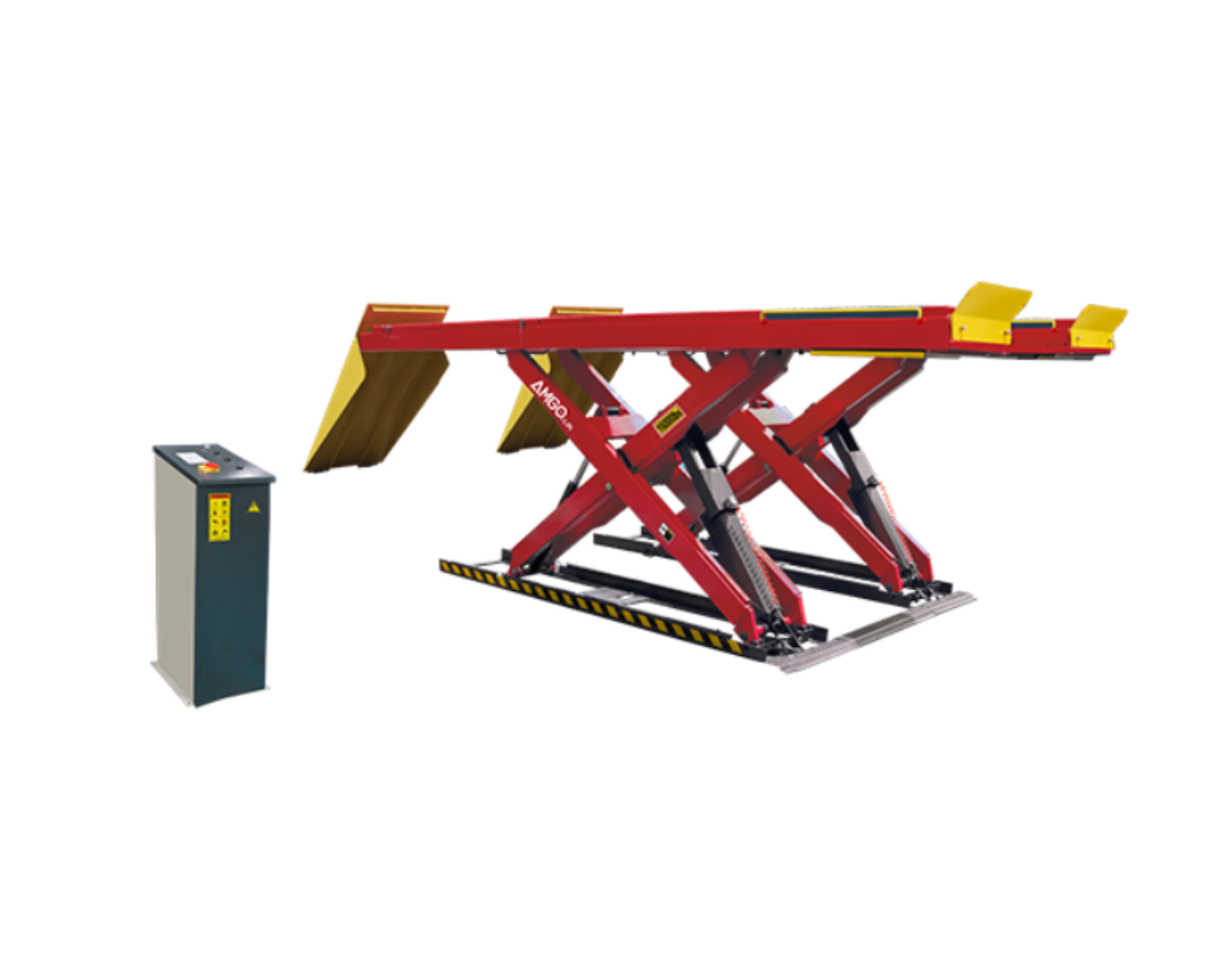

Built with a robust duty structure, the AMGO AX-16A is designed to perform alignment services for wheelbases ranging from 96 to 184 inches, accommodating a wide variety of vehicles—from standard cars to long-wheelbase trucks and vans—with a lifting capacity of up to 16,000 lbs. Featuring both hydraulic and mechanical locks for superior safety, the AX-16A is the ultimate solution for handling demanding tasks. Let me know if you'd like further refinements!

Features

• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8 x 3 (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
• Skid proof diamond platform provides traction for tires to stay put

Specifications

Images

Downloads

AMGO AX-16A 16,000 lbs Alignment Scissor Lift Manual

What our Experts Think

• 16,000 lbs Capacity
  Designed to handle large vehicles including trucks and fleet vehicles with ease.

• Precision Alignment Ready
  Built-in turntable plates and slip plates provide accurate, smooth alignment adjustments.

• Synchronized Lifting
  Dual synchronous cylinders ensure level lifting and stable performance across both platforms.

• Durable Build
  Reinforced tube construction and a powder-coated finish enhance longevity and reliability.

• User-Friendly Operation
  Electro-air control system for smooth, efficient lift engagement and safety lock activation.

Q&A

Q: What is the lifting capacity of the AMGO AX-16A?
A: The AX-16A lifts up to 16,000 lbs, ideal for larger vehicles including trucks and commercial fleets.

Q: Is the AX-16A designed for alignments?
A: Yes, it features built-in slip plates and turntable pockets for precise wheel alignments.

Q: What type of lift is the AX-16A?
A: It’s a full-rise scissor lift with a compact design that saves shop space.

Q: What power does the AX-16A require?
A: It runs on 220V single-phase power.

Maintenance Tips

• Visual Inspection: Check for visible wear, damage, or obstructions on all components.

• Hydraulic System: Ensure there are no leaks and fluid levels are within the recommended range.

• Safety Devices: Test the locking systems and emergency stop functions to confirm proper operation.

 Monthly Maintenance

• Anchor Bolts: Re-torque to the manufacturer’s specifications to maintain stability.

• Lubrication: Apply lubricant to all moving joints, hinges, and rollers to ensure smooth motion and prevent corrosion.

• Hydraulic Hoses: Inspect for cracks, abrasions, or signs of fluid leakage.

• Rollers and Pins: Apply gear oil or a recommended equivalent to reduce wear and extend lifespan.

 Every Six Months

• Structural Check: Examine all welds, joints, and scissor arms for fatigue or wear.

• Cable Tension: Verify that lifting cables are equally tensioned and adjust as necessary for balanced lifting.

• Platform Leveling: Ensure platforms remain level during operation—realign if needed.

• Rubber Pads and Covers: Replace any worn or damaged contact pads or protective elements.
