Autel - ADAS - MA60020T - LDW 2.0 - Mobile Calibration Package - Tablet Included

AUTEL-MA60020T

MA600 LDW 2.0 Package with MS909S2 Tablet includes the MA600 Frame, Targets, Patterns Case, and ADAS Software Upgrade to calibrate Lane Departure Warning (LDW) Systems on Alpha Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus. Includes Toyota LDA target. Includes ADAS Software Upgrade is compatible with the MaxiSYS tablet. System expandable with optional expansion packs for BSM, ACC, AVM, and NV calibration coverage. Includes one-year Limited Warranty.

MA600T LDW 2.0 Features:

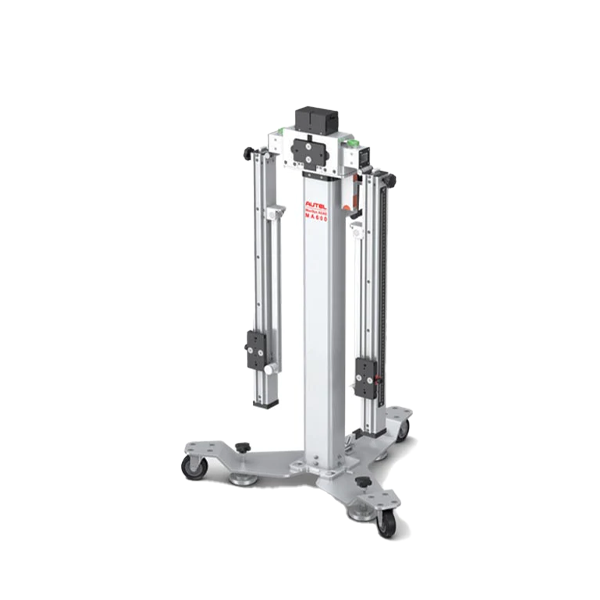

• Includes MA600 Mobile Calibration Frame
• Includes MaxiSYS MS909S 2 Tablet
• Includes LDW Patterns/Targets for Alpha Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
• Includes ADAS Software Upgrade
• Includes Toyota LDA target
• Expandable with optional expansion packs for  BSM, ACC, AVM, and NV calibration coverage
• Includes One-Year Limited Warranty


Package Includes:

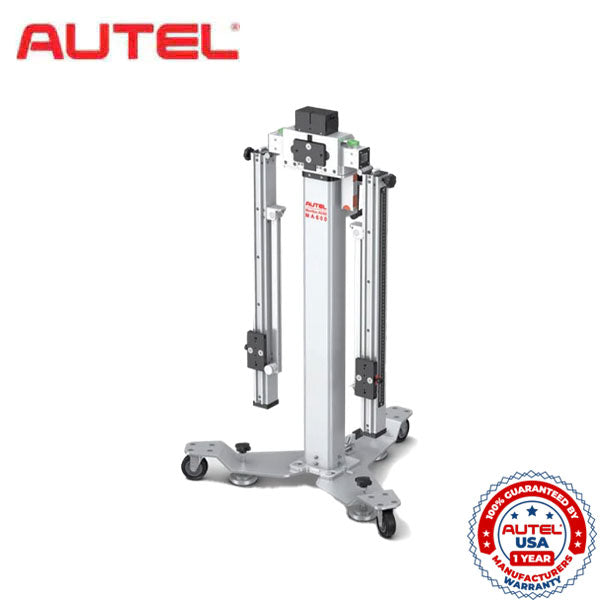

• Autel MA600 Mobile Calibration Frame
• Pattern Board, Wheel Clamps, and Laser Crossbar
• ADAS Upgrade Software, compatible with MaxiSYS MS909 Tablet

• DIGITALADAS Add-on for Faster Frame Placement with One Person
• LDW Patterns/Targets for Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
• LDW Target Case
• Target Board Holder


Pattern Board Specifications:

• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS

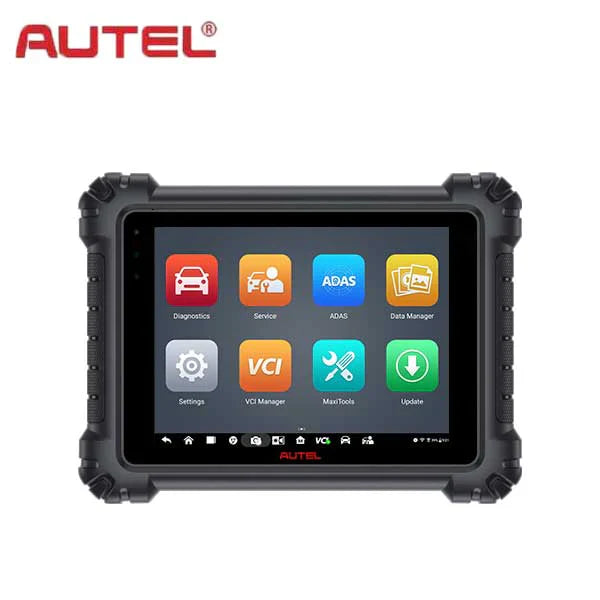

MS909 Features:

• 9.7’’ Touchscreen (1536 x 2048)

• Android 10.0 OS

• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory

• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN

• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)

• Relevant Cases: DTC Troubleshooting / Repair Tips Video Library

• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions

• Code-Related Technical Service Bulletins (on select vehicles)

• License Plate Reader

• ScanVIN: Barcode or Text Recognition with Camera

• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

• Includes Cables, Scope Connectors, Carrying Case

• Enhanced Diagnostic Reports: PreSCAN & PostSCAN

• 15000mAh – 3.8V lithium-polyment battery - 8hrs Continuous Use

• 16MP Rear Camera Autofocus with Flashlight & 5MP Front Camera

• 1-year update subscription and warranty (Both can be renewed)

Compatible With:

• Alpha Romeo

• Audi

• GM

• Honda/Acura

• Hyundai/Kia
• Infiniti

• Lexus

• Mazda

• Mercedes

• Mitsubishi

• Nissan
• Subaru
• Toyota/Lexus

• VW
