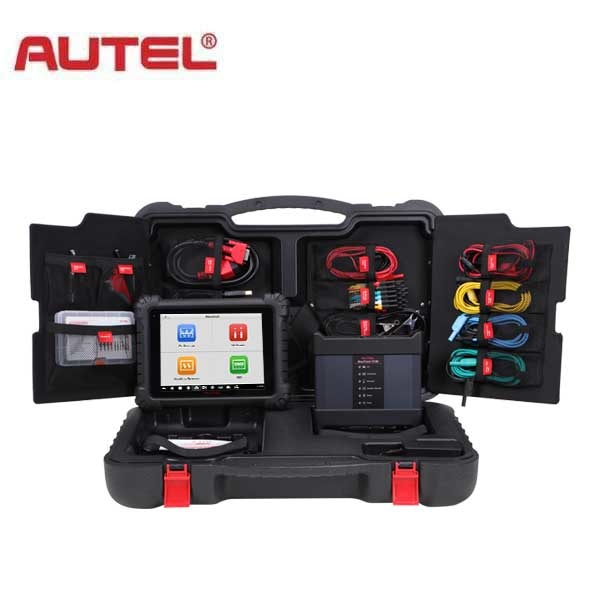

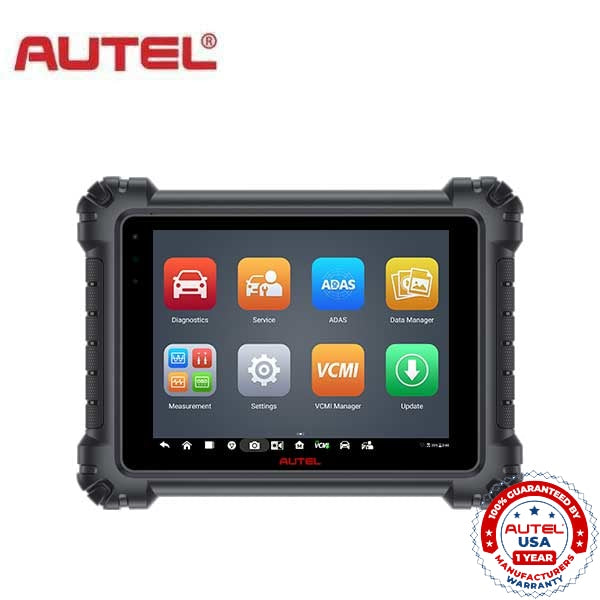

Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System

Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System

review stars 1 Review

17% Sale

Only left!


Free Delivery


Limited Stocks

Regular price $5,694.00 Sale price $4,745.00
Shipping calculated at checkout.

Quantity

View full details
SALE ENDS IN
07 HRS
23 MINS
28 SECS
DON'T MISS IT!

Popular Add on

$100.00

$30.00

$200.00

$70.00

Add-Ons Bundle

$100.00

$30.00

$200.00

$70.00

Bundle Offer

$300.00

$100.00

Recently Viewed

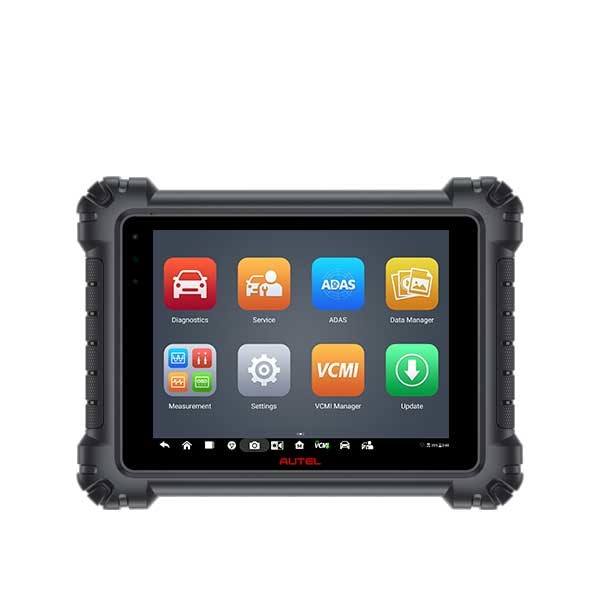

The MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), and 128GB memory. It features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CanBUS tester. The MS919 features a dynamic module topology interface for supported vehicles, coding and adaptation capabilities, Oscilloscope preset guides and tests, and a waveform library. Utilize Remote Expert to contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access. The MS919 features a rechargeable Lithium battery providing 8 hours of continuous use, a convenient docking station, and front and rear cameras.



Features and benefits:

  • 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
  • 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
  • Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
  • Oscilloscope Preset Guided & Component Tests / Waveform Library
  • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
  • Dynamic Module Topology Interface: Color Coded All System Status Screen (for supported vehicles)
  • Cloud-based Report Management: Easily share reports
  • Remote Expert-ready: contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access.
  • ScanVIN: Barcode or Text Recognition with Camera
  • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
  • Includes Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
  • Enhanced Diagnostic Reports: PreSCAN & PostSCAN
  • Dual Wi-Fi Connection
  • 15000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Specifications:

Operating System Android 10.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB
Camera (rear) Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)


Accessories:

Downloads:



Autel USA Tech Support: 855-288-3587
