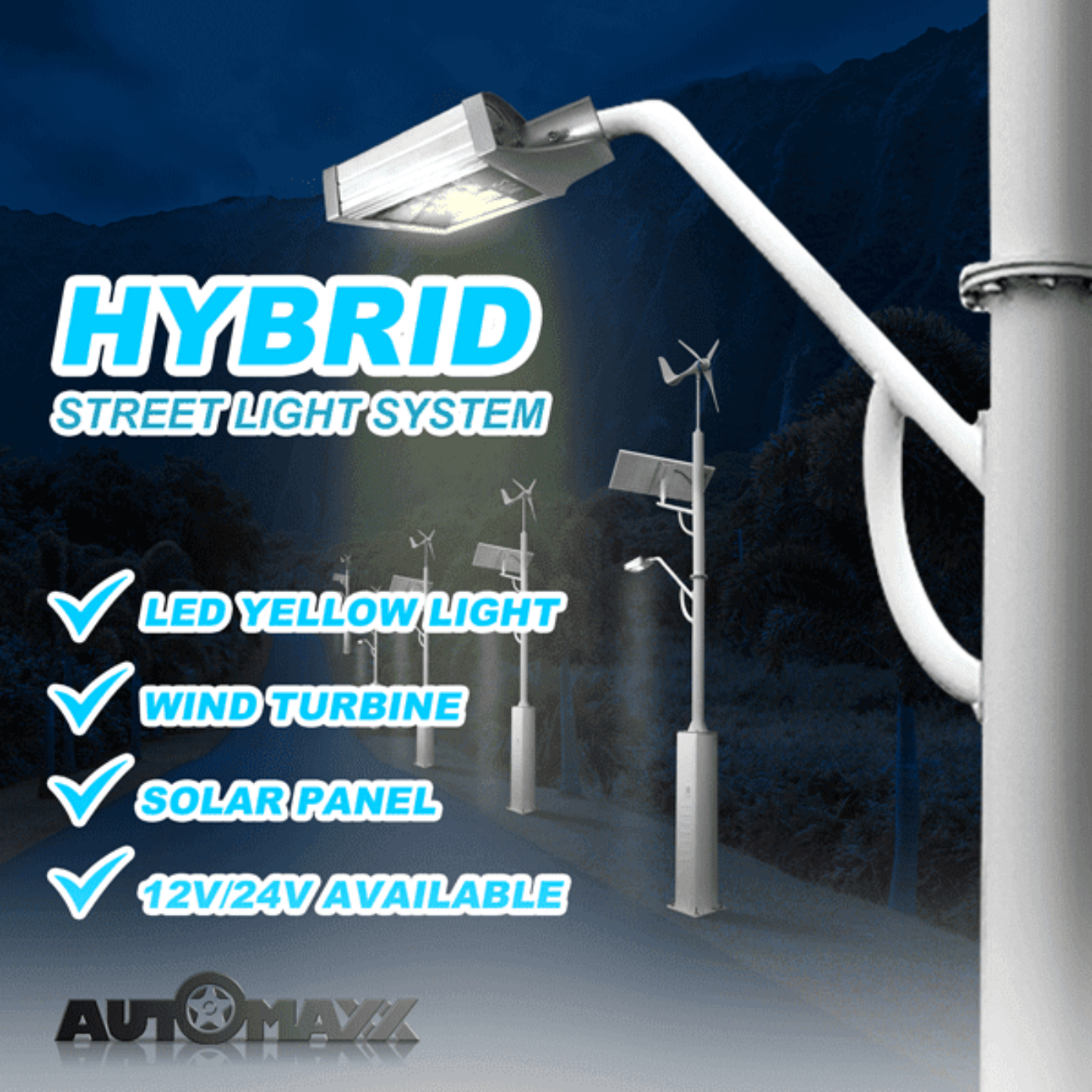

Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W
Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W
Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W
Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W
Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W
Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W
Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W
Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W

Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W

Free Shipping
80 Peoples are also watching that product.
Vendor: Automaxx
SKU: Automaxx-HSLS-WHITE-400W
$2,538.99
$2,700.00
$2,538.99
Light Color: White
Wind Turbine: 400W
Subtotal: $2,538.99
authorized dealer, shop your favorite brand.
Expert Support,

Dial 888-575-2099

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Item are brand New,

Never used.

Recently Viewed Products

Automaxx Hybrid Street Light System - Automaxx-HSLS-WHITE-400W

Go Green, Live Green
Weather Resistant

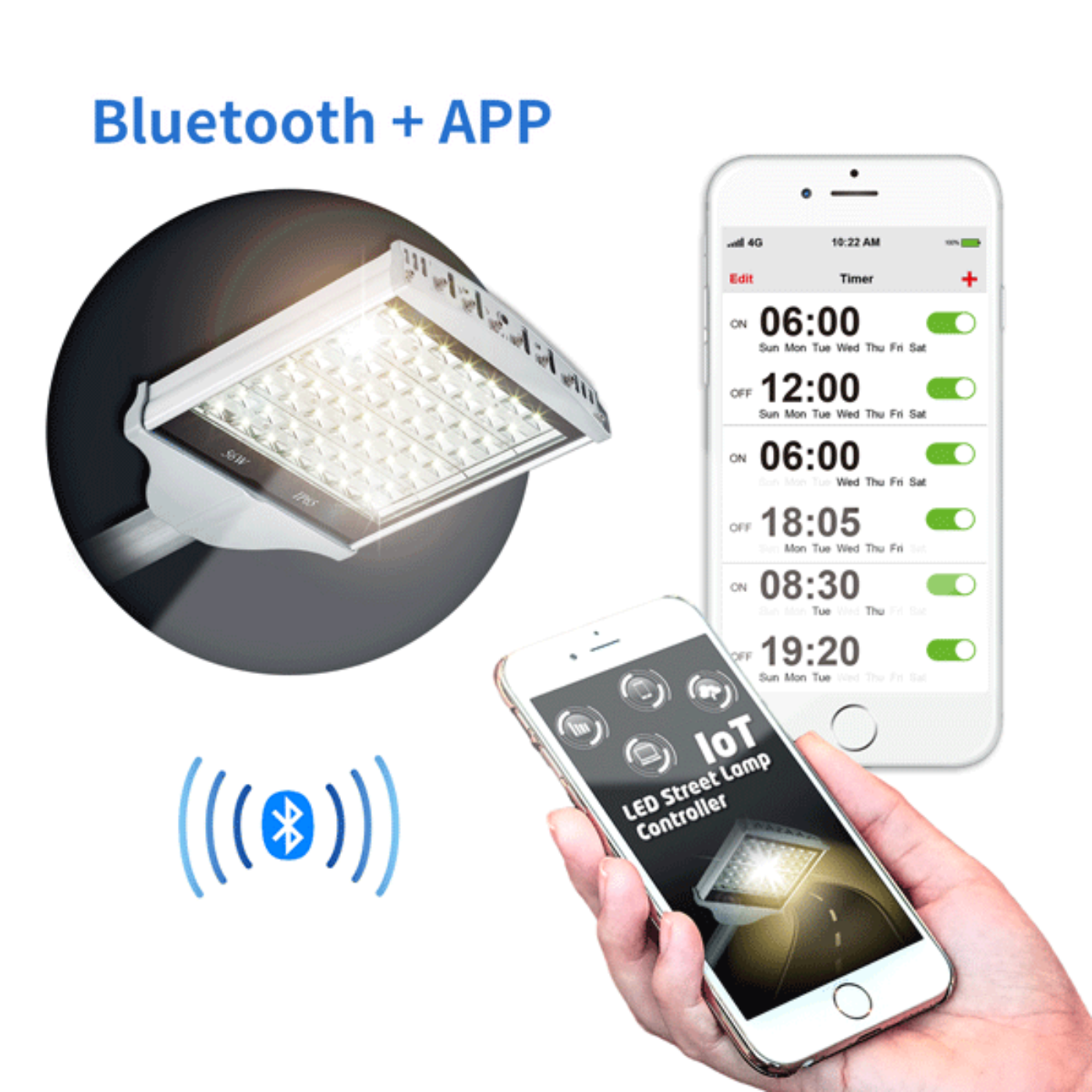

Adjustable Timer System
MPPT + Battery Included
Self-Sufficient Street Light
Auto Adjust LED Light Brightness
Auto + Manual Breaking System

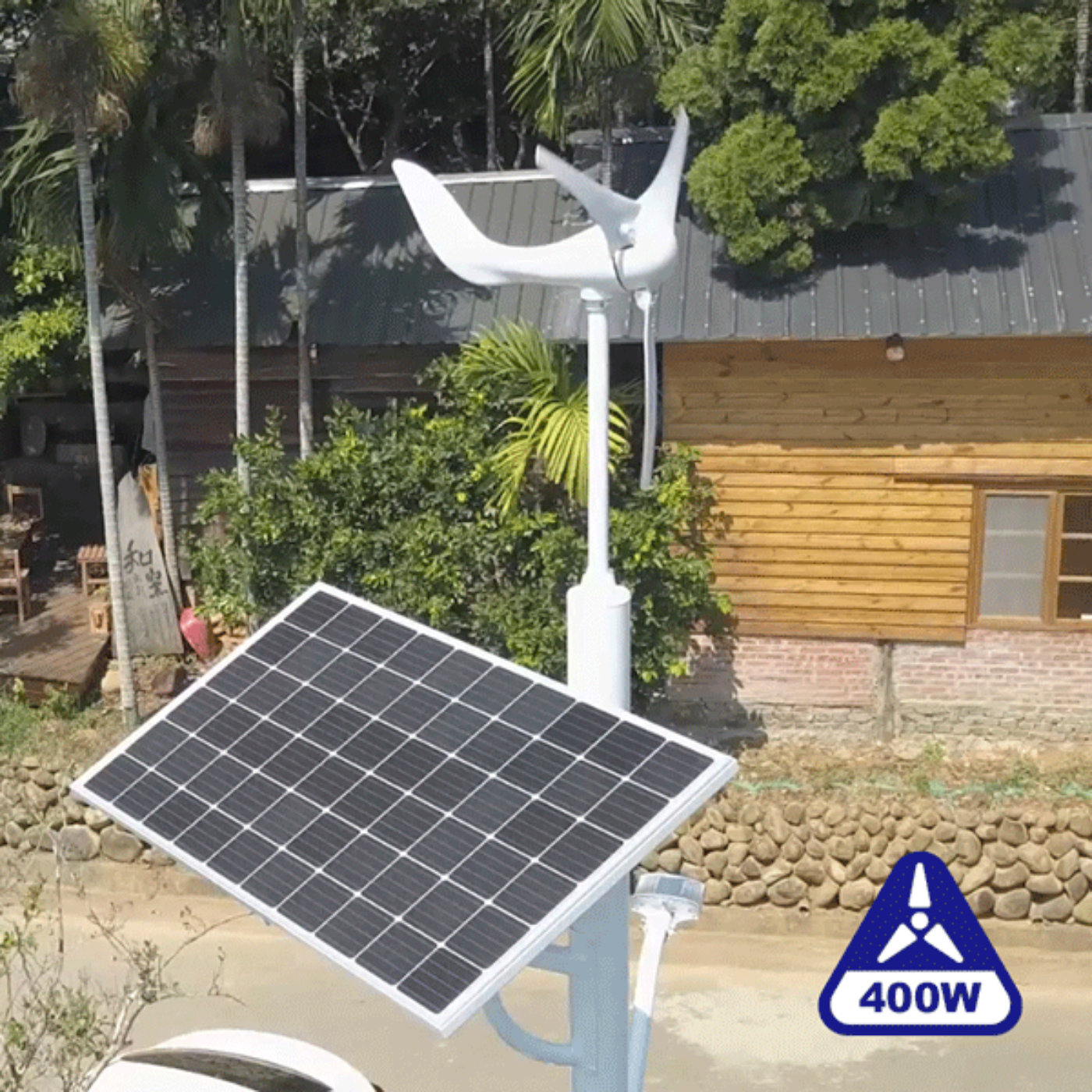

Wind Turbine:
The wind turbine that is mounted on top is durable, low maintenance, and a light wind turbine that can generate more power. Coated with special high weather tolerant spray to protect the wind turbine from the elements such as rain and the harsh UV rays from the sun. It generates 100% clean GREEN renewable energy, without you being present or around it.

MPPT:
The MPPT is specially designed for each wind turbine, the special design allows you to get the most power out of the wind turbine as well as to protect your wind turbine from overcharging.

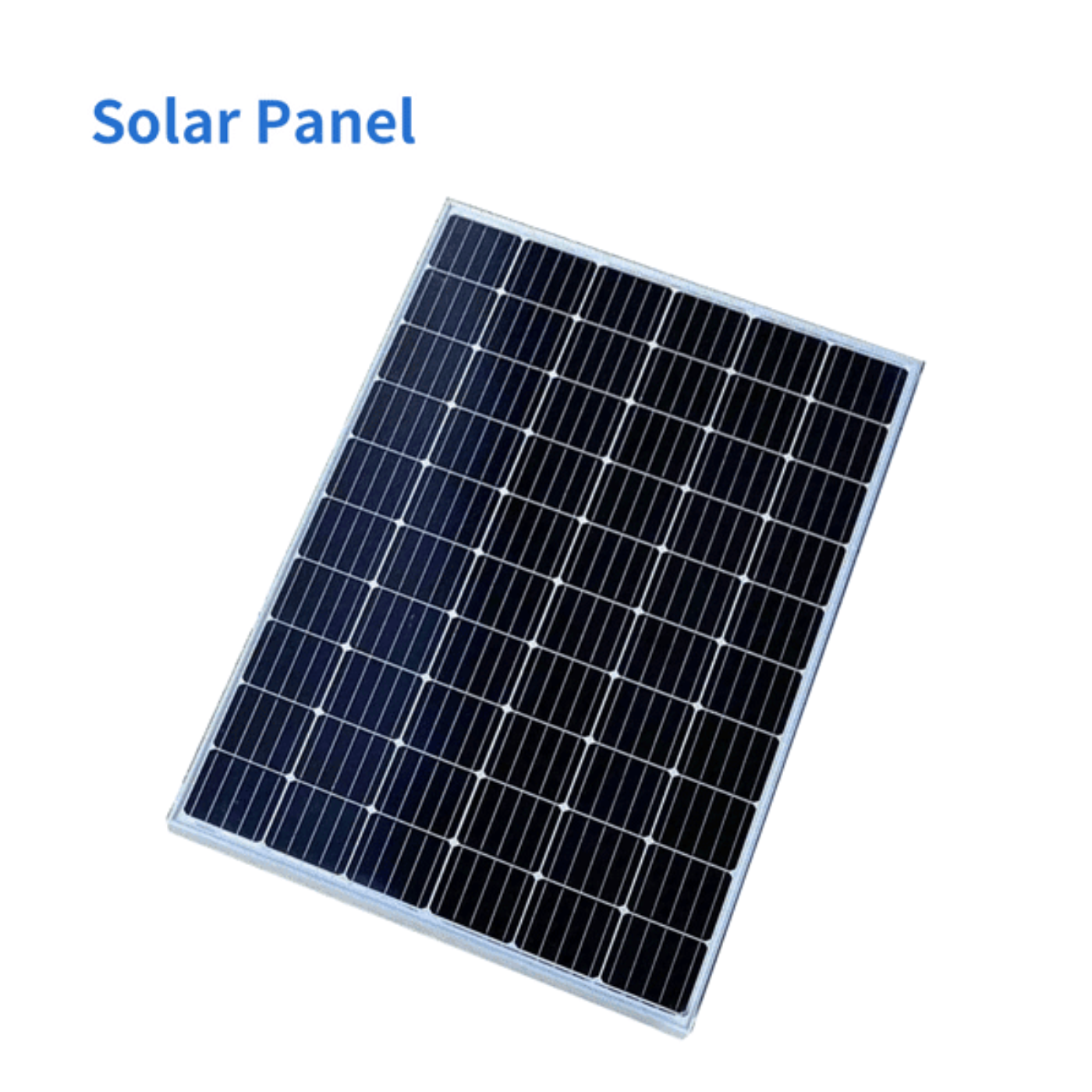

Solar Panel:
The advanced 195W solar panels have a solar efficiency of up to 17.2% with an operating temperature of between -40 degrees centigrade and 85 degrees centigrade. The solar panels are made from high-grade materials that protect the solar panels from weather elements. The solar panel comes with its battery in case the wind turbine were to fail or break the solar panel will still be able to operate by itself.

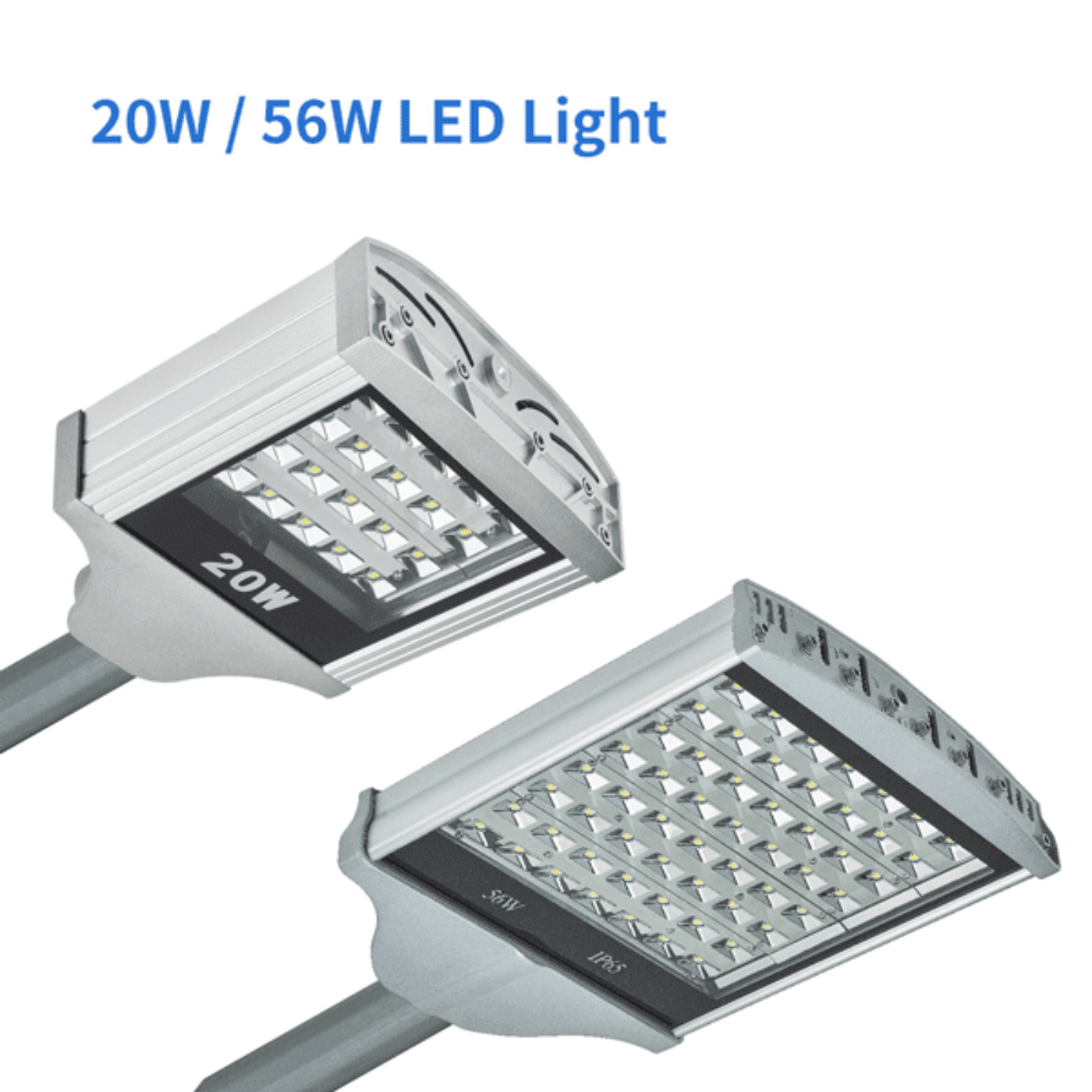

LED Light:
The LED street light has a life cycle of over 30 000 hours (3.42 years). The LED street light uses up to 75% less electricity and is 80% brighter than the normal conventional street light.

Model Number: WS-6CB
SOLAR PANEL
Rated Power: 195W
Open Circuit Voltage: 29.87V
Short Circuit Current: 8.48V
Max. Power Voltage: 23.9V
Max. Power Current: 8.16A
Module Efficiency: 14.95%
Solar Cell Efficiency: 17.2%
Operating Temperature: -40°C ~ +85°C
Dimensions: 1310 x 989 x 45 mm
Weight: 15.7kg

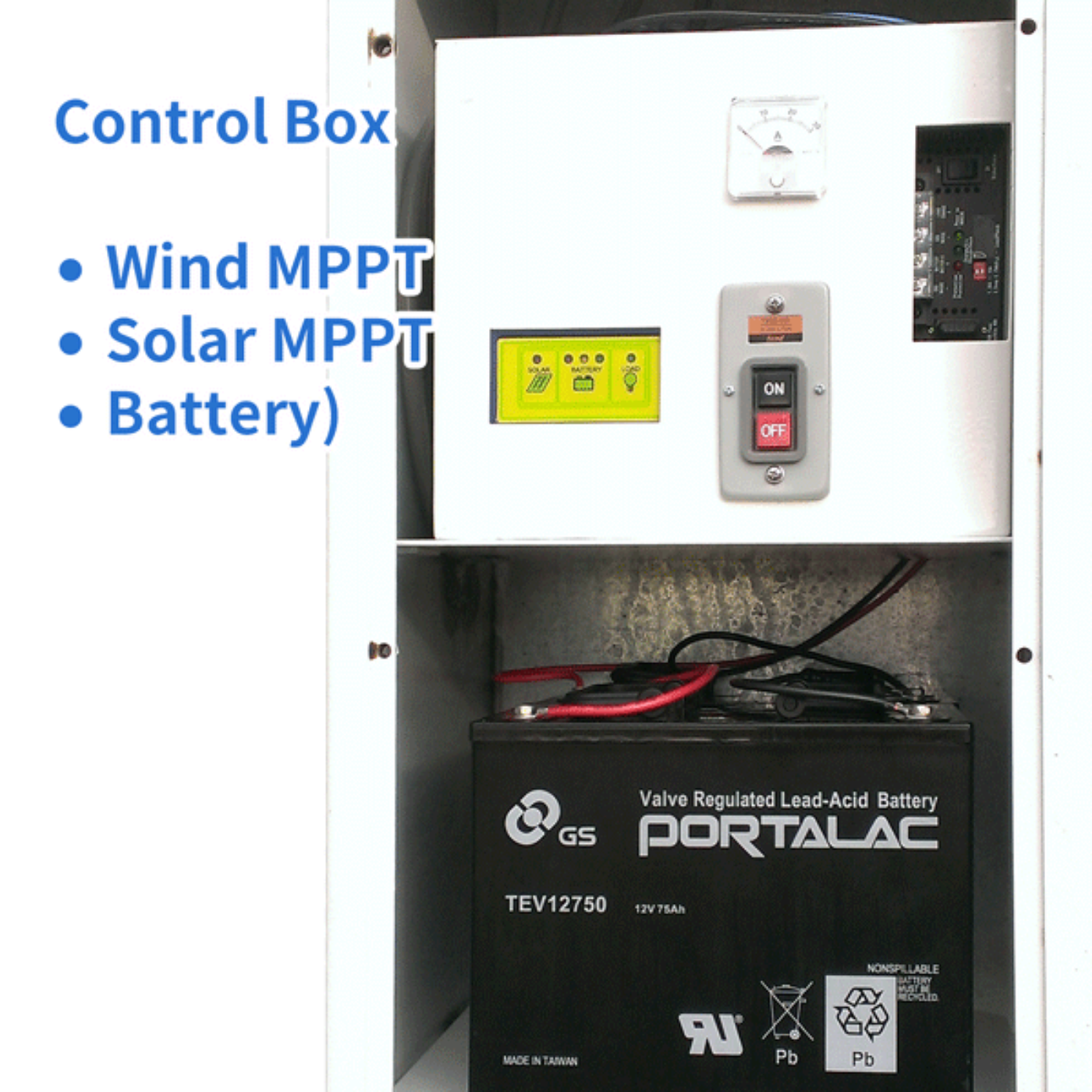

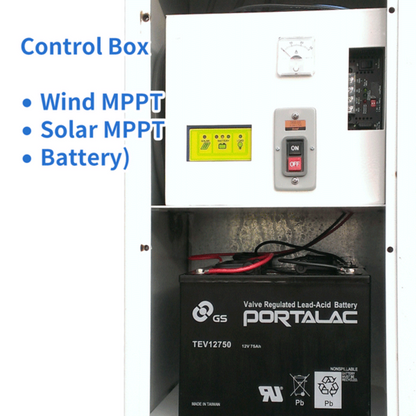

SOLAR MPPT CHARGE CONTROLLER
Rated Power: 200W
Rated Input Current: 5A
Charging Start Voltage: DC 6V
Input Voltage Range: DC 6V – 50V
Output Voltage: DC 12V
Max. Power Current: 16.66A
Max. Power Efficiency: >85%
Battery Low Shutdown: DC 11.5V ± 5%
Battery Floating Charge: DC 13.8V ± 5%
DC Load Current: Max. 16A
DC Load Management: 16 Kinds
Operating Temperature: -20°C ~ +40°C
Dimensions: 200 x 142 x 50 mm
Weight: 1.7kg

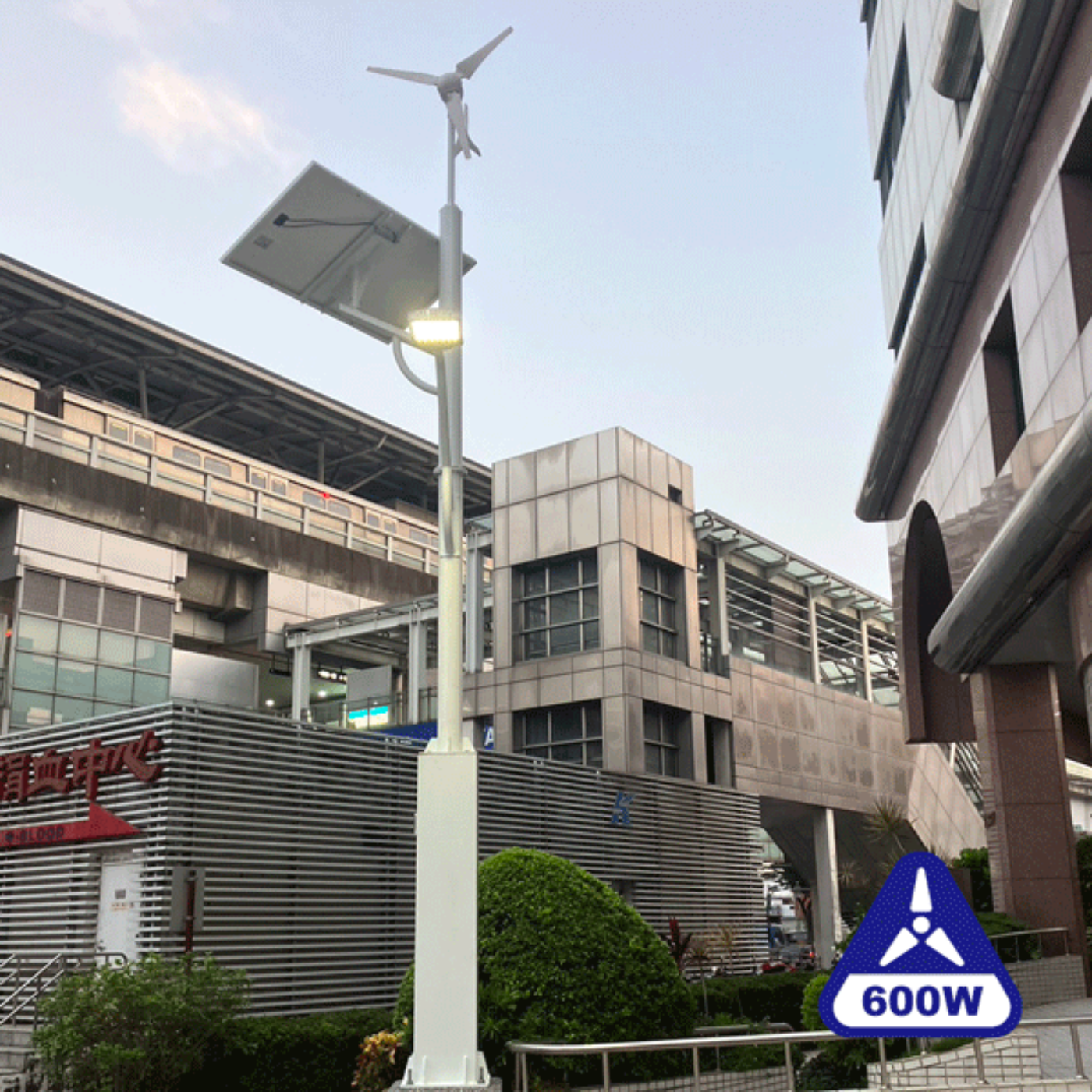

WIND TURBINE 600W
Rated Speed: 12.5m/s (41ft/s)
Rated Power: 600W
Voltage with MPPT: Can detect 12V or 24V
Rotor Diameter: 1.31m (4.2ft)
Cut-In Wind Speed: 2m/s (4.5mph)
Survival Wind Speed: 50m/s (110mph)
Suggested Battery Capacity: >100 A/Hr
MPPT Charge Controller: External (Included)
Generator: 3 phrase AC
Number Of Blades: 3
Blade Material: PP + Glass Fiber
Weight: 9Kg
WIND TURBINE 600W MPPT CHARGE CONTROLLER
Output Power: 12V/24V Auto-Detect
Input Voltage Range: 5 ~ 75 VRMS
Voltage with MPPT: Can detect 12V or 24V
Charging Efficiency: >97% ~ 99%
Battery Protection Voltage: 12V – 14.4V (Lead-Acid Batteries)
15.8V (Deep-Cycle Batteries)
24V – 28.8V (Lead-Acid Batteries)
30V (Deep-Cycle Batteries)
Rated Load Current: Max. 35A
Over-speed Braking: ≦1400RPM
LED Street Light
Rated Power: 55W±5
Operating Voltage: DC 12V
Operating Current: 3.75A
Color Temperature: 5000K (3000K)
Output Luminous: >5100LM (White)
Color Rendering Index: Ra≧80
Effective Illuminated Area: >20M x 8M
Life Cycle: >30000 hours
Optical Decline Rate: 3000 Hrs < 10%
Illuminance as Distance: 73LUX (4m high)
Operating Humidity: 10 ~ 95%
Operating Temperature: -40°C ~ +50°C
Dimension: 440 x 225 x 120 mm
Weight: 6.5 kg
BATTERY
Nominal Voltage: DC 12V
Capacity: 75A/HR x 2 (150A/HR)
Life Cycle: >200 Times
DIN Type Battery: 5.2 L
Terminal Type: B2
Operating Temperature: -20°C ~ +50°C
Dimension: 260 x 168 x 223 mm
Weight: 26 kg


General
We warrant your product to be free from defects in material and/or workmanship for 2 year from the original date of purchase. Warranty coverage is extended only to the customer (original purchaser). If the product proves defective during the warranty period, Automaxx option will be:

  1. Replace wind turbines with a new or refurbished product.
  2. Repair or replace the defective part.

The customer’s warranty continues to be valid on repaired or replaced products from the original warranty date.

Warranty Period
The Automaxx warranty valid for the period of two year (730 days) after the date of first purchase.  If proof of purchase cannot be provided, the manufacturer date as recorded by Automaxx will be deemed to be the start of the Warranty Period.730

What is covered and what’s not?
All Automaxx products and accessories that are purchased from Automaxx website are covered for two year.
The warranty covers defects in manufacturing discovered while using the product as recommended by the manufacturer. The warranty does not apply to

  • Product, equipment, or accessories that not purchased from the Automaxx.
  • Product that has been tampered with, repaired, modified or altered other than by manufacturer or without prior
  • manufacturer’s approval.
  • Damage to the Product caused by windstorms (upwards of Beaufort Wind Scale 7), lightning and Hail damage.
  • Damage to the Product caused by improper installation, negligence, accidents damage, misuse, or abuse.
  • The serial number of the Product, components or accessories has been altered or removed.
  • The Warranty seals have been broken or altered.
  • Fraud, theft, unexplained disappearance, or damages / detrimental circumstances caused by an willful act of the customer.
  • All acts of God

Any service identified in the above list or product is found not to have any defect in manufacturers’ workmanship or materials the customer will be responsible for the costs of all repairs and expenses incurred by the manufacturer.
If the Product is under Warranty, You hereby agree to transfer the ownership of replaced defective parts/ accessories and such parts shall automatically become the property of Automaxx and returned to Automaxx for inspection.

Customer Responsibility When using the Product

  • Read the user manual first and use the product according to the user manual.
  • Please check the manual and the Automaxx website for troubleshooting solutions, if you notice something abnormal/ unusual with the product or contact Automaxx customer service.
  • Keep the original packaging. In case the Product needs to be returned for repair/ replacement, original packaging provides a better protection for the Product during transportation.
  • Contacting Automaxx customer service, Fill the investigation form and describe the problem clearly.

Automaxx Hybrid Street Light System FAQs

Why Use Our Hybrid System?

Solar and wind are clean sources of renewable energy that produce no air or water pollution. Solar and wind are free and since the operational costs are close to zero once a hybrid is erected therefore demands mass production and technological advances are making turbines cheaper and more versatile.

Digisine strives at being the leader in the wind hybrid industry. We don’t only see the demand for wind turbines and solar panels but the need to reinvent them. We understand that everyone wants to look good and be different. We then took the innovative initiative to re-engineer the concept of wind turbines and solar panels as a whole making them more stylish, more efficient, and into a size that the average light pole size fits in places like parking lots.

The genius reasoning behind combining both wind and solar power is when there is no sun it is usually windy (night times and rain) and when it’s not windy it’s usually sunny. This way the hybrid system is always able to generate power in any weather conditions

How To Use Our Hybrid System?

We supply you with all the necessary parts and tools to install the wind turbine and solar panel. All our hybrid systems come with instructions on how to operate the hybrid system. Once fully installed the wind spins the glass fiber blades, which turns a shaft that is connected to a generator that converts kinetic energy into clean, free, renewable electricity which is then either directly used or stored for later use. All the while the solar panels are working independently to gather power from the sun too.
