The Jazz 80 is the latest highlight from Cayin. A handmade tube amplifier that adds wireless music playback to the portfolio, but at the same time has been designed and manufactured to the highest Cayin standards. The Jazz 80 comes in a solid design, with high-quality workmanship throughout and made from selected components.

The excellently crafted, deep glossy case is probably the first thing that positively strikes the observer. This metallic dress looks good, but at the same time provides the necessary protection for the valuable electronics. Nevertheless, the attention first falls on the total of eight tubes. In the rear area, that would be four KT88 output tubes. They provide the power amplification. In the row in front of them are four identical looking, smaller glowing tubes. However, a closer look reveals that they are two different models: Two 12AU7s sitting on the outside and the two 12AX7s placed in the middle. While the 12AX7s act as preamp tubes and amplify the voltage level of incoming music signals, the 12AU7s serve as phase splitters and drivers for the KT88s. In keeping with this, the developers have placed emphasis on a cage that has been painted in the same color as the cabinet. This appears a bit more modern than known from the competition and it protects the high-quality tubes from mechanical damage. As if all that were not enough, the Jazz 80 stands on four shock-absorbing feet.

Specialized all-rounder

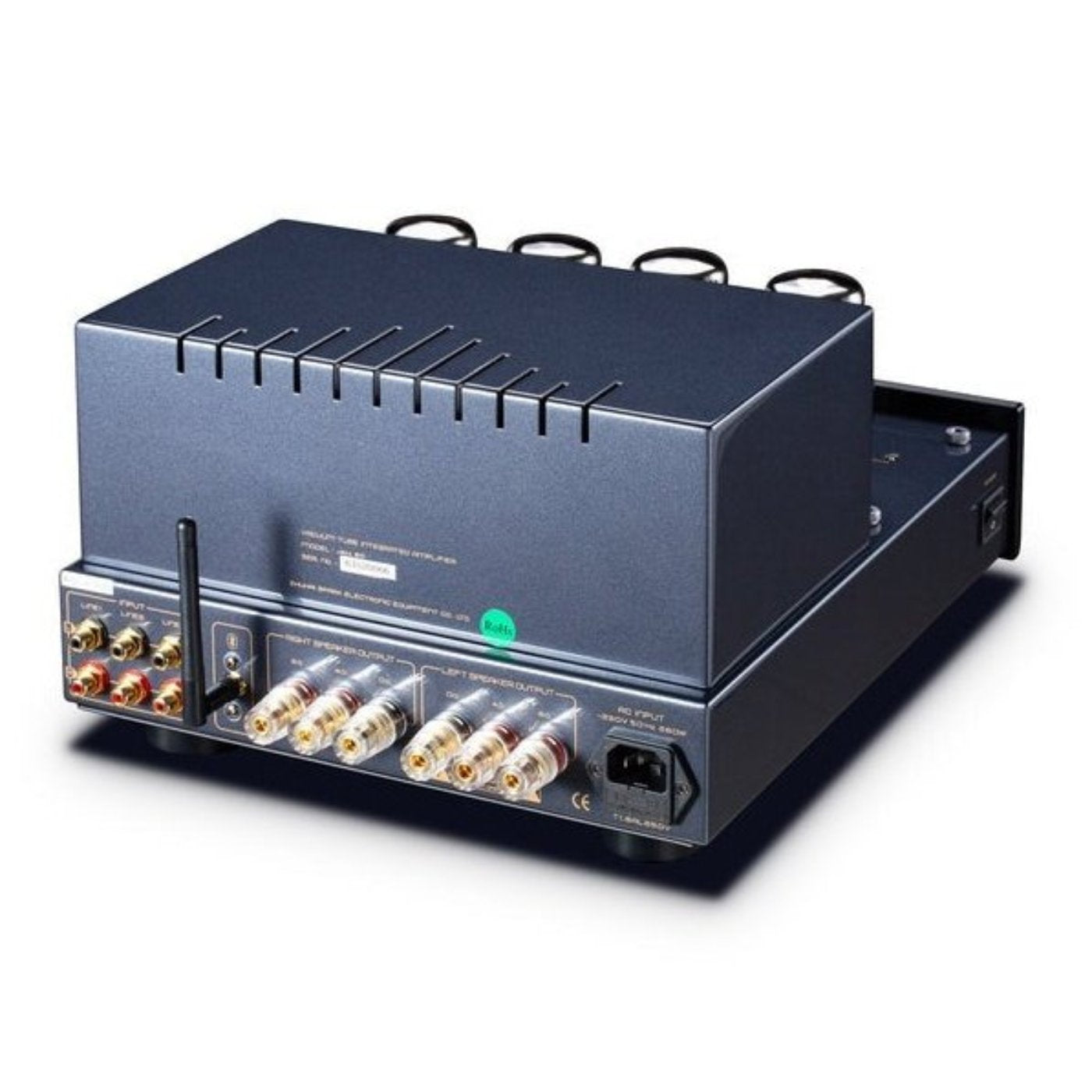

As usual from Cayin, the Jazz 80 is also a finely specialized all-rounder. This means that it is prepared in such a way that it can drive any loudspeaker to maximum performance. The current output power is displayed quite classically via two orange backlit VU meters. No matter which transducer is connected, the user always experiences the same, neutral and precise Cayin sound signature. To ensure the same in any room and with any speaker, the Jazz 80 is tuned to provide sufficient power to both 4 ohm and 8 ohm impedance players. For this purpose, the Cayin has solid and gold-plated screw terminals on its rear panel that accept cable lugs, bananas as well as unassembled cables. Music signals find their way into the Jazz 80 via three analog inputs, and a 6.5-millimeter output on the front is used for audio transmission to headphones.

Bluetooth/LDAC

In addition, there is a Bluetooth module, thanks to which this tube amplifier is also able to communicate wirelessly with appropriate players such as smartphone, tablet, laptop or even the TV. This turns the HiFi specialist into a modern audio center. The connection setup is very simple: If the input source "Bluetooth" is selected, the small blue LED flashes. At the same time, the Cayin identifies itself as "Cayin HD BT" to its potential play partners. Now, a tap of the finger is all it takes to connect the external player and Jazz 80 wirelessly. The transmission is done via LDAC codec. LDAC stands for "Low Delay Audio Codec" and allows the wireless transfer of high-resolution audio content at a maximum transfer rate of up to 990 kbps. This should especially please smartphone owners with Android operating systems from version 8.0.

Ultralinear and Triode mode

To really meet all requirements, the Jazz 80 can be operated in both Ultralinear mode and Triode mode. This makes the amplifier even more flexible. Both modes each have their own sound characteristics. With its pre-installed KT88 output tubes, the Cayin outputs 2×20 watts in Triode mode. In Ultralinear mode, on the other hand, it's even a whopping 2×40 watts of power. The switchover is easily done via a small toggle switch, which finds its place directly in front of the two 12AX7 tubes. In this context, an important, although not directly visible, feature must also be mentioned: The power supply. Even if the sales price doesn't necessarily suggest it, the Cayin developers have made full use of their resources here and given the Jazz 80 an elaborately designed power supply including a filter choke.

Bias circuit

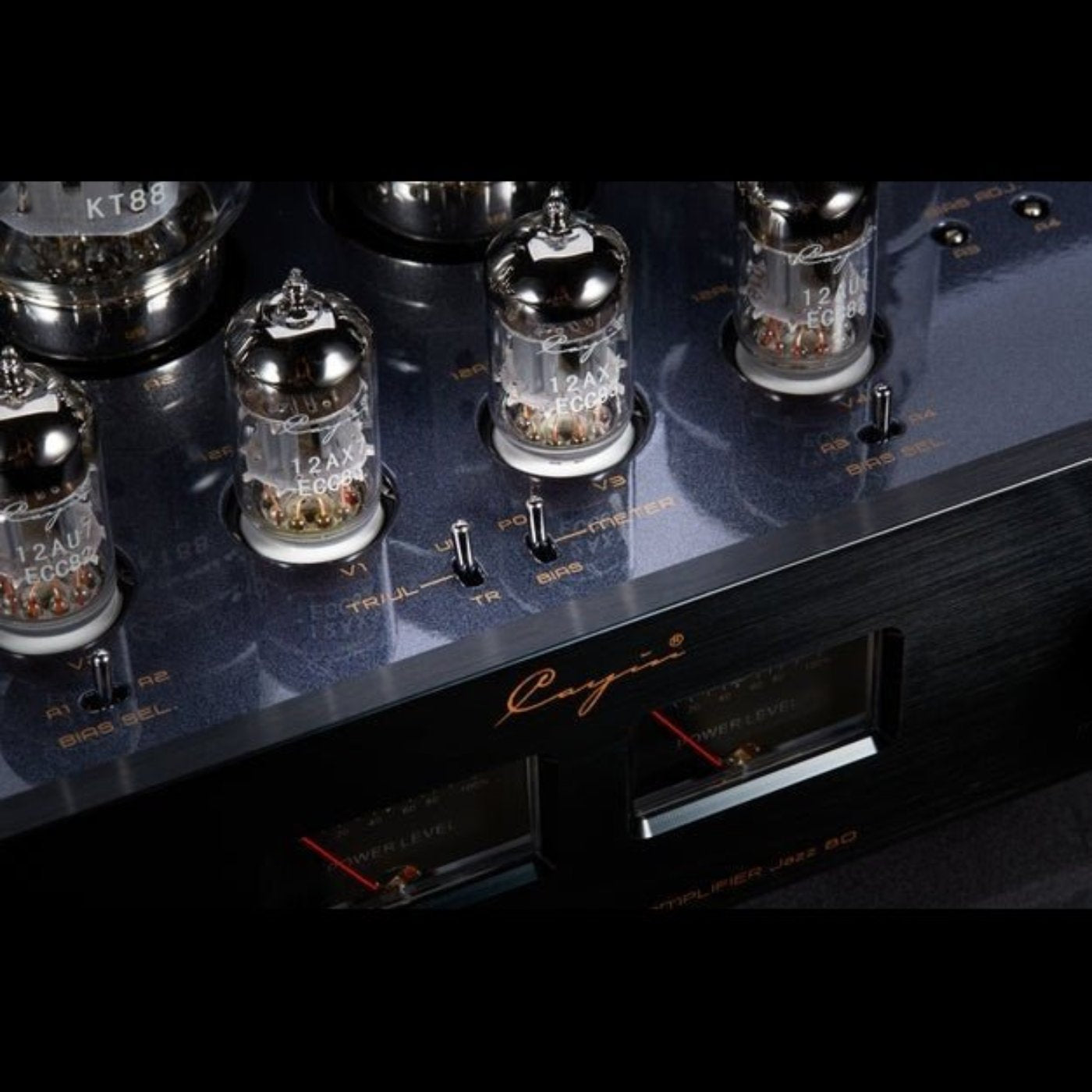

Right next to it, there are three more toggle switches, one on the left and two on the right. They help to control the correct bias setting. This can be adjusted individually for each output tube via trim potentiometer. The three said levers are then used to check the changes made. The center toggle switch turns the left VU meter into the control element for bias adjustment. The left lever (A1/A2) controls the tubes for the left channel and the right one (A3/A4) controls those of the right channel. All this serves for perfect control of each tube and at the same time for clean balancing of all channels.

Simple Operation

As usual from Cayin, the operation of this tube integrated amplifier is intuitive and self-explanatory. The Jazz 80 is switched on via a small switch in the left side panel. A gentle click and the lighting up of the VU meter reveals basic readiness for use. As long as the small LED indicator in the volume control is blinking, the soft start is running. So the Cayin is warming up first. If the LED is permanently lit, the system is ready to go. The input selection can now be made either via the rotary control on the left in the front or via the input button on the high-quality aluminum remote control. The Jazz 80 is similarly open when it comes to volume selection. This can be done either via the level control on the right or via infrared remote control.

Multiple Choice:

Cayin offers four choices of Jazz 80. You can choose to have Standard KT88 Tube version or EL34 Version. Furthermore you can choose to have Black version or Silver Version.

Features

• Exquisite Craftsmanship: The Cayin Jazz 80 boasts a stunning glossy case design crafted with meticulous attention to detail, ensuring durability and aesthetic appeal. Its modern metallic cage protects the eight tubes, including four KT88 output tubes, two 12AU7s, and two 12AX7s, while shock-absorbing feet minimize vibrations.

• Versatile Connectivity: With three analog inputs and Bluetooth V5.0 support, including LDAC codec compatibility, the Jazz 80 seamlessly connects to various audio sources, including smartphones, tablets, and laptops, offering wireless audio streaming with high-resolution quality.

• Flexible Operation Modes: Users can select between Ultralinear and Triode modes to tailor the amplifier's sound characteristics to their preferences. The Triode mode delivers 2x20 watts (KT88) or 2x18 watts (EL34), while the Ultralinear mode provides a robust 2x40 watts (KT88) or 2x36 watts (EL34), ensuring versatility for different listening scenarios.

• Precise Bias Adjustment: The Jazz 80 features a bias adjustment circuit with toggle switches for each output tube, enabling users to fine-tune bias settings individually. This ensures optimal tube performance and balanced channel operation.

• Intuitive Controls: With intuitive rotary controls and a high-quality aluminum remote, operation of the Jazz 80 is simple and user-friendly. The soft-start function ensures gentle power-up, while input selection and volume adjustment can be easily managed.
