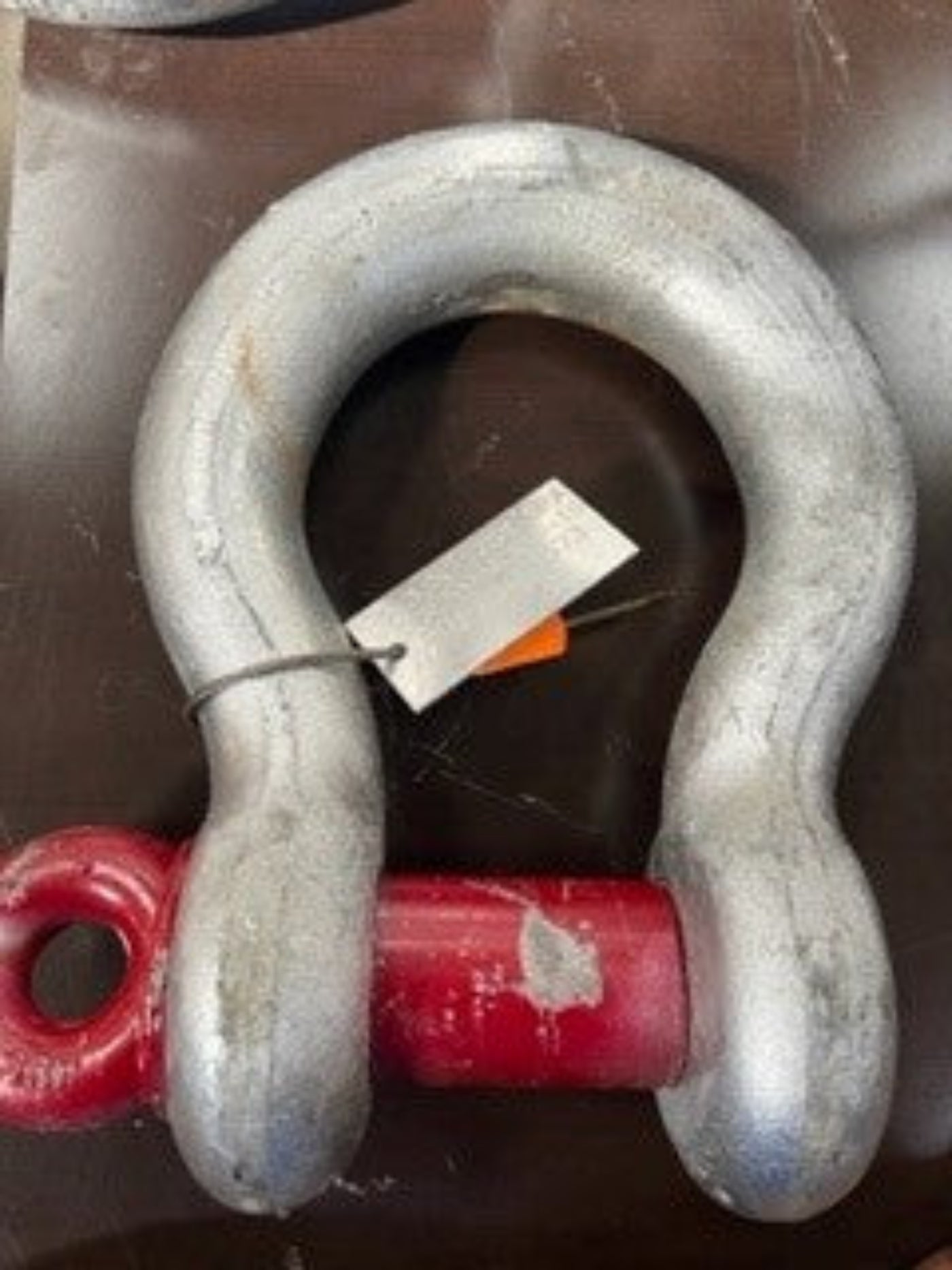

Miller Welding G-209 1-3/4 inch Load Tested Screw Pin Anchor Shackle-25 Ton WLL-Reconditioned - 1018632 LT

Miller Welding G-209 1-3/4 inch Load Tested Screw Pin Anchor Shackle-25 Ton WLL-Reconditioned - 1018632 LT

Load Tested at 125%

Meets performance requirements of Grade 6 shackles

Forged, Quenched & Tempered, with alloy pins

Working Load Limit and Grade 6 permanently shown on every shackle

Hot-dip galvanized (G)

Sizes 3/8" and below are mechanically galvanized

Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles

Shackles 25t and larger are RFID equipped

Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification; proof testing and certification available when requested at the time of order, charges will apply

Approved for use at -40° C (-40° F) to 204° C (400° F)

All 209 and 210 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg. at -20° C (-4° F) upon special request

Meets or exceeds all requirements of ASME B30.26

Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available; certificates available when requested at time of order and may include additional charges

G-209 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor

Look for the Red Pin... the mark of genuine Crosby quality

Specifications

MPN: 1018632 Model - G-209 Size - 1-3/4" Type - Screw Pin Anchor Material - Carbon Steel WLL (tons) - 25 WLL (lbs) - 55,000 Safety Factor - 6:1 Inside Length - 7.00" Inside Width - 5.00" Throat Opening - 2.88" Pin Diameter - 2.00" Approx. Weight (lbs) - 27.78
