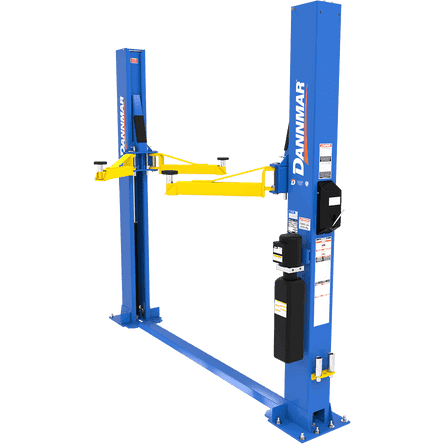

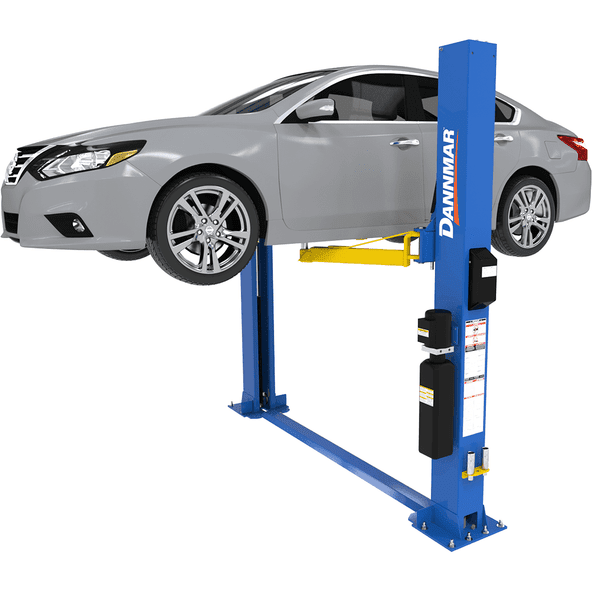

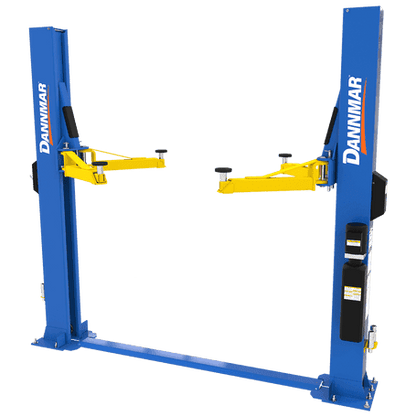

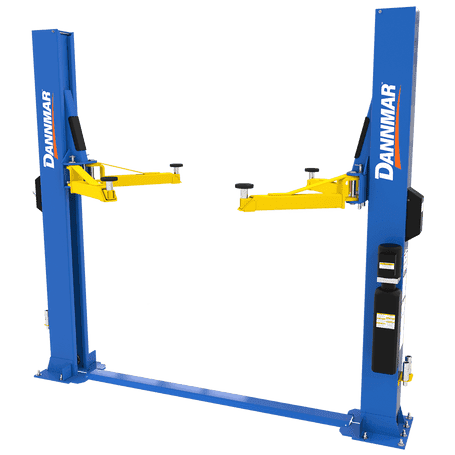

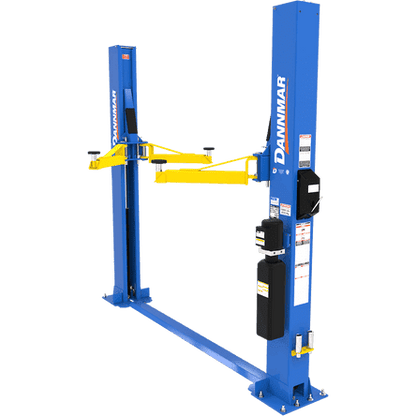

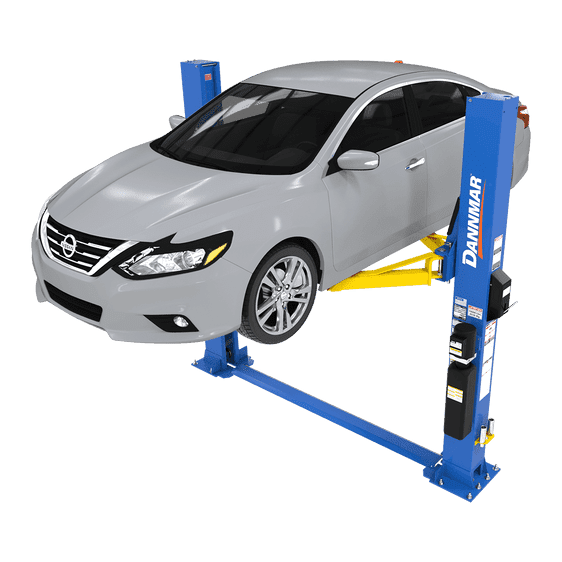

Dannmar’s tube arms have been redesigned to make it easier to open doors when vehicle lift points are engaged. This is especially useful if your vehicle has low-opening doors. Dannmar makes every effort to prevent damage to your vehicle’s body with the two-post lift design.
Electric / hydraulic power system
Large, 17" x 19" A36 steel base plate
Self-lubricating dura-glide UHMW polyethylene bearings
Safety locks in each column spaced every 3”
Automatic arm restraints
Heavy-duty 1/2" aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue
4-piece 63 mm stackable adapter set comes standard
Telescoping arm design for more versatile arm positioning
Single-point safety release
Drop-end arms provide a lower pad height
Dual hydraulic direct-drive cylinders
Actual Door Height (in.) | 96" |
---|---|
Actual Door Thickness (in.) : 3" | 3" |
Style | Floorplate |
SKU# | 5175316 |
Lifting Capacity | 8,000 lbs. (3,629 kg) |
Lowered Height + Pad | 4.25” (108 mm) |
Max. Lift Height (Top Lock) | 80.5” (2,045 mm) |
Max. Rise | 72” (1,829 mm) |
Height Overall | 113” (2,870 mm) |
Width Overall | 132” (3,353 mm) or 145” (3,683 mm) |
Width Outside Columns | 142.5" (3,620 mm) |
