Dannmar D4-12A 12,000-lbs. Capacity Alignment Four-Post Lift / Includes Slip Plates

Dannmar D4-12A 12,000-lbs. Capacity Alignment Four-Post Lift / Includes Slip Plates

by Dannmar
SKU
Save 6% Save 6%
$8,284.00
$8,284.00 - $8,284.00
$8,284.00
$7,786.99
$7,786.99 - $7,786.99
$7,786.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

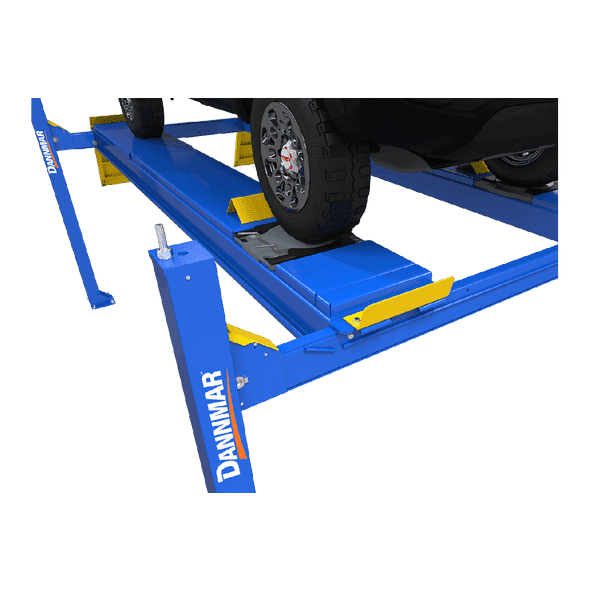

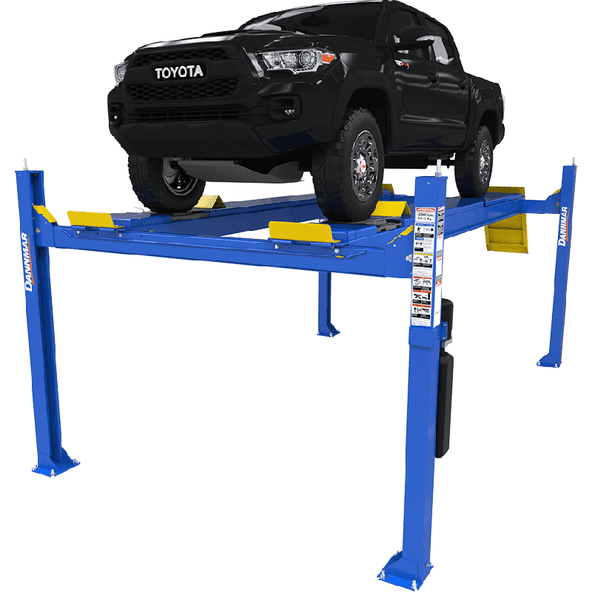

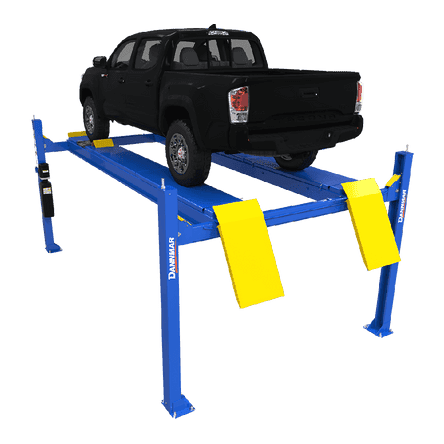

Dannmar D4-12A 12,000-lbs. Capacity Alignment Four-Post Lift / Includes Slip Plates and Turnplates

The Dannmar D4-12A alignment lift comes standard with robust 10.5” diameter dual-hub cable sheaves within the runway and cross tubes and 2.25” diameter sheave axles. A heavy-duty 1/2” diameter aircraft-quality stainless-steel lifting cable runs through each of the four columns. Designed for non-stop use and totally resistant to rubbing and other abrasions from weather, chemicals, and hydraulic oil. Aircraft-quality stainless steel and aluminum pneumatic cylinders provide years of trouble-free service. Other features include electric/hydraulic power, push button pneumatic lock release, adjustable height locking positions, an optional rolling bridge jack, and more.

  • 12,000 pound lifting capacity

  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493

  • Heavy-duty turn plates and integrated rear slip-plates

  • Multi-position turn plate pockets

  • Automatic leveling system

  • Multiple auto-leveling locking positions

  • Runways include rail-kit for optional accessories

  • Electric / hydraulic power system

  • Single hydraulic cylinder mounted underneath runway

  • Fully enclosed lifting cables, safety locks, and sheaves

Actual Door Height (in.) 96"
Actual Door Thickness (in.) : 3" 3"
Max. Lifting Height 79.5" (2,019 mm)
Ramp Clearance* (Max. Rise) 49" (1,245 mm)
Height of Columns 92" (2,337 mm)
Drive-Thru Clearance 98” (2,482 mm)
Overall Width 127.5" (3,239 mm)
Width Between Columns 115.75" (2,940 mm)
Overall Length 233.5" (2,940 mm)
Outside Length 194.75” (4,947 mm)
Width Outside Columns 142.5" (3,620 mm)
