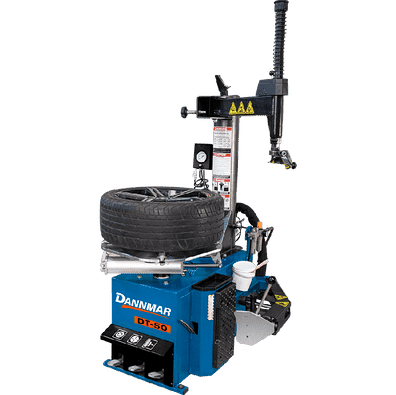

Dannmar Dt-50 12"-26" Rim Capacity Tire Changer - 5140158
The Dannmar DT-50 swing-arm tire changer is affordable and incorporates controls mounted upfront that are logically arranged for both speed and ease-of-use. The tire changer is designed to handle the needs of on-the-go shops with its sturdy body, rigid hexagonal vertical shaft, and hardened-steel horizontal outrigger support arm that eliminates flex during tire service operations. This also reduces the risk of damaging allow wheels.
Features
-
Swing arm
-

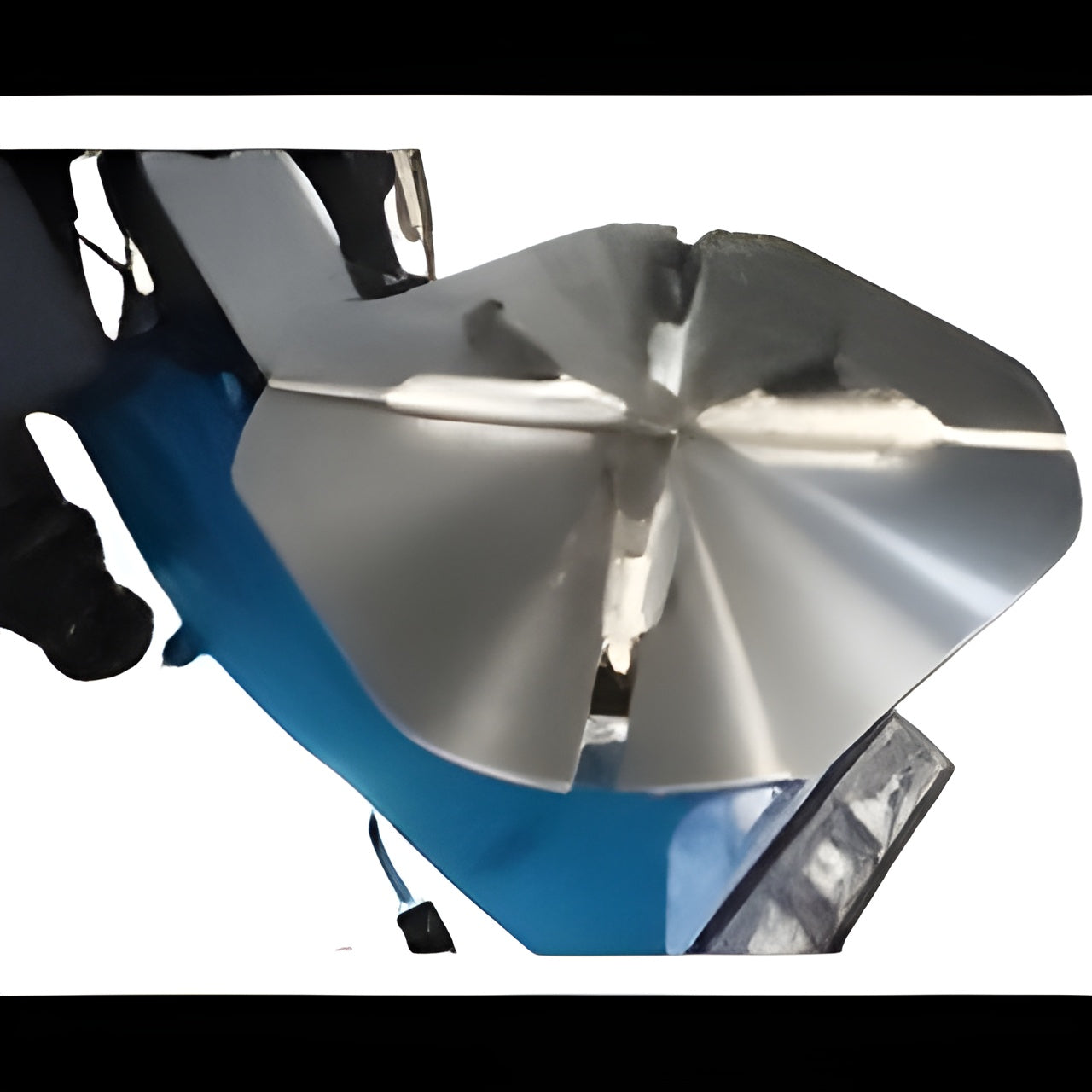

High torque electric turntable
-
Alloy steel mount and demount head
-
Wheel clamping method 4 clamps internal rim clamping
-
Capacity 12”– 26” (305 mm - 660 mm)
-
Maintenance-free gearbox
-
Aluminum pneumatic cylinders
-
High pressure polyurethane pneumatic tubing
-
Inflation gauge with Integrated air dump valve
-
Tool tray/storage
-

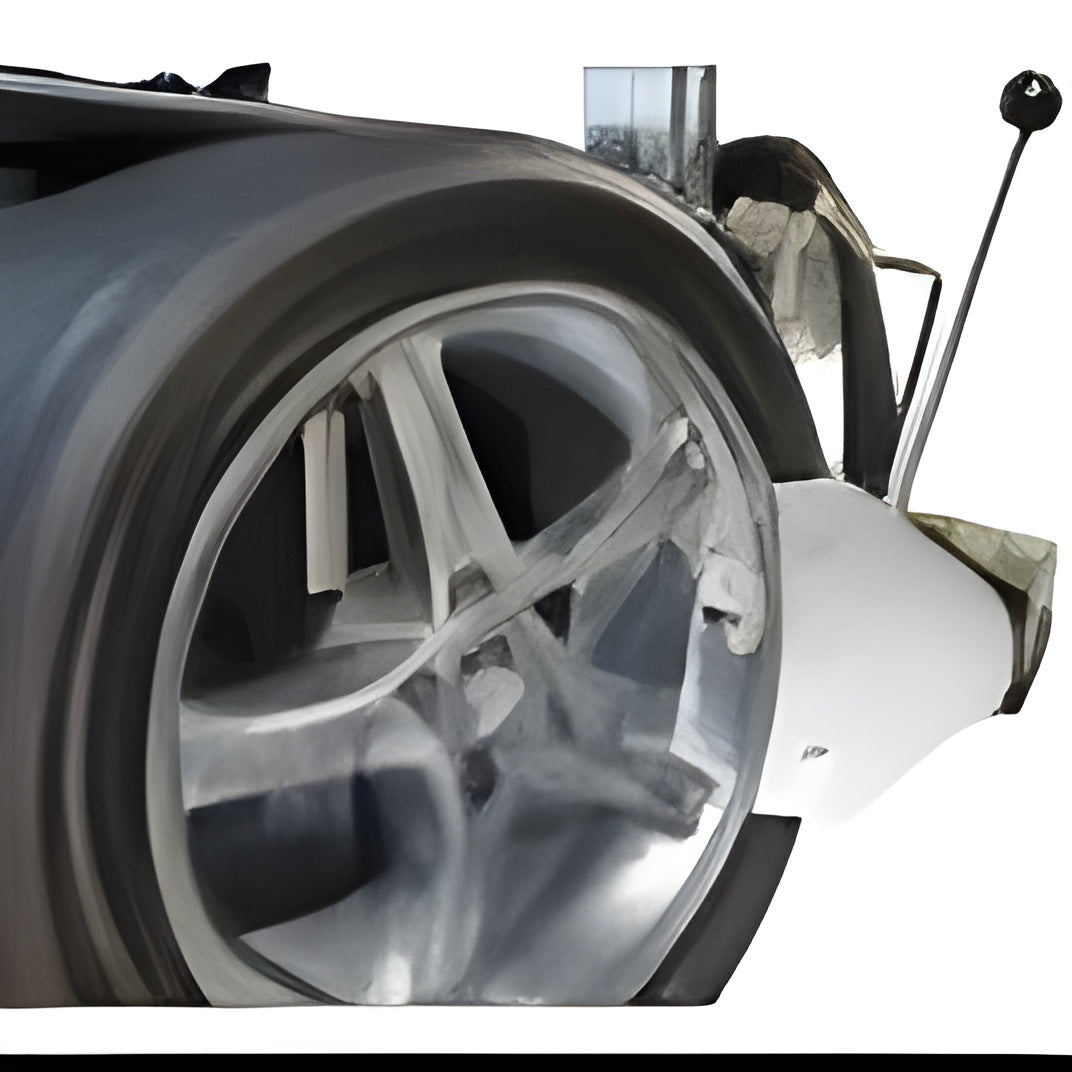

Enhanced bead breaker blade
-
Oiler/lubricator
-
Air regulator
-
Inflation restraint
-
Forged-steel foot pedals
Specifications
| Motor |
110/220-VAC, 50-60 Hz, 1-Ph |
| Drive System Type |
Electric / Air |
| Tower Design |
Rigid Fixed / Swing Arm |
| Power Assist Tower |
Not Equipped (See DT-50A) |
| Bead Seating System |
Turbo Blast / Bead Seating |
| Air Requirement |
110-175 PSI (8-10 BAR) |
| Wheel Clamping Method |
4 Clamps - Internal / External |
| Table Clamping System |
Dual Pneumatic Cylinders |
| Bead Breaking System |
Pneumatic Blade |
| Tower Design |
Fixed |
| Internal Rim Clamping Capacity |
14” – 26” (356 mm - 660 mm) |
| External Rim Clamping Capacity |
12” – 22” (305 mm - 559 mm) |
| Turntable Rim Width Capacity |
3” – 15” (76 mm – 381 mm) |
| Bead Breaker Rim Width Capacity |
3” – 14” (76 mm – 356 mm) |
| Maximum Tire Diameter |
47” (1,194 mm) |
| Noise |
<70 dB |
