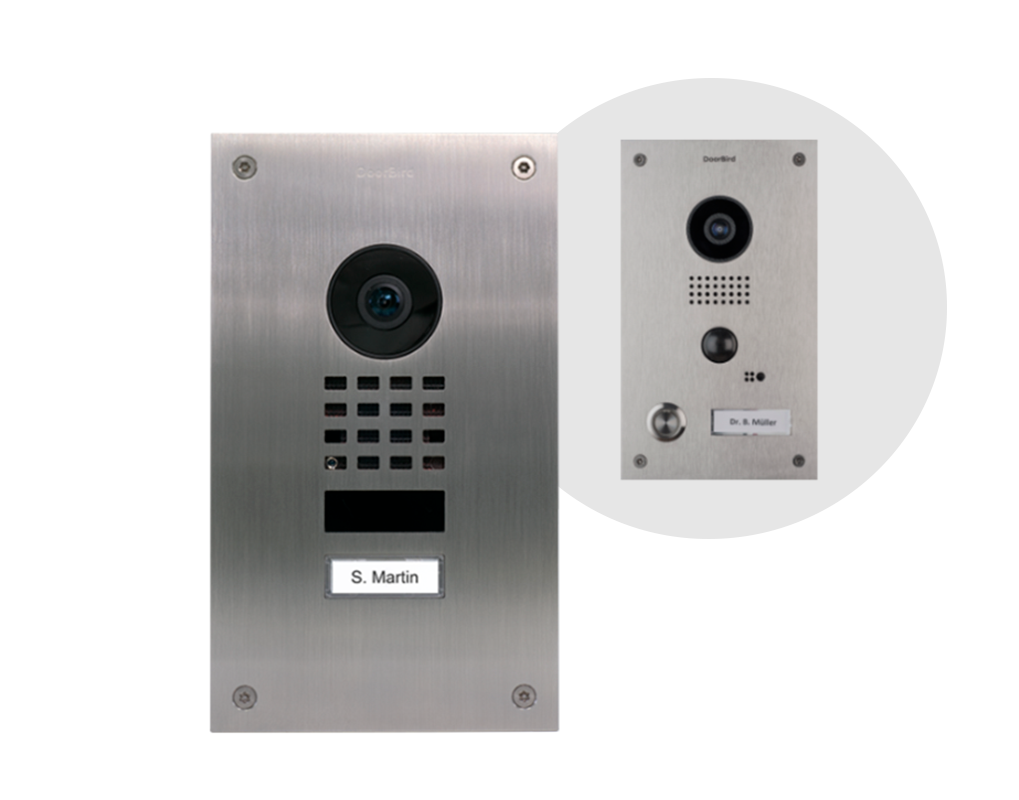

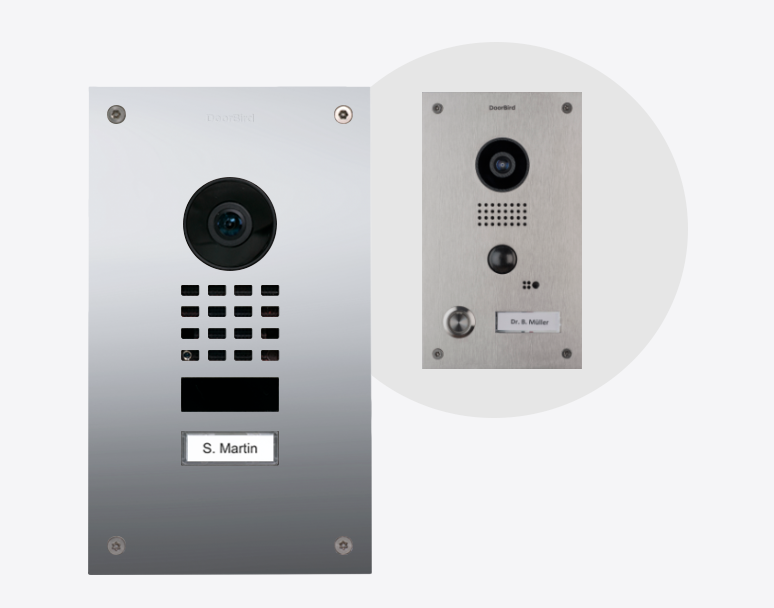

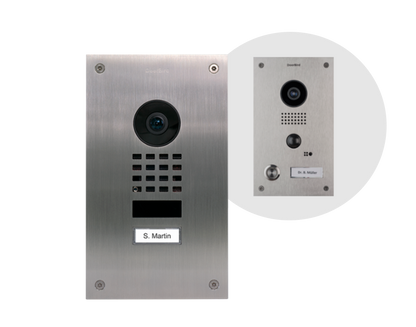

DoorBird D1101UV IP Video Door Station in Chrome
Upgrade for DoorBird D201/D202 to D11x Technology
Chrome-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423880412, P/N: 423880412)
Highlights
- LAN connection (PoE capable)
- 2-way audio
- Ultra-wide angle lens, 1080p, night vision, IR LEDs
- 4D motion sensor, RFID reader
- 1 freely configurable bistable switching relay
Features
-
Open API
Local interface for integration with third-party systems and SIP
-
Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
-
Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
-
Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
-
Microphone
Clear voice transmission
-
Automatic door buzzer
For use in medical offices and office environments
-
Free visitor history
Store still images for free, optional video recording available
-
Individual action schedules, e.g.:
Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
4D motion sensor switches on external lamp between 9 pm and 6 am
-
Geofencing
Automatic door and gate opening when returning home
-
Night vision
With Infrared LEDs
-
HDTV Video
Ultra wide-angle, hemispheric lens, 180°
-
Light sensor
For night vision mode
-
One freely configurable bistable latching relay
Control one door or one gate via App
Status configurable via App: temporary or permanent circuit
-
Easy self-install
Quick installation via QR code scan
-
Call button
With backlit nameplate
-
Motion sensor with 4D technology
Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
- Noise reduction and echo cancellation (AEC, ANR)
-
Easy connection to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
-
Bluetooth low Energy (BLE)
Supports A8007 Bluetooth Remote Control
For access control, compatible external sensors and smart locks
| Front panel |
3 mm (0.12 in)
Available in brushed stainless steel
V2A / V4A and with Bronze-Finish, V4A |
Mounting housing
(backbox)
|
Not included, use of an already installed D201/
D202 housing is assumed. |
| Call Button |
Illuminated |
Nameplate
|
Plastic
Metal cover plate and engraving available
separately |
| Power supply |
15 V DC (max. 15 W) or Power ov |
| Weight |
778 g |
| Connectors |
- LAN/PoE (T+, T-, R+, R-)
- Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
- External input for external door opener button
- 15 V DC input (+, -), max. 15 W
|
| Protection Class |
IP65, IK08 |
| Approvals |
CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN
62368, IEC/EN 62471 |
| Dimensions |
215 x 125 x 28 mm (H x W x D)
8.46 x 4.92 x 1.10 in (H x W x D) |
| Operating conditions |
-25 to +55°C / -13 to 131°F
Humidity 10 to 85 % RH
(non-condensing) |
| Scope of delivery |
1x Main Electrical Unit
1x Front panel
1x Power supply unit (mains adaptor) with up
to 4 country-specific outlet adaptors
(110 - 240 V AC to 15 V DC)
1x Screwdriver
1x Quickstart guide with Digital Passport
1x Installation manual
1x Small parts |
