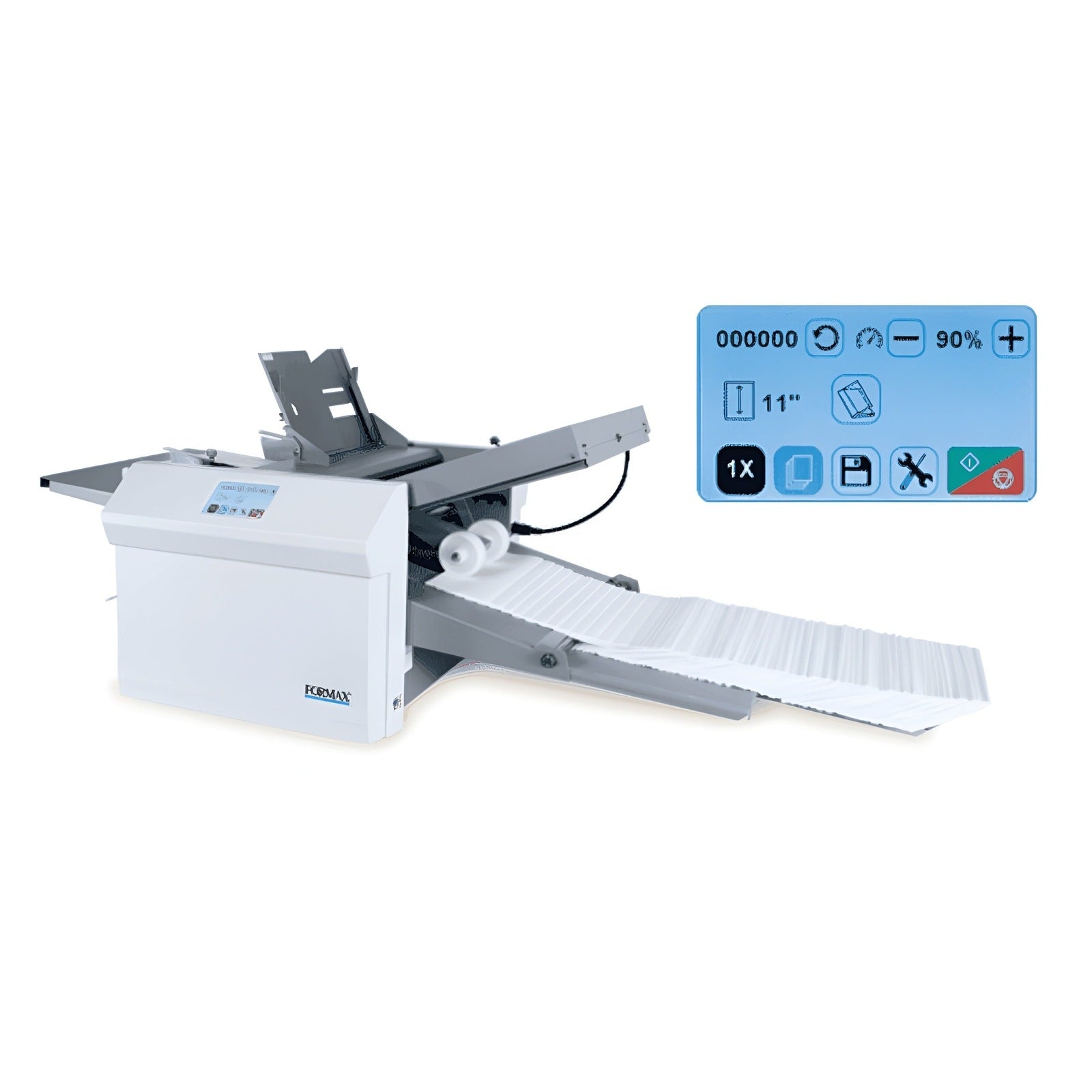

Formax Automatic Tabletop Folder FD 386

Formax Automatic Tabletop Folder FD 386

The FD 386 Automatic Touchscreen Document Folder offers any business, church, school or print-for-pay center quick, easy set-up, and the versatility to complete a variety of fold jobs in minutes.  Jobs are completed exceptionally fast with the FD 386, folding up to 17,000 pieces per hour!  Fully automated fold plates provide one touch set-up of the 18 pre-programmed fold settings or for choosing one of the 27 custom folds that can be stored into memory.  In addition, the full-color touchscreen control panel makes the FD 386 extremely easy to use with a step-by-step user interface that is second to none.

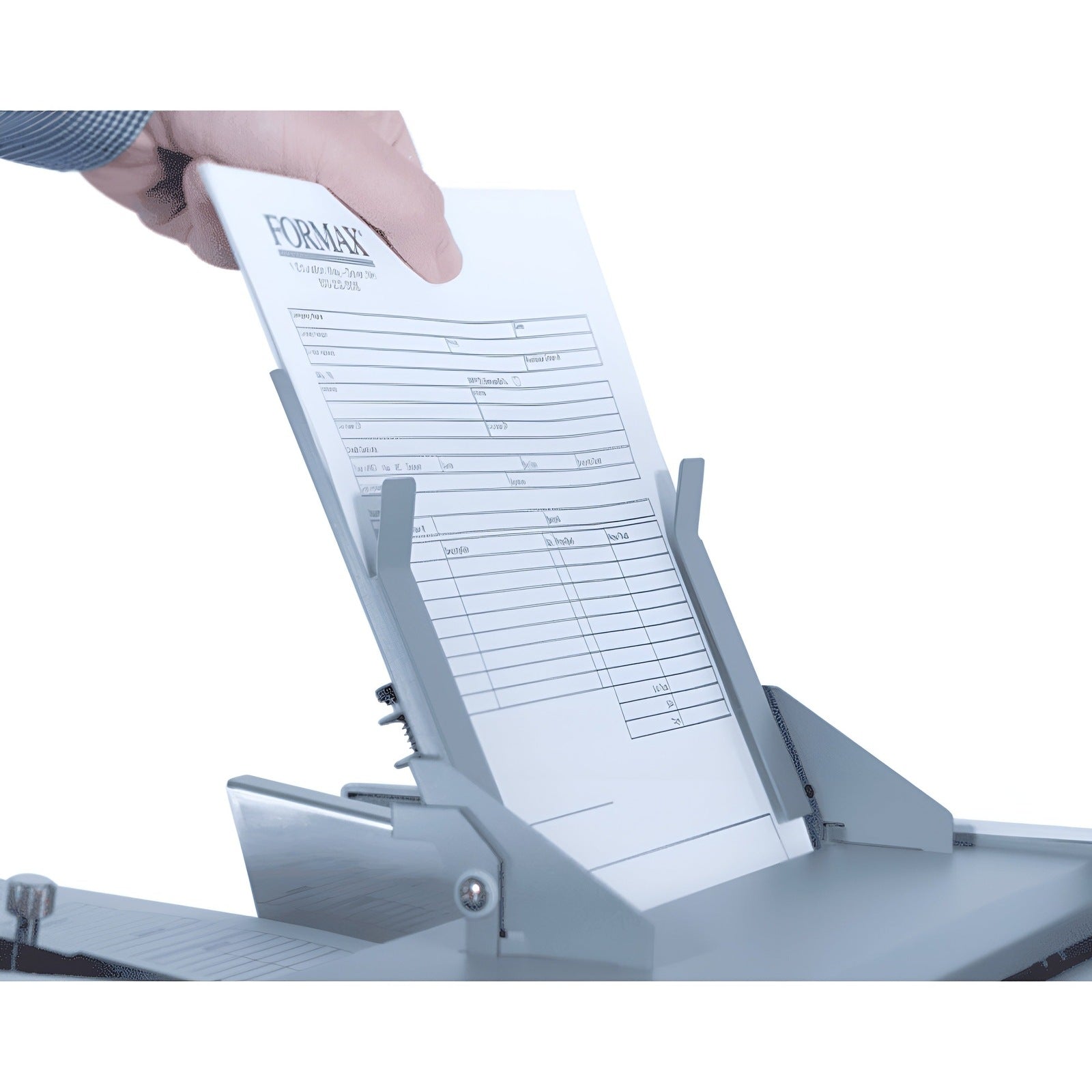

Operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks.  The FD 386 will fold the 500 sheets in as fast as 2 minutes and hold the folded pieces on its patented Telescoping Conveyor System.

The patented Multi-Sheet Feeder is an optional feature that allows up to 4 stapled or unstapled sheets to be folded at one time through the dedicated feed system with its own side guides and skew adjustment.

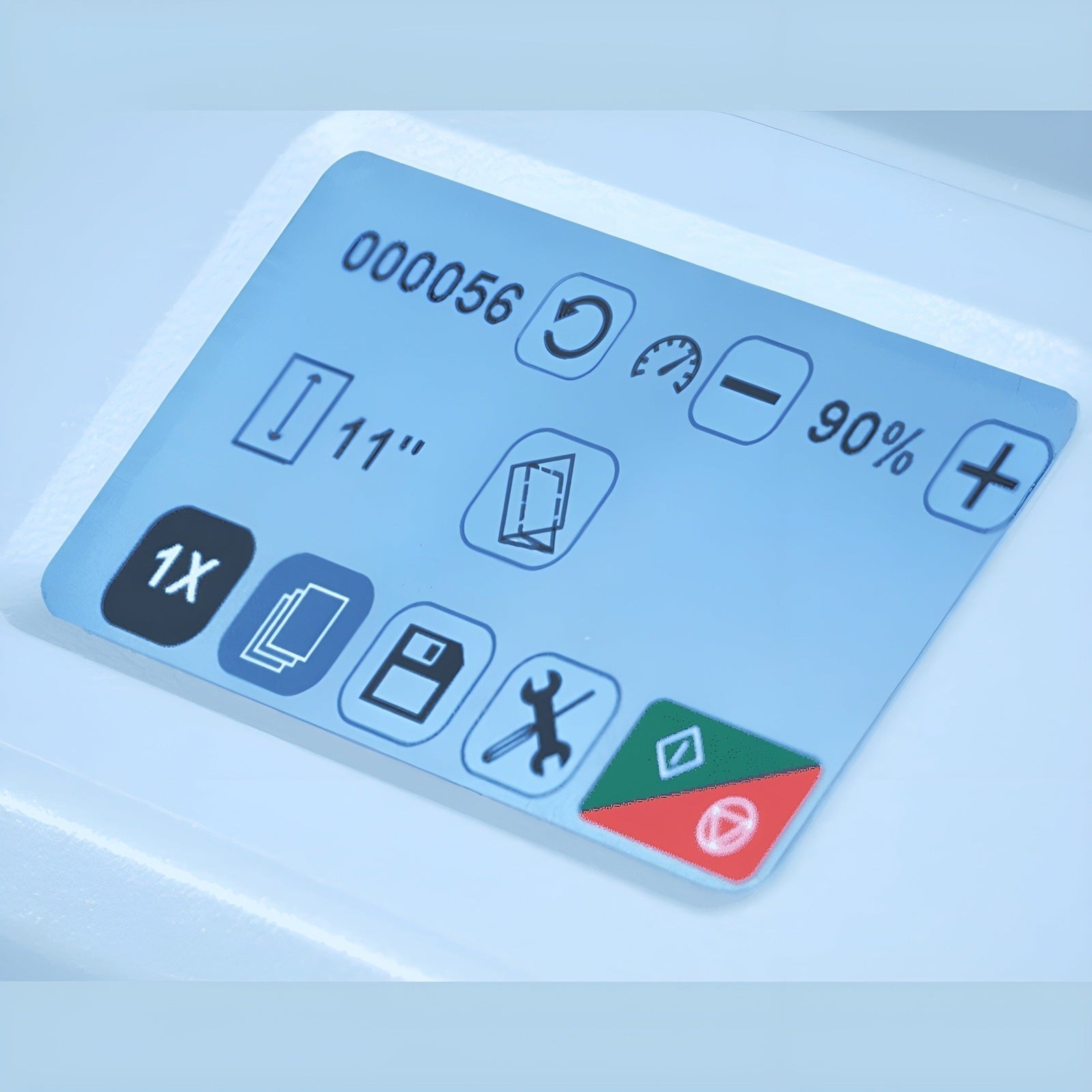

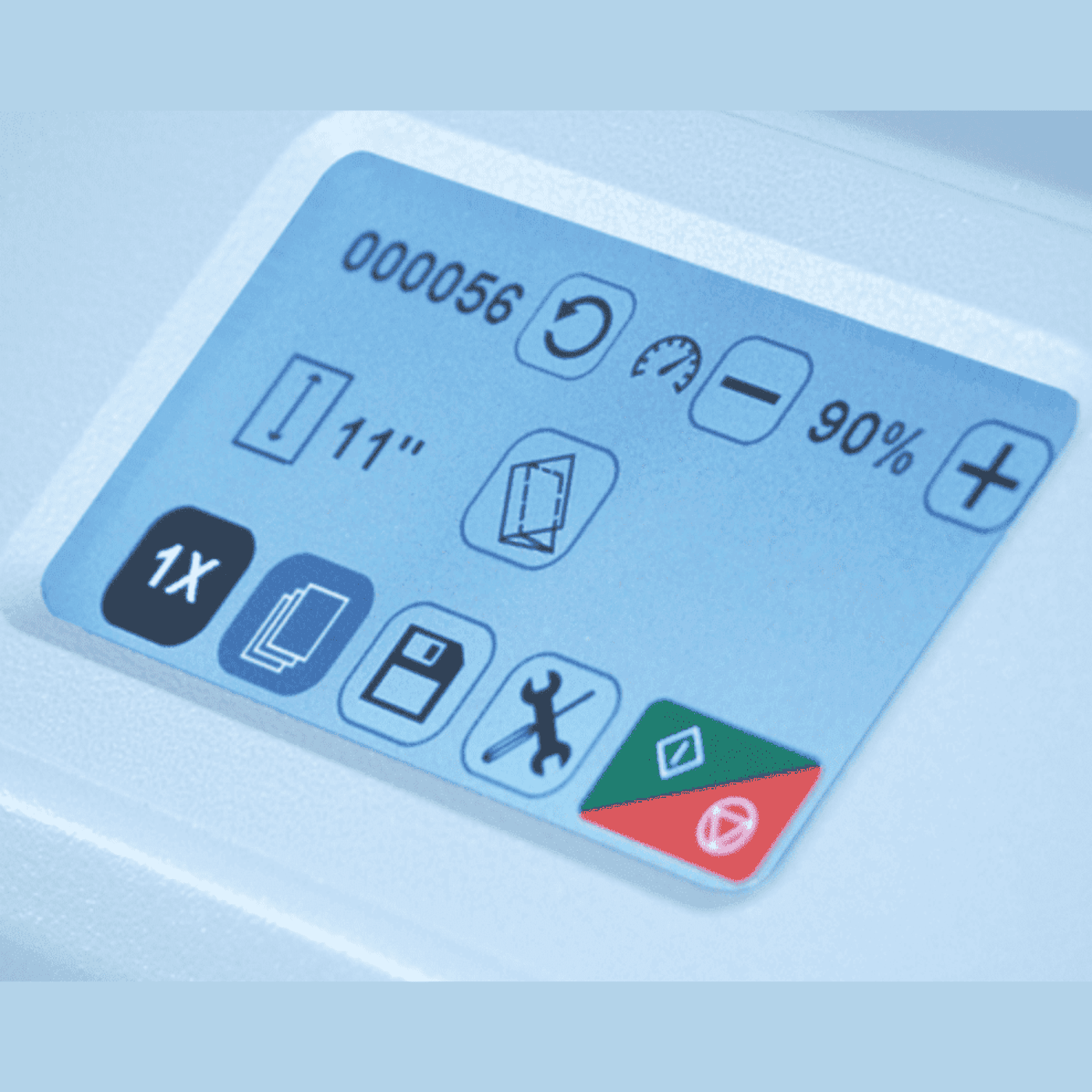

The large full-color touchscreen control panel allows for untrained operators to walk up and start folding with little to no instruction.  The FD 386 advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs.

The FD 386 can also be combined with the optional Formax V-Stack36i Vertical Stacker, which stacks up to 22” of folded documents, making them easier to unload for further processing.

When it comes to paper folding, no one does it faster or with higher quality than the Formax FD 386!

Features

• Color touchscreen
• Automatic fold settings
• Speed: up to 17,000/hour
• Telescoping output stacker

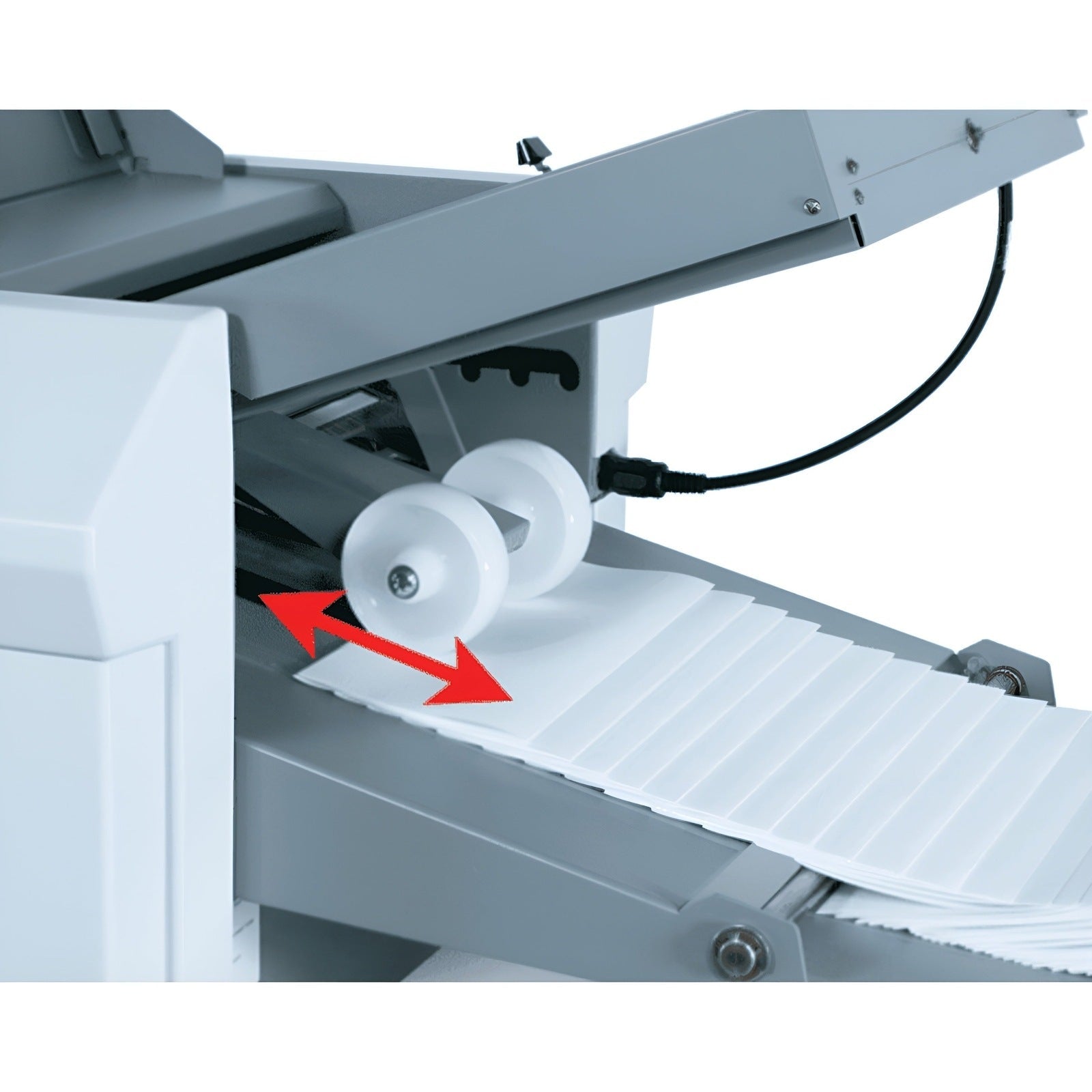

• Adjustable stacker wheels

Product Brochure

The Formax FD 386 Automatic Tabletop Folder is a reliable, user-friendly solution for handling large volumes of paper folding in professional environments:

• High Speed & Efficiency: Processes up to 17,000 sheets per hour, ideal for offices, mailrooms, and print shops.
• Versatile Folding Options: Supports a wide range of fold types, including letter, half, Z-fold, gate, and more.
• Fully Automatic Operation: Touchscreen controls and automatic fold adjustments streamline operation for ease and efficiency.
• Compact Design: Tabletop size fits easily into smaller spaces while providing industrial-grade performance.
• Durable Build: Engineered for consistent, long-term use with minimal maintenance.

Q: What types of paper can it handle?
A: It accommodates paper weights ranging from 18 to 90 pounds and sizes from 3.5" x 5" to 12.25" x 18".

Q: Can it handle pre-printed or glossy paper?
A: Yes, it is compatible with a variety of paper finishes, including glossy stock.

Q: Is it easy to switch between fold types?
A: Absolutely, fold adjustments are automatic and can be set via the touchscreen interface.

Q: Does it have a batch counter?
A: Yes, it features a batch counter for managing multiple jobs efficiently.

Q: What safety features does it have?
A: It includes an automatic stop when paper jams occur or when the folding process is complete.

• Clean Rollers Regularly: Wipe down the rollers to prevent dust buildup and ensure smooth operation.
• Use Proper Paper Types: Stick to the recommended paper weights and finishes to avoid jams or damage.
• Inspect Folding Plates: Check for wear or misalignment and clean as needed for consistent folds.
• Store in a Clean Environment: Avoid exposure to moisture and dust to prolong the machine's lifespan.
• Lubricate Moving Parts: Periodically lubricate according to the manufacturer’s guidelines to maintain peak performance.
