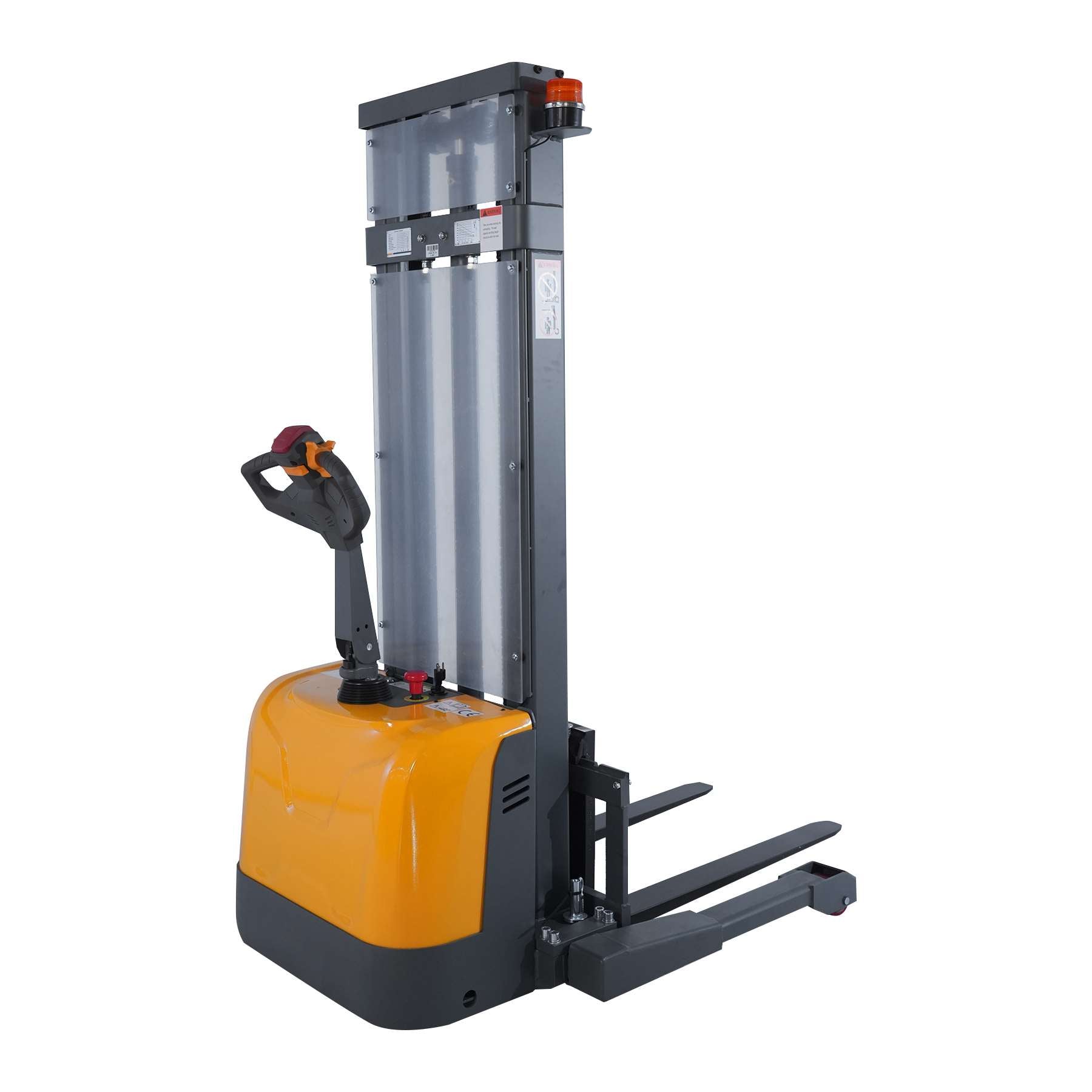

Full Electric Straddle Stacker A-3049

DIMENSIONS

• Overall Length: 70.3"
• Recommended Aisle Width: 88.3"
• Turning Radius: 52.9"

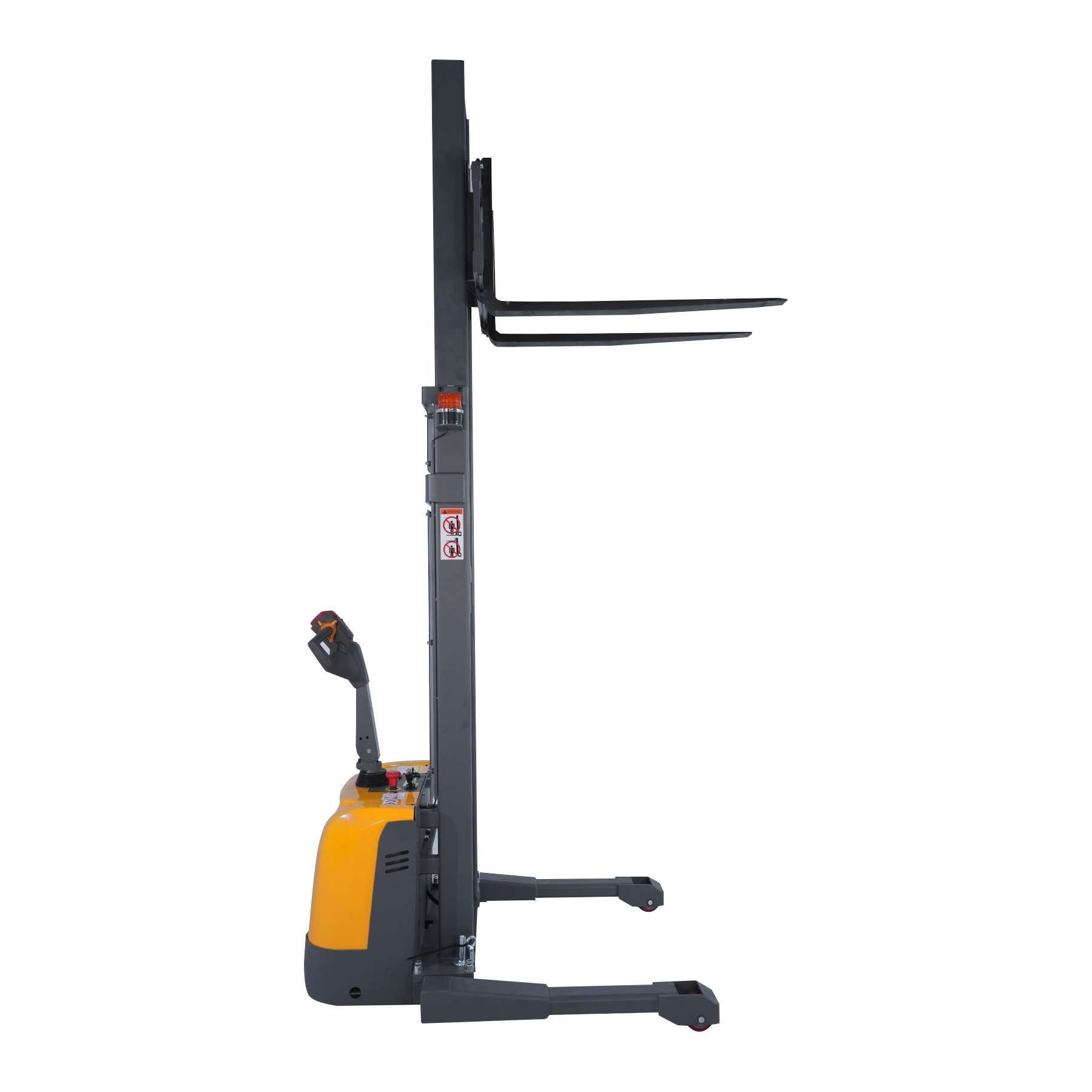

• Max. Lifting Height: 130''
• Mast Height Lowered: 90.4''
• Mast Height Raised: 157''
• Load Center: 23.6"
• Ground Clearance: 2.56"

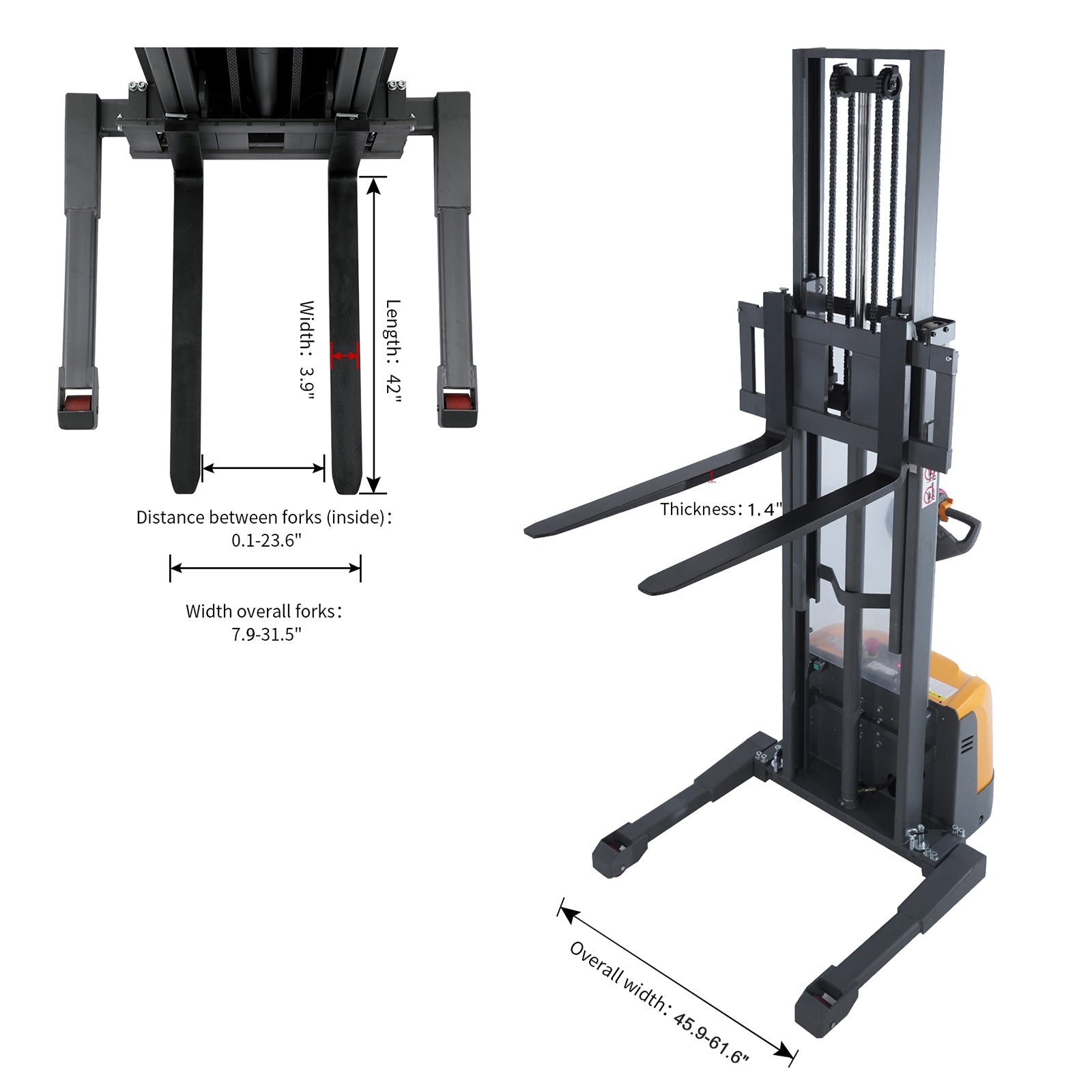

FORKS

• Fork height, Lowered: 2.8''
• Adjustable Forks: 7.8"-31.5"
• Thickness: 1.3"
• Width: 3.9"
• Length: 42"

STRADDLE LEGS

• Height: 4.7"
• Adjustable range: 44" - 60"

FEATURES

• Smooth rolling polyurethane wheels; 180° steering arc.
• High component integration for easy maintenance and repairs.
• 110V Built-in Charger.

• 6 hours of service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.


SPEED

• Travel Speed (laden/unladen): 2.8/3.1mph
• Lifting speed(laden/unladen) : 3.5/5.9inch/s
• Lowering speed(laden/unladen) : 5.9/4.3inch/s

SPECIFICATIONS

• Not explosion proof.
• This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the forklift once a month even it's not in use.
