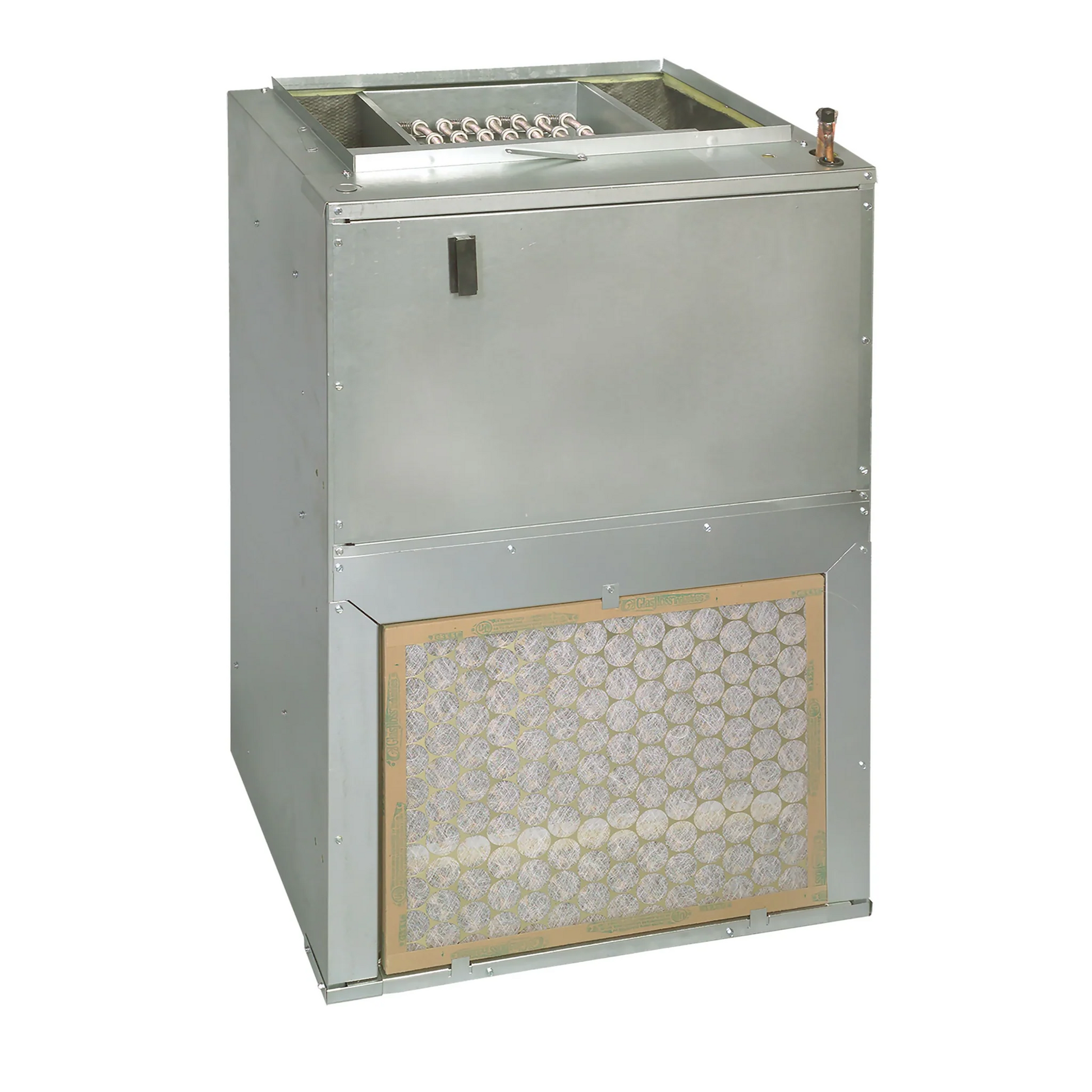

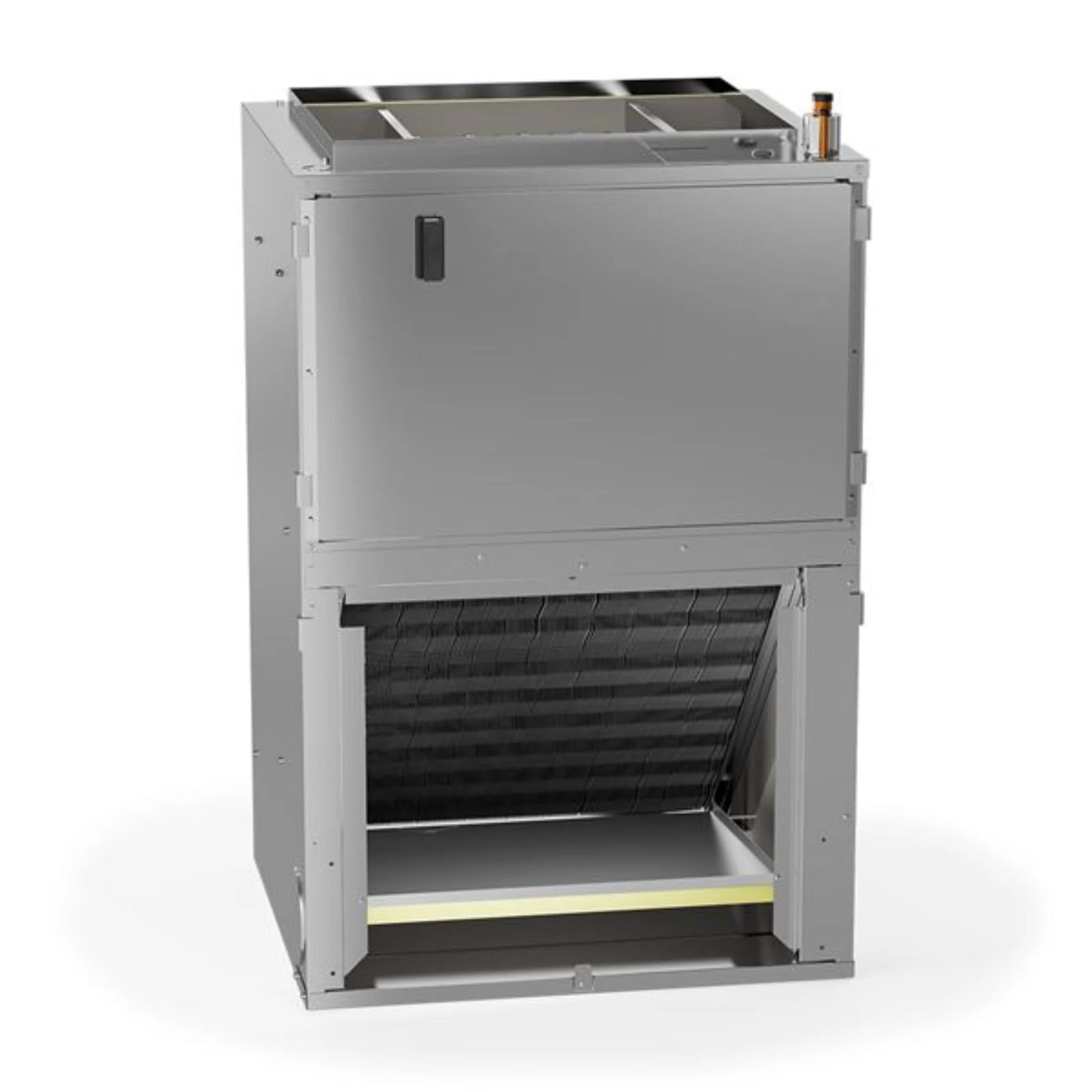

Goodman - 2.5 Ton/30,000 BTU Wall Mount Air Handler With Built-In 10kW Heater - 230V - R32 - AWST30LU1310
Goodman air handlers are an integral part of finishing a total home environment control system. The AWST plays a key role in reducing indoor humidity to create a much more comfortable environment. In addition, the AWST works with a multi-speed ECM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
Features
- AWST Models: Equipped with a fully adjustable TXV
- Designed for use with R-32 Refrigerant

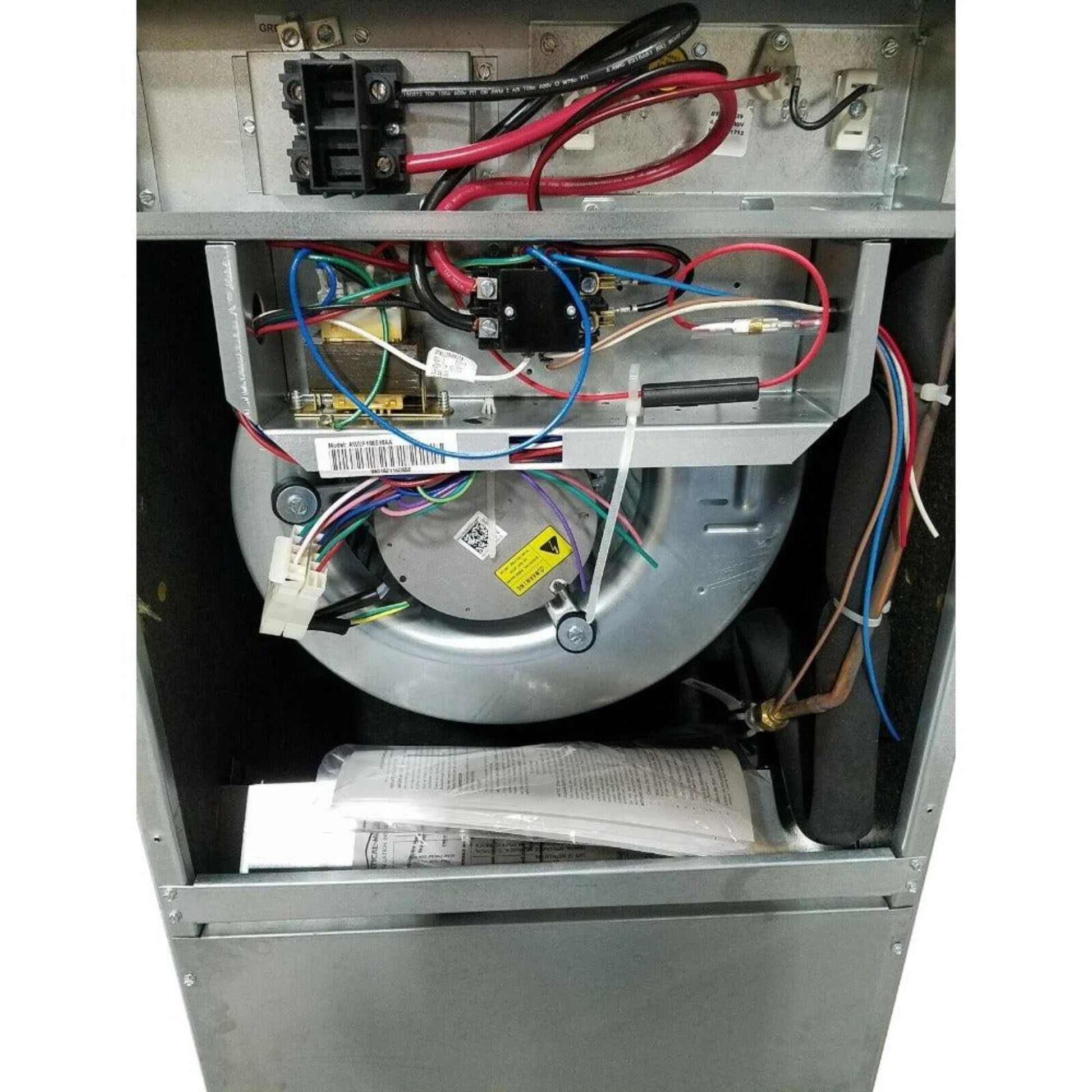

- Direct-drive, multi-speed motors allows air volume variation for heating/cooling

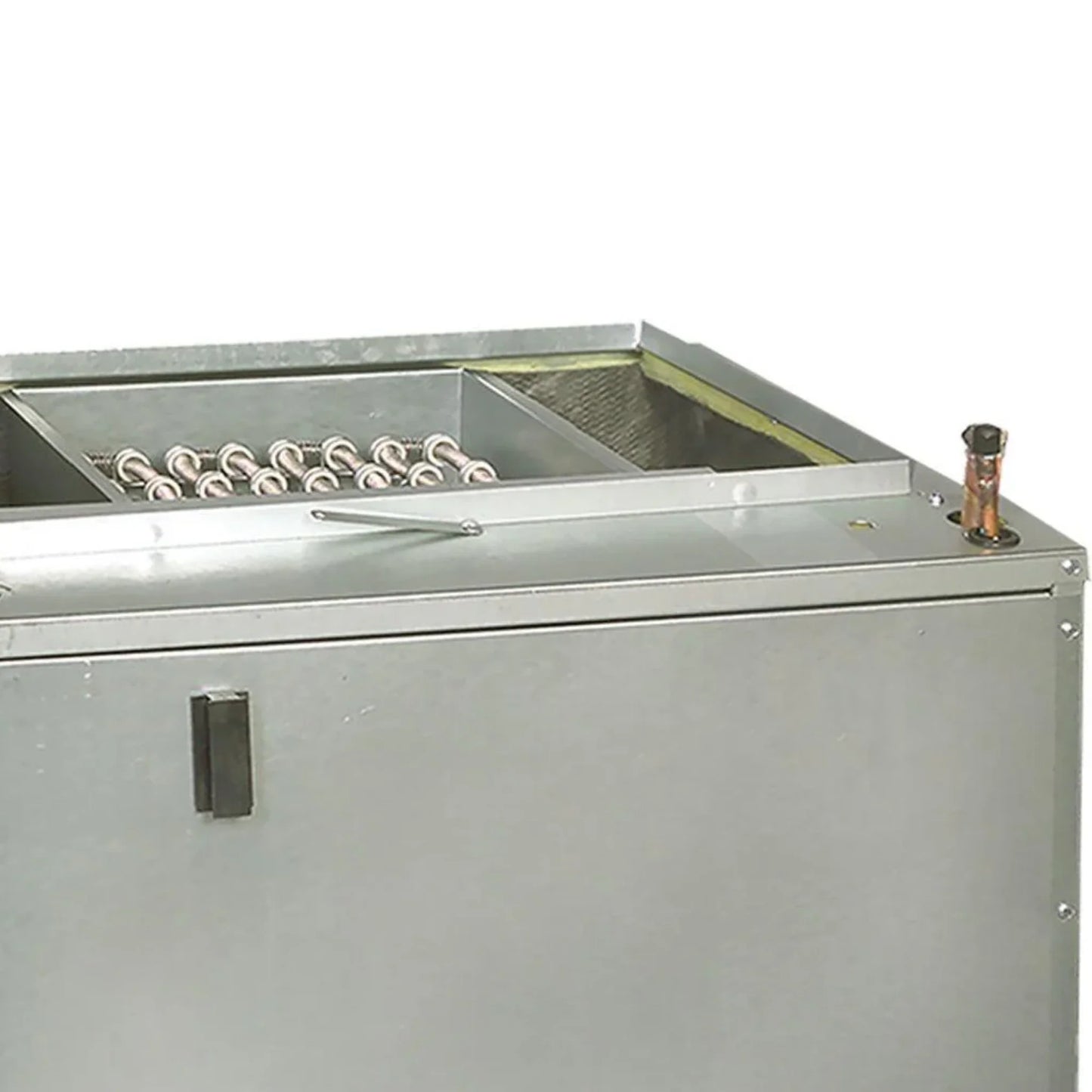

- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Factory-installed pull-type disconnect
- Factory installed R-32 sensor designed for the lifespan of the coil.
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2.5- and 3-ton units) front return only
- Small chassis (1.5- and 2-ton units) front or bottom return

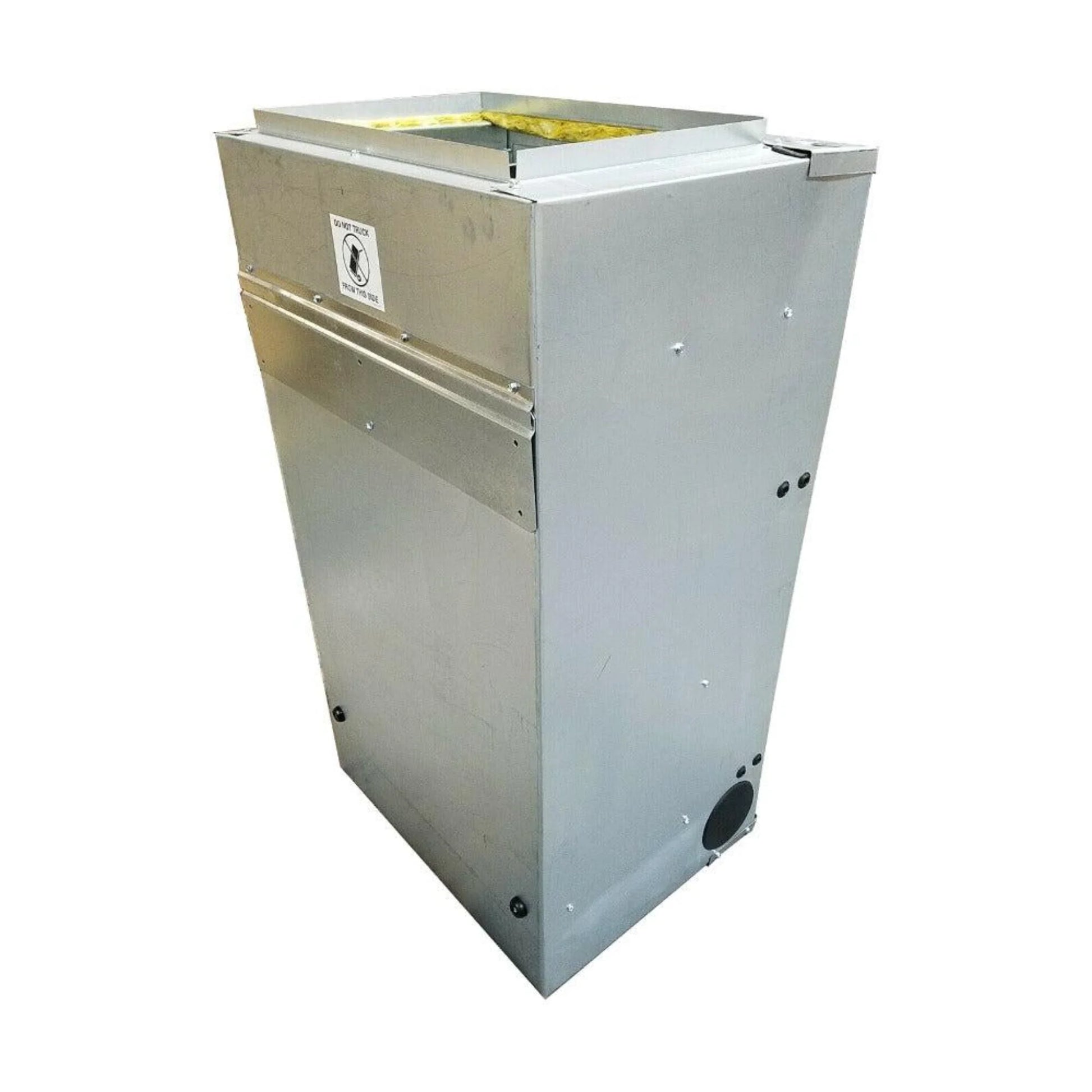

- Wall-hanging bracket provided
- AHRI Certified; ETL Listed
Specifications
| Model Number(s) |
AWST30LU1310 |
| Brand |
Goodman |
| Category |
Air Handlers |
| Ton |
2.5 Ton |
| Voltage |
208/230V |
| Electrical Phase(s) |
1-Phase |
| Amp(s) |
60 |
| Blower |
Multi-Speed |
| Suction Valve Size (Inches) |
3/4 |
| Liquid Valve Size (Inches) |
3/8 |
| Height (Inches) |
36 |
| Width (Inches) |
24 |
| Depth (Inches) |
21 |
Manual
What our Experts Think
-
All-in-One Comfort: Combines 2.5 Ton / 30,000 BTU cooling with a built-in 10 kW heater for year-round climate control.
-
Wall-Mount Flexibility: Compact design ideal for space-saving installations.
-
Reliable Performance: Engineered for consistent airflow and efficient heating/cooling.
-
Eco-Friendly Refrigerant: Uses R32 to reduce environmental impact.
-
Durable Build: Built for long-term reliability in varied climates.
-
Power Supply: 230V compatible for standard residential systems.
-
Quiet Operation: Optimized for minimal operational noise.
Q&A
Q: What type of HVAC system is this?
A: This is a self‑contained gas & electric packaged unit, combining both air conditioning and natural gas heating in one rooftop or ground‑level outdoor cabinet — no separate indoor furnace or air handler needed.
Q: What are the cooling and heating capacities?
A: The unit delivers 2.5 tons (≈28,600 BTU) of cooling at 13.4 SEER2 and 60,000 BTU of natural gas heating — providing year‑round comfort.
Q: How efficient is it?
A: It features 13.4 SEER2 (cooling) and ≈81% AFUE (heating) for efficient performance aligned with modern standards.
Q: What does “Ultra‑Low NOx” mean?
A: The unit is compliant with ultra‑low NOx emissions standards, producing reduced nitrogen oxide for cleaner operation and improved environmental compliance.
Q: What refrigerant does this use?
A: It’s precharged for R‑32 refrigerant, a newer low‑GWP cooling agent.
Q: What installation configurations are supported?
A: Supports downflow or horizontal discharge, making it suitable for rooftop and next‑to‑building setups.
Q: What are the electrical requirements?
A: Operates on 208/230 V single‑phase power (60 Hz).
Q: What type of compressor and airflow system does it include?
A: Includes a single‑stage scroll compressor and a multi‑speed blower motor for reliable cooling airflow.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and system efficiency.
-
Keep supply and return vents clear of furniture, dust, and debris.
-
Maintain 2–3 feet of clearance around the air handler for proper airflow and safe operation.
-
Inspect the condensate drain line and pan regularly to prevent clogs and water damage.
-
Check heater elements for dust accumulation or signs of wear.
-
Ensure thermostat is functioning properly and set for efficient heating and cooling cycles.
-
Inspect ductwork and connections for leaks or blockages.
-
Clean blower compartment and internal surfaces periodically to prevent dust buildup.
-
Listen for unusual noises such as rattling, buzzing, or humming indicating potential mechanical issues.
-
Schedule annual professional HVAC maintenance to inspect electrical connections, blower motor, heater elements, and overall system performance.
