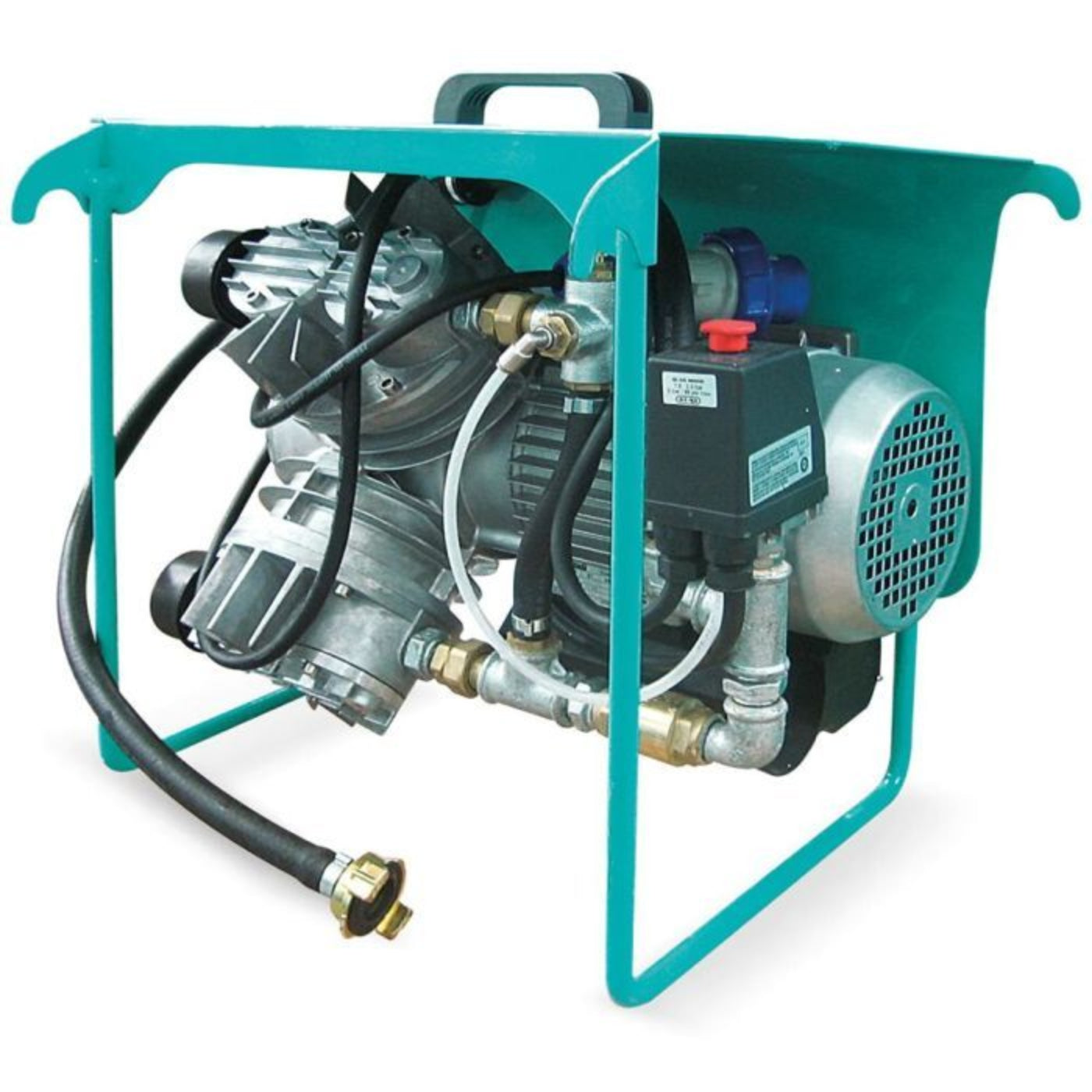

Imer Dual-Diaphragm Compressors - 1107546

Imer Dual-Diaphragm Compressors - 1107546

The Imer Dual-Diaphragm Compressor is a powerful, compatible accessory designed for Imer Mighty Small 50, Koine series, and Step-Up 120 pumps. Ideal for use in material spraying applications, this compressor provides consistent, high-volume, low-pressure output for even application of materials like fireproofing, stucco, and waterproofing. With easy integration to Imer pumps, it enhances performance on demanding job sites, offering reliable spraying and pneumatic control.

Features

• Essential for pneumatic control during material spraying tasks, including fireproofing and waterproofing
• Provides high-volume, low-pressure output for even material application when spraying
• Easy integration with respective Imer pump models for seamless performance
• One piece compressor motor crankshaft produces maximum mechanical performance
• Maintenance-free electric-powered compressor
• Includes: 1/2" (14 mm) x 53' air hose with Geka couplings

• Separate motor cooling system ensures continuous operation and reduces overheating risk
• 120V/60Hz: ideal for Mighty Small 50
• 240V/60Hz: ideal for Koine 3.1
• 208V/60Hz: ideal for Koine DUAL
• 240V/60Hz Single Phase: ideal for Step-Up 120

What our Experts Think

• Core air supply unit for IMER pumping systems
  The Imer Dual-Diaphragm Compressor (Ref. 1107546) is a specialized high-volume, low-pressure air compressor designed specifically for IMER Mighty Small 50 pump/spray systems, not a general workshop compressor.
• Enables spraying functionality (not optional for spraying setups)
  It is a required accessory if you want to spray materials like stucco, fireproofing, waterproofing, and repair mortars using the compatible IMER system.
• High airflow, low pressure performance
  Delivers about 9 CFM airflow with up to ~60 PSI max pressure, optimized for consistent material atomization rather than high-pressure air tools.
• Built for continuous job-site operation
  Features dual-diaphragm V-stroke design and separate cooling for motor and compressor, enabling long duty cycles without overheating.
• Complete spray-ready package
  Typically includes long air hose (~53 ft) with couplings, allowing extended reach for façade, wall, and ceiling applications.
• Designed for material versatility
  Handles both heavy build-up materials (fireproofing, base coats) and lighter finishes (elastomeric coatings, waterproofing layers) depending on nozzle setup.
• Industrial-duty construction
  Built in all-aluminum housing with continuous-duty 110V motor, prioritizing durability and job-site reliability over portability.
• Expert insight
  This is not a general compressor—it’s part of a system-based finishing/pumping ecosystem, meaning its value comes from integration with IMER spray and pump machines.

Q&A

Q1: What is the Imer 1107546 Dual-Diaphragm Compressor used for?
A: It is a professional-grade electric dual-diaphragm air compressor designed for use with IMER Mighty Small 50 pumping and spraying systems, enabling continuous material spraying on construction sites.

Q2: What equipment is it compatible with?
A: It is specifically engineered for the IMER Mighty Small 50 sprayer/mixer system, where it powers the spraying function for mortars and coatings.

Q3: What materials can it help spray?
A: It supports spraying of stucco base coats, fireproofing, repair mortars, waterproofing, and elastomeric coatings, depending on build thickness requirements.

Q4: What are the key performance specs?
A: It delivers about 1 HP power, ~9 CFM airflow, and up to 50–60 PSI low-pressure output, optimized for high-volume, even material application.

Q5: Is it designed for continuous job-site use?
A: Yes, it is built with dual cooling systems and a V-stroke mechanism, allowing continuous-duty operation with reduced overheating and longer service life.

Q6: Does it include accessories?
A: Yes, it typically comes with a long air hose (about 53 ft) and couplings, ready for integration with the pumping system.

Q7: What makes this compressor different from standard compressors?
A: Unlike general compressors, it is a low-pressure, high-volume unit designed specifically for construction spraying systems—not air tools or inflation tasks.

Q8: What is the main advantage on job sites?
A: It ensures consistent, even spray application of thick construction materials, improving finish quality and reducing manual labor effort.

Maintenance Tips

• Drain air & clean after every use: Release pressure and wipe down housing to prevent moisture buildup and internal corrosion.
• Check air filter regularly: Clean or replace filters to maintain steady airflow (≈9 CFM) and prevent performance drop.
• Inspect diaphragm system: Look for cracks, stiffness, or wear—damaged diaphragms reduce pressure consistency.
• Keep cooling system clear: Ensure motor and compressor cooling fans stay dust-free for continuous-duty operation.
• Tighten fittings & hoses: Check couplings, air lines, and connections to prevent leaks and pressure loss.
• Avoid overloading pressure (max ~60 PSI): Running beyond limits shortens compressor life.
• Check for unusual noise/vibration: Early sign of imbalance or diaphragm wear—service immediately.
• Store dry & covered: Protect from dust, moisture, and jobsite debris to extend lifespan.
