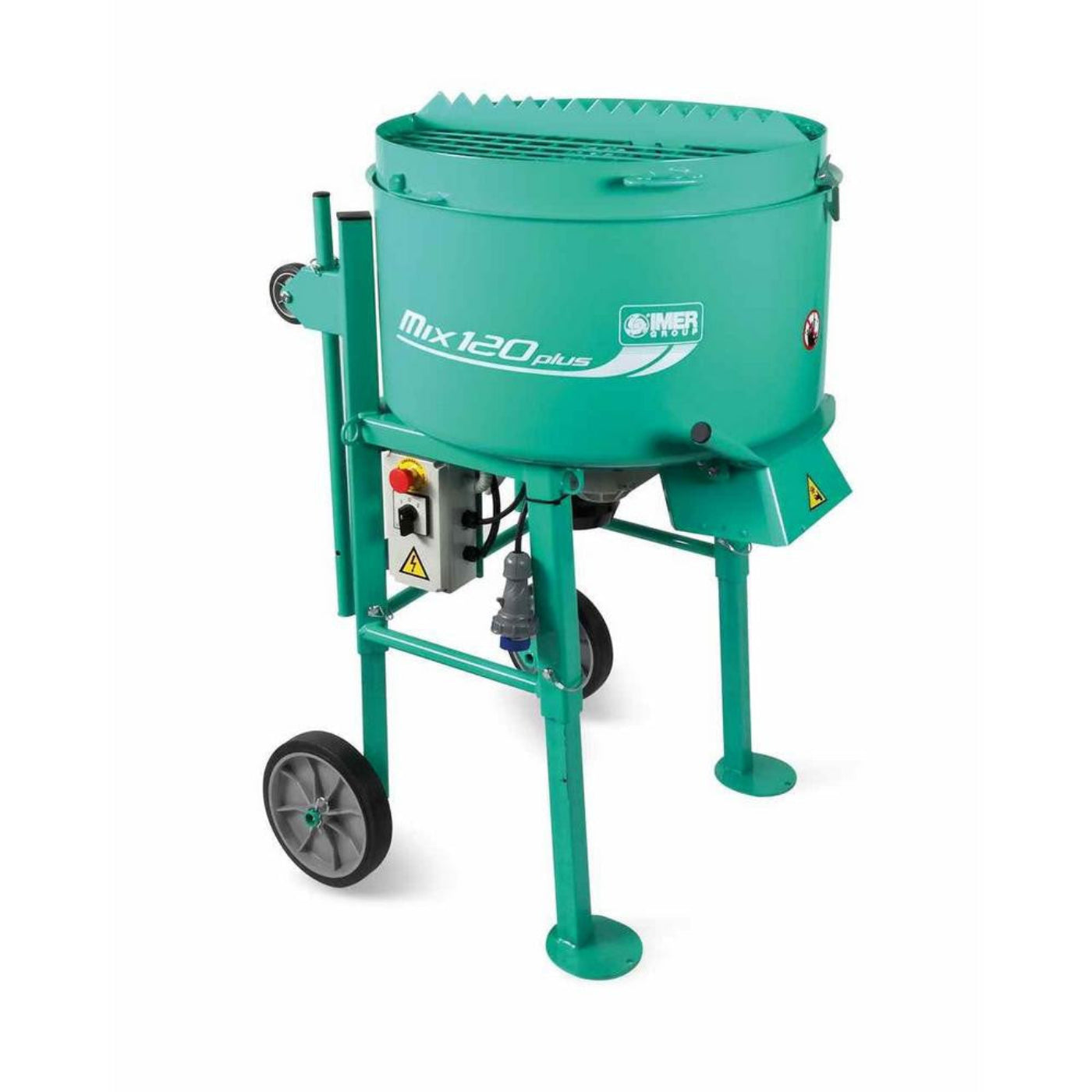

Imer MIX 120 Plus Vertical Shaft Mixer - 1194302

Imer MIX 120 Plus Vertical Shaft Mixer - 1194302

The NEW version of the Imer Mortarman 120 Plus is the MIX 120 Plus vertical shaft mortar mixer. Now with a new dust control grate, the MIX 120 is a safer, more versatile mixer designed to work on a wide range of construction materials such as dry pack, mortar and high strength grouts. Because of its vertical shaft design, the 120 Plus has top to bottom material flow thru with no tilting for discharge.

Features

• Heavy duty vertical shaft mixer for dry pack mortar, mason's mortar for brick and high strength grouts for concrete pipe joints
• Equipped with a dust control grate for increased dust protection
• Adjustable legs for various discharge heights
• Fits right through 32" wide doorways
• Vertical shaft paddles are gear driven with forward and reverse
• 4 wheel laydown design means easy loading into back of truck
• Heavy duty grate with bag splitter and safety interlock
• Controlled discharge - take out a hand full, a 5 gallon pail or a wheelbarrow

Specifications

What our Experts Think

• Compact vertical shaft mixer for professional crews
  The IMER MIX 120 Plus (Ref. 1194302) is a forced-action vertical shaft mixer designed for fast, consistent mixing of mortar, grout, stucco, and dry-pack materials on job sites.
• Fast production in a small footprint
  Delivers about 3 cu ft batch output and can produce a wheelbarrow of material in ~3 minutes, making it highly efficient for 2–4 person crews.
• High-torque mixing performance (no segregation)
  The vertical paddle system keeps material constantly in motion, producing a uniform mix with minimal air entrapment and strong consistency control.
• Powerful yet simple drive system
  Uses a 2 HP, 110V motor with gearbox drive and forward/reverse capability, helping break clumps and maintain consistent material quality.
• Designed for tough job-site materials
  Handles dry pack, masonry mortar, grout, stucco, and repair mixes, making it ideal for flooring, tiling prep, and general construction finishing work.
• Clean, controlled discharge system
  Material is discharged directly into a wheelbarrow or bucket with a controlled outlet system that reduces mess and improves accuracy on placement.
• Compact + mobile design
  Fits through standard doorways and includes transport wheels for easy positioning on tight job sites, useful for interior renovation work.
• Optional dust control upgrade
  Can be fitted with an iDUST grate system to reduce airborne dust when mixing dry materials, improving job-site cleanliness.
• Expert insight
  Compared to drum mixers, this is a high-efficiency production mixer—better consistency, faster cycles, and more control, especially for bagged or pre-blended materials.

Q&A

Q1: What is the Imer MIX 120 Plus 1194302 used for?
A: It is a compact vertical shaft paddle mixer designed for professional mixing of mortar, stucco, grout, dry-pack cement, and pre-blended construction materials on job sites.

Q2: What makes it a “vertical shaft mixer”?
A: It uses a forced-action vertical paddle system that keeps material constantly moving for fast, uniform mixing with minimal air entrapment and consistent quality output.

Q3: What is the mixing capacity?
A: It has a drum capacity of about 4.25 cu ft with up to 3 cu ft batch output, producing a wheelbarrow of material in roughly 3 minutes.

Q4: What motor does it use?
A: The mixer is powered by a 2 HP, 110V single-phase electric motor with gearbox drive and reverse function for improved mixing control.

Q5: What materials can it handle?
A: It is designed for mortar, stucco, grout, dry-pack cement, and other pre-blended or site-mixed construction materials, including stiff low-slump mixes.

Q6: What makes it efficient on job sites?
A: It delivers high torque mixing, fast batch cycles, and controlled discharge, allowing crews to work faster with consistent mix quality.

Q7: Does it support reverse mixing?
A: Yes, it includes a forward and reverse paddle system, helping break up clumps and restore mix consistency without manual intervention.

Q8: Is it suitable for tight job sites?
A: Yes, it is compact, portable, and can pass through standard doorways, making it ideal for indoor renovation and confined work areas.

Maintenance Tips

• Clean mixing drum immediately after use: Remove mortar, stucco, grout, or dry-pack material before it hardens to prevent buildup on paddles and drum walls.
• Flush discharge outlet daily: Keep the controlled discharge gate clear so material flows smoothly without blockage or residue.
• Maintain paddles regularly: Inspect rubber paddles for wear or cracking—worn paddles reduce mixing quality and torque efficiency.
• Clean iDUST grate system: If equipped, vacuum or wash dust grate to prevent clogging and maintain proper airflow.
• Check gearbox & reverse function: Ensure forward/reverse operation works smoothly to break up clumps and maintain consistent mixing performance.
• Inspect motor vents (2 HP unit): Keep cooling fins and housing free of dust to prevent overheating during continuous use.
• Tighten frame & wheel bolts: Vibration from high-torque mixing can loosen fasteners over time—check regularly.
• Avoid material drying inside: Even small residue can harden and reduce drum efficiency and paddle lifespan.
• Store clean, dry, and covered: Prevent corrosion on steel drum, frame, and electrical components after use.
