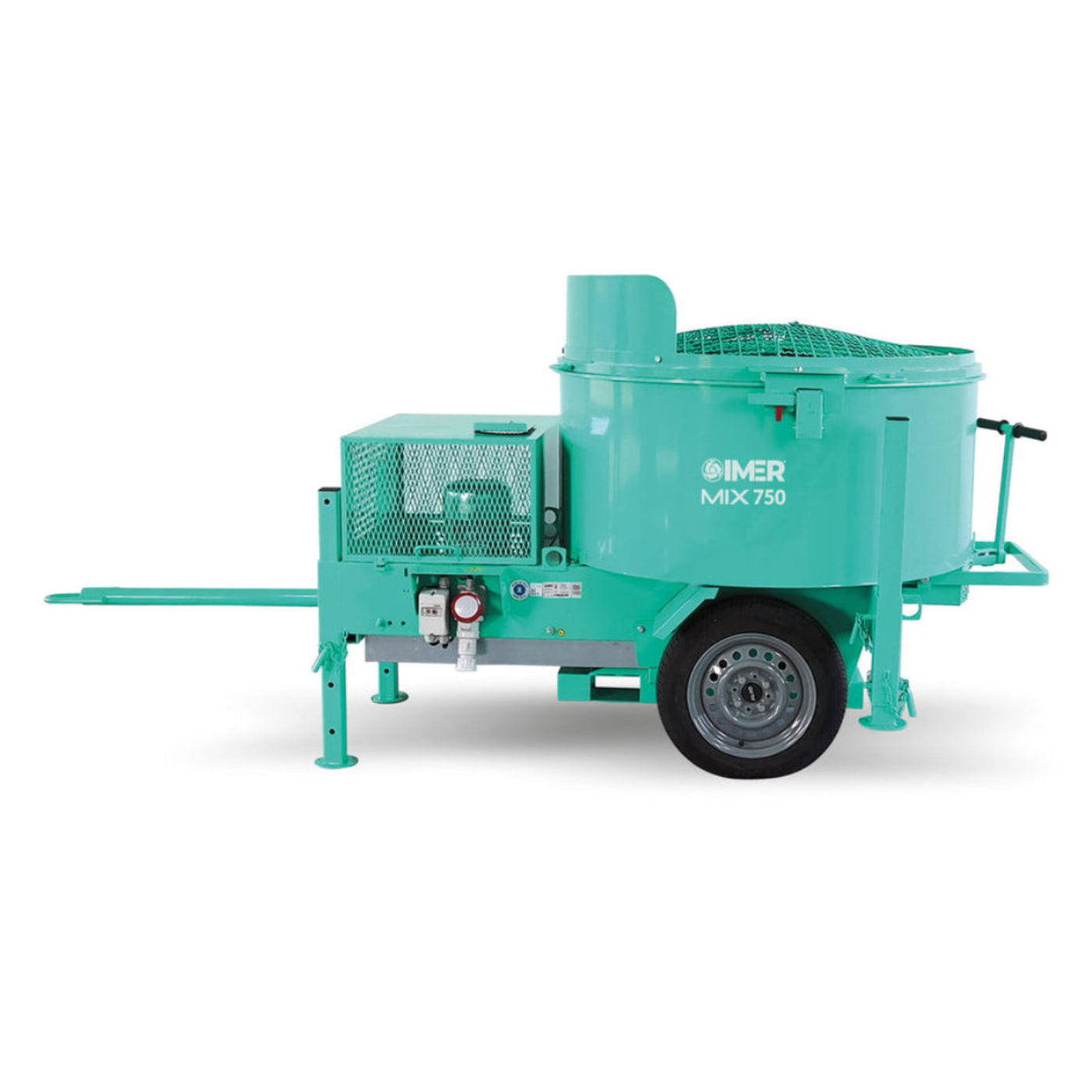

Imer MIX 750 Vertical Shaft Mixers - 1194644
The Mix 750 is the perfect partner for busy precast mixing operations. The discharge system is easy to open and close and protected from being hit by a mud bucket or forklift. The safety grate is hinged, making access immediate. The Mix 750 is Mini-Batch Plant production for the cost of a mortar mixer. These mixers develop vast amounts of mixing power, far more than any horizontal shaft mortar mixer. The ability to mix refractory mud or stiff, dry materials is unparalleled in the industry.
Features
- Honda gasoline, single or 3 phase electric motor options
- 22 cu ft drum capacity
- 16 cu ft batch output
- 22" pneumatic highway tires and torsion bar suspension
- Tow package - bar, hitch
- Gas model comes with electric start
- Forklift pockets
- Produce 16 cubic feet of mud every three to four minutes
- Formerly the Mortarman 750
Specifications
| Model |
MIX 750 |
| Electric Motor Ratings |
5 hp Single phase / 7.5 hp 3 phase |
| Gas Engine |
13 hp Honda GXV 390 |
| Drum Capacity |
22 cu ft |
| Batch Output |
16 cu ft |
| Drum Diameter |
52" |
| Max. Aggregate Size |
3/8" |
| Discharge Outlet Height (max/min) |
30"/22" |
| Weight |
1,588 lb |
| Dimensions |
90" x 63" x 62 |
What our Experts Think
- High-output vertical shaft mixing system - Designed for heavy-duty construction materials like mortar, grout, fireproofing, and refractory mixes, delivering industrial “mini batch plant” performance on site.
- Extreme batch productivity - Capable of producing up to ~16–18 cu ft of mixed material per cycle in just a few minutes, making it ideal for continuous high-volume work.
- Forced-action vertical mixing power - Uses a planetary/vertical shaft paddle system that creates intense shear mixing for highly uniform, dense, and consistent material blends.
- Built for stiff and demanding mixes - Excels at dry-pack, refractory mud, and low-slump materials where standard drum mixers struggle.
- Heavy-duty jobsite construction - Reinforced frame, industrial-grade motor options, and towable design support continuous contractor use in harsh environments.
- Efficient discharge system - Designed with a controlled dump mechanism and protected outlet, improving safety and reducing spillage during high-volume production.
- Large-scale project focus - Ideal for precast yards, bridges, highways, and commercial construction, where speed, volume, and consistency are critical.
Q&A
Q: What is the Imer MIX 750 used for?
A: It is a heavy-duty vertical shaft, forced-action mixer designed for high-volume mixing of mortar, refractory materials, stucco, grout, and precast concrete mixes on professional job sites.
Q: What is its capacity?
A: It has a drum capacity of 22 cu ft with a batch output of up to 16–18 cu ft per cycle, enabling mini batch plant-level production.
Q: What makes it different from standard mixers?
A: Unlike drum mixers, it uses a vertical shaft paddle system that delivers high shear, forced mixing power, allowing it to handle stiff, dry, and heavy materials that standard mixers struggle with.
Q: What motor does model 1194644 use?
A: The 1194644 configuration runs on a 240V single-phase, 5 HP electric motor.
Q: What materials can it mix?
A: It handles mortar, refractory mud, precast mixes, grout, stucco, and other cementitious materials—even high-density or low-slump mixes.
Q: How fast is production?
A: It can produce a full batch every ~3–4 minutes depending on material consistency and mix design.
Q: Is it portable?
A: Yes, it is towable with pneumatic tires, suspension, and forklift pockets for jobsite mobility.
Q: What safety features does it include?
A: It has an auto-shutdown hinged safety grate, protected discharge system, and secure locking dump mechanism for safer operation.
Q: What is its key advantage on job sites?
A: It delivers continuous, high-output mixing comparable to a mini batch plant, significantly reducing labor time and improving consistency for large-scale mixing work.
Q: Why choose the MIX 750?
A: It’s built for demanding professional environments where speed, consistency, and the ability to mix difficult materials are critical.
Maintenance Tips
-
Clean immediately after use: Wash drum, paddles, and discharge gate before mortar or refractory material hardens to prevent buildup and imbalance.
-
Keep safety grate clean: Remove debris around the hinged safety grate so it opens freely and safely for maintenance access.
-
Inspect paddles regularly: Check for wear or bending—worn paddles reduce mixing efficiency for stiff or dry materials.
-
Maintain discharge system: Ensure the dump handle and outlet stay clean and move smoothly to avoid sticking or partial discharge.
-
Check motor & drive system: Monitor for unusual vibration or noise; tighten mounting bolts and inspect belt/drive components if equipped.
-
Keep wheels & tow system in shape: Inspect tires, suspension, and tow bar for jobsite transport safety and alignment.
-
Clean forklift pockets & frame: Keep lifting points free of debris for safe handling on-site.
-
Store dry & covered: Prevent rust on drum, frame, and discharge components by storing in a dry environment after cleaning.
