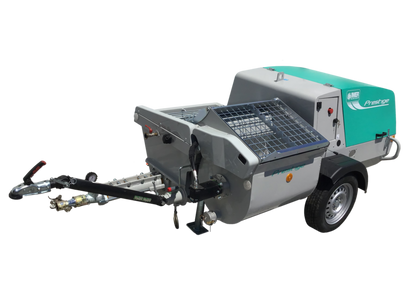

Imer Prestige 300 Pump and Spray Machine - 1106133

Imer Prestige 300 Pump and Spray Machine - 1106133

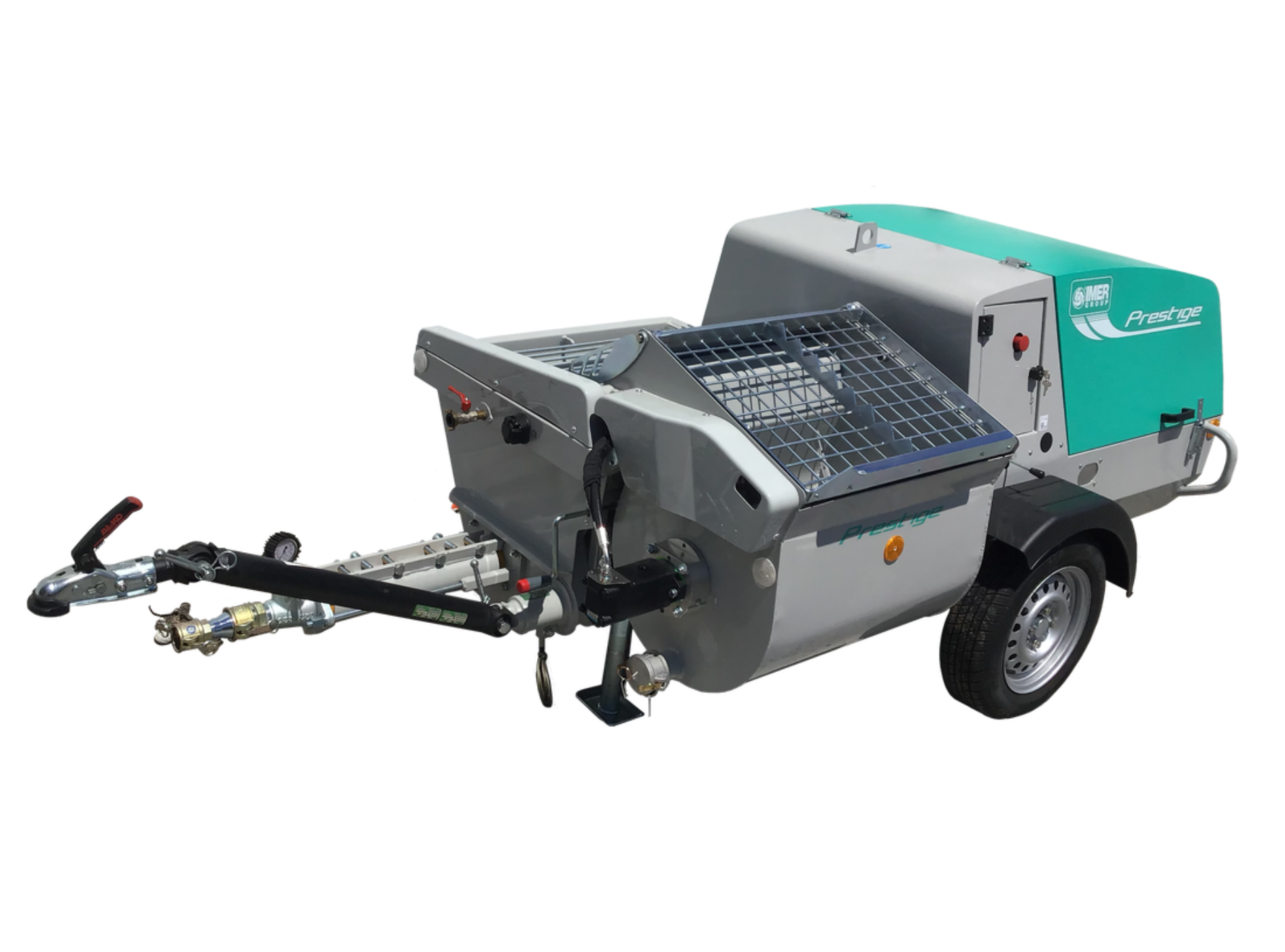

The Prestige 300 is a diesel-powered multi-purpose pump and spray machine with a built-in 6.3 cubic foot hydraulic mixer and onboard compressor for spraying. The military spec control panel integrates all these functions in one location, allowing operators to quickly and easily learn to operate the pump. Known for its versatility, the Prestige is designed to use different rotor/stator combinations for pumping a wide range of materials - including up to 3/8” aggregate with the optional L7 rotor / stator.

Features

• Mixer paddles aggressively mix the material, this ensures clump free mud in the shortest time possible
• Diesel engine provides the power needed to drive the hydraulics
• Safety sensor system stops the mixing paddles if the grid is opened
• The hydraulic mixer with hydraulic dump shears the mix fast
• High capacity hopper (7 cu ft), run hard batch after batch
• The onboard air compressor provides the perfect amount for spray applications
• Articulating towbar ensures that the pump is towed level and safe
• Torsion bar suspension makes travel safe and easy when towing
• Best in class control panel complete with pressure gauges and indicators
• Metal accessory tool box equipped for storage
• Choose from a 2L6, IM25L, 60.12 or L7 rotor / stator

Specifications

What our Experts Think

• All-in-one pumping powerhouse - Designed as a diesel-powered pump, mixer, and compressor in a single towable unit, built for high-output professional spraying and pumping jobs.
• Continuous production workflow - Combines a 7 cu ft hopper with a 6.3 cu ft high-shear hydraulic mixer, enabling near nonstop mixing and pumping on large jobsites.
• Strong industrial pumping performance - Uses a progressive cavity screw pump system (2L6 standard) capable of delivering up to ~580 PSI for demanding material applications.
• Built-in air compressor for spray work - Integrated 14 CFM compressor supports stucco, fireproofing, and mortar spray applications without external equipment.
• High versatility material handling - Handles grouts, stuccos, fireproofing, self-leveling underlayments, and repair mortars, with optional rotor/stator upgrades for different flow and aggregate needs.
• Jobsite-ready diesel power system - Powered by a 24 HP industrial diesel engine with hydraulic drive system, ensuring stable performance under continuous load.
• Precision control and safety design - Features a centralized control panel with safety interlocks and monitoring gauges, improving operator control and safety during operation.
• Built for large-scale contractors - Towable heavy-duty chassis designed for commercial construction, restoration, and infrastructure work where continuous pumping is required.

Q&A

Q: What is the Imer Prestige 300 used for?
A: It is a heavy-duty diesel-powered pump, mixer, and spray system designed for pumping and spraying mortars, grout, stucco, fireproofing, and self-leveling materials on large construction projects.

Q: What makes it a “3-in-1” machine?
A: It combines a progressive cavity pump, high-shear hydraulic mixer, and onboard air compressor in one towable unit for continuous production.

Q: What engine and power does it use?
A: It runs on a 24 HP diesel engine that drives all hydraulic, mixing, pumping, and spraying functions.

Q: What is the mixing and hopper capacity?
A: It has a 7 cu ft hopper and a 6.3 cu ft high-shear hydraulic mixer for continuous batch production.

Q: What materials can it handle?
A: Cementitious mortars, grout, stucco, fireproofing, self-leveling underlayments, and repair materials, including mixes with up to 3/8" aggregate (with correct rotor/stator setup).

Q: Does it include a compressor for spraying?
A: Yes, it has an onboard 14 CFM compressor for operating spray guns and finishing applications.

Q: What is its pumping capability?
A: It uses interchangeable rotor/stator systems (like 2L6, IM25L, 60.12) to adjust flow, pressure, and material type for different job requirements.

Q: Is it suitable for large job sites?
A: Yes, it is designed for continuous, high-output work such as commercial construction, façade spraying, block fill, and industrial grouting.

Q: Is it mobile?
A: Yes, it is fully towable with a highway-ready chassis and integrated control system for jobsite transport.

Maintenance Tips

• Flush after every use: Run clean water through hopper, pump, hoses, and spray gun immediately to prevent material hardening and blockages.
• Clean pumping system thoroughly: Ensure rotor-stator, valves, and delivery lines are fully free of residue to maintain stable pressure and output.
• Inspect hoses & couplings: Check for wear, cracks, or leaks that can reduce spraying efficiency or cause pressure loss.
• Maintain spray gun & nozzle: Disassemble and clean tips regularly to ensure consistent texture and avoid clogging.
• Check seals & gaskets: Replace worn seals to prevent air leaks and maintain optimal pumping performance.
• Monitor motor & gearbox: Listen for unusual noise or vibration and ensure proper lubrication where applicable.
• Tighten all connections: Secure clamps and fittings before each use to safely handle high-pressure operation.
• Store clean & dry: Fully empty system, rinse thoroughly, and store in a dry environment to prevent corrosion and buildup.
