| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |
| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |
| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
Precision Gear-Head Lathe: Delivers consistent accuracy for demanding machining tasks.
-
Expanded Capability: Taper attachment and collet closer add flexibility and speed to operations.
-
Heavy-Duty Build: Cast-iron construction provides stability, reducing vibration and wear.
-
Operator-Friendly: Smooth controls, ergonomic design, and reliable performance boost productivity.
-
Industrial Reliability: A professional-grade lathe built for machine shops and industrial environments.
Q&A

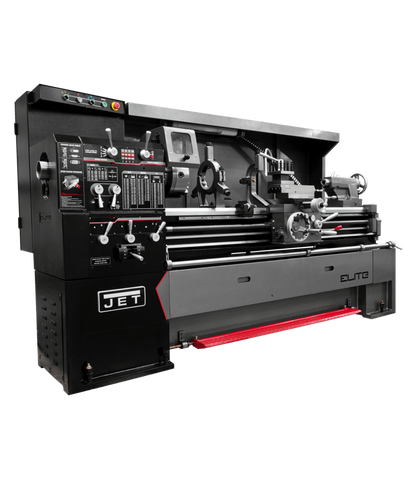

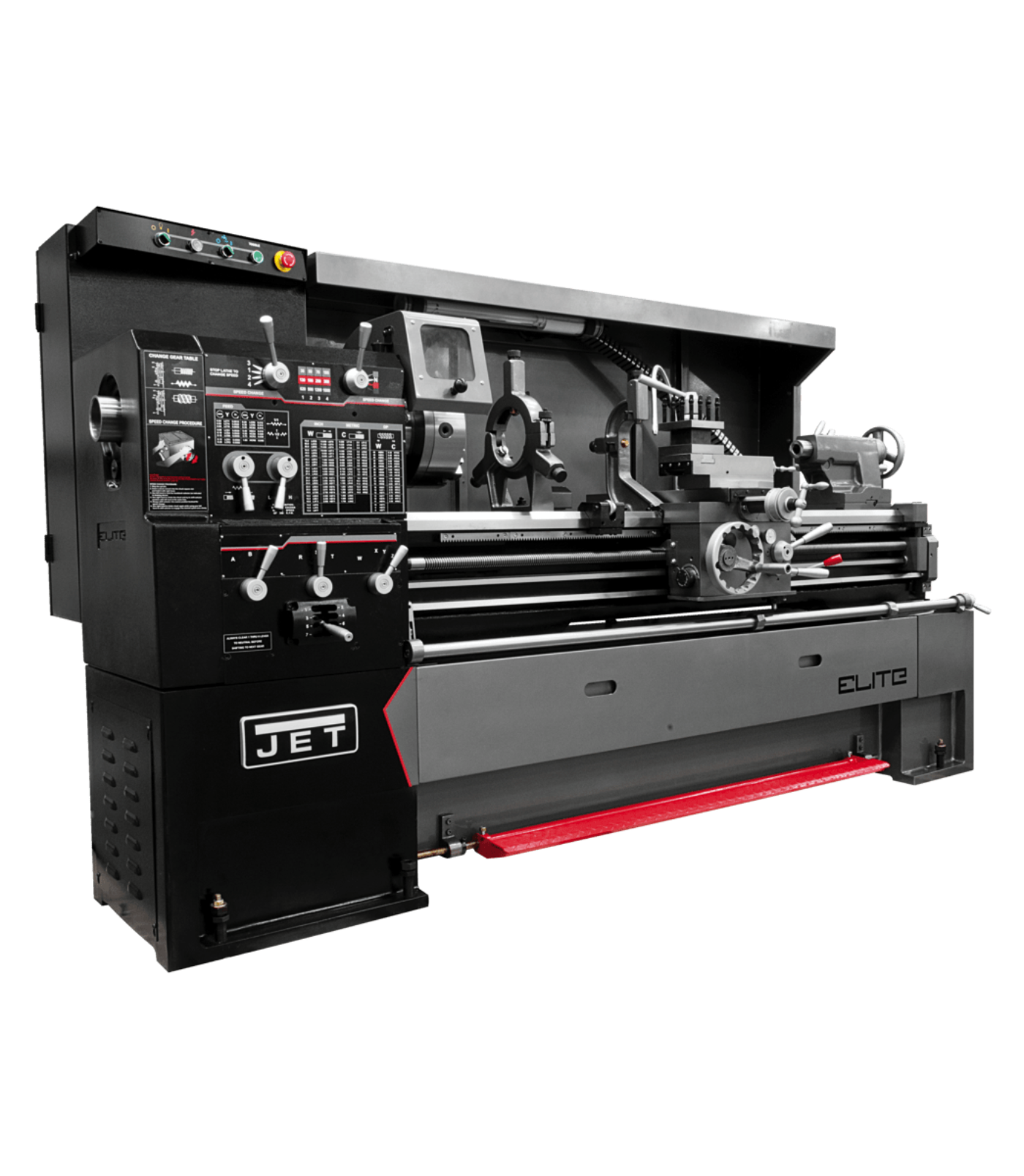

Q: What is the JET Elite EGH-1740 Lathe?
A: A heavy-duty gear head lathe designed for precision machining, equipped with a taper attachment and collet closer for versatile operation.
Q: What makes it unique?
A: Its rigid gear head drive, precision-ground bedways, taper attachment for accurate angles, and collet closer for fast part holding provide superior accuracy and efficiency.
Q: Where can it be used?
A: Ideal for machine shops, fabrication facilities, tool rooms, and industrial production environments.
Q: What style of work does it suit?
A: Precision turning, threading, facing, boring, and taper cutting on a variety of metals and alloys.
Q: What materials is it made from?
A: Durable cast iron frame with hardened and ground components for long-lasting stability.
Q: What are its key features?
A: 17" swing, 40" center distance, gear head drive, D1-6 spindle, taper attachment, and collet closer for efficient, accurate machining.
Maintenance Tips
-
Clean bedways, carriage, and leadscrews after each use to prevent wear.
-
Lubricate gears, bearings, and sliding components according to manufacturer’s schedule.
-
Inspect taper attachment and collet closer regularly for alignment and smooth operation.
-
Check belts, gibs, and fasteners for proper adjustment and safety.
-
Keep electrical components dry and cover the lathe when idle to protect from dust.
