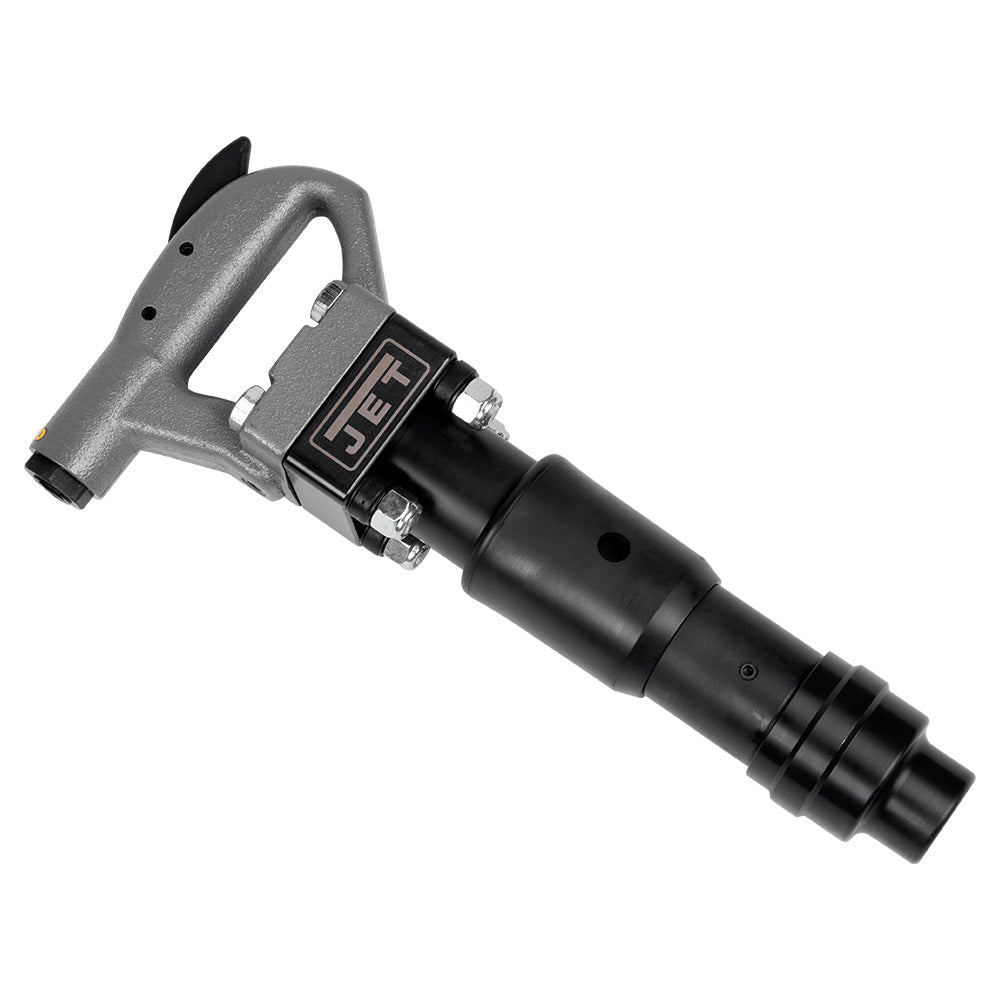

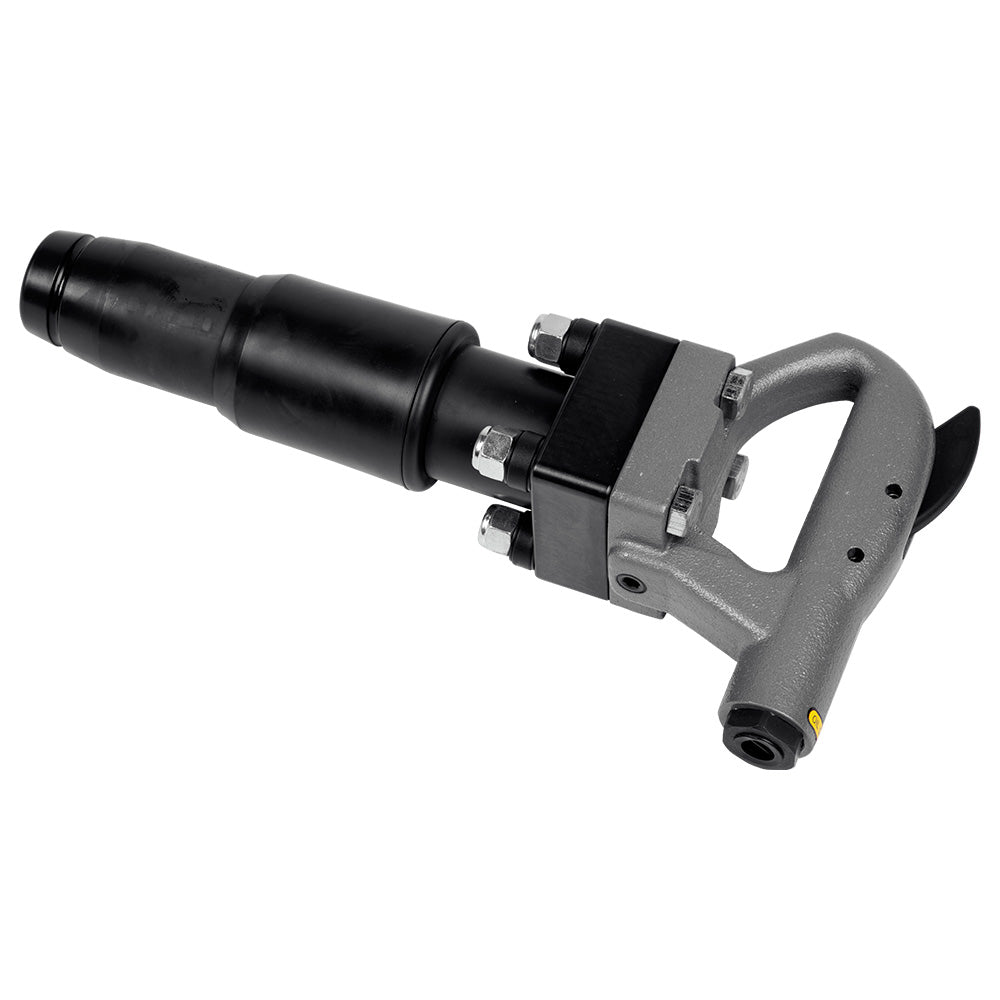

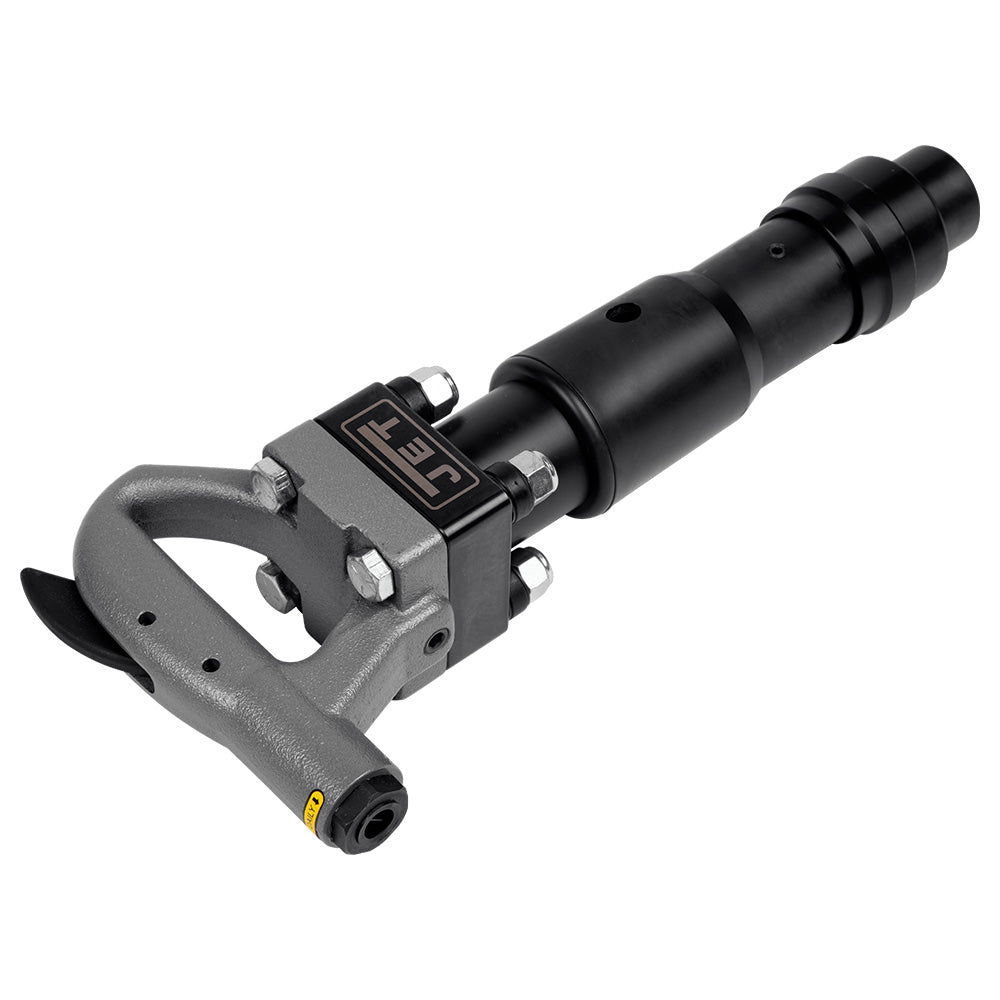

JET JCT-3622 4" Stroke Round Shank 4-Bolt Pneumatic Chipping Hammer (D Handle) - JT9-550622
JET Chipping Hammers are ideal for light material removal or demolition, typically in the horizontal position. For example, a chipping hammer would help you break up concrete slabs or tiles, and remove grout between bricks. In metalworking, chipping hammers help remove welding slag or excess metal.
JET Chipping Hammers are available in both a D-handle design and a saw tooth or open handle design. The open handle model is engineered to dissipate the impact energy more efficiently, increase user safety, and reduce maintenance costs. The JCT-3622 features a D-handle design for extra strength and better grip, reducing operator fatigue. The D-handle design is also great for accommodating a gloved hand.
Both models have the option of a round shank or hex shank. 0.68" round shank tools will rotate freely while retained in the chipping hammer. This allows the user to reposition the tip of the tool when needed. A round shank is ideal for accommodating uneven terrain such as a curved surface or rock. 0.58" hex shank tools do not rotate in the chipping hammer and will remain in the same position the user placed it in. This allows users to chip straight lines out on heavy surfaces like concrete. You can find the hex shank model of this 4" stroke chipping hammer .
Each model can accommodate standard oval collared chisels and retainers, making these heavy-duty chipping hammers a staple on any construction site. Top applications include cement chipping/breaking and demolition.
JET warrants every product they sell against manufacturer's defects. All JET Air Tools carry a 2-Year Warranty from date of purchase. Warranties are subject to JET's terms and conditions.
Features

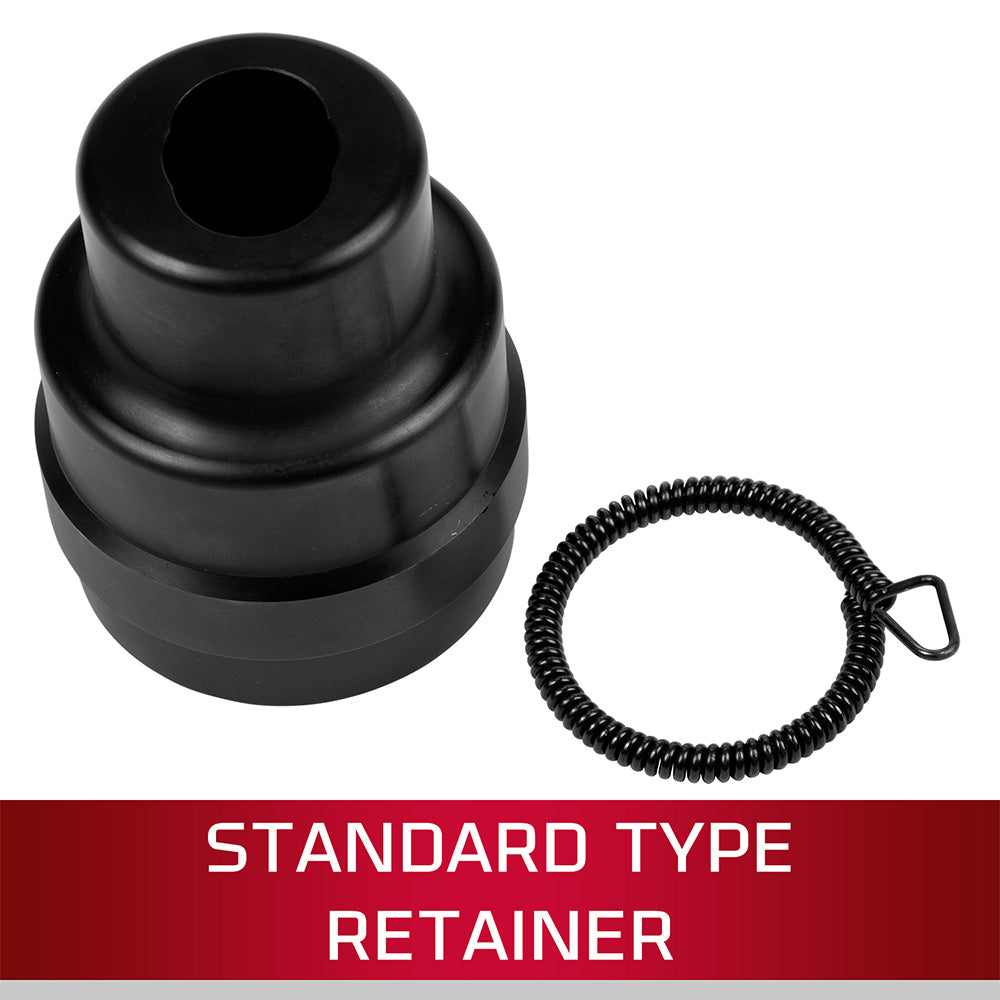

- Comes with standard type retainer
- Easy serviceability with the 4-bolt backhead

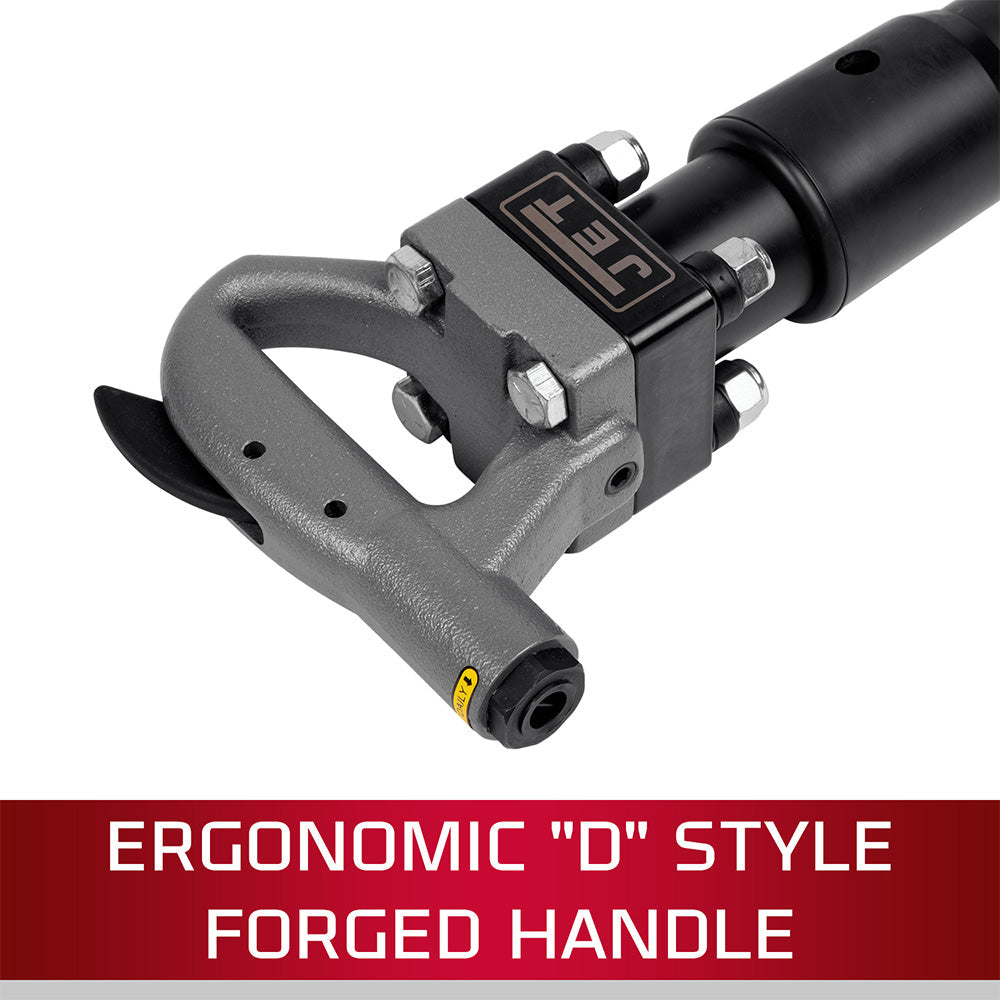

- Ergonomic "D" style forged handle with outside trigger

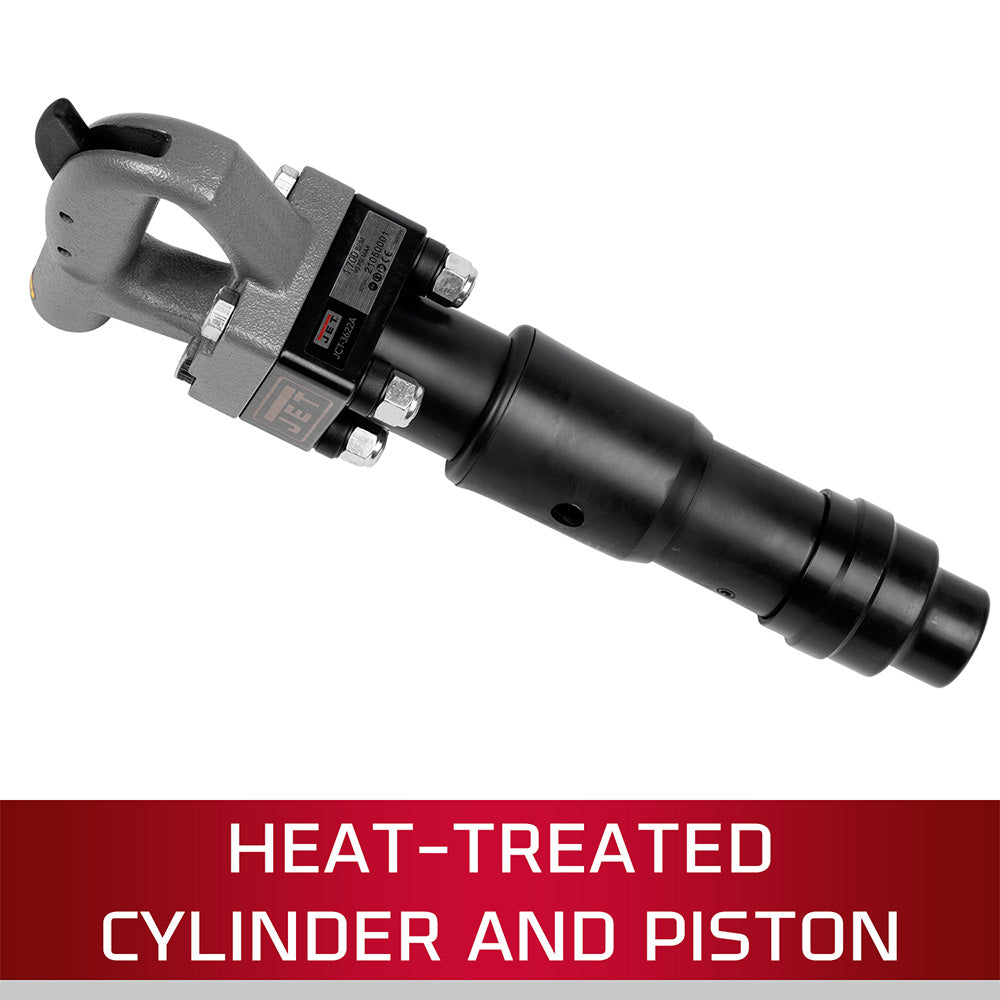

- Heat treated cylinder and piston for added durability
- Heavy-Duty, industry proven valve design
Specifications
| Air Consumption |
30 CFM |
| Air Hose Inner Diameter |
3/8" |
| Minimum Air Hose Diameter |
1/2" |

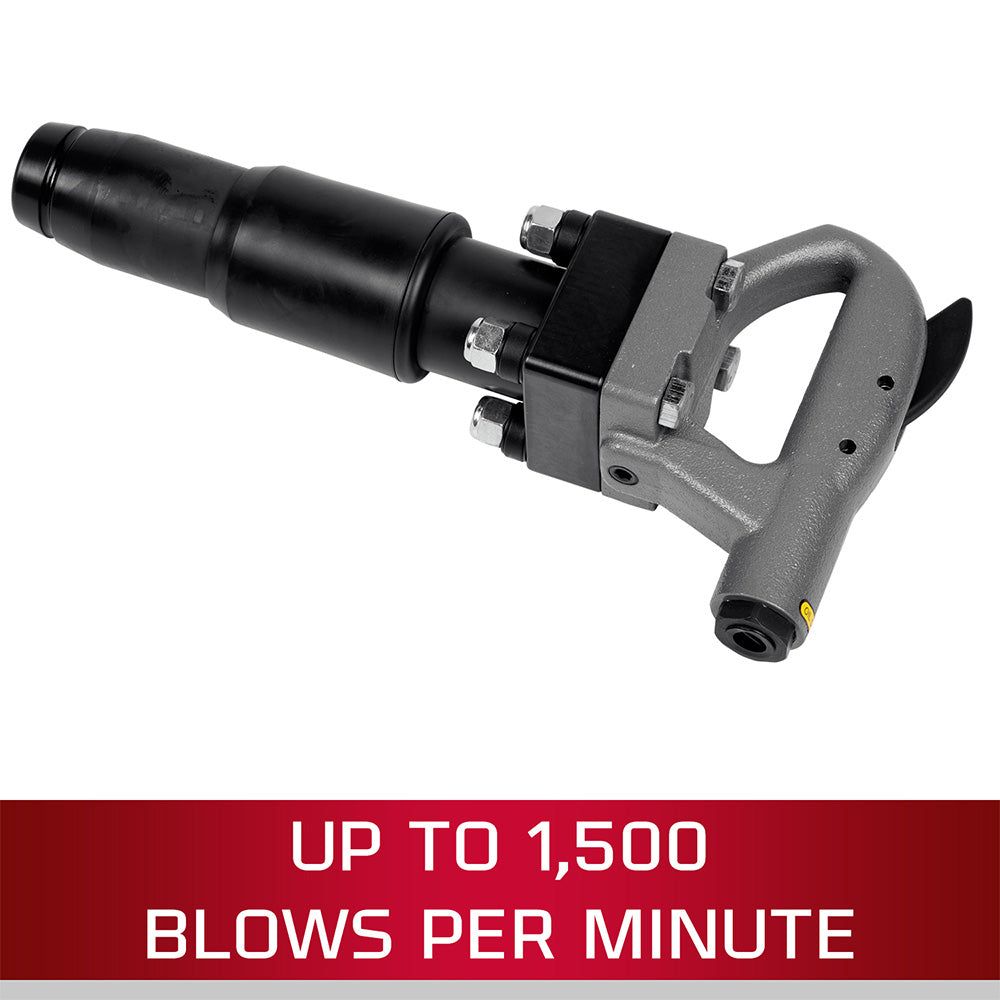

| Blows per Minute (BPM) |
1,500 |
| Bore Size |
1-1/8" |
| Piston Stroke |
4-1/4" (108 mm) |
| Shank Bushing Size |
0.68" |
| Shank Bushing Style |
Round |
| Overall Length |
16.1" (409 mm) |
| Weight |
20 lbs (9.07 kg) |
| Noise Level |
96 dBA |
| Vibration Value |
16.08 m/s² |
