Powered navigation for urban deliveries, small markets and limited stock space with reliable function.

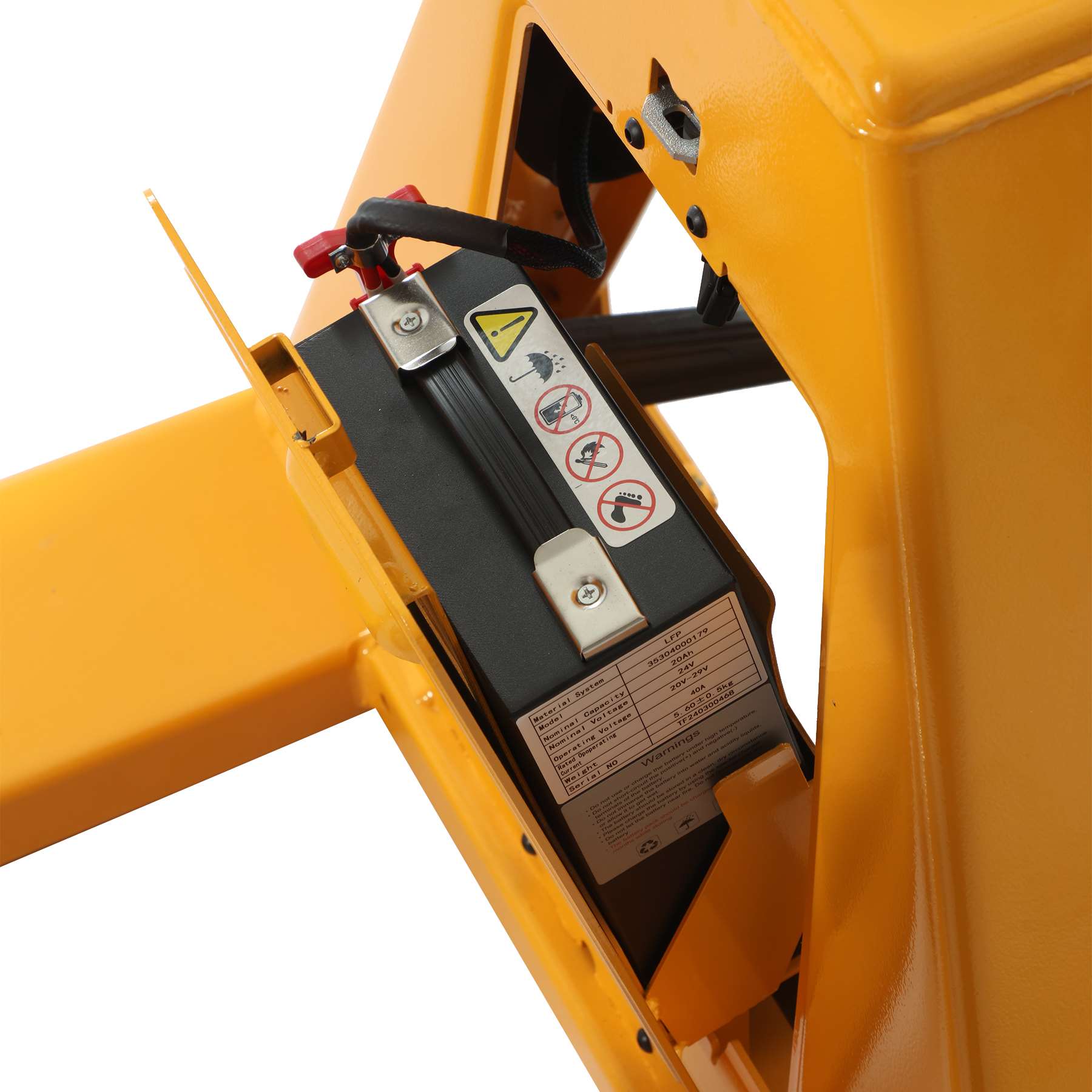

- Quick-change battery reduces downtime.
- Push-button lift control and forward/reverse thumb wheels on handle.
-
3 hours service per charge. 3 hours charge time. Battery life may depending on the usage and environment.
- 24 hours continous use with 1 extra battery.
- Gradeability(laden/unladen): 5%/20%

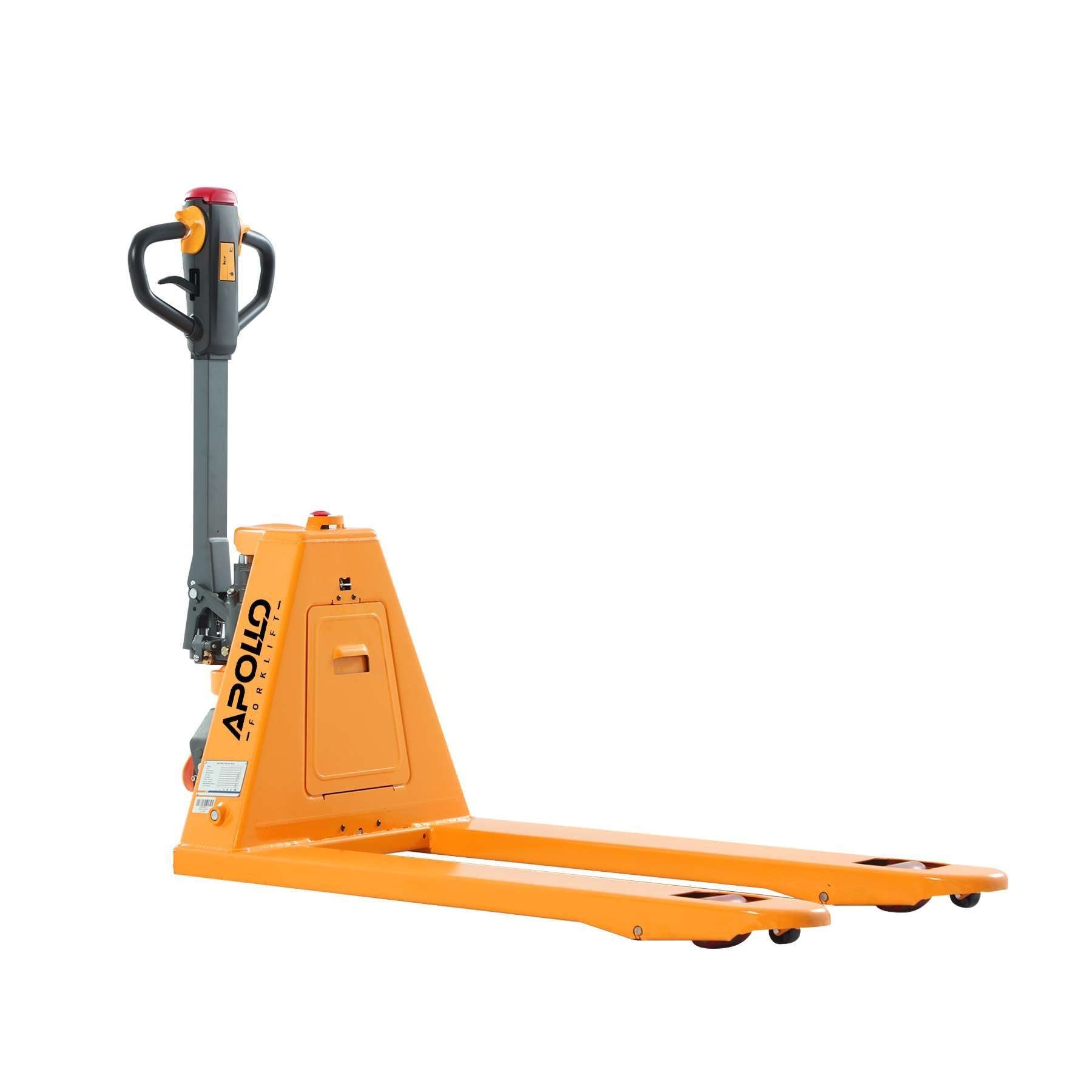

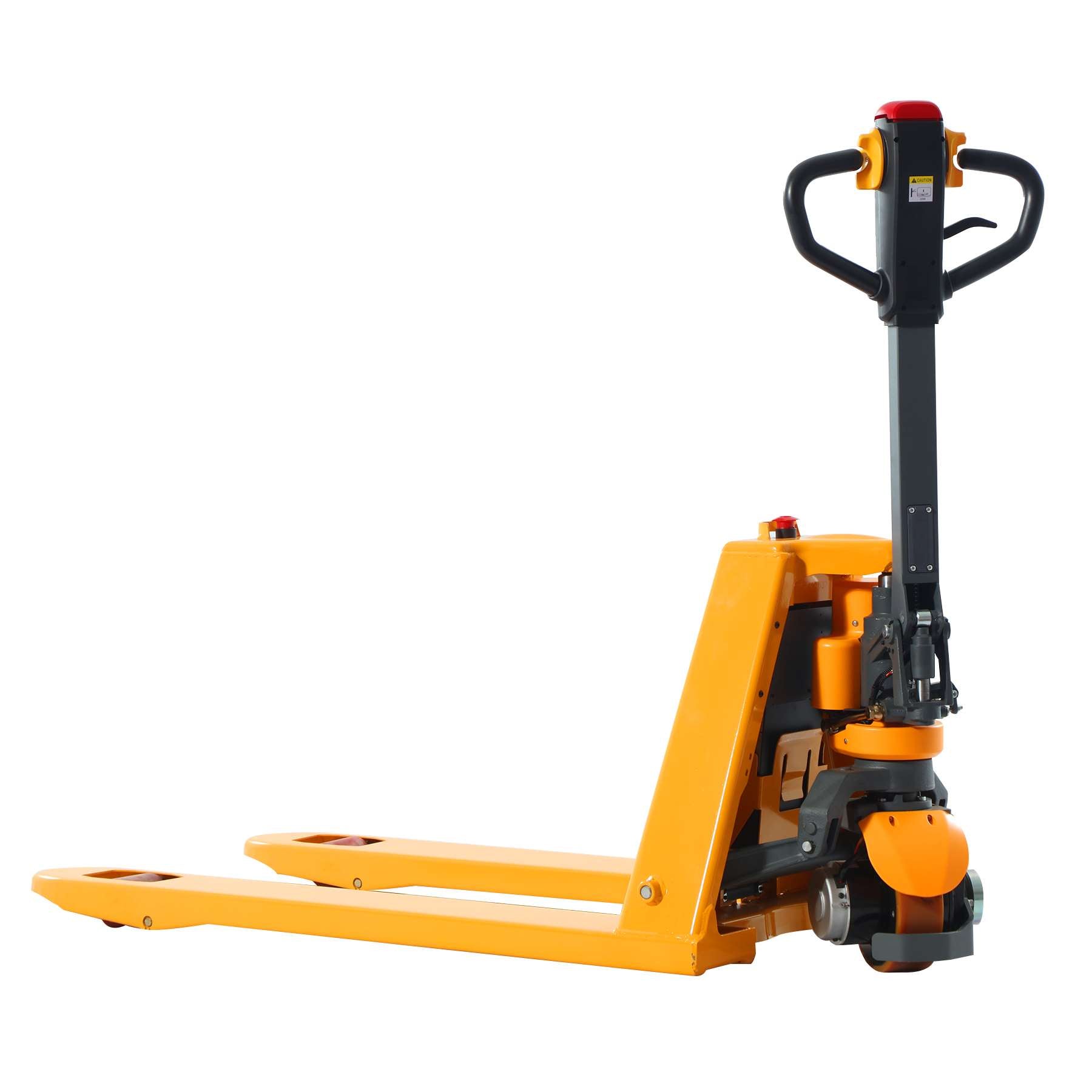

* BATTERY POWERED PALLET TRUCKS
| MODEL NO. |
FORK SIZE L x W |
LOAD CAPACITY |
WT.(LBS) |
RECHARGEABLE
BATTERY |
DRIVE
MOTOR |
WHEEL
DIAMETER |
PRICE EACH |
|
| A-1034 |
48x27" |
3,300 lbs. |
251 |
24V/20AH |
0.75 kw DC |
8.3"/3.15" |
$1,590 |
|
A-1037
|
48x27" |
3,300 lbs. |
290 |
24V/20AH |
0.75 kw DC |
8.27"/2.95" |
$2,000 |
| A-1021 |
45x21" |
3,300 lbs. |
298 |
48V/20AH |
0.65 kw DC |
9.8"/3.15" |
$2449 |
*Includes one lithium ion battery and charger
*REPLACEMENT PARTS
| MODEL NO. |
DESCRIPTION |
SPECIFICATION |
WT.(LBS) |
PRICE EACH |
|
| S-1001 |
Replacement Lithium Ion Battery |
24V/20AH |
18 |
$320 |
| S-1009 |
Replacement Charger |
24V/6A |
11 |
$150 |

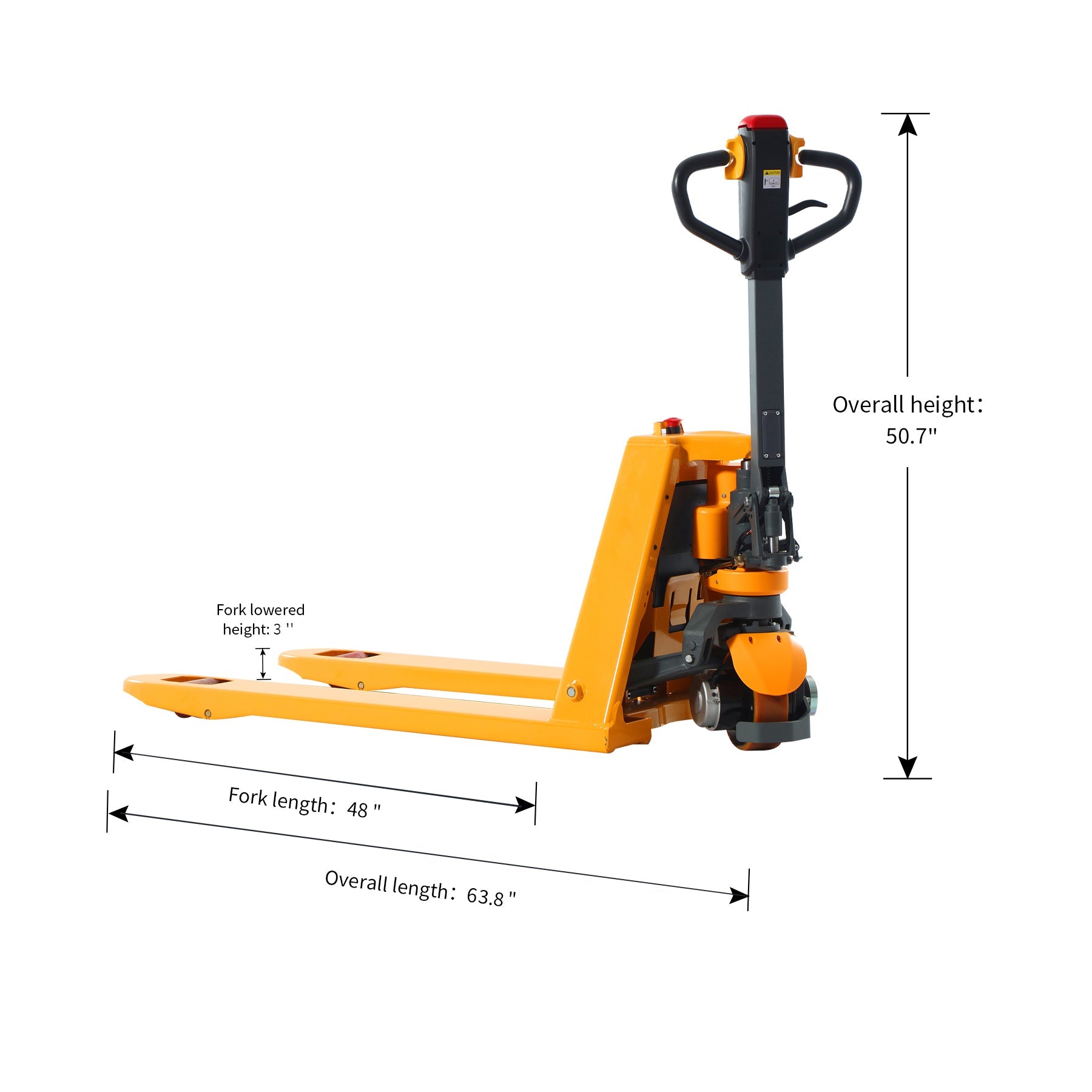

DIMENSIONS:
- Overall: 65" x 27"x47.24" (L xWx H)
- Lowered height: 3.1''
- Raised height: 7½"

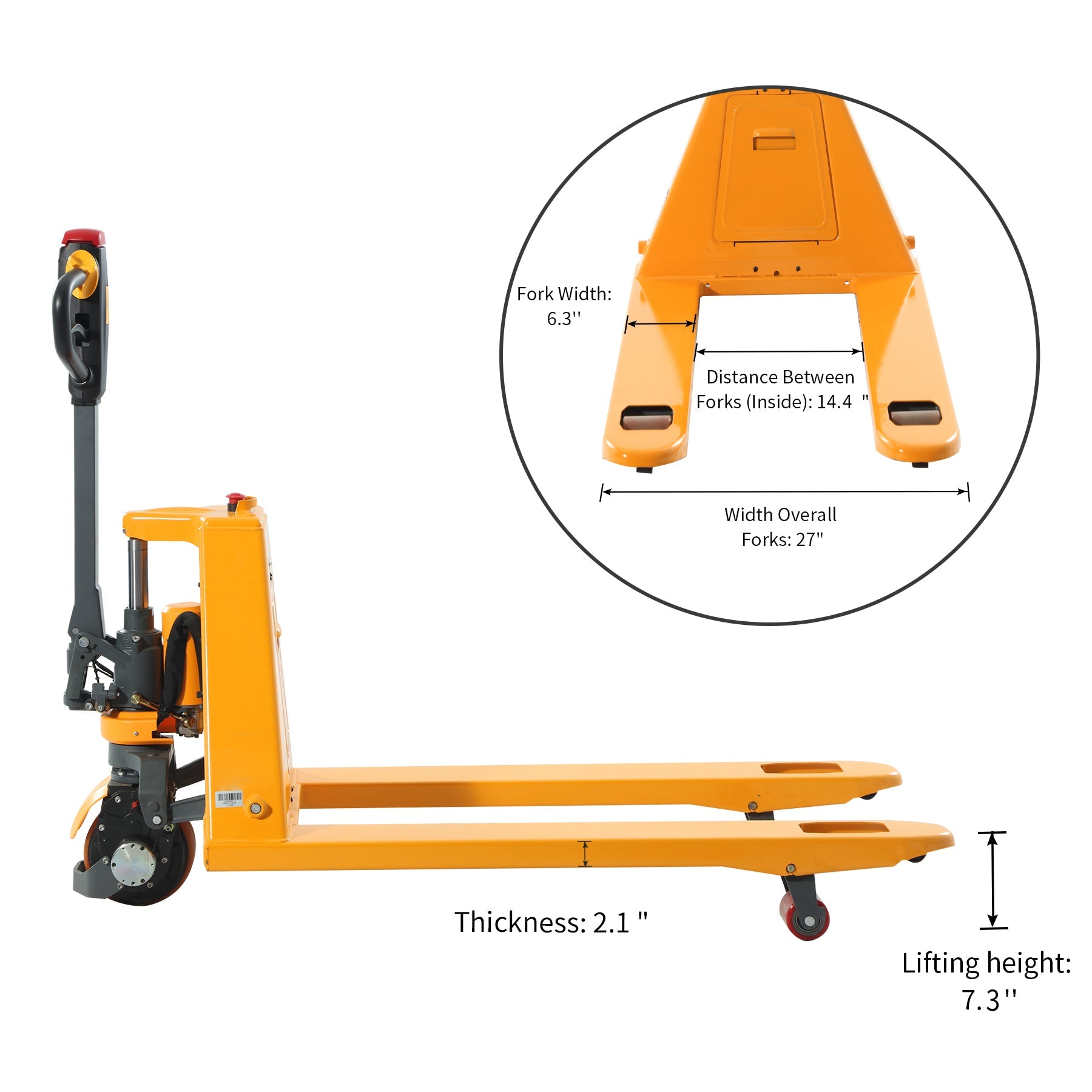

FORKS:
- Actual: 48 x 27"
- Width: 6.3"
- Thickness: 2.1"
- Distance Between Forks (Inside): 14.37"
FEATURES:
- Non-marking polyurethane wheels. 180° steering arc.
SPEED:
- Empty: 2.8mph
- Loaded: 2.67 mph
CHARGING:
- Charger plugs into standard 110V-120V outlets.
- Fully charge battery before use to avoid damaging cells.
- Charge the truck once a month even it's without use.
- LED light on charger shows battery charge status.
-
Green: Fully Charged
-
Red: Charging
SPECIFICATIONS:
- Not explosion proof.
- This truck is designed to be used on flat ground.Avoid uneven grounds with potholes,and large ramp.
- Temperature range of working environment 50˚F~104˚F.
Click Here :A-1017 Detail Page.
Click Here :Install the handle of Lithium Battery Powered Pallet Truck.
Full Electric Lithium Pallet Small Flexible Steering.
Charge Electric Lithium Pallet Trucks.
