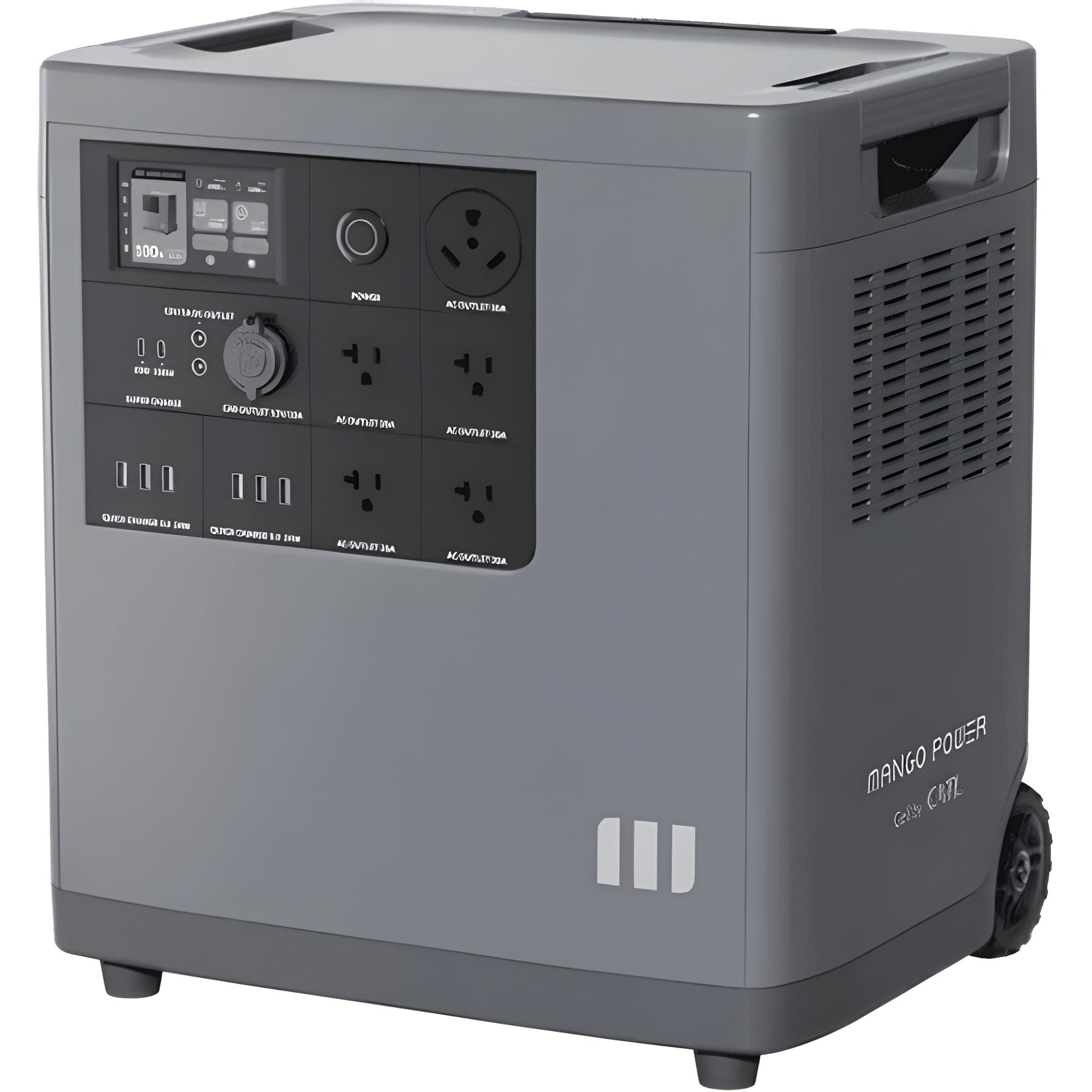

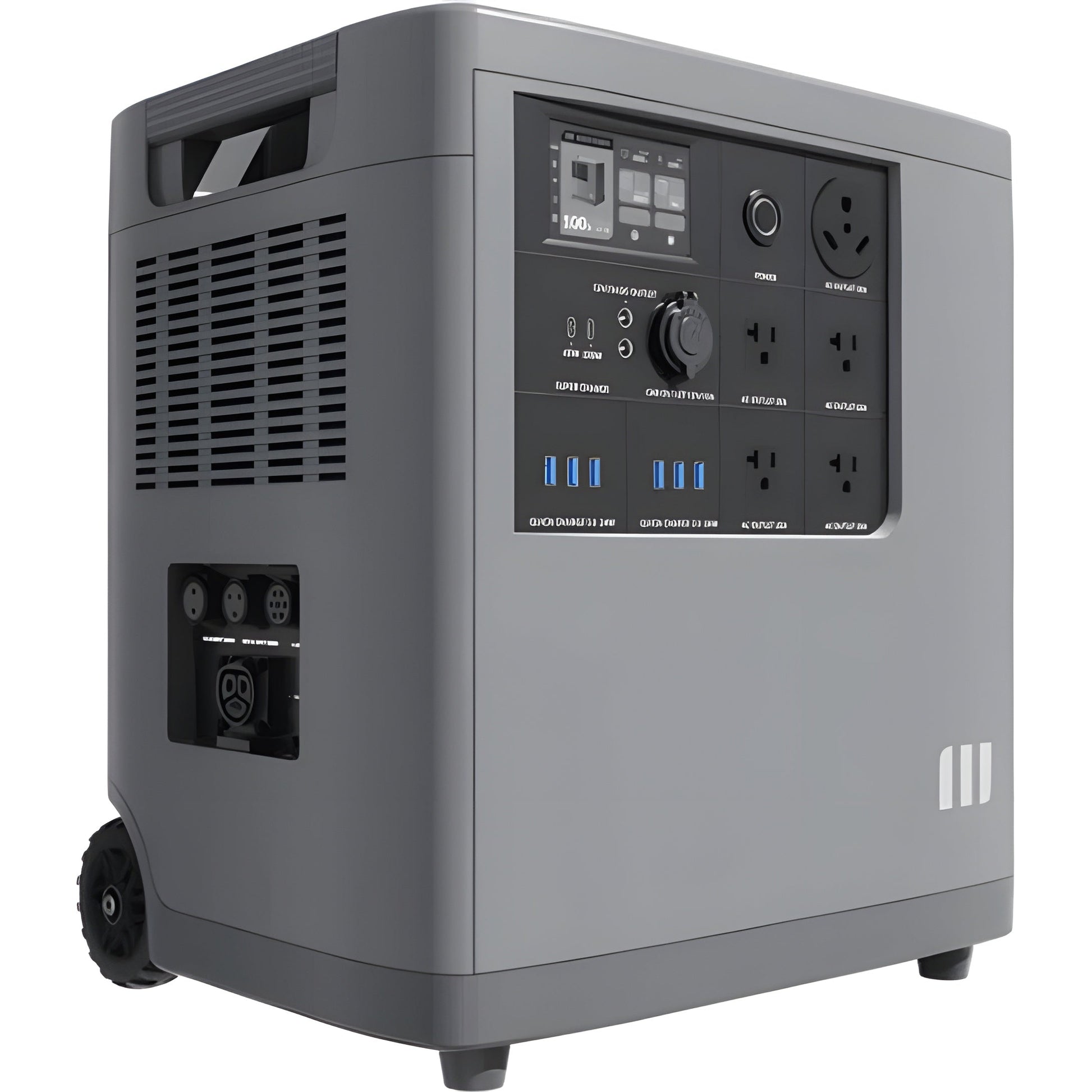

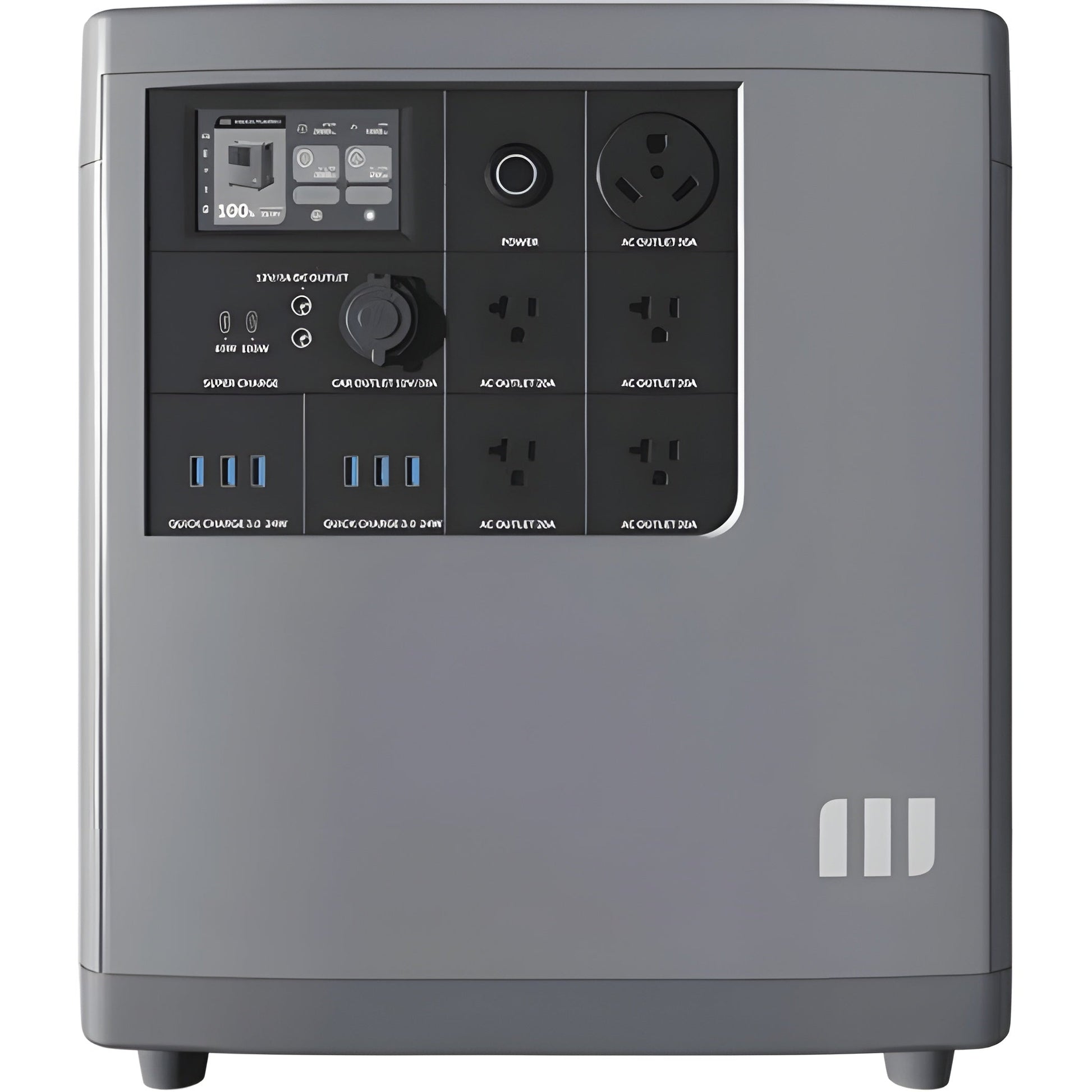

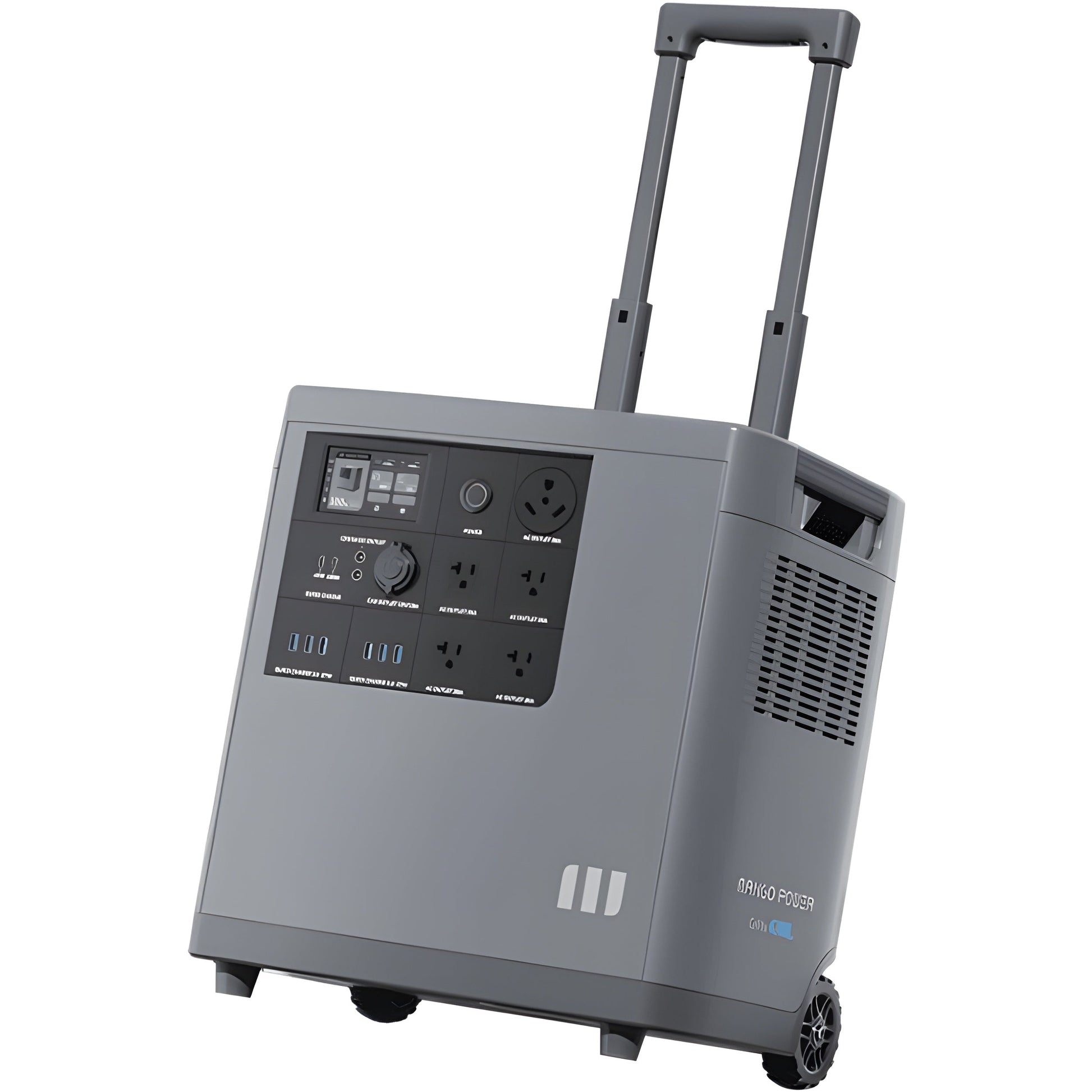

Mango Power E Portable Power Station and mPanel Pro Bundle MPB01US1N002

Bring Smart Green Energy Products Into Every Home, And Help Every Family Realize A Zero Carbon Emission Future.

The Mango Power Premium Home Backup Kit is the perfect solution for homeowners who want to be prepared for anything. With a capacity of 3.5kWh, this powerful battery can power your home for up to 24 hours during a power outage. And with its 6kW output, you can run even your largest appliances, such as your refrigerator, furnace, and air conditioner.

The Mango Power Premium Home Backup Kit is also incredibly easy to use. Simply plug it into your home's electrical system and connect it to your solar panels (optional). Then, you can use the included app to monitor the battery's status and control its output.

With the Mango Power Premium Home Backup Kit, you can rest assured knowing that you'll always have power, no matter what Mother Nature throws your way.

Power your Essential Appliances in the Event of a Power Outage To run large power-hungry appliances like heaters, dryers, water pumps, and more, the Mango Power E may be converted into a high-powered split-phase generator with the mSocket Pro* accessory. By incorporating Mango Power's ecosystem into your home's circuit*, you can ensure that in the event of a blackout, you will have grid independence and power security for your lights, refrigerators, computers, and any other vital appliances you have plugged in.

• Enjoy peace of mind knowing that you'll always have power

• Protect your home from power outages

• Run even your largest appliances during a power outage

• Reduce your reliance on the grid

• Save money on your energy bills



5-Year Warranty

The Mango Power E and Expansion Battery come with a robust 5-year warranty for ease of mind. Even with up to five years of continuous use, charging, discharging, and recharging constantly, the Mango Power E's best-in-class battery cells will still perform as well as they did when brand new.



Net Weight	100.1 lbs / 45.4kg
Dimensions	17.8 x 13.6 x 19.4 in | 45.2 x 34.5 x 49.4 cm
Working Temperature (charging)	-10°C~45°C (14℉~113℉)
Working Temperature (discharging)	-20°C~45°C (-4℉~113℉)
Warranty	5 Years
Certifications	Meets US and International Safety and EMI Standards
Quick Charge	Recharge to 80% in 1 hourRecharge to 100% in 1.5 hours
Running Noise	<40dB under no-load<51dB under full-load
IP Level	IP21

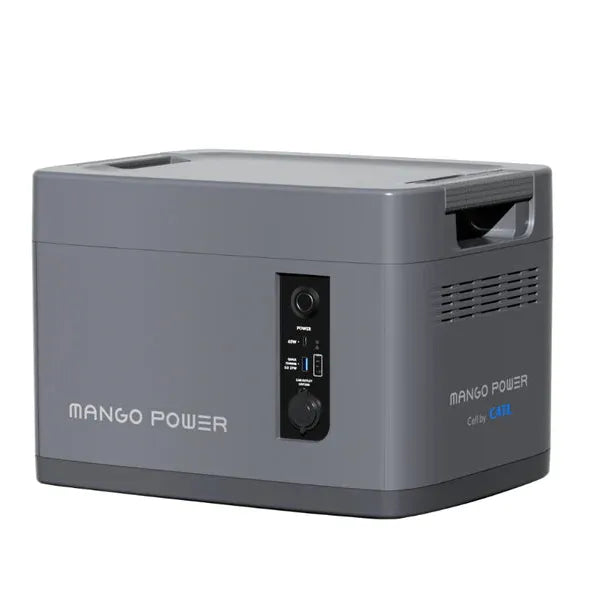

Expansion Capacity	Can expand the capacity by one E Battery to 7066Wh
Expansion Power	Can expand the power by two to 6000W
240V Split Phase	With mSocket Pro or mPanel(sold separately), can output 240V split phase, 6000W
Home Backup	Support (need mPanel Pro)


Battery

Battery Capacity	3533Wh
Cell Chemistry	World’s best CATL LFP
Life Span	Capacity Retention >70% after 6000 cycles (@25℃, +0.5C/-0.5C)
Battery Management Systems	Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, LowTemperature Protection, Low Voltage Protection, Overcurrent Protection
Max Charging Rate	Up to 1.1C


Input

Charging Methods	AC Wall Outlet, Solar Panel, EV Charger, Generator
AC Charging Max	3000W
Solar Charging Max	2000W (60V-150V)
EV AC Charging Spot	Adapter needed
Generator	Support


Inverter

Rated AC Output Power	3000W, 120V AC, 60Hz
Power of Over-load	3150W<load≤3750W, 5mins;3750W<load≤4500, 60s4500W<load≤4800W, 10s4800W<load, less than 40ms
Maximum Power Point Trackers	1x, Support Both Roof and Portable Solar Panels
Inverter Efficiency	Up to 88%

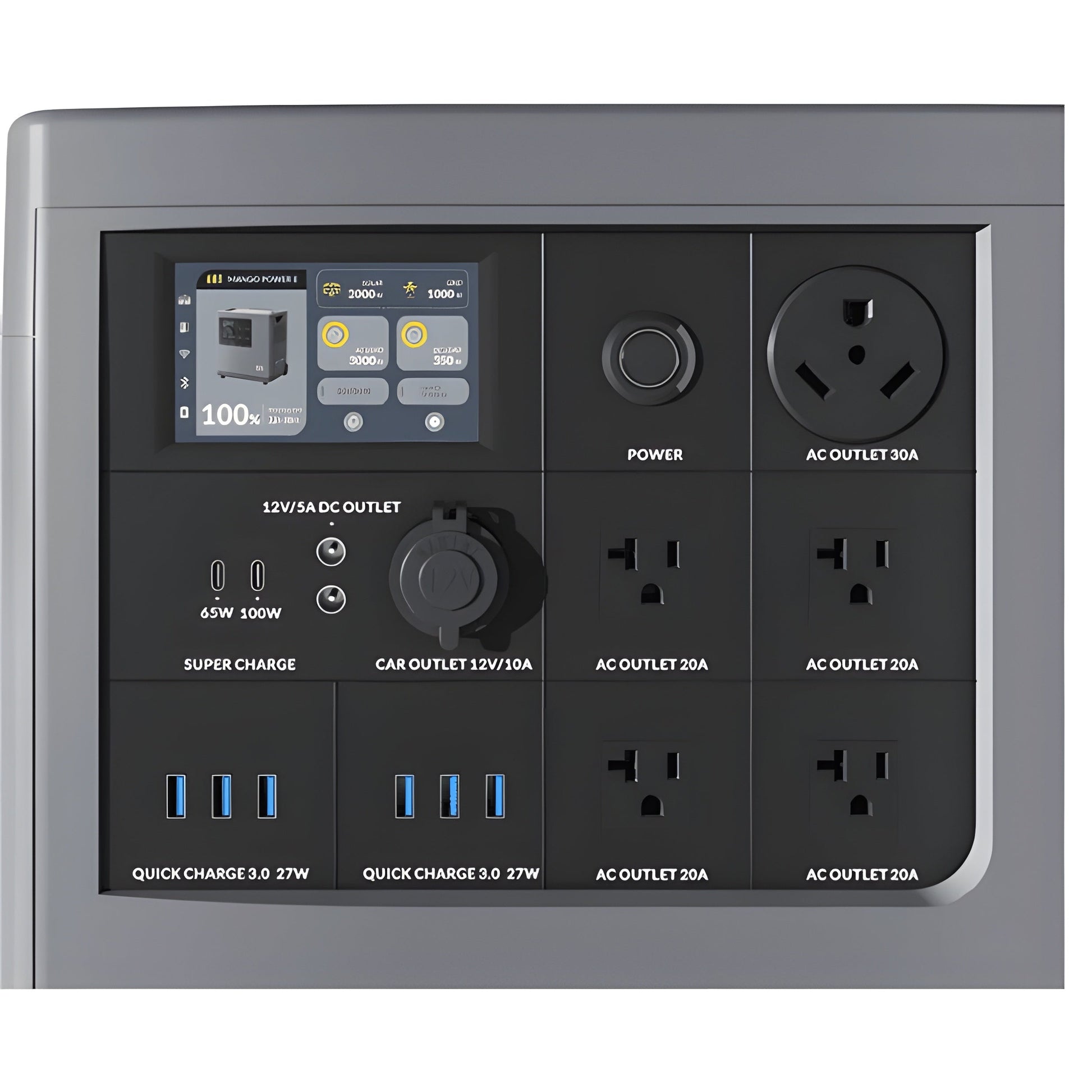

Output

Output Ports	16
AC Output Ports	4 x 20A
USB-A Ports	6 x QC 3.0 24W
USB-C Ports	1 x PD 65W+1 x PD 100W
Car Power Output	12V/10A
DC5521 Output	2x12V/5A
AC RV Port	30A


Smart Panel

Connection	Bluetooth and Wi-Fi
App Remote Control	Yes
OTA Upgrade	Yes
Customized Mode	Backup Power Mode / Economical Mode / Time-based Control Mode
Smart Measurement	Yes
Smart Energy andCarbon Footprint Report	Yes
Smart Notifications	Yes

Screen

Screen Size	4.3 Inches
Touch Screen	Yes
Resolution Ratio	480 x 800
Screen Pigment	16.7M colors
Smart Self-Check System	Yes

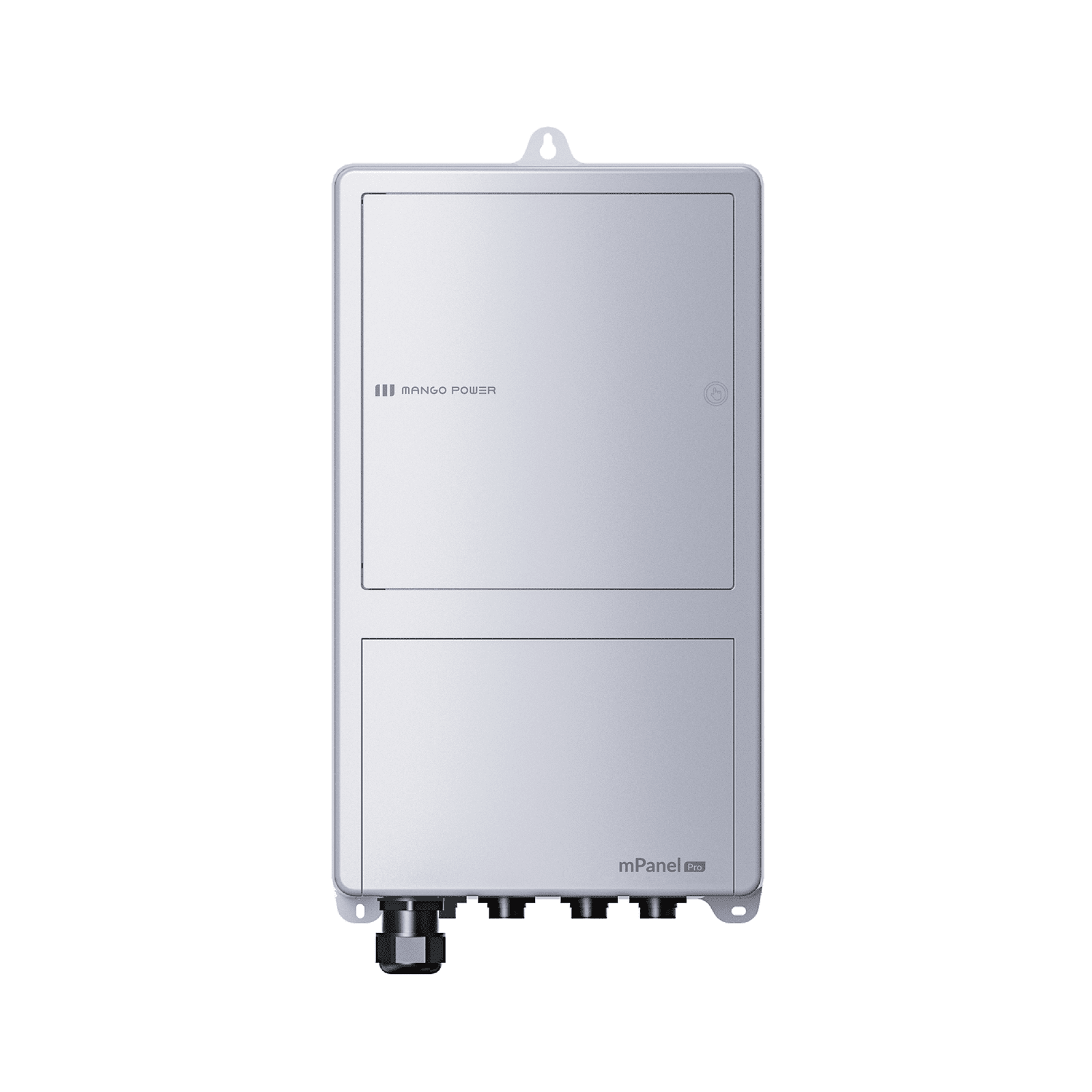

Mango Power mPanel Pro Specifications

Mains Input Voltage	120V, 240V
Mains Input Current	50A
Output Port	2×30A
Backup Input Port	2×30A
Load Output Port	4x15
Operating Temperature	-10°C- 45°C
Dimensions	554 x 280 x 108mm | 21.8 x 11.02 x 4.25



Mango Power Portable Power Station

• 1 x Mango Power E Home Backup and Portable Power Station

• 1 x AC Charging Cable

• 1 x Solar Input Cable

• 1 x Quick-Start Guide

• 1 x Warranty Card

Mango Power mPanel Pro

• 1 x Mango Power mPanel Pro

• 1 x User Manual

• 1 xWarranty Card

• Mango Power E User Manual

• Mango Power E Quick-Start Guide

• Mango Power mPane
