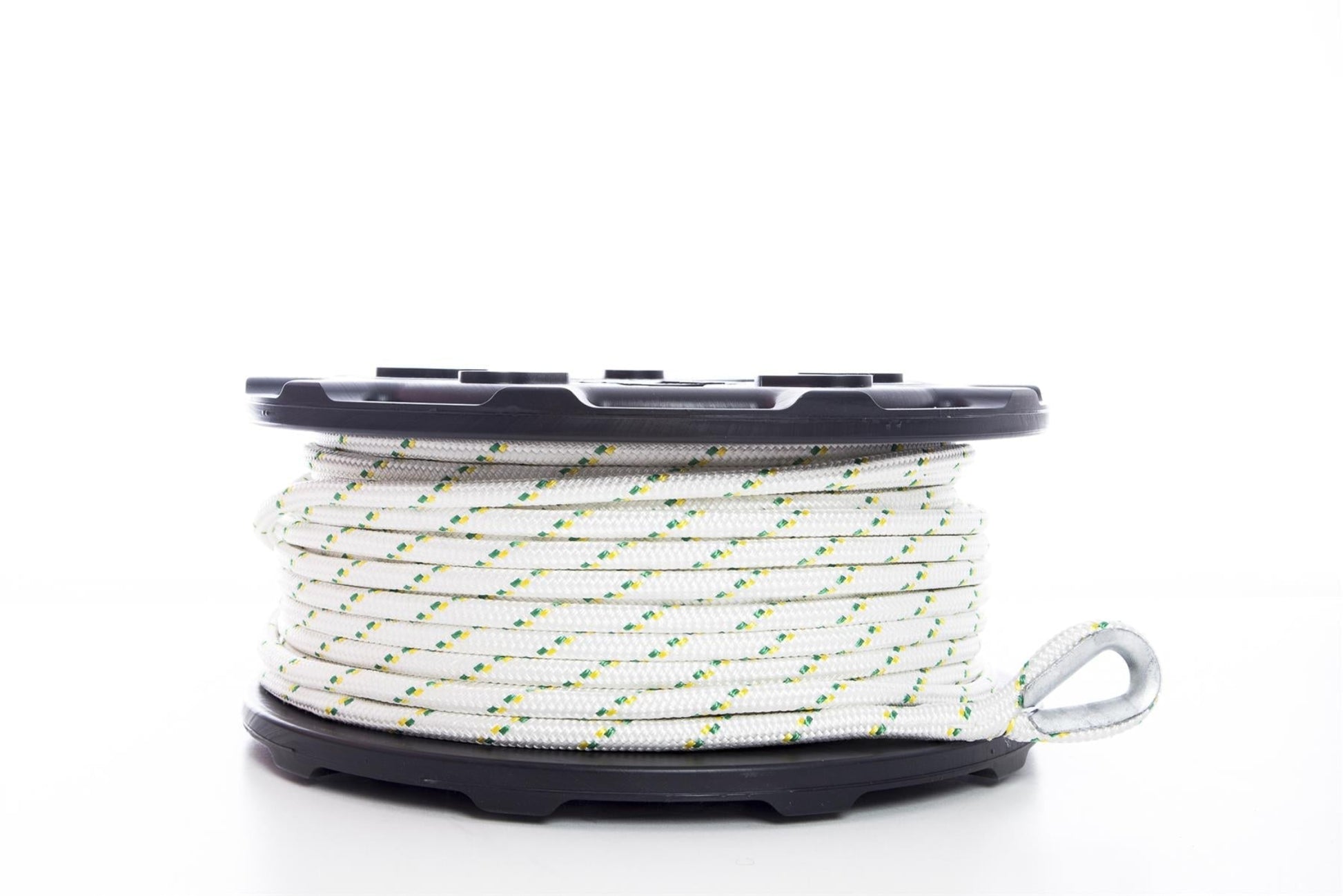

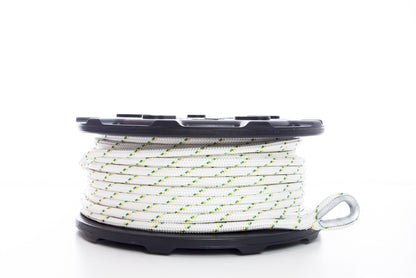

Portable Winch PCA-1213M2ESC Double Braided 1/2" x 328' Polyester Rope with Splices & Thimbles - PW,PCA-1213M2ESC
For a better performance, always use Portable Winch Co. ropes with your winch. Its double-braided construction makes it durable and features low stretch for increased safety. Its low cost and resistance to abrasion make it a good choice for using with our capstan winches, where it is subject to friction and intense heat.Β
Splices with galvanized steel thimble are available on this rope. They provide protection against wear caused by carabiners, shackles and hooks attached at the end of the rope. In addition, a splice maintains almost 100% of the rope capacity, unlike a knot, which reduces its capacity by at least 30%.
What our Experts Think
Q&A
Q: What is the Portable Winch PCA-1213M2ESC Double Braided Rope?
A: It is a professional-grade 1/2" x 328' double-braided polyester rope designed for Portable Winch capstan systems, featuring factory-installed splices and thimbles on both ends.
Q: What is the main advantage of the M2ESC version?
A: The βM2ESCβ version includes eye splices and galvanized thimbles on both ends, providing stronger, safer attachment points for hooks, shackles, or carabiners compared to knotted rope.
Q: What are its size and strength?
A: It measures 1/2 inch diameter and 328 feet long, with a minimum breaking strength of about 7,275 lb.
Q: What material is it made from?
A: It is made from double-braided polyester, which offers low stretch, high abrasion resistance, and good heat tolerance for capstan winch use.
Q: Why are thimbles included?
A: The thimbles protect the rope eye from wear caused by hardware and help maintain rope strength by preventing sharp bending and abrasion at connection points.
Q: How is it different from standard PCA-1213M rope?
A: Unlike the standard version, this model comes with factory splices at both ends, making it ready for lifting/pulling setups without needing aftermarket rope termination.
Q: What is it used for?
A: It is used in forestry, construction, utility work, recovery, and other industrial pulling applications where secure, pre-finished rope ends improve safety and efficiency.
Q: Why choose this rope over a knotted rope?
A: Spliced ends retain near-full rope strength, while knots can reduce capacity by 30% or more, making this version significantly safer for heavy-duty winching.
