Portable Winch PCW3000-A Gas-Powered Pulling Capstan Winch, Honda GX35 - PW,PCW3000-A

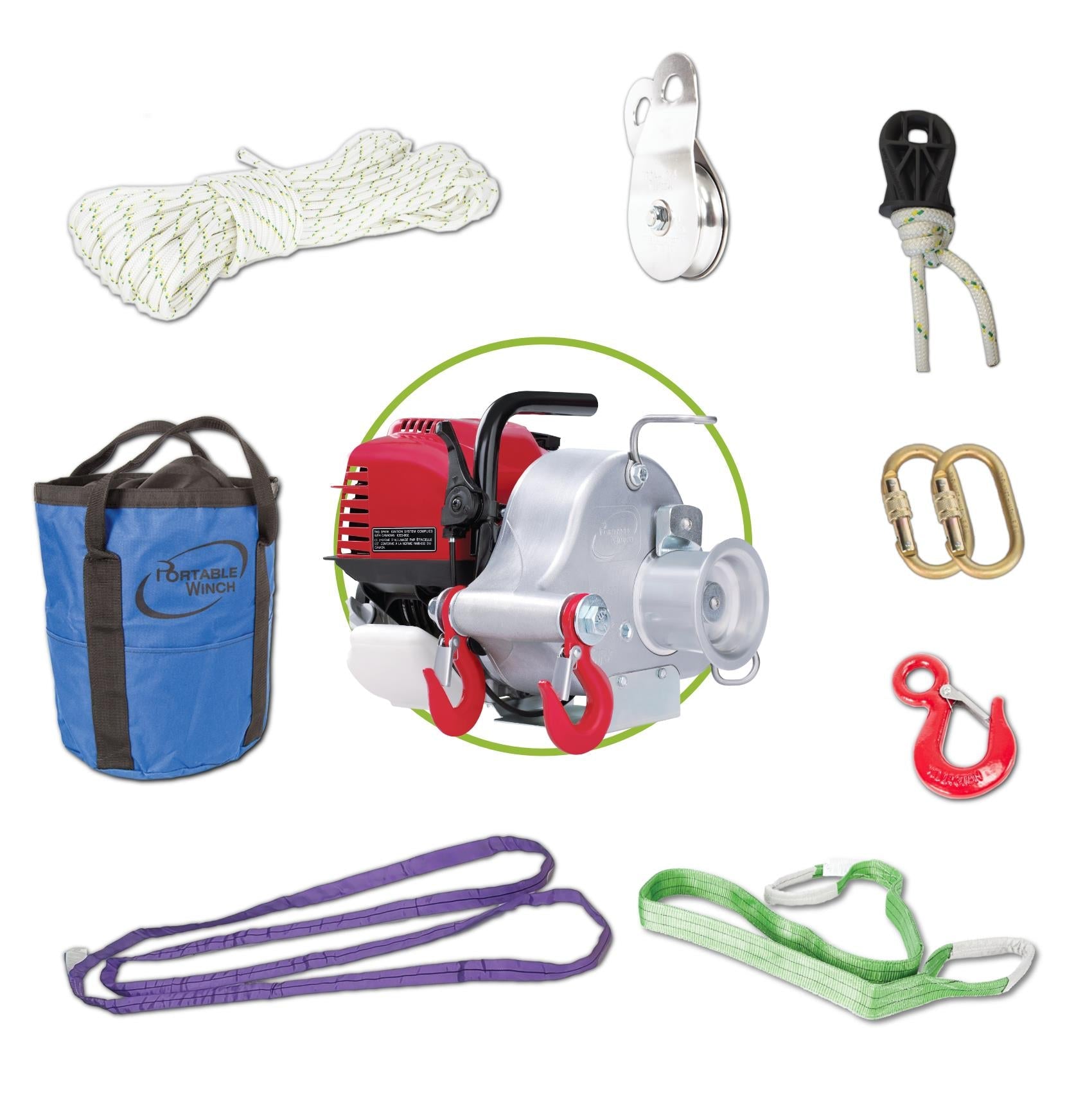

Born to meet the demand for an even more portable model than the original PCW5000 winch, the PCW3000 capstan drum winch is nothing less than a technical gem; delivering incredible pulling power, in the smallest format Portable Winch has ever made.Β
Powered by Honda GX35 4-stroke engine, 360-degree inclinable and air-cooled. The PCW3000 can pull up to 700 kg (1,600 lbs.) without mechanical advantage. Add a pulley system, you can go up to five times (5x) the pulling power. That means, with two double pulleys, you could move up to 3,500 kg (8,000 lb)!
What our Experts Think
Q&A
Q: What is the Portable Winch PCW3000-A Gas-Powered Pulling Capstan Winch?
A: It is a compact, professional capstan winch powered by a Honda GX35 4-stroke engine, designed for portable, high-force pulling in forestry, utility, and recovery work.
Q: What engine does it use?
A: It uses a Honda GX35 4-stroke, 1.0β1.3 HP engine, known for lightweight design and 360Β° operation flexibility.
Q: What is the pulling capacity?
A: It can pull up to 1,600 lb (700 kg) single-line and up to 3,200 lb (1,400 kg) with a double line setup, with higher force possible using pulley systems.
Q: Can it lift loads as well as pull?
A: No. It is not designed for lifting, and is intended strictly for horizontal or controlled pulling applications.
Q: How does the capstan system work?
A: It uses a rotating drum where rope wraps around multiple times, creating friction that allows continuous pulling with unlimited rope length.
Q: What is the typical rope used?
A: It uses double-braided polyester rope (about 3/8"β1/2"), chosen for low stretch and high abrasion resistance.
Q: How heavy and portable is it?
A: It weighs about 20 lb (9.5 kg), making it highly portable for remote field use.
Q: What are its main advantages?
A: It offers lightweight portability, strong pulling power, and simple field setup without vehicles or electrical power, making it ideal for off-grid work.
Q: Who is this winch best for?
A: It is designed for forestry workers, arborists, utility crews, hunters, and recovery users who need reliable pulling power in remote or difficult terrain.
