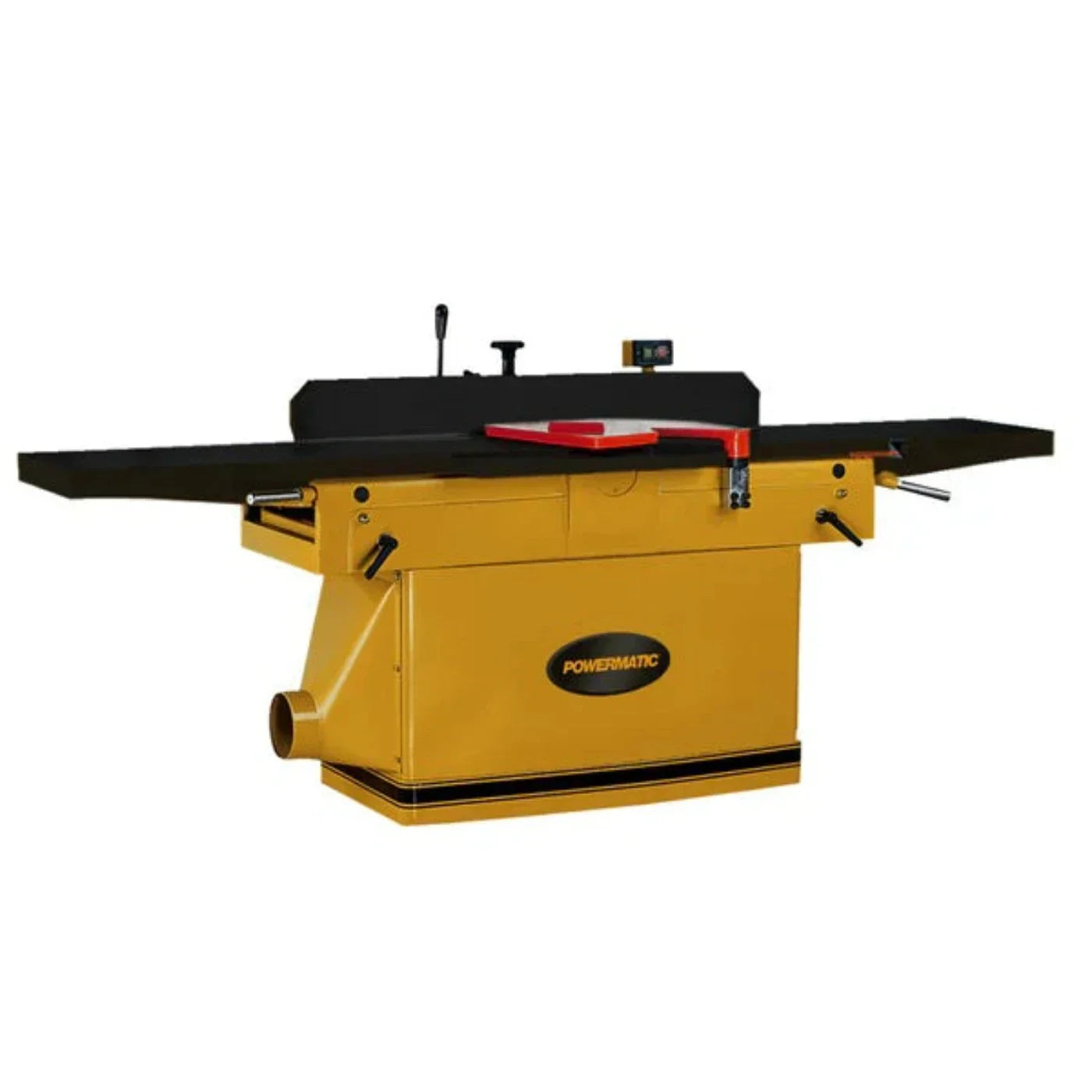

Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 460V
Now featuring ArmorGlide Technology, the Powermatic PJ1696T 16-Inch Jointer offers big capacity and performance in a machine loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles.
The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.
The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing, and never needs adjustments. The heavy-duty 7.5hp motor delivers all the power you need for even the biggest jobs.
ArmorGlide Technology pros:
-
Enhanced visibility: The dark surface reduces glare, so you can see where you're cutting better.
-
Rust resistant: Ditch the steel wool and never worry about rust again.
-
Low friction: Coated tables require 50% less force, so you get more control.
-
Maintenance-free: Get rid of the waxes and messy cleaning supplies, so you can do more of what you love.
-
Durable coating: ArmorGlide tables can withstand 250,000 passes without showing signs of wear.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
- Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
- Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
- Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
- Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
- Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
- Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
Specifications
| Cuts per minute |
20,800 |
| Cutterhead dia. |
4" |
| Cutterhead speed |
5,200 RPM |
| Cutting capacity (W x D) |
16" x 3/4" |
| Infeed table length |
47-1/2" |
| Motor power |
7.5hp |
| Motor voltage |
460V |
| # of knives |
58 |
| Dust port outside dia. |
6" |
| Min. dust collection |
800 CFM |
| Table height from floor |
37-1/2" |
What Our Experts Think
-
Precision Cutting: The Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide provides exceptional precision, featuring a helical cutterhead with 96 four-sided carbide inserts that minimize tear-out and ensure a smooth, flawless finish.
-
Heavy-Duty Power: Powered by a 7.5hp motor with 460V 3-phase electrical input, this jointer is designed for demanding commercial and industrial applications, capable of handling large, dense workpieces with ease.
-
ArmorGlide Table Coating: The ArmorGlide coating ensures superior durability and reduced friction, offering a smooth and stable surface that enhances the overall performance and extends the life of the machine.
-
Accurate Parallelogram Design: The parallelogram design keeps the tables perfectly aligned, providing uniformity and accuracy for every cut, regardless of the size of the material.
-
Low Maintenance & Reliable: Built with quality materials and advanced technology, the jointer requires less maintenance and provides long-lasting, reliable performance for heavy-duty woodworking needs
Q&A
Q: What is the Powermatic 16" Parallelogram Helical Cutterhead Jointer with ArmorGlide 7.5hp, 3PH, 460V - PM1-1791283T-4?
A: The Powermatic PM1-1791283T-4 is a 16-inch parallelogram jointer with a helical cutterhead, ArmorGlide technology, and a 7.5HP motor, designed for precision and smoothness in professional woodworking with 460V 3-phase power.
Q: How does the 460V power supply impact performance?
A: The 460V 3-phase power ensures optimal performance for industrial environments, providing reliable, consistent power and high torque for demanding jointing tasks.
Q: What are the benefits of the parallelogram design on this jointer?
A: The parallelogram design ensures even depth of cut across the entire board, offering precise jointing and a smoother finish, even on larger or thicker materials.
Q: How does the helical cutterhead improve results?
A: The helical cutterhead delivers smoother cuts, quieter operation, and longer-lasting performance, reducing tear-out and providing a finer finish on hardwoods and delicate materials.
Q: What is the motor power of the Powermatic 16" Jointer?
A: The jointer features a powerful 7.5HP motor that can handle large workpieces and provide efficient, continuous operation for professional woodworkers.
Q: What is ArmorGlide technology, and how does it benefit this jointer?
A: ArmorGlide is a special coating on the jointer’s table that reduces friction, ensuring smoother material movement, less wear and tear, and increased durability for long-term use.
Q: Is the Powermatic 16" Parallelogram Jointer capable of heavy-duty tasks?
A: Yes, the 7.5HP motor and rugged design are ideal for heavy-duty tasks, making this jointer perfect for large-scale, continuous use in industrial and professional woodworking shops.
Q: What maintenance is required for the Powermatic 16" Jointer?
A: Regular maintenance includes inspecting and replacing the helical cutterhead inserts, cleaning the ArmorGlide-coated table, and ensuring proper alignment and lubrication for optimal performance.
Q: How does the Powermatic 16" Jointer ensure precise jointing?
A: The combination of the parallelogram design, helical cutterhead, and precise depth adjustment controls ensures accurate, consistent jointing with a smooth finish every time.
Q: Is the Powermatic 16" Jointer easy to operate?
A: Yes, this jointer is designed with user-friendly controls for easy adjustments and smooth operation, ensuring professional-level results with minimal effort
