Senville LETO 12000 BTU Mini Split Air Conditioner and Heat Pump - SENL/12CD/110V

Senville LETO 12000 BTU Mini Split Air Conditioner and Heat Pump - SENL/12CD/110V

Looking for the best mini split air conditioner heat pump that will offer a versatile and affordable solution to cooling and heating your tiny home?  Look no further than the Senville LETO Series ductless mini split air conditioners and heat pumps!

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

Senville combines the affordability, efficiency and advanced Eco-friendly performance, with its Inverter technology. The results are a drastic reduction of energy usage by up to 20%, ultimately making it one of the most efficient systems with Inverter Technology. Technology like this helps the ductless system reach such high SEER ratings. Opt for a mini split system with Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville LETO Series offers some of the highest efficiency in its class, with an impressive. 20 SEER efficiency rating.  These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  An efficient, affordable and exceptionally designed mini split air conditioner with minimal noise will ensure the most comfortable overall experience.  Live comfortably with the Senville LETO Series in your tiny home today!

• 20 SEER (HE) High Efficiency Air Conditioner & Heater.
• Built-In Heat Pump (Up to -15C / 5F) Suitable for Most Climates.
• DC Inverter Technology for Minimal Energy Consumption (Up to 48% Savings per Year).
• Built-In De-humidification Function, Fan and Turbo Function for Complete Climate Control.
• Sleep Function adjusts the temperature while you sleep to reduce energy usage.
• Eco mode sets the temperature to 75°F to conserve energy.
• Turbo Button to set your living space to your desired temperature as quickly as possible.
• Multi Speed Fan provides speeds of low, medium, high, and automatic.
• Automatic Restart will restart the unit in the case of a power outage, and will set your unit to the prior settings once power has restored.
• Angled Air Flow will  set the horizontal angle of flow on the indoor unit with a touch of the button on the remote.
• ETL Certified
• AHRI Certified (View Certification)
• Recommended for rooms sized 450-750sq. ft.

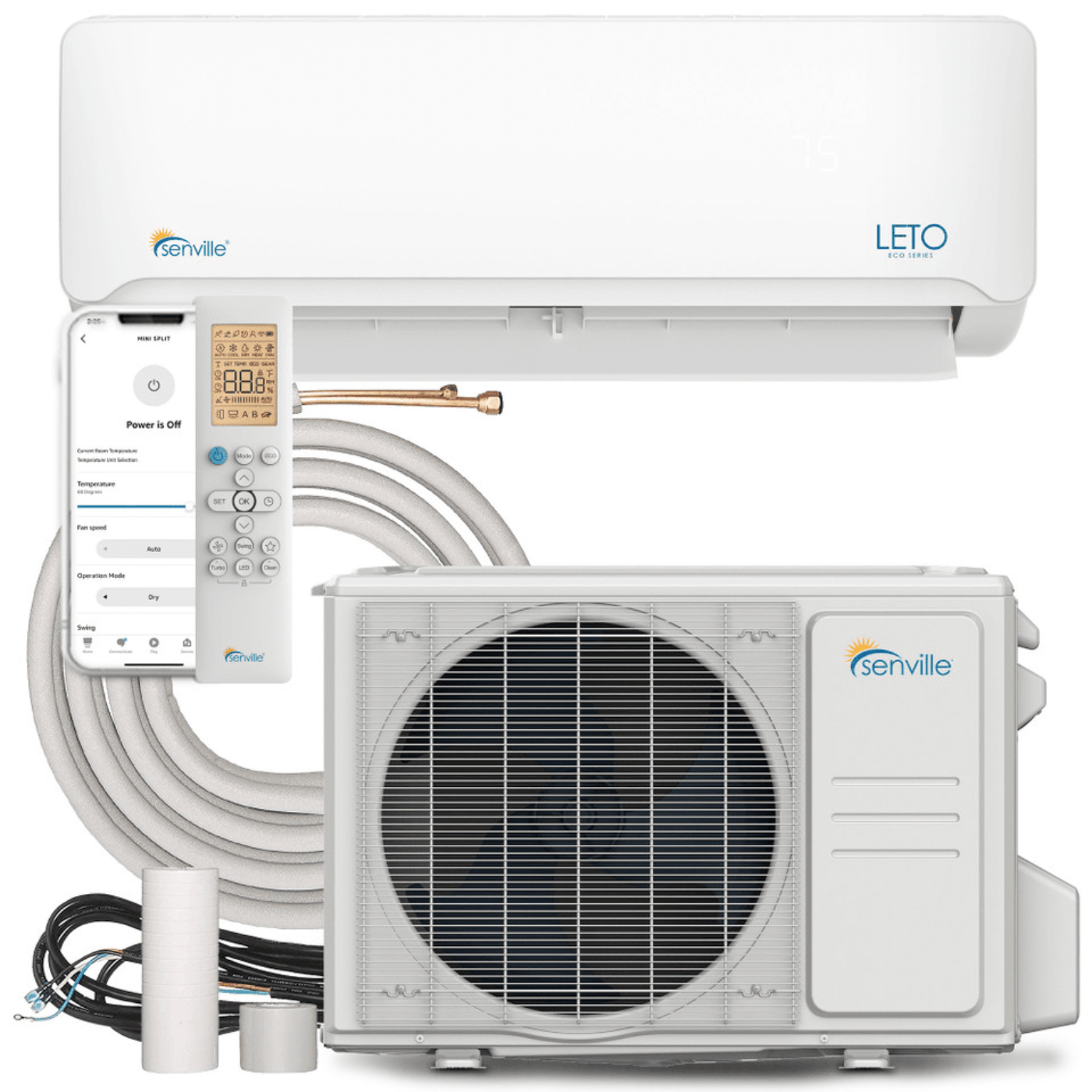

• Senville Leto Series 12,000 BTU Mini Split AC/Heat Pump

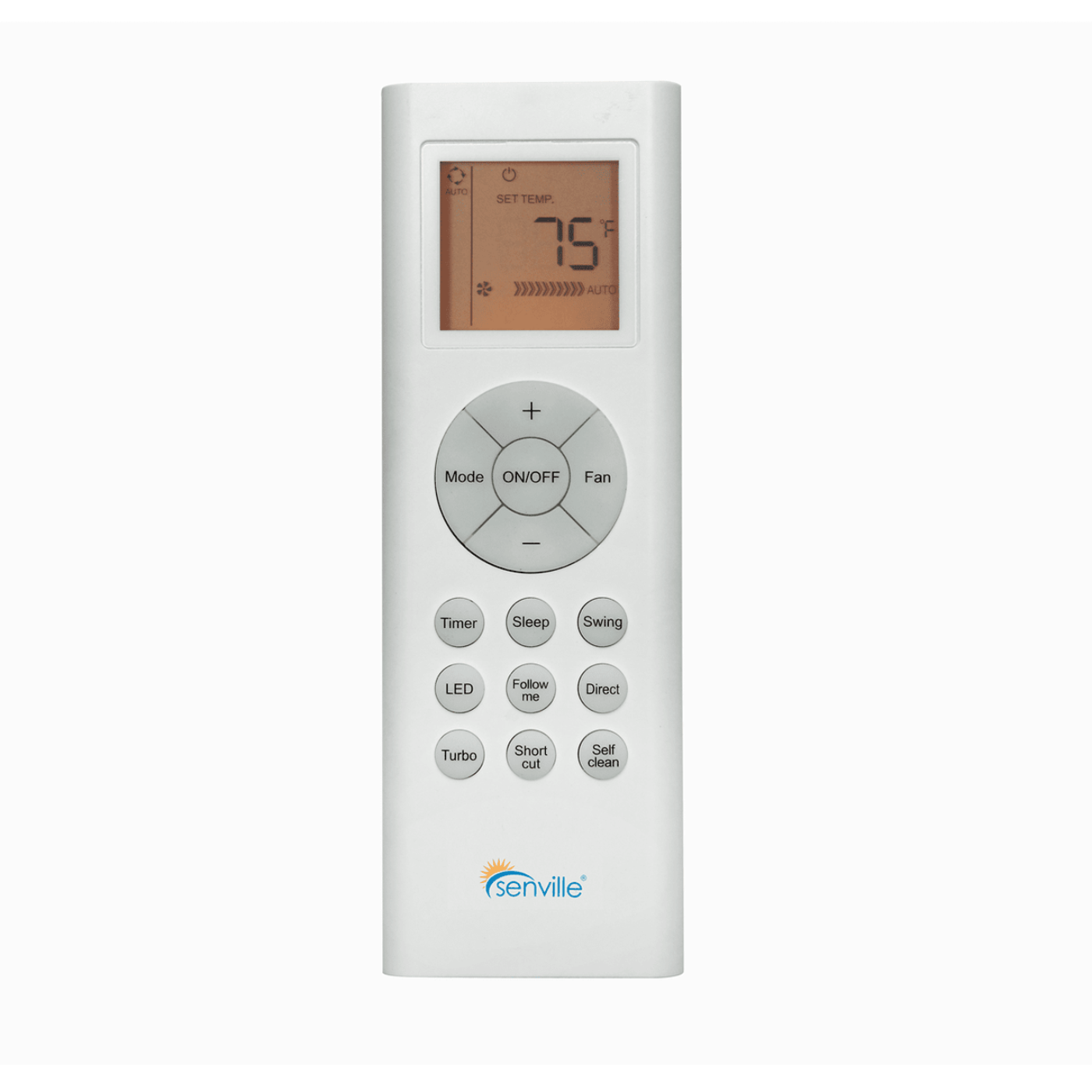

• Remote Control

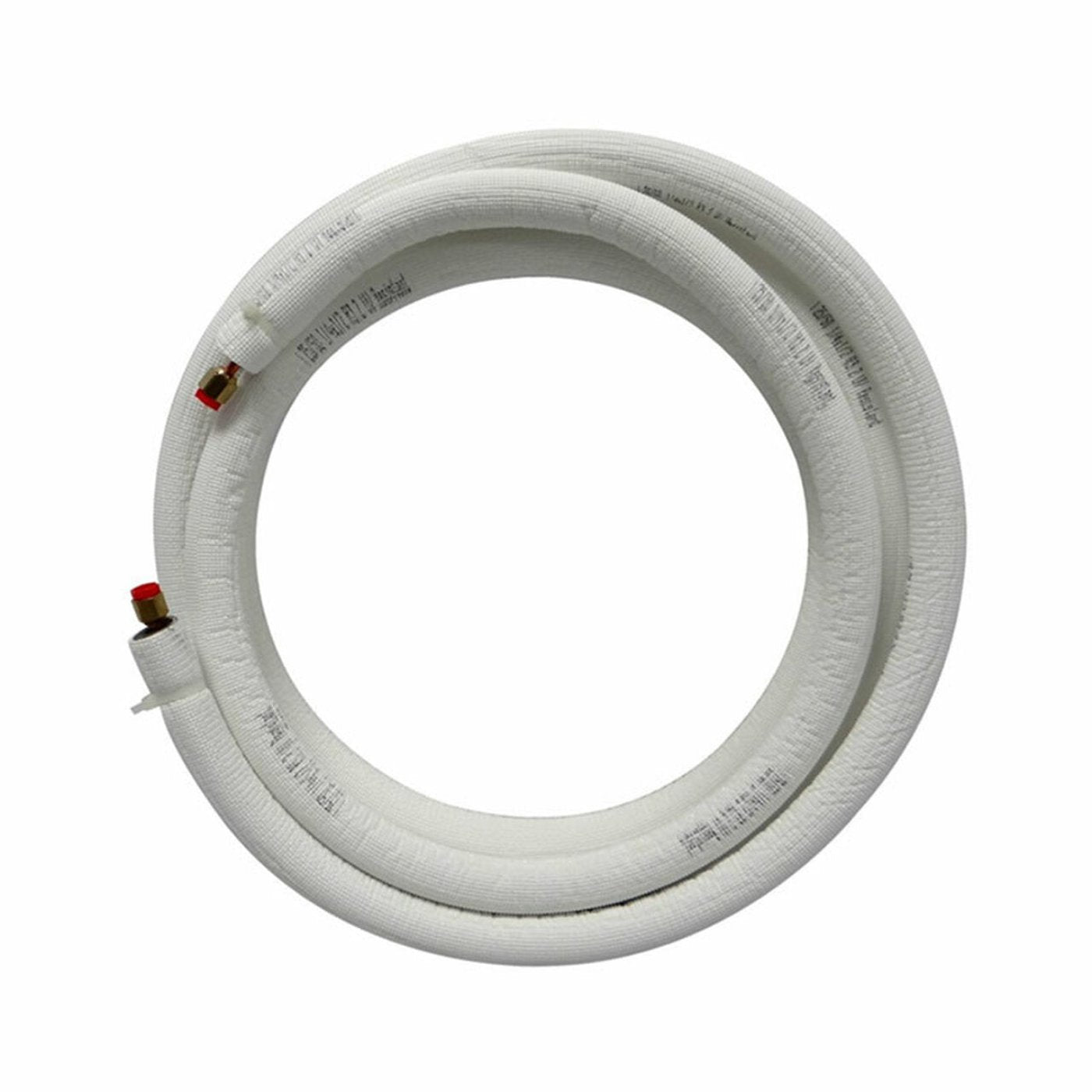

• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

• Model Number: SENL-12CD-Y
• Style: Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 115V,1Ph,60Hz
• Voltage Range: 103.5-126.5
• SEER: 20
• EER : 10.3
• Cooling (Range): 4300~12600
• Input (W): 1168
• Rated current A: 10.6
• Heating (Range): 4000~12500
• Input (W): 1122
• Rated Current (A): 10.3
• HSPF4: 10.5
• HSPF5: 8.4
• COP W/W: 3.13
• Minimum Circuit Ampacity (A): 18.5
• Max. Fuse (A): 25

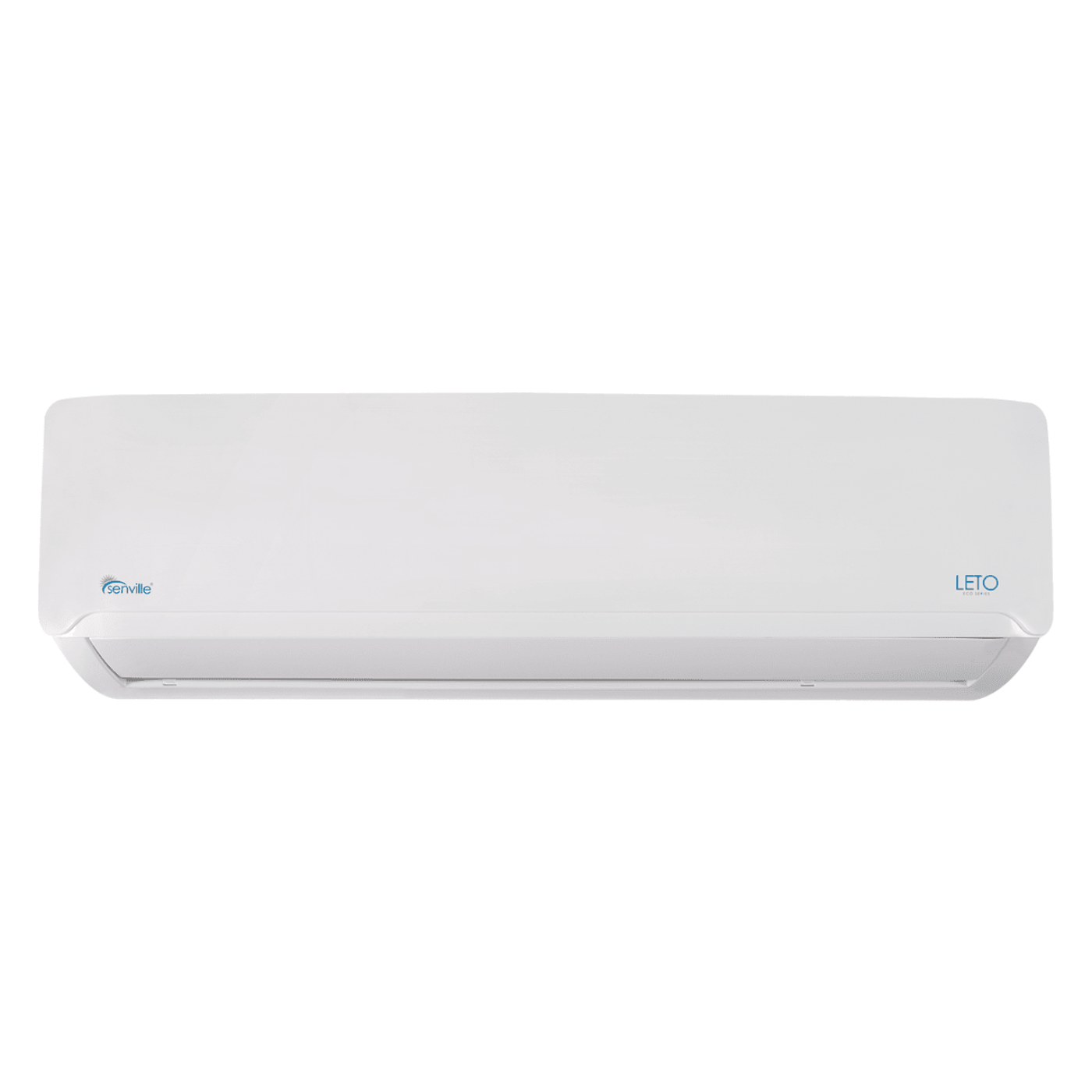

• Indoor Dimensions (WxDxH) (in.): 31.57x7.44x11.69
• Indoor Air Flow (H/M/L) CFM: 308.82/205.88/176.47
• Indoor Noise Level (H/M/L) dB: 41.5/30.5/26

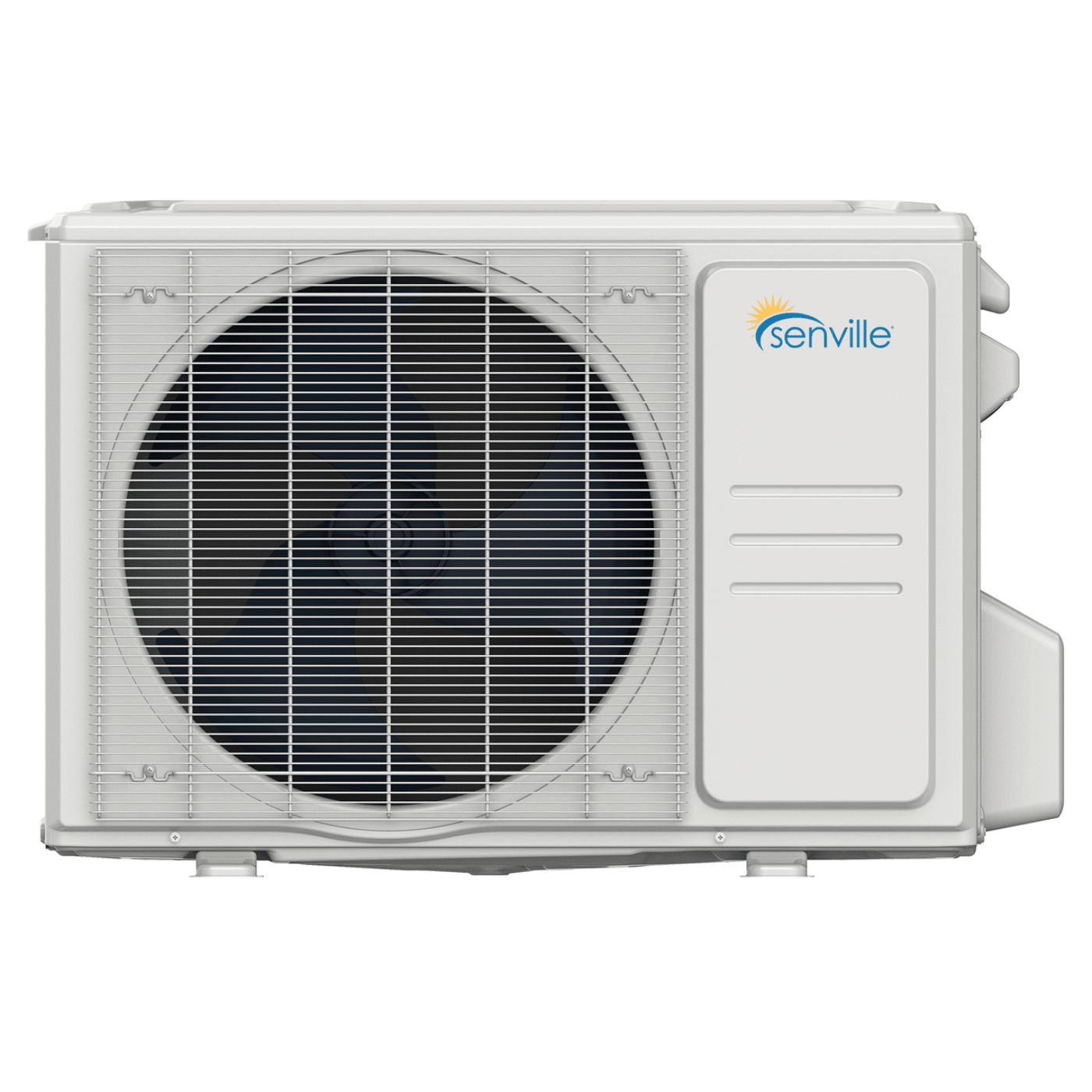

• Outdoor Dimensions (WxDxH) (in.): 30.12x11.93x21.85
• Outdoor Noise Level dB: 53.5
• Outdoor Air Flow (Max) CFM: 1235.29
• Refrigerant Type: R410A/28.6
• Refrigerant Pre-charge: 25 Ft.
• Connection Wiring: 14*4 AWG
• Thermostat Type: Remote Control
• Works with Alexa: Alexa Enabled
• Warranty: 5 Years Compressor / 5 Years Parts
• Application Area (8 Ft Ceilings): 750 sq. ft.

All Senville LETO models are backed by a comprehensive 5 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 5 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 5 years, and we know that we are providing you with the highest quality product available.

Senville LETO 12000 BTU Mini Split Air Conditioner and Heat Pump - SENL/12CD/110V Installation Manual

• Dual Functionality: Provides both air conditioning and heating, ensuring comfort throughout the year.
• 12000 BTU Capacity: Ideal for spaces up to 500 square feet, offering balanced cooling or heating performance.
• Energy Efficient: Designed to optimize energy use, helping to reduce electricity bills while providing powerful performance.
• Quiet Operation: Runs quietly, making it ideal for bedrooms, living rooms, or offices where noise is a concern.
• Sleek Design: Modern and compact, blending well with your interior while offering powerful climate control.
• Easy Installation: Simplified installation process, making it a great option for both professional and DIY setups.

Q: What is the Senville LETO 12000 BTU Mini Split Air Conditioner and Heat Pump?
A: The Senville LETO 12000 BTU Mini Split Air Conditioner and Heat Pump (SENL/12CD/110V) is a versatile, energy-efficient HVAC system designed for residential or light commercial use. It provides both cooling and heating, making it ideal for year-round comfort.

Q: What size spaces can the Senville LETO 12000 BTU Mini Split cover?
A: This 12000 BTU system is suitable for medium-sized rooms, typically covering up to 500-600 square feet, depending on factors such as room layout, insulation, and outdoor temperature conditions.

Q: How does the Senville LETO 12000 BTU Mini Split provide cooling and heating?
A: The LETO system functions as both an air conditioner and a heat pump. It cools during warmer months and provides heating in cooler weather, offering efficient temperature control throughout the year.

Q: Is the Senville LETO 12000 BTU Mini Split energy-efficient?
A: Yes, the LETO system is designed to be energy-efficient, reducing power consumption while delivering powerful cooling and heating performance. It helps keep energy costs low without compromising comfort.

Q: How quiet is the Senville LETO 12000 BTU Mini Split during operation?
A: The LETO mini split operates quietly, ensuring a peaceful indoor environment, making it suitable for bedrooms, living rooms, or offices where noise is a concern.

Q: How is the Senville LETO 12000 BTU Mini Split installed?
A: Professional installation is recommended to ensure proper setup and efficiency. A licensed HVAC technician can properly install the unit for optimal performance, as it requires wall-mounted components and refrigerant lines.

Q: How do I maintain the Senville LETO 12000 BTU Mini Split?
A: Regular maintenance includes cleaning the filters every few weeks and ensuring that the outdoor unit is free from debris. Refer to the user manual for detailed instructions on maintaining the system.

Q: Can the Senville LETO 12000 BTU Mini Split be used for multi-zone setups?
A: The 12000 BTU unit is typically designed for single-zone applications, but Senville offers multi-zone mini split options for controlling the temperature in multiple rooms independently

• Clean the air filters regularly: Clean or replace the air filters every 1-2 months to maintain optimal airflow and air quality. You can vacuum or wash the filters with water (make sure they are fully dry before reinstalling them).
• Inspect the coils: Check both the evaporator and condenser coils for dirt and debris. Clean them gently with a soft brush or coil cleaner to ensure efficient heat exchange and prevent system overheating.
• Clear the condensate drain lines: Make sure the condensate drain lines are free from obstructions or blockages. Clean them periodically to prevent water buildup and ensure proper drainage.
• Monitor refrigerant levels: Have a professional technician check the refrigerant levels to ensure they are within the correct range. Low refrigerant can reduce both cooling and heating efficiency.
• Check the ductwork (if applicable): For systems with ductwork, inspect it for any leaks, blockages, or signs of wear. Seal any leaks and remove any obstructions to improve system efficiency.
• Avoid ice build-up: If ice forms on the coils or if you notice the system not cooling or heating properly, it could indicate airflow issues or low refrigerant. Contact a professional technician for an inspection.
• Test the remote control and thermostat: Regularly test the remote and thermostat to ensure they are responsive and accurately controlling the temperature.
• Schedule professional maintenance: Have a certified technician perform an annual service to inspect and clean the unit, ensuring all components are functioning properly.
• Clean the outdoor unit: Keep the outdoor unit free from debris, such as leaves, dirt, or branches, that could restrict airflow. Regularly clean the outdoor coils to maintain optimal performance.
