Senville AURA 9000 BTU Mini Split Air Conditioner and Heat Pump - SENA/09HF

Senville AURA 9000 BTU Mini Split Air Conditioner and Heat Pump - SENA/09HF

Looking for the best mini split air conditioner heat pump that will offer a versatile and affordable solution to cooling and heating your tiny home?  Look no further than the Senville AURA Series ductless mini split air conditioners and heat pumps!

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 28 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud to offer one of the most advanced heating and cooling systems in the world. The AURA Series is equipped with Ultra-Inverter Technology, which allows their mini split systems to provide cooling and heating at up to -22F/-30C.  With up to 75% efficiency, you won't experience any additional cost overages on your energy as temperatures drop. Ultra-Inverter Technology drastically helps the ductless system reach such high SEER ratings. Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA Series is Wifi ready.  Enjoy the benefit of remotely controlling your mini split air conditioner from virtually anywhere in the world with any Android or iOS phone (wifi connection required). Control your temperature settings from the office, or while on the road for more efficiency and superior control, as long as you have an internet connection. Great for vacation homes, pets, or for better efficiency and temperature control while you are away.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

• 9,000 BTUs of cooling power: You’ll stay comfortable on summer’s hottest days.
• Heat Mode: Stay warm and cozy indoors all winter long by setting your desired temperature between 62°F and 86°F.
• Dehumidification mode.: Eliminate excess moisture in your living space
• Auto Mode: Simply select your desired temperature and the air conditioner will choose the  best operating mode for you.
• 28 SEER (CEE Tier 3) ENERGY STAR Certified Inverter Technology. (58% Savings per Year. vs. 10 SEER)
• Arctic Heat Pump: Great for Cold Climates! (Up to -30C / -22F).
• Wi-Fi Capable: Control your mini split system with a smartphone or tablet simply by downloading the Senville App (iTunes, Google Play) and connecting it to your device.   Android and iOS compatible, wifi connection required.
• Follow Me Feature: When engaged, your remote control becomes a remote thermostat providing the unit with the most accurate temperature readings.
• Remote Control: You can operate the unit from anywhere in your room with a simple touch of a button.
• Turbo Setting: When you need quick cooling, turbo mode is the perfect choice for achieving your set temperature in the least amount of time possible.
• Programmable Timer: Set the unit to automatically turn on or off as you desire.
• Multiple Fan Speeds: Choose from three fan speeds (low, medium, high) or select auto fan.
• Auto Restart: Should a power outage occur, the unit will resume operation in its previous settings, once power is restored.
• Adjustable Air Flow: Use the remote control to adjust the vertical air flow while the horizontal air flow can be manually set on the indoor unit.
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)
• Recommended for rooms sized 100-450 sq. ft.

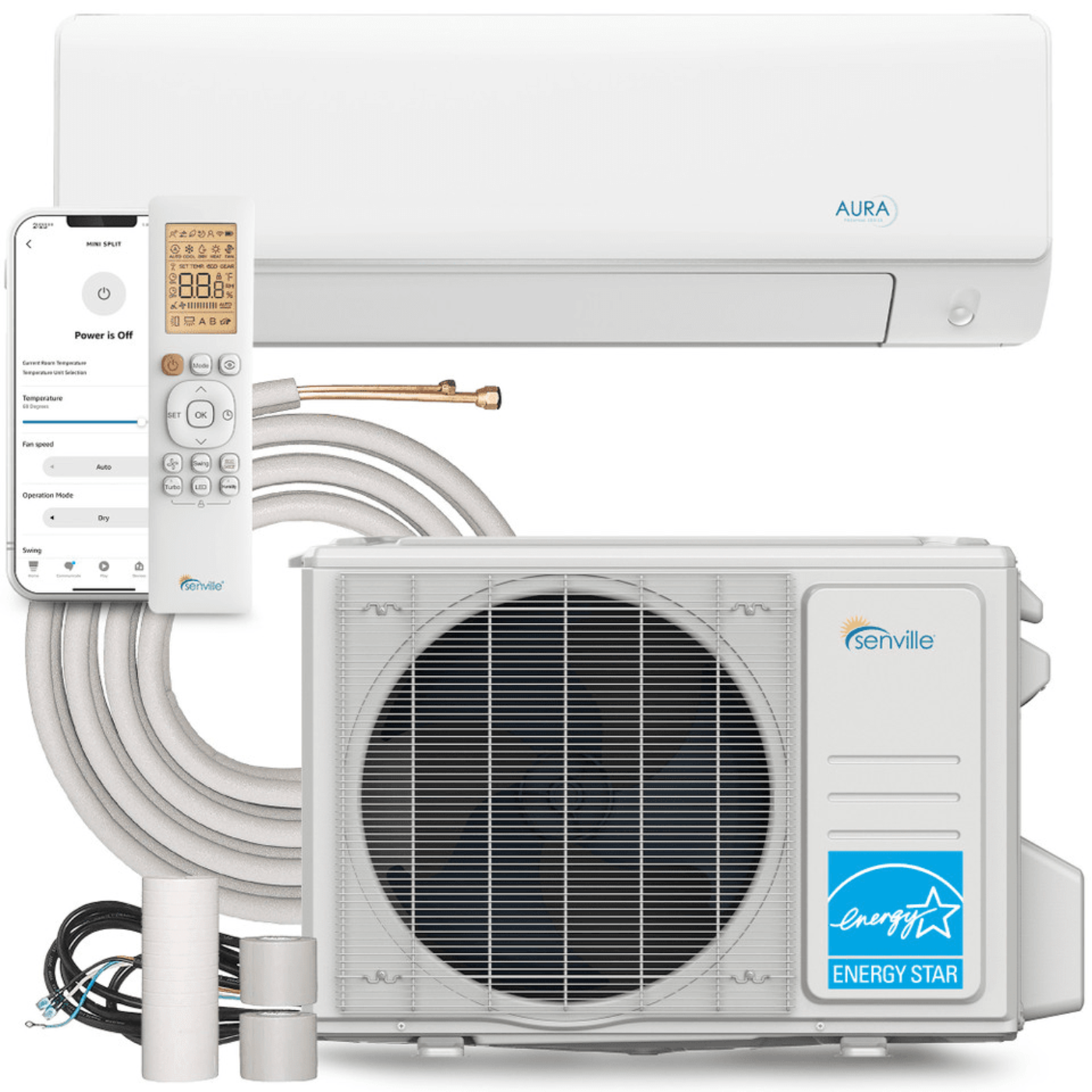

• Senville AURA Series 9,000 BTU Mini Split AC/Heat Pump

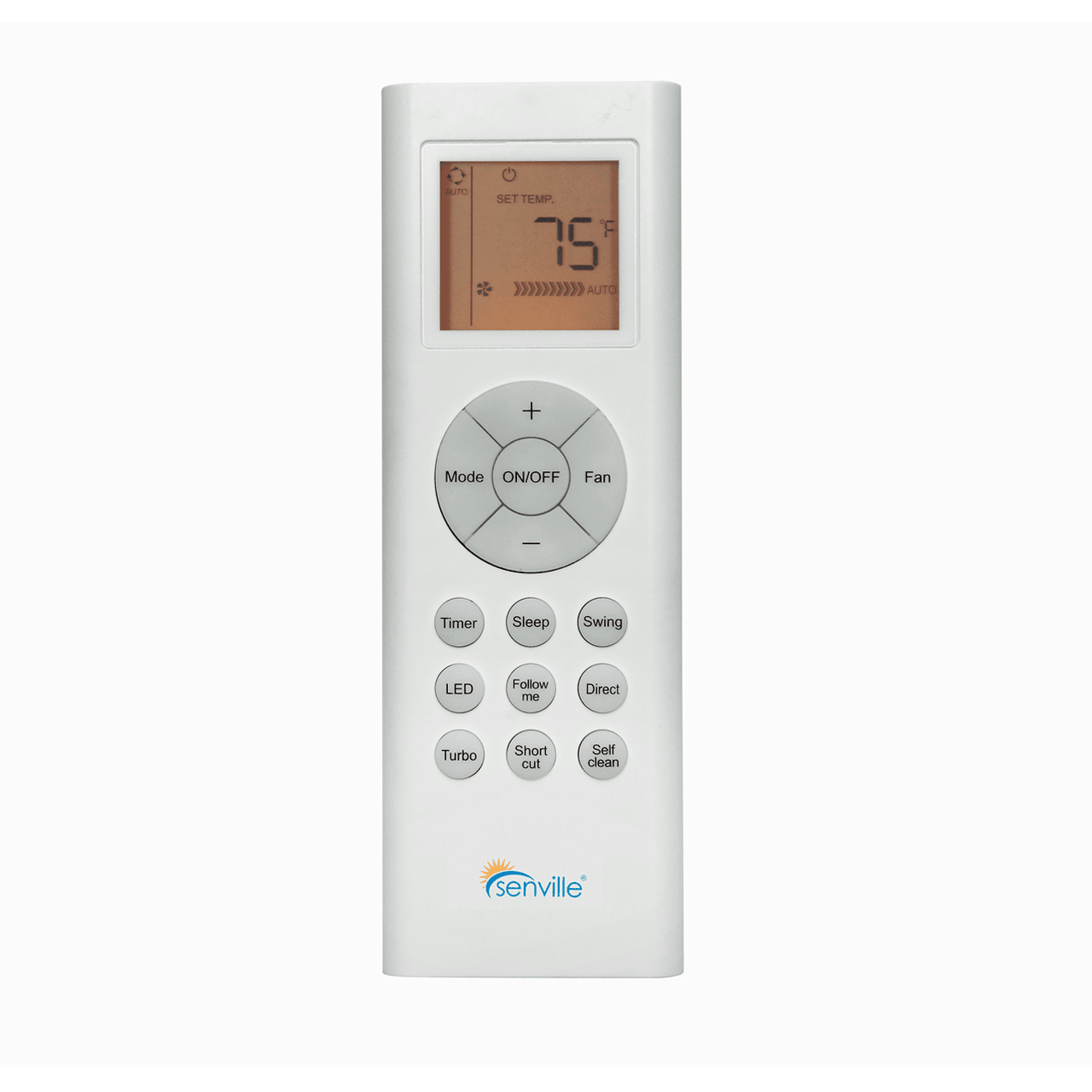

• Remote Control

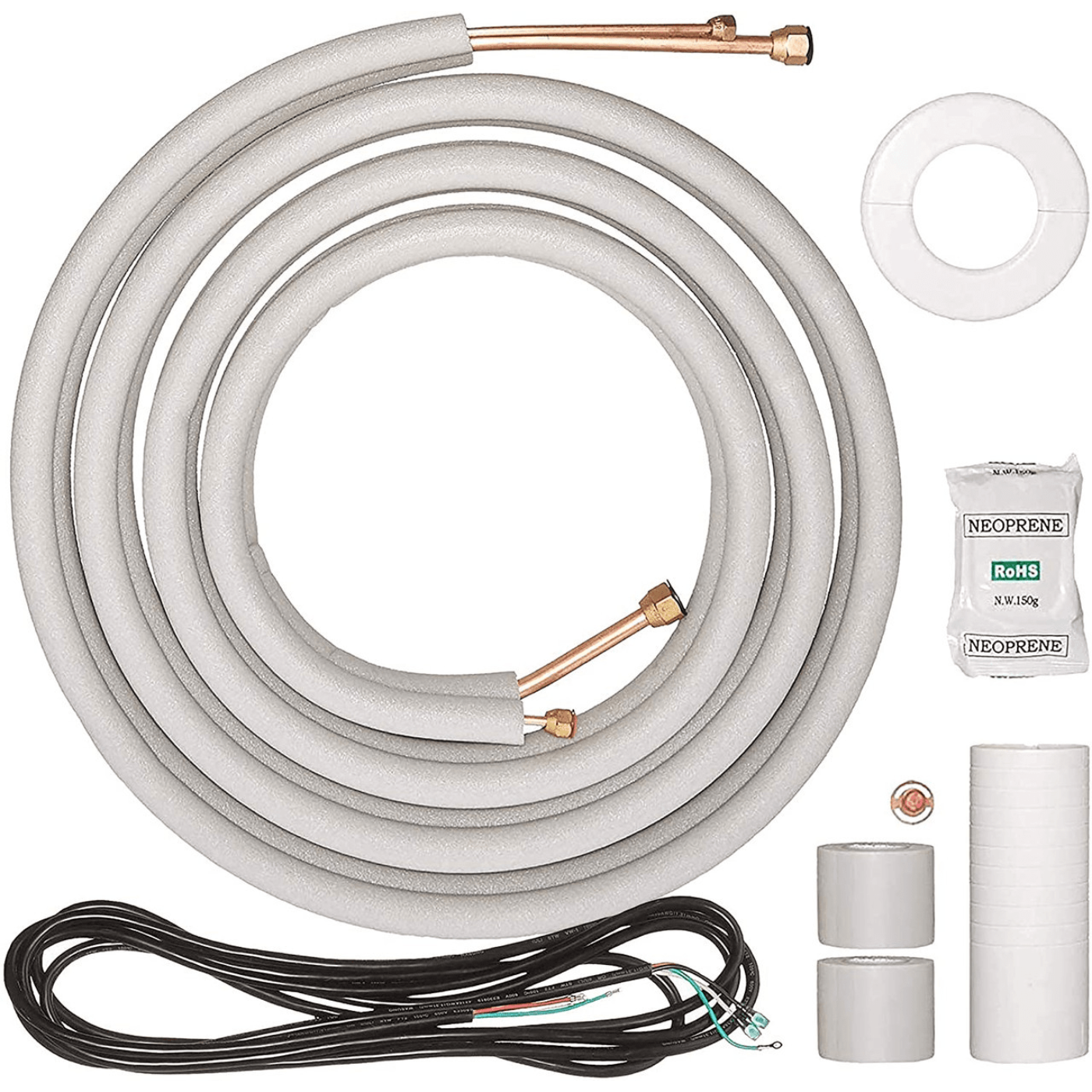

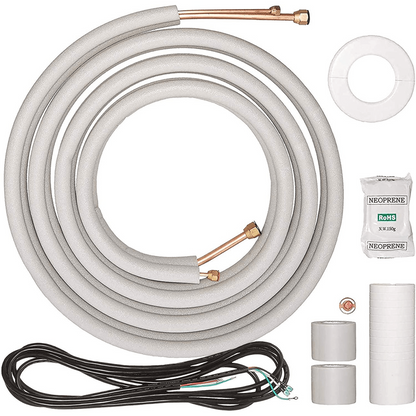

• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

• Model Number: SENA-09HF-Q
• Style: Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253
• SEER: 28.1
• EER: 16.2
• Cooling (Range): 3300~14300
• Input (W): 556
• Rated current A: 2.5
• Heating (Range): 5000~15200
• Input (W): 907
• Rated Current (A): 4.1
• HSPF4: 13
• HSPF5: 11
• COP W/W: 3.81
• Minimum Circuit Ampacity (A): 15 Max.
• Fuse (A): 15
• Indoor Dimensions (WxDxH) (in.): 33.40x9.18x11.76
• Indoor Air Flow (H/M/L) CFM: 335.29/229.41/176.47
• Indoor Noise Level (H/M/L) dB: 38/33.5/23.5
• Outdoor Dimensions (WxDxH) (in.): 31.69x12.99x21.81
• Outdoor Noise Level dB: 54.5
• Outdoor Air flow (Max) CFM: 1323.5
• Refrigerant Type: R410A / 41.62 Oz
• Refrigerant Pre-charge: 25 Ft.
• Connection Wiring: 14*4 AWG
• Thermostat Type: Remote Control
• Works with Alexa: Yes
• Warranty: 10 Years Compressor / 5 Years Parts
• Application Area (8 Ft Ceilings): 400 sq. ft.

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Senville AURA 9000 BTU Mini Split Air Conditioner - Heat Pump - SENA/09HF Installation Manual

Senville AURA 9000 BTU Mini Split Air Conditioner - Heat Pump - SENA/09HF Energy Guide

• Dual Functionality: Provides both air conditioning and heating, ensuring comfort in all seasons.
• 9000 BTU Capacity: Ideal for cooling or heating smaller rooms up to 400 square feet efficiently.
• Energy Efficient: Designed to reduce energy consumption, helping you save on utility bills while maintaining optimal performance.
• Quiet Operation: Operates with minimal noise, perfect for bedrooms, offices, or other quiet spaces.
• Compact Design: Sleek and space-saving, this unit fits seamlessly into your home or office without taking up much room.
• Easy Installation: Simple and straightforward installation process, suitable for both DIY and professional setups.

Q: What is the Senville AURA 9000 BTU Mini Split Air Conditioner and Heat Pump?
A: The Senville AURA 9000 BTU Mini Split Air Conditioner and Heat Pump (SENA/09HF) is a compact and efficient HVAC system designed for smaller spaces. It provides both cooling in the summer and heating in the winter, offering year-round climate control with quiet operation.

Q: How does the Senville AURA 9000 BTU Mini Split provide cooling and heating?
A: This mini split functions as both an air conditioner and a heat pump, making it versatile for maintaining comfortable temperatures in your space. It cools during warm weather and heats when it's cold, ensuring comfort year-round.

Q: What size spaces can the Senville AURA 9000 BTU Mini Split cover?
A: The 9000 BTU capacity is ideal for smaller rooms or spaces, typically covering up to 350-450 square feet, depending on the insulation and layout of the area.

Q: Is the Senville AURA 9000 BTU Mini Split energy-efficient?
A: Yes, this mini split is designed to be energy-efficient, offering optimal performance while minimizing energy consumption, helping reduce your utility bills.

Q: How quiet is the Senville AURA 9000 BTU Mini Split during operation?
A: The system operates quietly, providing a peaceful indoor environment even when it's running at full capacity. This makes it ideal for bedrooms, offices, or living rooms where noise is a concern.

Q: How is the Senville AURA 9000 BTU Mini Split installed?
A: Professional installation is recommended to ensure proper setup and performance. A licensed HVAC technician should handle the installation process.

Q: How do I maintain the Senville AURA 9000 BTU Mini Split?
A: Maintenance is simple and includes cleaning the filters regularly and checking for debris that could obstruct airflow. Refer to the user manual for detailed maintenance instructions to keep the system running efficiently.

Q: Can the Senville AURA 9000 BTU Mini Split be used for multi-zone setups?
A: The 9000 BTU model is typically for single-zone installations, but Senville offers multi-zone options if you need to cool or heat multiple rooms with independent temperature controls

• Clean the filters regularly: Clean or replace the air filters every 1-2 months to ensure optimal airflow and indoor air quality. You can vacuum the filters or wash them with water (ensure they are fully dry before reinstalling).
• Inspect the coils: Check the evaporator and condenser coils for dirt or debris. Clean them carefully with a soft brush or coil cleaner to maintain efficient performance and prevent overheating.
• Clear the drain lines: Ensure the condensate drain lines are free from blockages. Clear any obstructions to avoid water damage and ensure proper drainage.
• Monitor refrigerant levels: Have a professional technician check the refrigerant levels to make sure they are within the manufacturer’s recommended range. Low refrigerant can reduce cooling and heating performance.
• Check the ductwork (if applicable): For systems with ductwork, inspect it for leaks or blockages. Seal any leaks and remove obstructions to improve airflow and system efficiency.
• Prevent ice build-up: If you notice ice forming on the coils or the system isn't cooling or heating as expected, it could be a sign of airflow issues or low refrigerant. Contact a technician to resolve the issue.
• Test the remote and thermostat: Regularly test the remote control and thermostat to ensure they are responsive and adjusting the temperature accurately.
• Schedule professional maintenance: Have a certified HVAC technician inspect and service the unit annually to keep all components functioning properly and to prevent any potential issues.
• Keep the outdoor unit clean: Ensure the outdoor unit is clear of debris like leaves, dirt, or branches. Clean the outdoor coils as needed to allow for proper airflow and prevent overheating.
