Tamarack Solar 2.3 Rail 93IN Black 8 Rail Kit (8 modules with widths of up to 46) - 90507

Tamarack Solar 2.3 Rail 93IN Black 8 Rail Kit (8 modules with widths of up to 46) - 90507

Save Time and Money

Tamarack Solar Rail Kit is an attractive black rail mounting system provides easy installation, simple wire management, and great strength all in a single box.

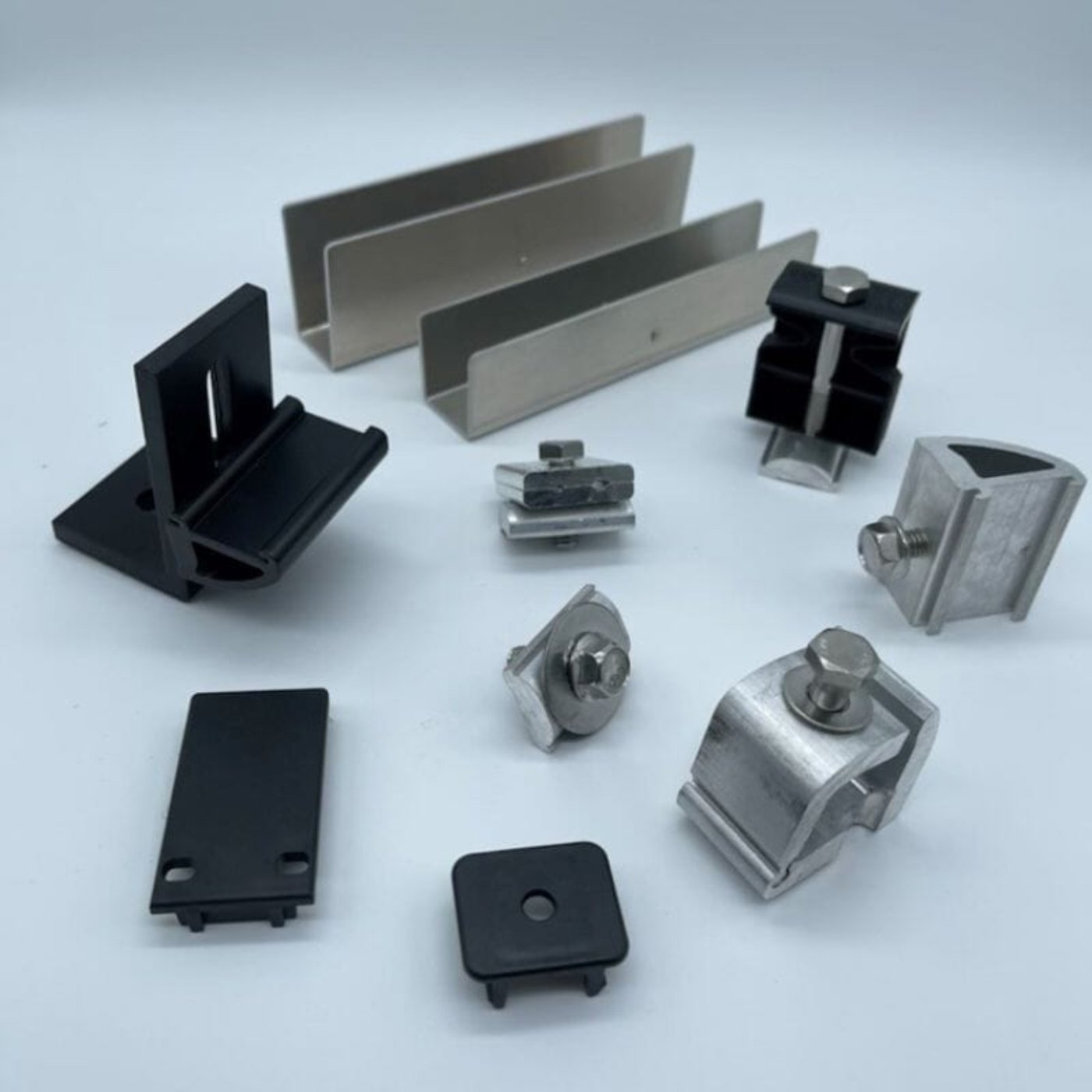

• Kit contains all parts required to mount 8 modules with widths of up to 46-inches in portrait orientation
• 2.3-inch rail height for spans up to 10 feet and wind speed up to 180 MPH
• Module clamps included in kits fit frame thickness of 30mm to 40mm; additional clamps available for modules with thicker frames
• UPS shippable
• * Total length of a single row of modules is 372-inches.

Best Wire Management - PV cables and wiring for module-level electronics fits inside rails to avoid time consuming wire management.

Use Any Roof Attachments - Included L-feet mount to Tamarack composition shingle flashings, S-5! metal roof clamps or any roof attachment that can be used with a 5/16 inch bolt.

One Wrench Size - Install with ease and minimal tools. A 1/2-inch socket fits all fasteners.

UL 2703 Listed - All components meet UL standards and have Class A Fire Rating for Type 1 and 2 modules.

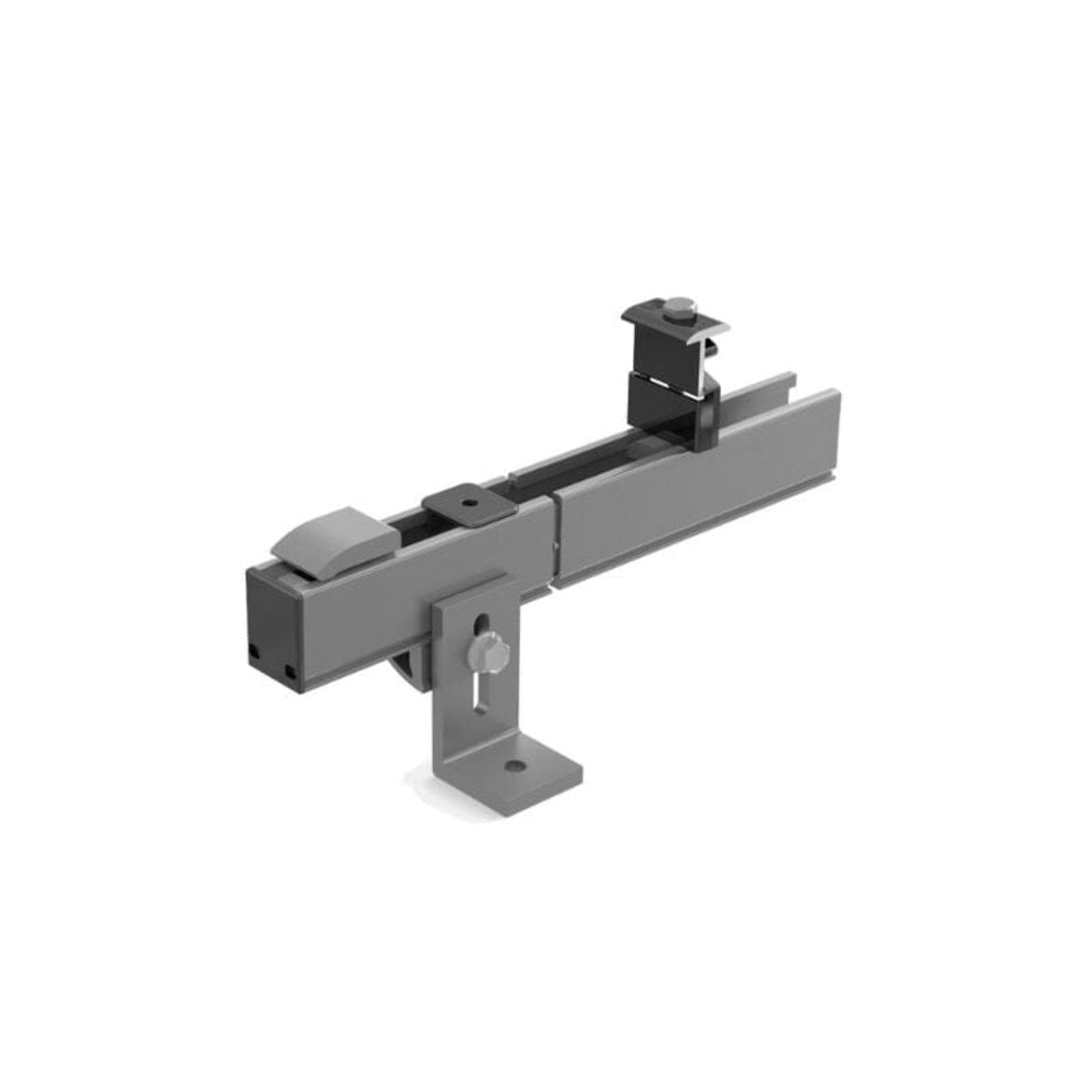

Tamarack Flush Mount 93-inch Rail Kit Install Eight PV Modules

Black Coated Rails

Attractive low-profile mounting of up to eight modules with four-foot roof attachment spacing. Certified for up to 180 MPH wind speed and 120 PSF snow load. Eight 93-inch rails included.

5050 Clamp

One clamp can be used as a mid-clamp or an end-clamp on modules with 30 mm to 40 mm frame height. 20 clamps included.

Channel End Clamp

This end clamp replaces the 50/50 clamp at the end of the row of modules for better aesthetics. It is your choice which part to use. 8 clamps included. MLPE Adapter Use this adapter for mounting microinverters and optimizers on the rails under the modules. Use one adapter for each device. 8 adapters included.

Push-On End Cap

Caps give the rail system a finished look while allowing drainage. 8 caps included. Wire Management Clip Clips can be pushed into top of rail to keep cables in place. 24 clips included. Tamarack Flush Mount 93-inch Rail Kit Install Eight PV Modules

Ground Lug

Use one per module row to ground rail with bare 6 to 10 AWG copper wire. 4 Ground Lugs included.

Push-In Bonding Rail Splice

Quickly splice and bond rail sections with no tools or fasteners. Top Clamps and Rail Mounts can be co- located with splice. 8 splices are included.

Rail Mount and L-Foot

Quickly and securely mount the rail from either side, to Tamarack composition shingle flashings, S-5! metal roof clamps or any roof attachment that can be used with a 5/16 inch bolt. 16 mounts and L-feet included.

Push-On End Cap

Caps give the rail system a finished look while allowing drainage. 8 caps included.

Wire Management Clip

Clips can be pushed into top of rail to keep cables in place. 24 clips included.

Tamarack Solar Rail Kit and L-Foot

Quickly and securely mount the rail from either side, to Tamarack composition shingle flashings, S-5! metal roof clamps or any roof attachment that can be used with a 5/16 inch bolt. 16 mounts and L-feet included.

MLPE Adapter

Use this adapter for mounting microinverters and optimizers on the rails under the modules. Use one adapter for each device. 8 adapters included.

• Optimized for Larger Installations: The Tamarack Solar 2.3 Rail Kit is designed to support up to 8 solar modules with widths of up to 46 inches, making it an ideal choice for medium to large-scale solar panel installations.
• Durable, High-Quality Rails: Made from premium materials, the 93-inch black rails are built for long-lasting durability, providing secure and stable support for your solar panels in any weather condition.
• Sleek, Low-Profile Design: The black finish not only provides a sleek, modern look but also minimizes reflection and enhances the aesthetics of the installation, blending seamlessly with your solar panels.
• Corrosion-Resistant: These rails are treated for resistance to corrosion, ensuring that the system holds up over time, even in harsh weather environments such as coastal or high-moisture areas.
• Versatile and Adjustable: Designed to be highly versatile, the kit allows for easy adjustments to fit panels of various sizes, giving you flexibility in your solar system design.
• Efficient Installation: The kit includes all necessary components for quick and easy assembly, simplifying the installation process and reducing the time required to set up your solar system.
• Enhanced Strength and Stability: The rails are engineered to provide enhanced strength, ensuring that your solar panels remain securely in place, even under heavy wind or snow loads.
• Maximizes Solar Energy Generation: The solid rail system allows for optimal panel positioning, ensuring that your solar panels remain stable and properly aligned for maximum energy capture.
• Ideal for Residential and Commercial Use: Whether you're installing a residential solar system or a larger commercial array, this rail kit offers the flexibility and support needed for a wide range of applications.
• Long-Term Performance: Designed for durability and low maintenance, this system ensures that your solar array will perform effectively for years to come, providing you with reliable energy generation.

Q: How many solar panels can this rail kit support?
A: This Tamarack Solar 2.3 Rail Kit supports up to 8 solar modules, with panel widths of up to 46 inches.

Q: Is this rail kit suitable for residential and commercial installations?
A: Yes, the 2.3 Rail Kit is versatile and ideal for both residential and commercial solar panel installations.

Q: What is the length of each rail in this kit?
A: Each rail in the Tamarack Solar 2.3 Rail Kit measures 93 inches in length, providing ample coverage for mounting solar panels.

Q: Is this rail kit compatible with all solar panels?
A: The rail kit is compatible with most solar panels that have widths up to 46 inches. It is recommended to verify the specific panel dimensions before installation.

Q: What material is the rail kit made of?
A: The rail kit is made from high-quality, durable aluminum with a black finish, ensuring strength, corrosion resistance, and long-lasting performance.

Q: Does the kit come with mounting hardware?
A: Yes, the Tamarack Solar 2.3 Rail Kit includes all necessary hardware for mounting, simplifying the installation process.

Q: Can this kit be used for ground-mounted solar systems?
A: This rail kit is typically designed for roof-mounted installations, but can be adapted for ground-mounted systems with the right modifications.

Q: How does the black finish affect the rail's performance?
A: The black finish is not only aesthetically pleasing but also helps to minimize heat buildup, contributing to better solar panel performance.

Q: Is this rail kit weather-resistant?
A: Yes, the rail kit is designed to withstand various weather conditions, including rain, snow, and wind, providing secure support for your solar panels.

Q: Does the kit come with a warranty?
A: Yes, the Tamarack Solar 2.3 Rail Kit typically comes with a warranty, ensuring durability and performance under standard installation conditions.

• Inspect for damage: Regularly check the rails and hardware for any signs of wear, cracks, or corrosion. Ensure all components are securely attached.
• Clean the rails: Wipe down the rails with a damp cloth to remove dust, dirt, and debris. Avoid abrasive materials that could damage the finish.
• Tighten fasteners: Periodically inspect and tighten all bolts, nuts, and screws to ensure the system is securely fastened and stable.
• Check for corrosion: Inspect metal parts for signs of rust, especially in humid or coastal environments. Apply rust protection or coatings to prevent further damage.
• Monitor alignment: Ensure that the rails remain properly aligned to avoid strain on the solar panels. Adjust if necessary to maintain optimal positioning.
• Ensure proper drainage: Verify that water flows away from the rail system and does not accumulate around the mounting area to prevent rust or instability.
