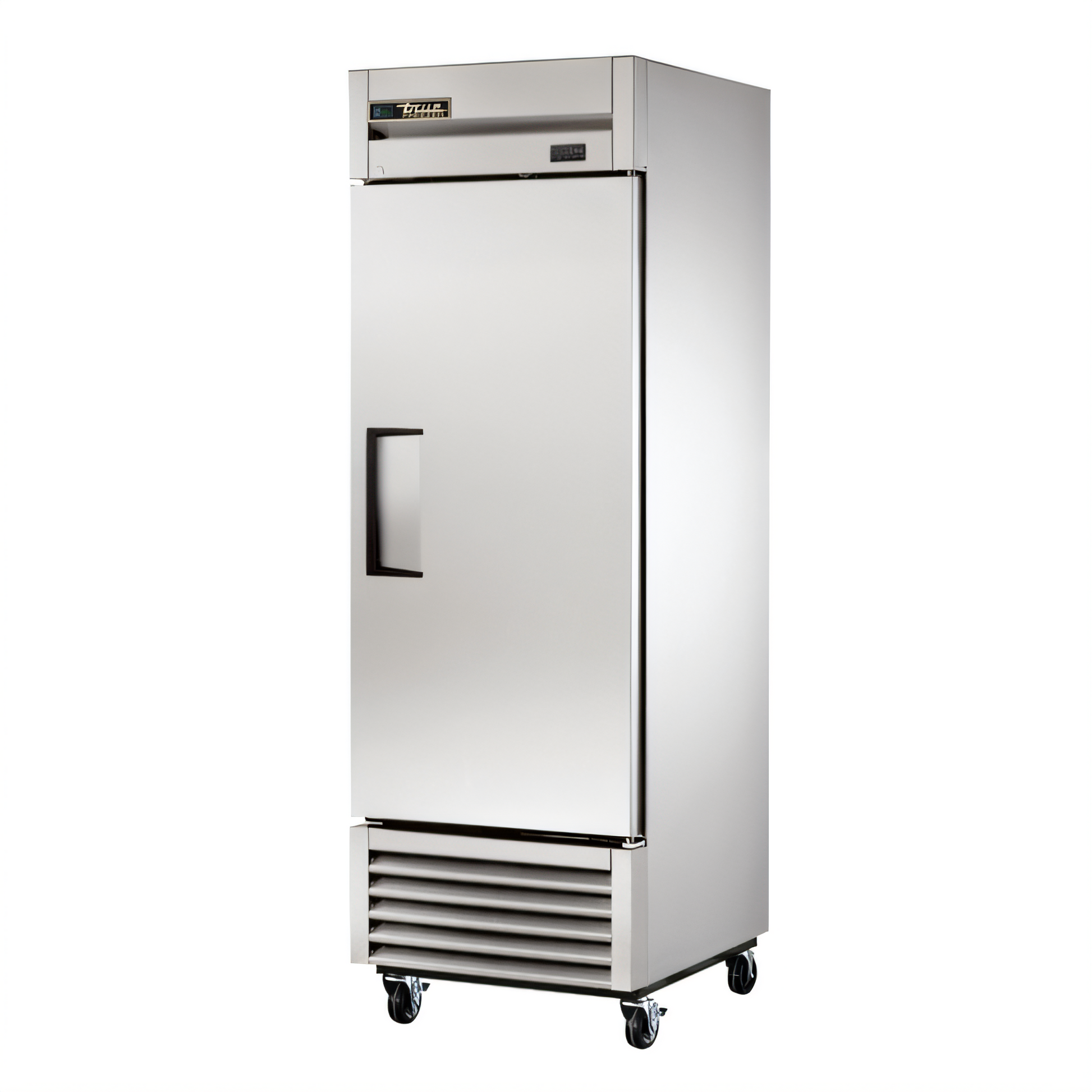

True Mfg. - General Foodservice T-23F-HC Reach-In Refrigerators & Freezers
Freezer, reach-in, one-section, -10°F, (1) solid door, (3) PVC coated adjustable wire shelves, interior lighting, stainless steel door, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 3.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Certifications |
cULus, UL EPH Classified, Made in USA, ENERGY STAR® |
| Height |
78.38 in |
| Width |
27.0 in |
| Depth |
29.5 in |
| Shipping Weight |
295.0 lbs |
| Size |
1 Section |
| Compressor HP |
1/2 HP |
| Energy Efficiency |
ENERGY STAR® Certified |
| Capacity |
10 – 23 cu. ft. |
| Temperature Range |
-10°F |
| Interior Finish |
Clear-coated aluminum with stainless steel floor |
| Exterior Finish |
Stainless steel front, aluminum sides |
| Door Type & Style |
(1) Solid full-hinged door with lock |
| Shelving |
(3) PVC-coated adjustable wire shelves |
| Interior Lighting |
Yes |
| Refrigeration System |
Self-contained, bottom mounted |
| Refrigerant Type |
R290 Hydrocarbon refrigerant |
| Electrical |
115v/60/1-ph, 3.7 amps, NEMA 5-15P |
| Mobility |
4" Castors |
What our Experts Think
-
Efficient Freezing Power – Factory-engineered capillary tube system with eco-friendly R290 refrigerant ensures fast, consistent cooling.
-
Energy-Saving Design – High-density polyurethane insulation enhances cold retention and reduces energy consumption.
-
Durable Construction – Stainless steel door with corrosion-resistant, white aluminum interior and stainless steel floor built for heavy-duty use.
-
Low Maintenance – Self-cleaning condenser (HC model) helps maintain optimal performance and prolongs compressor life.
-
Precision Temperature Holding – Maintains -10°F (-23.3°C), ideal for frozen foods and ice cream.
-
Ergonomic Use – Recessed door handles and magnetic gaskets offer smooth, secure door sealing and easy access.
Q&A
Q: What is the True T-23F-HC used for?
A: It’s a single-section reach-in freezer designed for reliable frozen storage in commercial kitchens and foodservice operations.
Q: What is the storage capacity of this freezer?
A: The T-23F-HC offers approximately 23 cu. ft. of frozen storage, ideal for smaller kitchens or as a supplemental unit.
Q: What type of door does it have?
A: It features a full-height solid stainless steel door with a self-closing design and positive seal for energy efficiency.
Q: How does it maintain freezing temperatures?
A: This unit uses a high-performance refrigeration system with eco-friendly R290 hydrocarbon refrigerant, maintaining temperatures at -10°F (-23.3°C).
Q: What is the cabinet made from?
A: The exterior is stainless steel on the front and aluminum on the sides, while the interior is aluminum with a stainless steel floor for easy cleaning.
Q: Are shelves included?
A: Yes, the freezer comes with three heavy-duty, adjustable PVC-coated wire shelves for organized storage.
Q: Does it require professional installation?
A: Professional installation is recommended for optimal performance and warranty compliance.
Maintenance Tips
-
Clean condenser coils every 30 to 90 days for peak efficiency.
-
Wipe down interior and exterior surfaces with a soft cloth and mild detergent.
-
Inspect door gaskets regularly to ensure a tight seal and replace if damaged.
-
Ensure unit is level for proper door operation and drainage.
-
Check and clear drain lines to prevent blockages and water buildup.
-
Monitor internal temperature to maintain consistent cooling.
-
Avoid blocking air vents to ensure optimal airflow and performance.
