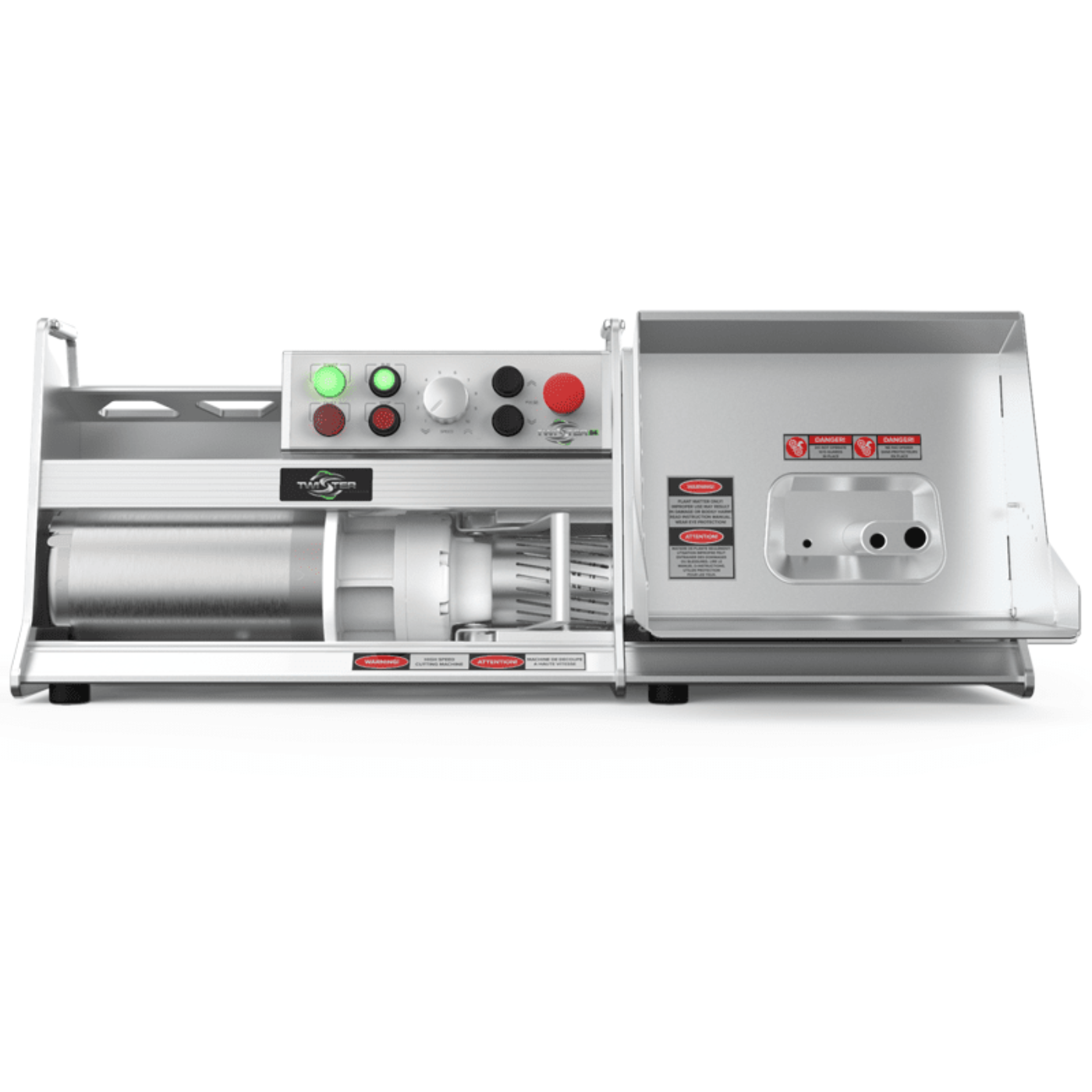

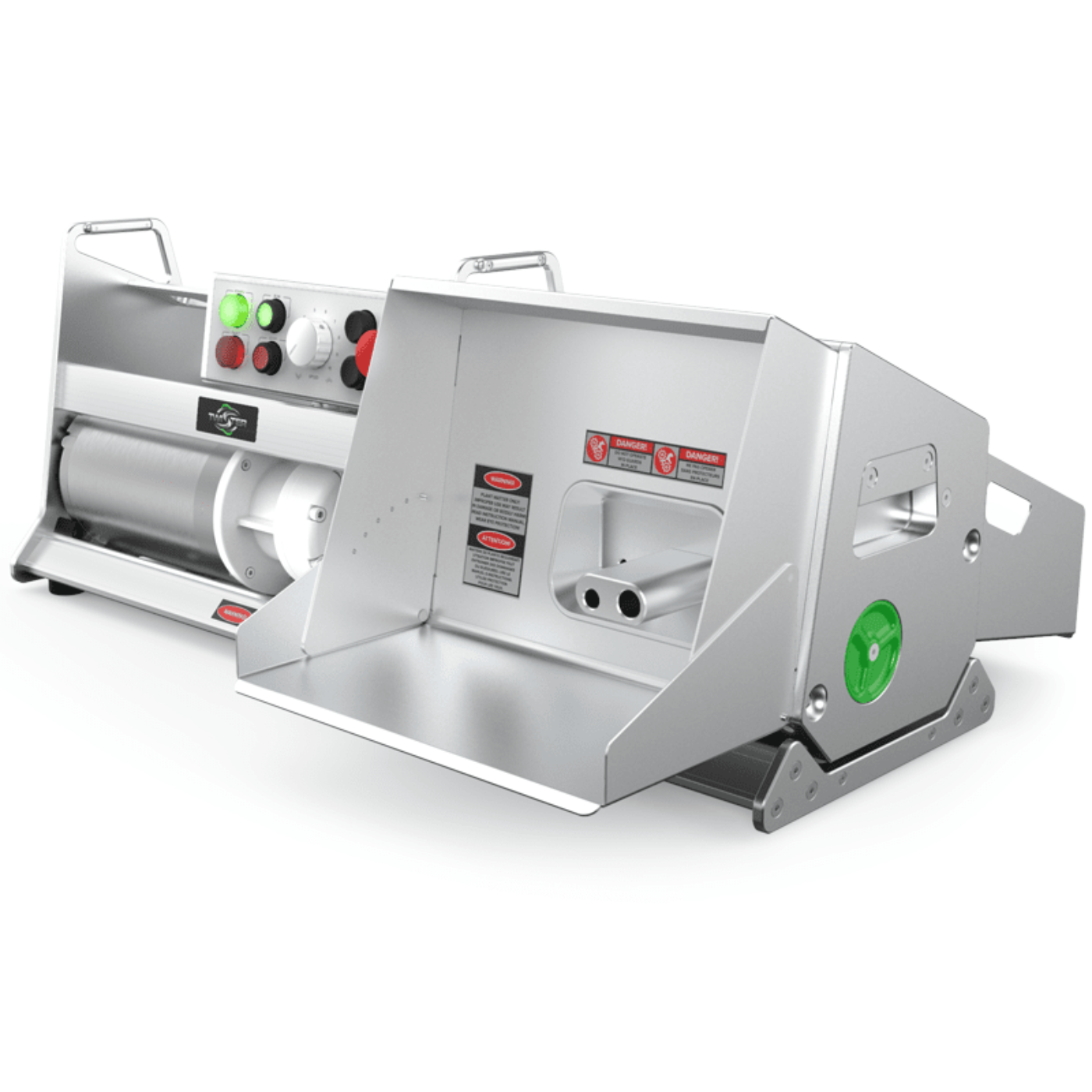

Twister B4 Bucker Debudder & Bucking Machine

Twister B4 'Bucker' Debudder

Bucking is a huge hassle. But the Twister B4 “Bucker” takes the hassle out of the debudding process by making advanced, patent-pending bucking technology available to your work flow. Designed and engineered using only top-quality materials, the Twister B4 bucking machine delivers continuous, dependable performance even under the most demanding conditions. The B4 is built to be flexible so you can use it on a table, stainless bench, accessory stand, or on your truck’s tailgate! The B4 was meant to work in any size grow operation that requires high-quality equipment without risk of downtime or machine failure.

With Twister’s “Swappable Cartridges” the B4 lets the operator remove and replace the bucking cartridges in moments, reducing downtime to keep your harvest rolling along. When you need to switch strains or it’s time to clean up, simply change to a clean, QA-approved cartridge and you’ll be back up and running in a flash. No need to have multiple machines waiting to be used while the others are being cleaned.

The B4’s “Active Gearing” is Twister’s patent-pending drive system that allows the Twister B4 bucking machine to adjust to the varieties of stem sizes to help mitigate downtime due to jams, clogs and other issues that result from feeding stems under other fixed roller designs.

Quality Assurance

• CE Certified
• CSA Compliant
• UL Compliant
• Enjoy the ability to slide the B4 into your existing GMP facility. No extra work required.
• The B4 uses tension-adjustable neoprene rubber rollers
• Front and exit shrouds. Adjustable front shroud allows you to customize the height to match your outputs. Exit shroud allows stems to slide off into receptacles.
• Emergency stop. Easy to find, easy to use.
• 304 Stainless throughout with anodized aluminum. The quality Twister is known for.
• Easy to clean. Breaks down in less than 2 minutes. Easy access to components.

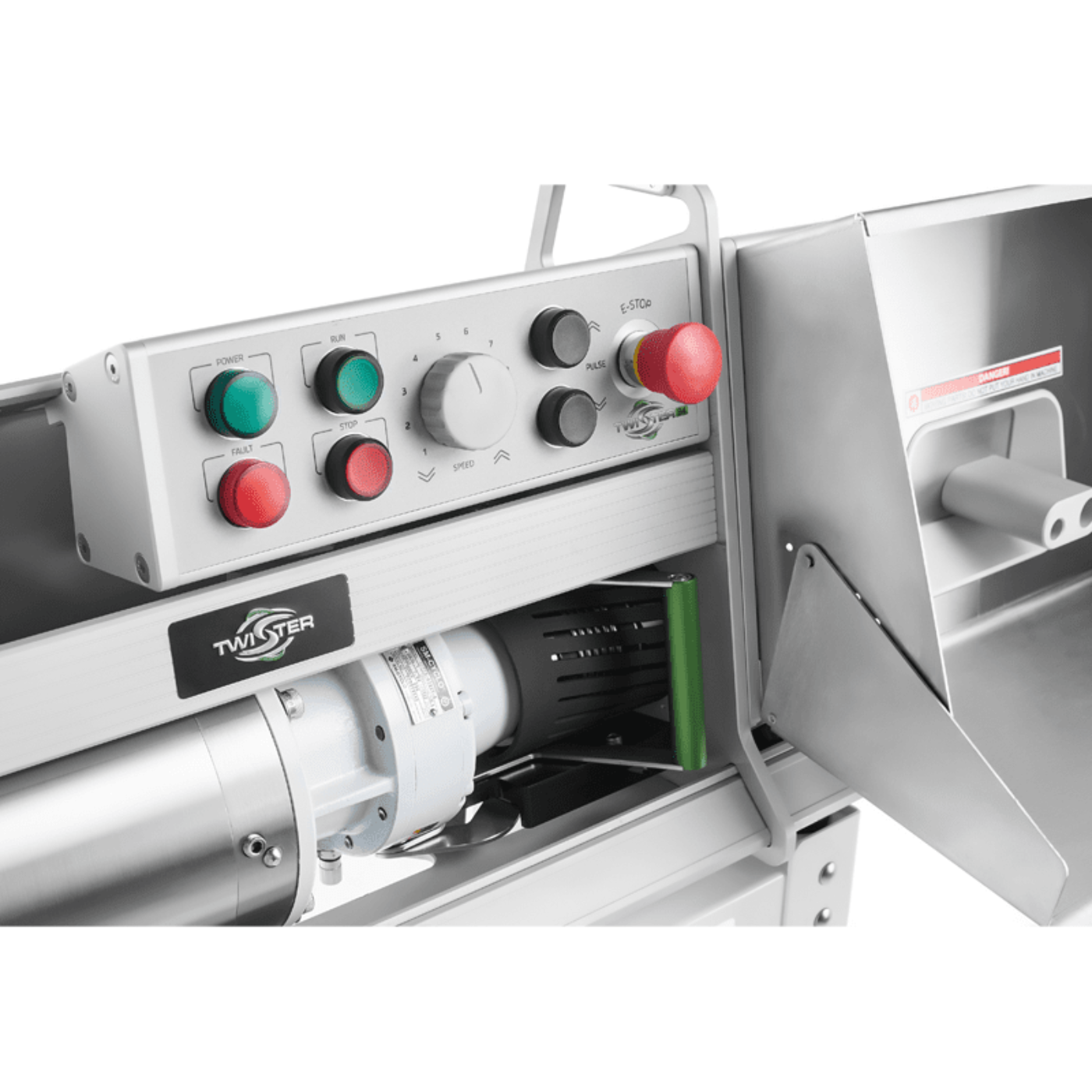

For the Operator

• Ergonomically designed.
• Easy to use and operate. Simple in and out operation.
• SafeFeed™ adaptor prevents injury. Optional/removable safety device protects fingers from the inner rollers.
• Removable feed cartridges for quick and easy changeouts. An industry-first. Swap out cartridges after a strain is complete and slide in a new QA approved one. Zero downtime.
• Patent-pending gearing system reduces jams and downtime. Adjusts to the variability in stem sizes.
• 10 speed setting to match your bucking process to your overall production.
• Pulse speed controls to burst in forward and reverse.
• Forward / Reverse
• Emergency stop. Easy to find, easy to use.

Sanitation

• Easy to clean. Breaks down in less than 2 minutes. Easy access to components.
• Removable front and exit shrouds. Adjustable front shroud allows you to customize the height to match your outputs. Exit shroud allows stems to slide off into receptacles.
• Removable feed cartridges
• 304 Stainless throughout with anodized aluminum.
• Tension-adjustable neoprene rubber rollers
• Washdown Rated (Watertight) / IP69K and IP66K. Pressure washable
• No tools needed for disassembly
• Minimal small parts

Quality Assurance Like Never Before

Twister harvesting equipment is used by over 70% of the world’s largest producers. The B4 ‘Bucker’ was designed to meet the most stringent QA programs available. What makes the B4 really different? Plain and simple – Swappable Cartridges. Twister believes this innovation is a game changer for commercial operations and QA departments. Finished with a specific strain? Simply swap in a QA approved cartridge and you’re back up and running for zero downtime.

Powerful Non-Stop Performance

The B4 ‘Bucker’ is designed to deliver non-stop performance under the most demanding conditions known to commercial production. The B4 ‘Bucker’ uses a leading edge “Active Gearing” system that allows the B4 to process stems up to 3/4” in diameter at speed rates of 150+ lbs/hr for no jams!

Features

• 150+ lbs/hr throughput  (speeds of up to 30 ft/sec)
• Patent-pending “Active Gearing” drivetrain reduces jams and downtime

• Washdown Rated (Watertight) / IP69K and IP66K. Pressure washable
• SafeFeed™ adaptor on the entry holes prevents injury
• Emergency stop that's clear and within reach.
• Easy to use. Ergonomically designed. Easy to load and operate.
• Easy to clean. Breaks down in less than 2 minutes. Easy access to components.
• Minimal training required. Manuals, videos, and tips available on the website.
• Buck dry or fully hydrated.

Specifications

• Input Voltage 120V, 60 Hz Single Phase
• Current Draw < 2A Operating 6A Max
• Drive Motor 1HP
• Motor RPM 262-1750 RPM
• Weight 285lbs / 130kg
• Shipping Weight (w/o stand) 338lbs / 154kg
• Unit Length 37.5in / 96cm
• Unit Width 13in / 33cm
• Unit Height 14.5in / 37cm
• Circuit Breaker Required 15A, 120V
• Connector (plug) NEMA 5-15P
• Roller Sets Neoprene Rubber
• Maintenance Interval > 1000 hours
• Pull Speed 10 – 30in/s
• Pull Strength > 430 lbs
• Extension Cord 14/3 AWG (minimum AWG size) 715m / 50ft max length

Manual

  Twister B4 'Bucker' Cut Sheet

 What Our Experts Think

• Efficient Debudding: The Twister B4 excels at quickly and effectively debudding and bucking cannabis with minimal damage to the product.
• High Capacity: Designed for large-scale operations, it can process significant volumes efficiently, increasing productivity.
• Durable & Reliable: Built with high-quality materials, ensuring long-lasting durability and performance in heavy-duty environments.
• Adjustable Settings: Customizable speeds and settings allow for precise control over the bucking process, adapting to various strain types.
• Easy Maintenance: Simple to clean and maintain, reducing downtime and ensuring consistent performance.

Q&A

Q: What is the Twister B4 Bucker used for?
A: It is designed for debudding and bucking cannabis plants, streamlining the trimming process.

Q: How efficient is the Twister B4 Bucker?
A: The B4 Bucker is highly efficient, capable of processing large volumes of cannabis quickly and with minimal labor.

Q: What makes the Twister B4 Bucker stand out?
A: Its precise design offers automated debudding and bucking with adjustable settings for different strains and sizes.

Q: What type of material is used in its construction?
A: It is made from high-quality, durable materials to ensure long-lasting performance and reliability.

Q: Is this machine easy to use?
A: Yes, it is user-friendly with straightforward controls for easy operation and maintenance.

Q: Can it handle different strain types?
A: Yes, the B4 Bucker is adjustable to accommodate various cannabis strains and plant sizes.

Q: What is the ideal setting for using this machine?
A: It is perfect for large-scale cannabis processing operations, offering high efficiency and quality results.

Q: Does it require a lot of maintenance?
A: The Twister B4 Bucker is designed for minimal maintenance, with easy-to-clean parts for regular upkeep.

Maintenance Tips

• Daily Cleaning: After each use, clean the machine by wiping down all parts and removing plant debris to maintain efficiency.
• Inspect Blades: Check the bucking blades regularly for wear or damage. Replace them if they become dull or damaged for optimal performance.
• Lubrication: Apply lubricants to moving parts as recommended in the manual to prevent wear and ensure smooth operation.
• Check Electrical Connections: Ensure all electrical connections and cables are secure and free from wear or fraying.
• Motor Inspection: Regularly check the motor for overheating or irregular sounds, and ensure it is free from dust and debris.
• Storage: Store the machine in a dry, protected area to prevent rusting and weather-related damage.
