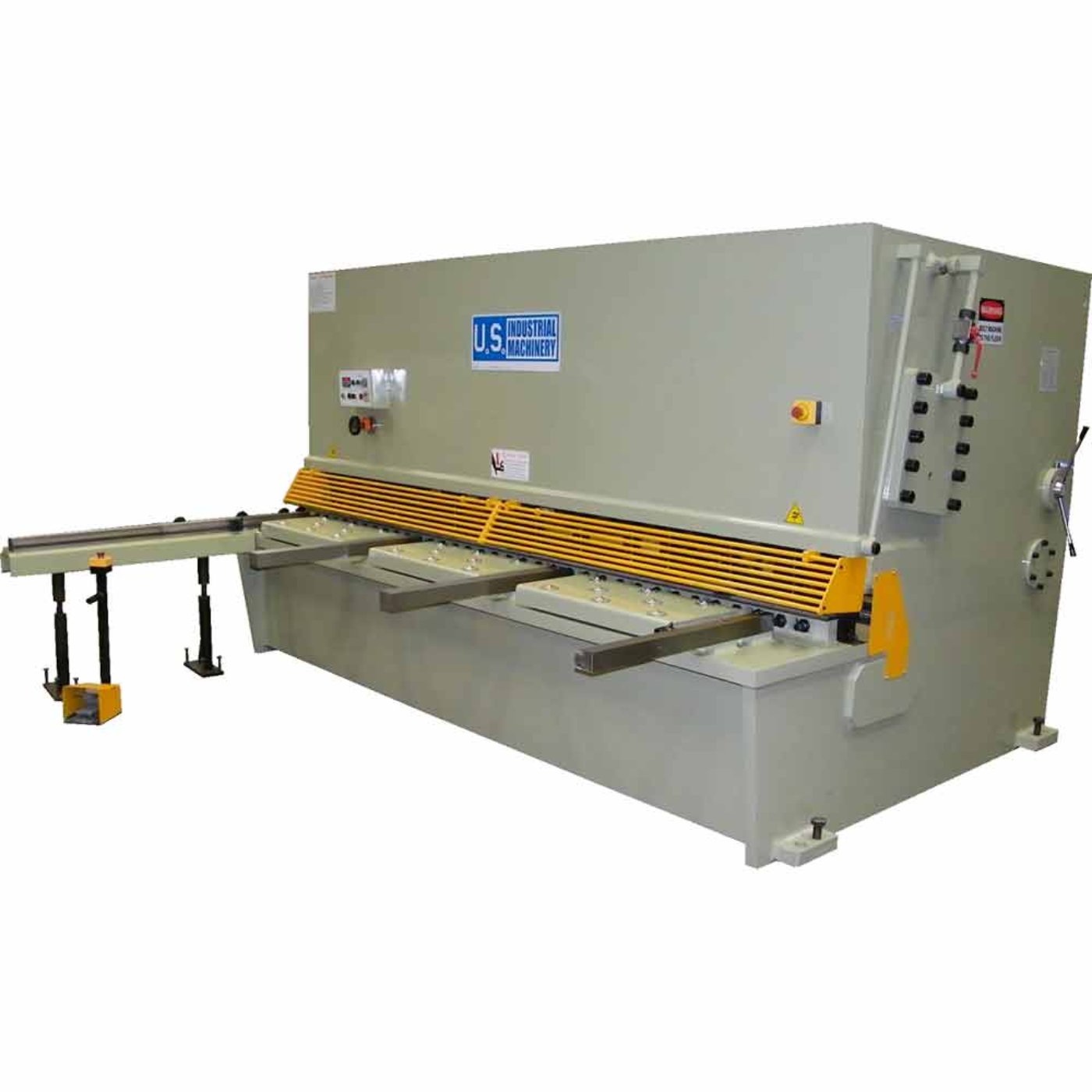

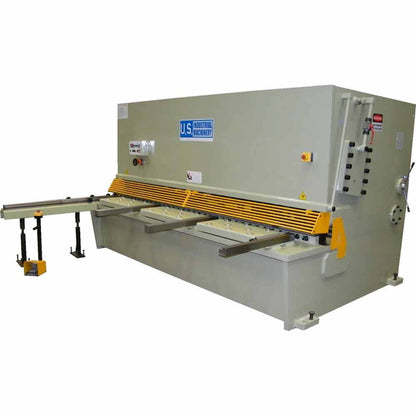

U.S Industrial Machinery 10’ x 3/4” Hydraulic Shear - US10750

U.S. Industrial Machinery can accommodate all kinds of custom machine requests

Our CNC-controlled hydraulic shears automate many of the features available in the manual machines for increased precision and control. What’s great about this equipment is it can also be controlled manually when the situation calls for it. These versatile machines offer exceptional speed and accuracy and the ability to design and save your own cutting programs. Each program accepts 20 steps, and users can store up to 200 programs at one time. Our manual control hydraulic shears offer easy configuration to cut materials of varying thickness with stroke length adjustments as well.

• Setting back-gauge position

• Setting stroke length and blade gap

• Custom cutting program storage

• Motorized front-operated power back-gauge with digital and mechanical readouts

• Fine adjustment handwheel

• Back-gauge adjustment range from ½” to 36”

• A swing-up mechanism for cut depths larger than 36″

• Sheet Size: 126”

• Shearing Capacity: 3/4” Mild Steel @ 65,000 PSI UTS 3/8” Stainless Steel @ 95,000 PSI UTS (Must consider option for Cr12MoV blades.)

• Shear Angle: 1 Degree 30’

• No Load Strokes: 5

• Throat Depth: 5.9”

• Adjustment Range of Back Gauge: 0.75” - 36”

• Hydraulic Oil Capacity: 137 Gal.

• Main Motor: 40 HP, 220 or 440 Volts, 3 phase (Please specify your voltage requirement)

• Net Weight: 39,683 lbs.

• Dimensions (L x W x H): 161” x 90” x 88”

• Front operated power Backgauge with digital readout, 36” travel

• Squaring Arm – 39”

• Support Arms, Ball Transfer Tables w/hand slots between tables

• Quick blade gap adjustment

• Material drop/support chute *

• Exceptional Cutting Power: The U.S. Industrial Machinery 10’ x 3/4” Hydraulic Shear (US10750) delivers unparalleled cutting strength, effortlessly handling materials up to 3/4-inch thick. Its high-capacity hydraulic system ensures reliable performance for the most demanding industrial applications.
• Wide Cutting Capacity: With a 10-foot cutting width, this shear is ideal for processing large metal sheets with precision, making it a preferred choice for heavy-duty metal fabrication, shipbuilding, and structural steel applications.
• Precision Cutting: Featuring adjustable blade gaps, a programmable back gauge, and fine-tuned controls, the US10750 ensures clean, accurate cuts, minimizing waste and maximizing efficiency in every operation.
• Heavy-Duty Build: Constructed with industrial-grade materials, this hydraulic shear is designed for durability and stability. Its reinforced frame minimizes vibration, ensuring consistent and smooth operation even during intensive use.
• Operator-Friendly Design: The intuitive control panel simplifies operation, allowing users to adjust settings with ease. Safety mechanisms, such as emergency stops and blade guards, prioritize operator safety while maintaining productivity.
• Enhanced Efficiency: By automating and streamlining cutting tasks, this hydraulic shear saves time and reduces labor costs, making it an excellent addition to high-output facilities. Its powerful motor ensures consistent performance in heavy workloads.
• Versatile Applications: The US10750 is ideal for cutting thick steel, aluminum, and other sheet metals, catering to industries such as aerospace, shipbuilding, construction, and heavy manufacturing.

Q: What is the U.S. Industrial Machinery 10’ x 3/4” Hydraulic Shear - US10750?
A: The U.S. Industrial Machinery US10750 is a heavy-duty hydraulic shear designed to cut metal sheets up to 10 feet wide and 3/4 inch thick with precision and efficiency. It is built for demanding industrial applications.

Q: What materials can this hydraulic shear cut?
A: The US10750 is capable of cutting a variety of metals, including steel, aluminum, and other heavy-duty materials, making it ideal for metal fabrication and manufacturing.

Q: What are the key features of the US10750?
A: This shear includes a powerful hydraulic system, precision-ground blades, a robust steel frame, and an adjustable back gauge for accurate cuts. Safety controls and an intuitive operator interface are also standard.

Q: What are the dimensions and weight of the US10750?
A: The US10750 is a large, industrial-grade machine built for heavy workloads. For exact dimensions and weight, refer to the product specifications or contact the manufacturer.

Q: Is it user-friendly?
A: Yes, the US10750 is designed with ease of operation in mind. The hydraulic system and control panel ensure efficient performance and safety for the operator.

Q: Does it come with a warranty?
A: Yes, the US10750 typically includes a manufacturer warranty. For warranty details, consult the retailer or manufacturer directly.

Q: Who is this machine ideal for?
A: The US10750 is perfect for industries such as heavy manufacturing, metal fabrication, and construction that require a reliable and precise solution for cutting large and thick metal sheets in high-capacity operations.

• Inspect and Sharpen Blades: Regularly check for dull or damaged blades; sharpen or replace as needed for clean cuts.
• Hydraulic System Maintenance: Monitor fluid levels, inspect hoses and seals for leaks, and replace hydraulic oil annually.
• Lubricate Moving Parts: Apply grease to pivot points, guides, and hinges to reduce wear and friction.
• Check Electrical Systems: Inspect wiring, test emergency stops, and verify all connections are secure.
• Tighten Bolts and Fasteners: Periodically ensure all hardware is securely fastened to avoid machine instability.
• Clean the Machine Bed: Remove debris and residue after every use to protect cutting surfaces.
• Calibrate the Back Gauge: Test and adjust for accurate cutting performance.
• Follow Manufacturer Instructions: Adhere to recommended maintenance schedules and part replacement guidelines.
