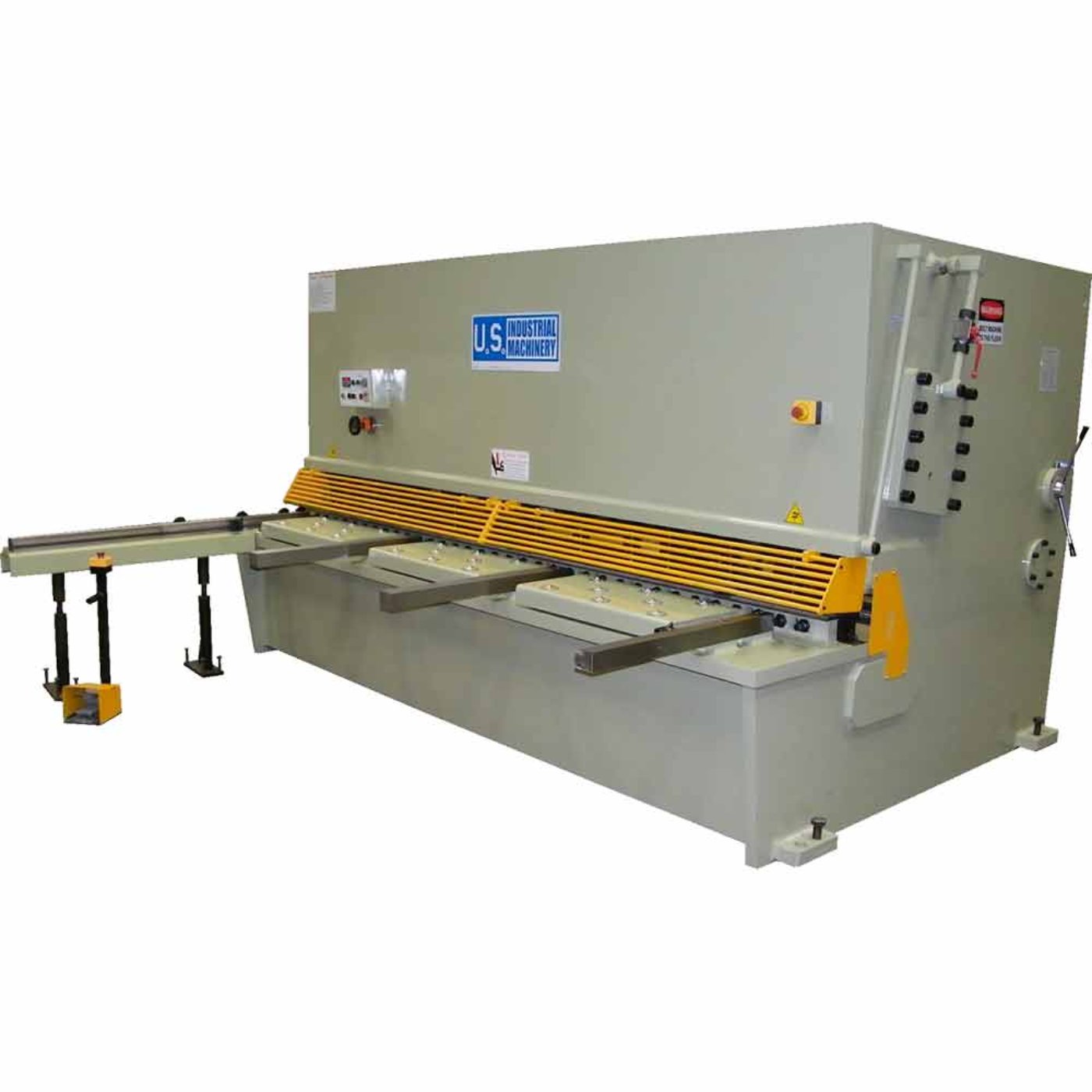

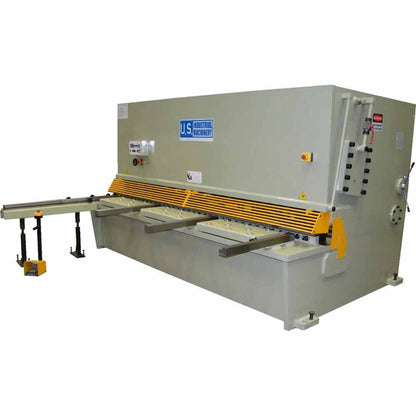

U.S Industrial Machinery 10’ x 5/8” Hydraulic Shear - US10625

Choose your wiring preference for 220 volts, 3-phase or 440 volts, 3-phase power.

Our CNC-controlled hydraulic shears automate many of the features available in the manual machines for increased precision and control. What’s great about this equipment is it can also be controlled manually when the situation calls for it. These versatile machines offer exceptional speed and accuracy and the ability to design and save your own cutting programs. Each program accepts 20 steps, and users can store up to 200 programs at one time. U.S. Industrial Machinery can accommodate all kinds of custom machine requests to handle your unique jobs in addition to what we have in our standard inventory. All hydraulic shears feature quick blade gap adjustment, support arms on the front of the machine, transfer tables for easily handling materials, and a foot pedal operation with an emergency stop. Our machines come with a standard 3’ squaring arm, but we offer larger squaring arms in 6′, 8′, and 10′ lengths upon request.

• Setting back-gauge position

• Setting stroke length and blade gap

• Custom cutting program storage

• Motorized front-operated power back-gauge with digital and mechanical readouts

• Fine adjustment handwheel

• Back-gauge adjustment range from ½” to 36”

• A swing-up mechanism for cut depths larger than 36″

• Front operated power Backgauge with digital readout, 36” travel

• Squaring Arm – 39”

• Support Arms, Ball Transfer Tables w/hand slots between tables

• Quick blade gap adjustment

• Material drop/support chute

• High-Powered Hydraulic Performance: The U.S. Industrial Machinery 10’ x 5/8” Hydraulic Shear (US10625) offers exceptional cutting capacity, capable of handling materials up to 5/8-inch thick. Its powerful hydraulic system ensures smooth and efficient cutting, ideal for heavy-duty industrial applications.
• Wide Cutting Capacity: With a 10-foot cutting width, this shear is built to handle large metal sheets, making it an excellent choice for large-scale fabrication projects, steel processing, and other industries requiring precision cutting of wide materials.
• Precision and Efficiency: Equipped with adjustable blade gaps and a programmable back gauge, the US10625 ensures precise, clean cuts with minimal waste. This accuracy improves overall production efficiency, reducing material costs and time spent on adjustments.
• Heavy-Duty Construction: The robust, industrial-grade frame of the US10625 is designed for high-performance use in demanding environments. It reduces vibrations, ensuring stable operation and consistent cut quality during extended work periods.
• User-Friendly Operation: The shear features an intuitive control panel, allowing operators to quickly adjust settings for various cutting tasks. Additionally, essential safety features like emergency stop buttons and protective shields enhance operator safety without compromising productivity.
• Increased Productivity: By automating the cutting process, the US10625 significantly reduces manual labor and cutting time, improving overall productivity in busy manufacturing environments. Its hydraulic power ensures efficient cutting of thicker materials with minimal effort.
• Versatile for Multiple Industries: Ideal for industries like construction, aerospace, automotive manufacturing, and metalworking, this hydraulic shear is capable of cutting a variety of metals such as steel and aluminum, offering versatile performance across different sectors.

Q: What is the U.S. Industrial Machinery 10’ x 5/8” Hydraulic Shear - US10625?
A: The U.S. Industrial Machinery US10625 is a hydraulic shear designed for cutting metal sheets up to 10 feet wide and 5/8 inch thick. It is engineered to handle demanding industrial tasks with precision and efficiency.

Q: What materials can the US10625 shear?
A: The US10625 is suitable for cutting a range of metals including steel, aluminum, and other sheet materials, making it ideal for use in metalworking, fabrication, and manufacturing industries.

Q: What are the key features of the US10625?
A: This hydraulic shear features a robust hydraulic system, durable steel frame, adjustable back gauge for precise cuts, and a user-friendly control panel for ease of operation. It ensures reliable and accurate performance for heavy-duty applications.

Q: What are the dimensions and weight of the US10625?
A: The US10625 is a large, industrial-grade machine designed for heavy workloads. For exact dimensions and weight, refer to the product specifications or contact the manufacturer directly.

Q: Is the US10625 easy to operate?
A: Yes, the US10625 is designed with an intuitive control system and hydraulic operation that allows for smooth and precise cutting, ensuring efficiency and safety for operators.

Q: Does the US10625 come with a warranty?
A: Yes, the US10625 generally includes a manufacturer warranty. For specific warranty details, consult the manufacturer or retailer.

Q: Who is the US10625 ideal for?
A: The US10625 is ideal for industries such as metal fabrication, manufacturing, and construction, requiring a reliable and precise solution for cutting medium to thick metal sheets in high-capacity operations.

• Blade Inspection: Regularly check blades for signs of wear or damage; sharpen or replace as needed to maintain cutting efficiency.
• Hydraulic System Maintenance: Monitor hydraulic fluid levels, check for leaks, and replace the hydraulic oil annually to ensure smooth operation.
• Lubrication: Grease moving parts such as guides, hinges, and pivot points to reduce friction and prevent wear.
• Electrical System Check: Inspect wiring and connections for damage or corrosion; verify emergency stop functionality.
• Secure Fasteners: Regularly tighten bolts, screws, and nuts to maintain machine stability and safety.
• Clean Machine Bed: Remove debris and materials from the cutting area after each use to avoid contamination and damage.
• Back Gauge Calibration: Check and calibrate the back gauge to ensure consistent cutting precision.
• Follow Manufacturer’s Guidelines: Stick to the recommended maintenance schedule and part replacement procedures for optimal machine performance.
