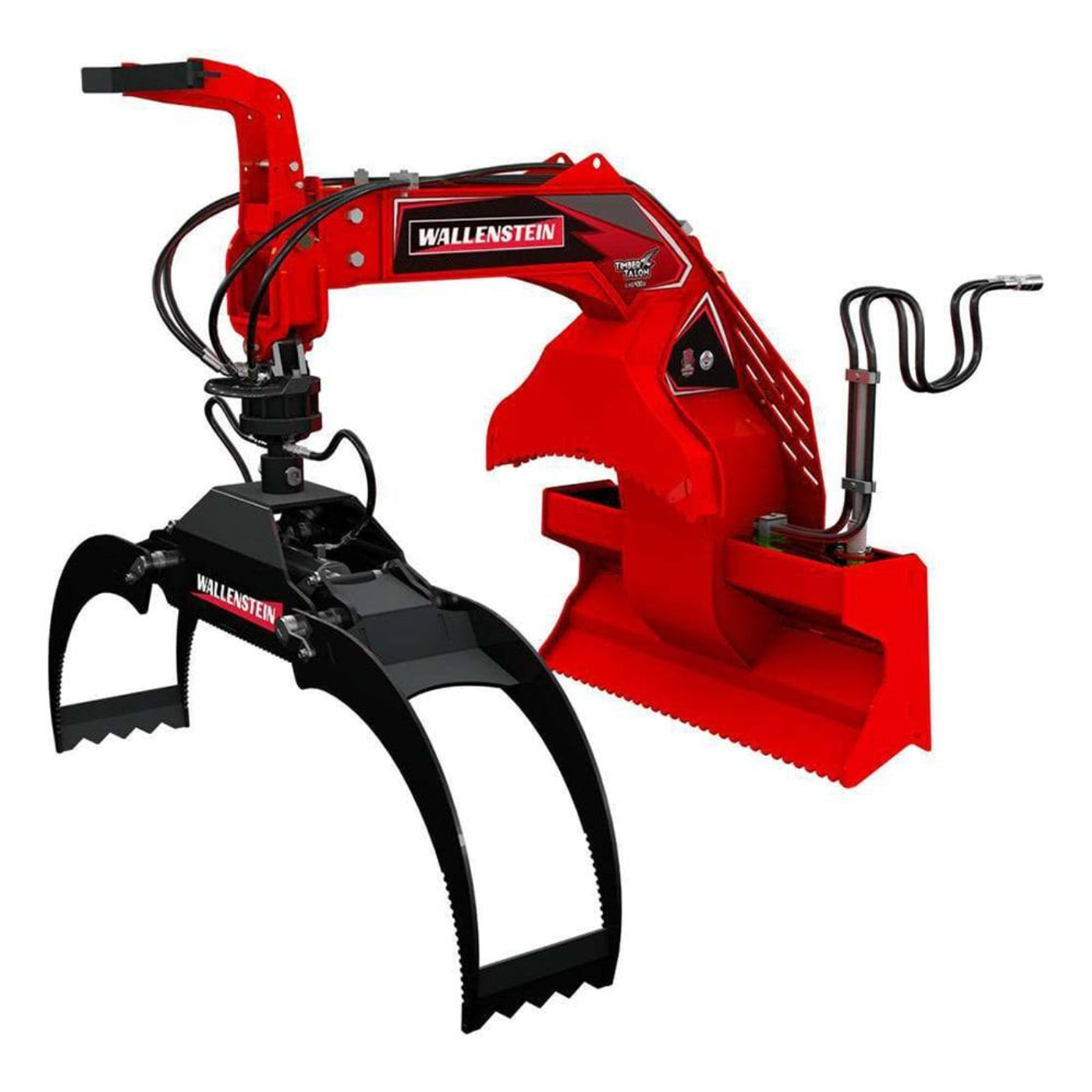

Wallenstein LXG430R Mini Skidsteer log Grapple Attachment - LXG430R
This is the Wallenstein LXG430R mini skidsteer log grapple attachment that is designed to offer additional utility. When looking at the attachment it offers the ability to control your equipment from inside the cab.
Features
- Bypass grapples
- Cantilever cradle
- 360 Hydraulic rotation
- Push bar
What Our Experts Think
-
The Wallenstein LXG430R Mini Skid-Steer Log Grapple Attachment is designed for efficient log handling with a lift capacity of approximately 4,500 lbs (2,041 kg).
-
Features a grapple opening from 3″ to 72″ (8 cm to 182 cm) and clamp force around 21,000 lbs (9,525 kg) for versatility with large logs and bundles.
-
Equipped with 360° hydraulic rotation for complete maneuverability in stacking and placement tasks.
-
Compatible with skid-steers in the 60–100 HP range and uses a universal quick-attach skid-steer mounting plate.
Q&A
Q: What is the grapple opening width?
A: Approximately 3″ to 72″.
Q: Can it rotate 360°?
A: Yes, full 360° hydraulic rotation for complete maneuverability.
Q: What skid-steer size is recommended?
A: Machines in the 60–100 HP range.
Q: What is the clamp force?
A: Around 21,000 lbs (9,525 kg).
Maintenance Tips
-
Inspect and tighten all mounting bolts and quick-attach plate regularly.
-
Check hinge pins, grapple tines, and rotation mechanism for wear; replace as needed.
-
Monitor hydraulic hoses and couplers for leaks or wear.
-
Clean debris like bark or resin from the jaws and rotation system to maintain efficiency.
