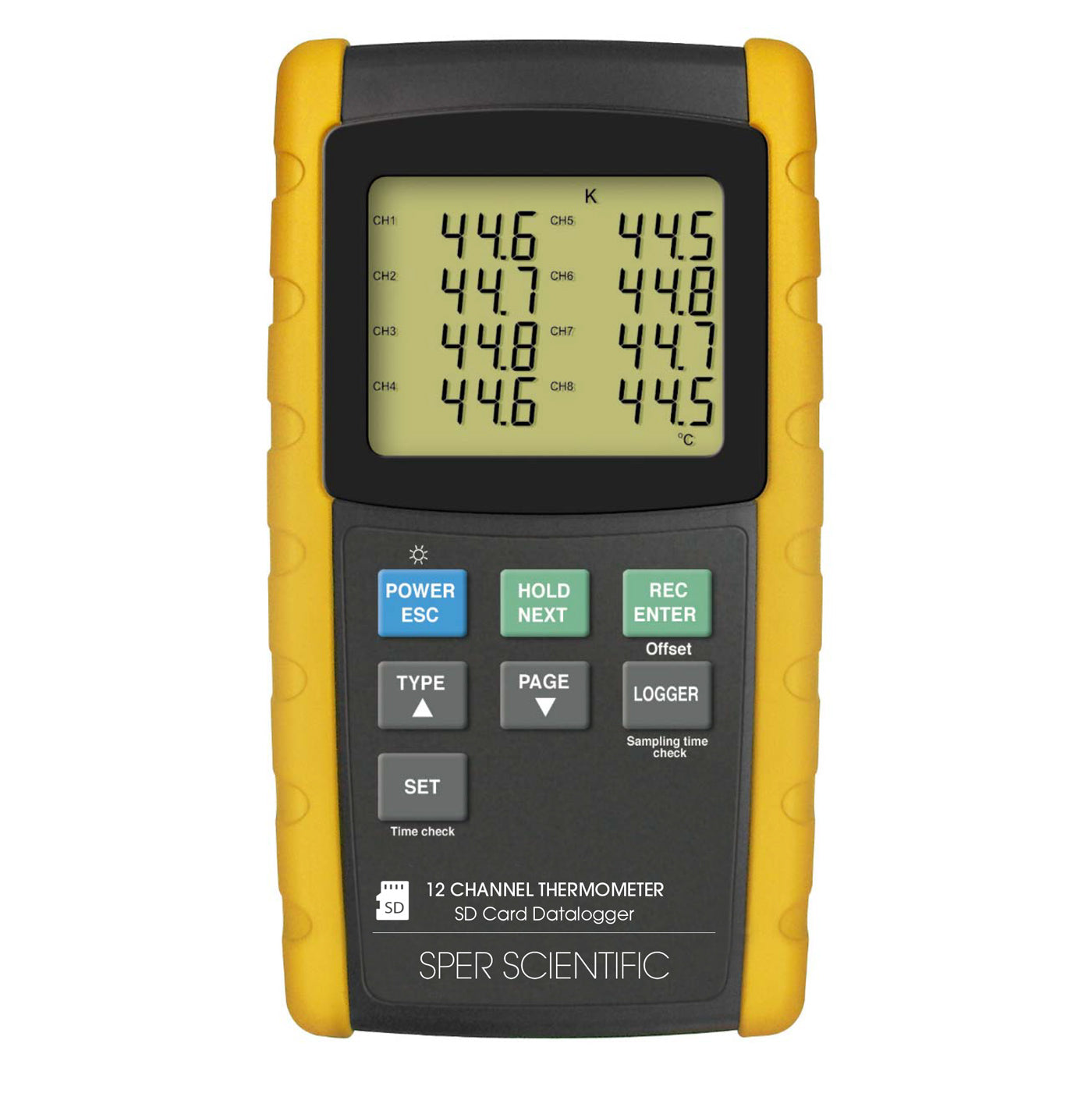

ThermoProbe 12 Channel Digital Thermometer with Datalogger - 800099

Users can simultaneously display channels 1-8 or 9-12 and store 99 readings manually, or up to 20 million readings with date and time stamp using a 2GB SD card. All data is saved in MS Excel format for further analysis.

The user programmable sampling rate is adjustable from 1 to 3600 seconds with Min/Max, Data Hold, and Auto Power Off. Data can be recorded from all 12 channels simultaneously onto an SD card for later analysis.

  • 12 Channel Type J/K/T/E/R/S Thermocouple Thermometer
  • Saves Readings with Date and Time Stamps in Excel Format
  • Sampling Time Range: 1 to 3600 Seconds
  • Large, Bright Backlit LCD Display
  • Real Time Data Logger w/SD Card
  • SD Card Capacity: 1GB to 16GB
  • Min/Max and Data Hold Functions
  • Optional USB/RS232 Cable

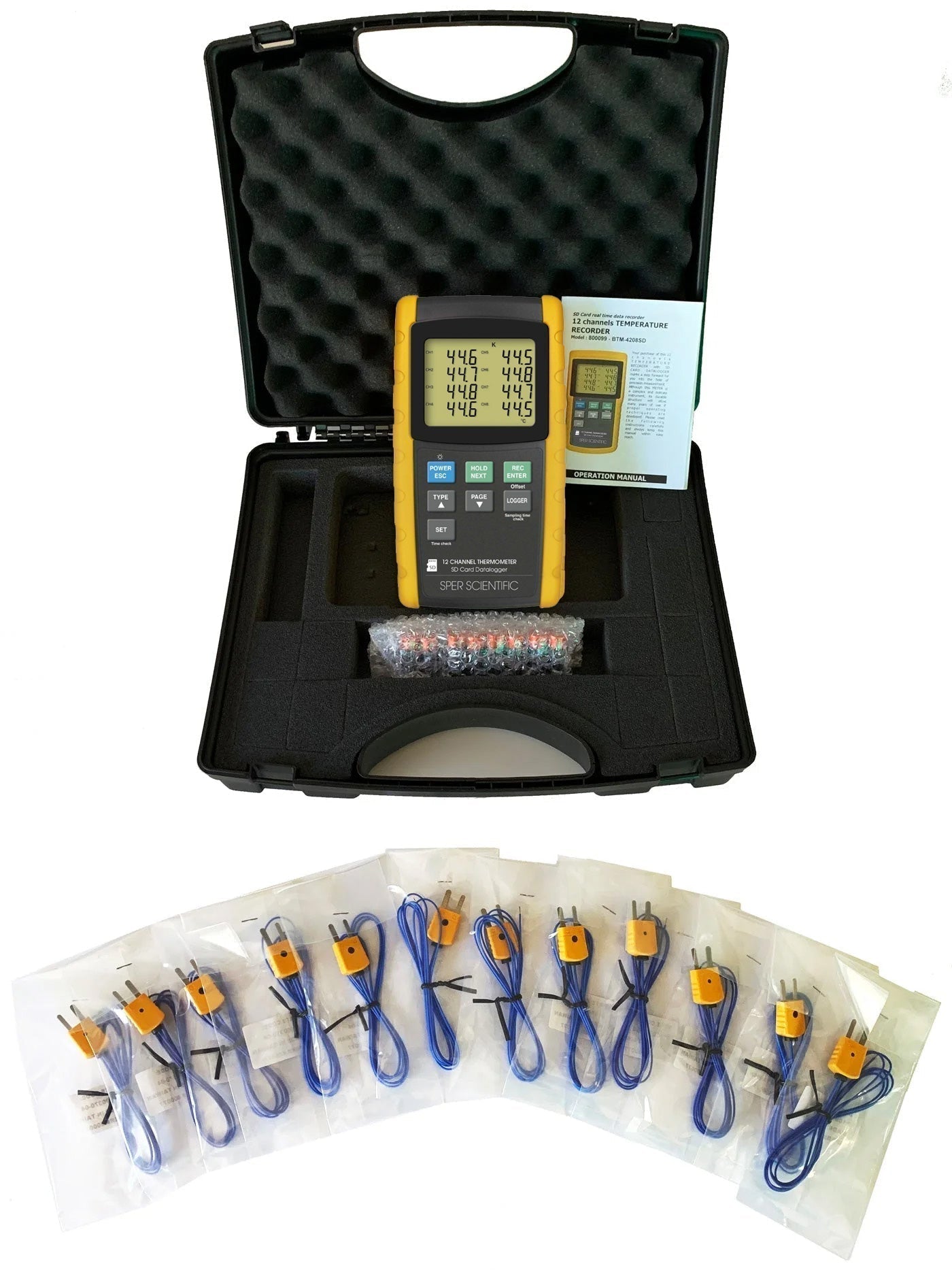

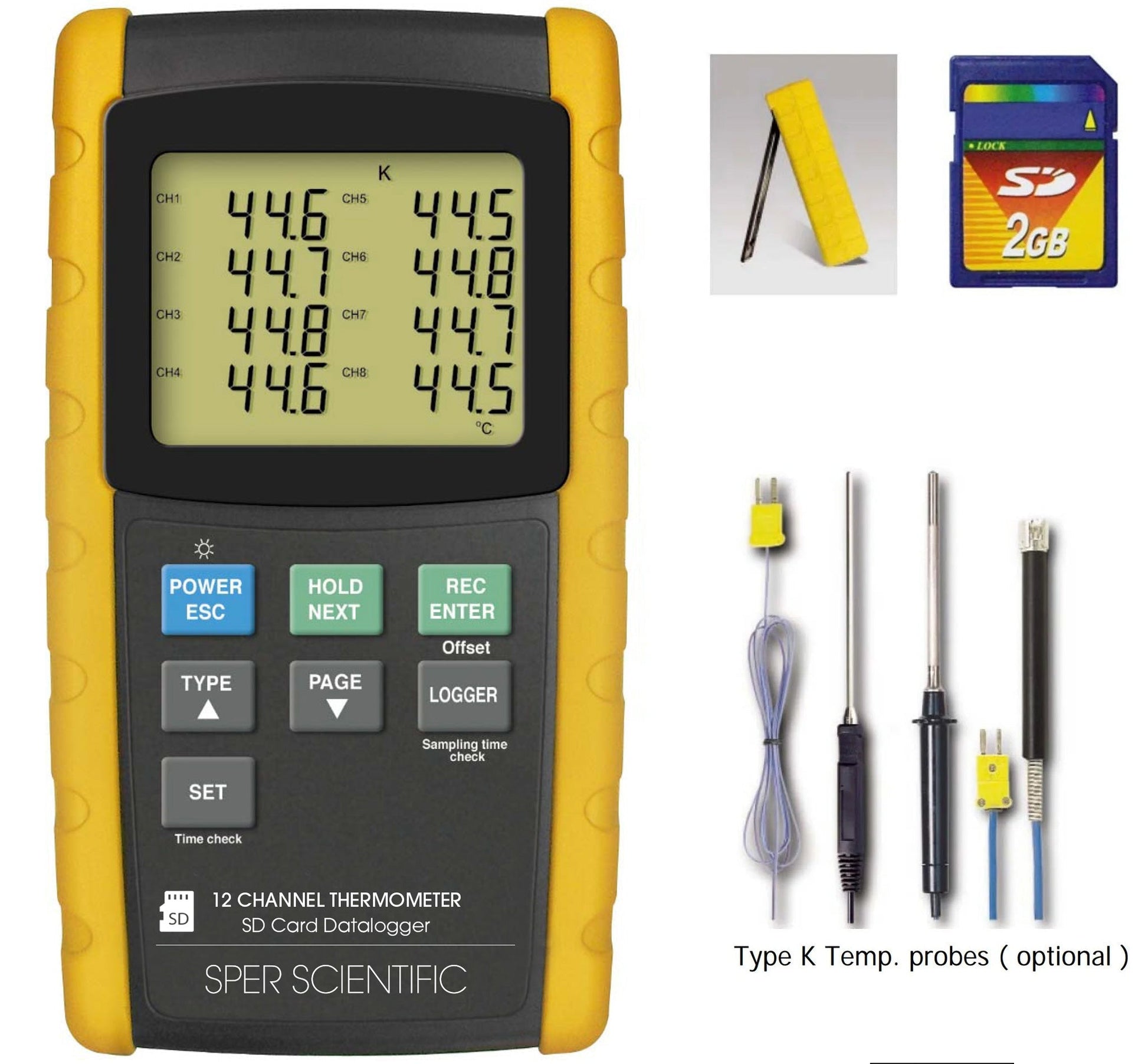

Includes: Hard Carrying Case, (12) Std. Beaded Wire Probes, 2GB SD Card, Batteries and Instructions

Meter Dimensions:
8.86 x 4.92 x 2.52 inches
(225 x 125 x 64 mm)

Weight (Meter Only):
2.09 lbs. (948g) including batteries


Specifications
Power Off Auto shut-off saves battery life or manual off by push button.
Operating Temperature 0 to 50°C
Operating Humidity Less than 85% R.H.
Power Supply - Alkaline or heavy-duty DC 1.5V battery (UM3, AA) × 8 pcs, or equivalent.
- ADC 9V adapter input (optional AC/DC power adapter).
Power Current - Normal operation (w/o SD card save data & LCD Backlight OFF): Approx. DC 7.5 mA.
- When SD card saves data & LCD Backlight OFF: Approx. DC 25 mA.
- If LCD backlight ON, power consumption increases by approx. 11 mA.
Weight Meter Only: 2.09 lbs. (948g) including batteries
Dimensions 8.86 × 4.92 × 2.52 inches (225 × 125 × 64 mm)
Accessories Included Hard Carrying Case, (12) Beaded Wire Probes, 2GB SD Card, Batteries, and Instructions
Circuit Custom one-chip microprocessor LSI circuit
Display LCD size: 82 mm × 61 mm with green backlight
Channels 12 channels: T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, and T12
Sensor Type & Resolution Type K, J, T, E, R, S thermocouple probes
Resolution: 0.1°C/1°C, 0.1°F/1°F
Datalogger Sampling Time - Auto: 1 to 3600 seconds (if set to 1 second, memory data loss may occur).
- Manual: Push the data logger button to save data once. Set sampling time to 0 seconds.
Memory Card SD memory card (1 GB to 16 GB)
Advanced Settings - Set clock time (Year/Month/Date, Hour/Minute/Second)
- Decimal point of SD card setting
- Auto power OFF management
- Set beep sound ON/OFF
- Set temperature unit to °C or °F
- Set sampling time
- SD memory card format
Temperature Compensation Automatic temperature compensation for Type K/J/T/E/R/S thermometer
Linear Compensation Full-range linear compensation
Offset Adjustment Adjust zero temperature deviation value

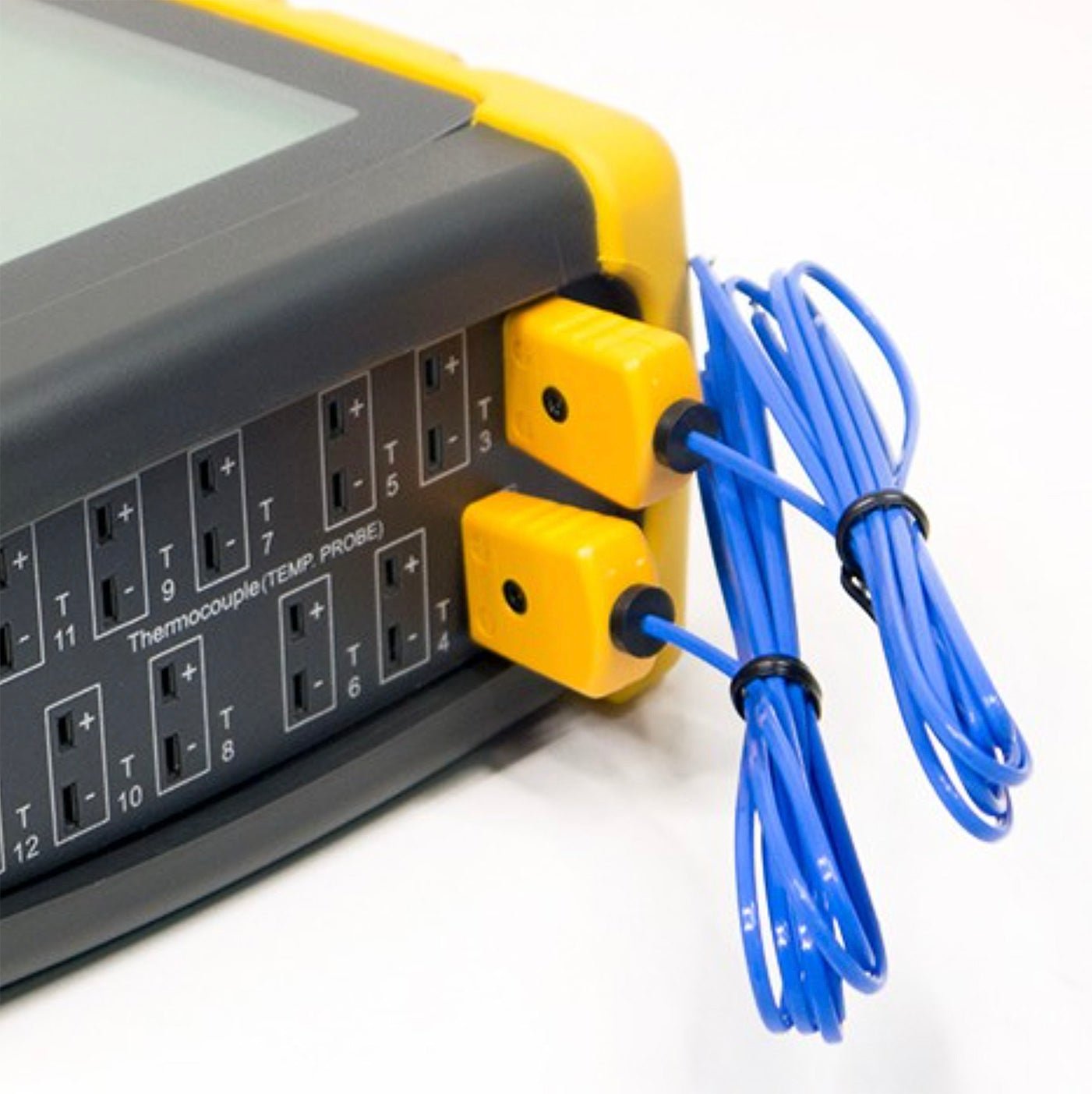

Probe Input Socket 2-pin thermocouple socket
Over Indication Displays " - - - - "
Data Hold Freezes the display reading
Memory Recall Maximum & Minimum value
Sampling Time of Display Approx. 1 second
Sensor Type Resolution
Type K 0.1°C
0.1°C
1°C
0.1°F
0.1°F
1°F
Type J 0.1°C
0.1°C
1°C
0.1°F
0.1°F
1°F
Type T 0.1°C
0.1°C
0.1°F
0.1°F
Type E 0.1°C
0.1°C
0.1°F
0.1°F
1°F
Type R 1°C
1°C
1°F
1°F
Type S 1°C
1°C
1°F
1°F



Downloads

What Our Experts Think
  • Multiple Channels – The 12-channel design allows for simultaneous temperature monitoring across various points, perfect for complex systems.
  • Integrated Datalogger – Built-in data logging features enable easy storage and retrieval of temperature data for future analysis.
  • High Accuracy – Provides precise and reliable temperature readings for a variety of applications.
  • User-Friendly Interface – Simple controls and an intuitive display make it easy to operate and manage data.
  • Versatile Use – Ideal for industrial, laboratory, and research settings where multiple temperature points need monitoring.
Q&A

Q: What is the 800099 12 Channel Digital Thermometer with Datalogger?
A: A versatile thermometer with 12 channels, designed to monitor multiple temperature points simultaneously, and includes a built-in datalogger for recording data over time.

Q: What applications is the 800099 suitable for?
A: Ideal for industrial, laboratory, and environmental monitoring where multiple temperature points need to be tracked and recorded.

Q: How does the datalogger work?
A: The datalogger stores temperature readings over time, allowing users to review historical data and perform analysis for better decision-making.

Q: What is the temperature range of the 800099?
A: The 800099 covers a wide temperature range, suitable for various monitoring and testing needs.

Q: Can I connect multiple probes to the 800099?
A: Yes, the 800099 supports up to 12 probes, allowing you to monitor multiple locations or systems at once.

Q: How do I access the data stored by the datalogger?
A: Data can be retrieved and analyzed through the device’s interface, or transferred to a computer for further analysis.

Q: How durable is the 800099 thermometer?
A: The 800099 is built to be rugged and reliable, capable of withstanding demanding environments and continuous use.

Q: How do I maintain the 800099 thermometer?
A: Regular calibration and proper storage will help ensure consistent accuracy and long-term functionality.

Maintenance Tips
  • Regular Cleaning: Use a soft, damp cloth to clean the thermometer and its display to remove dust and moisture.
  • Check Connections: Ensure all probes are securely connected and inspect cables for wear or damage.
  • Calibrate Periodically: Calibrate the thermometer regularly to maintain accurate readings across all channels.
  • Avoid Harsh Chemicals: Clean with mild, non-abrasive solutions to protect the thermometer and probes.
  • Store Properly: Store in a dry, cool place when not in use, ensuring it's protected from physical damage.
