| tem Model Number |
D40 |
| Capacity |
4,000 lbs. @ 24" load center |
| Power |
24V AC Electric with Transistor Controller |
| Max Lift Height |
7.5" |
| Collapsed Height |
3.25" |
| Turning Radius |
57.5" |
| Travel Speed |
3.5 mph (empty), 3.4 mph (loaded) |
| Battery Type |
(2) 12V 85AH Rechargeable Internal Battery Pack |
| Battery Capacity |
85AH |
| Charger |
Internal 110V |
| Tires/Wheels |
Drive: 9" x 3" Polyurethane |
| Stability Casters: 3.3" x 1.9" Polyurethane |
|
| Load: 2.9" x 3.5" Polyurethane |
|
| Brakes |
Electromagnetic Brake |
| Overall Fork Dimensions |
45" x 27" |
| Individual Fork Dimensions |
45" x 5.9" x 3.25" |
| Vehicle Dimensions |
64" x 27" x 47" |
| Weight (with Battery) |
650 lbs |
| Package Contents |

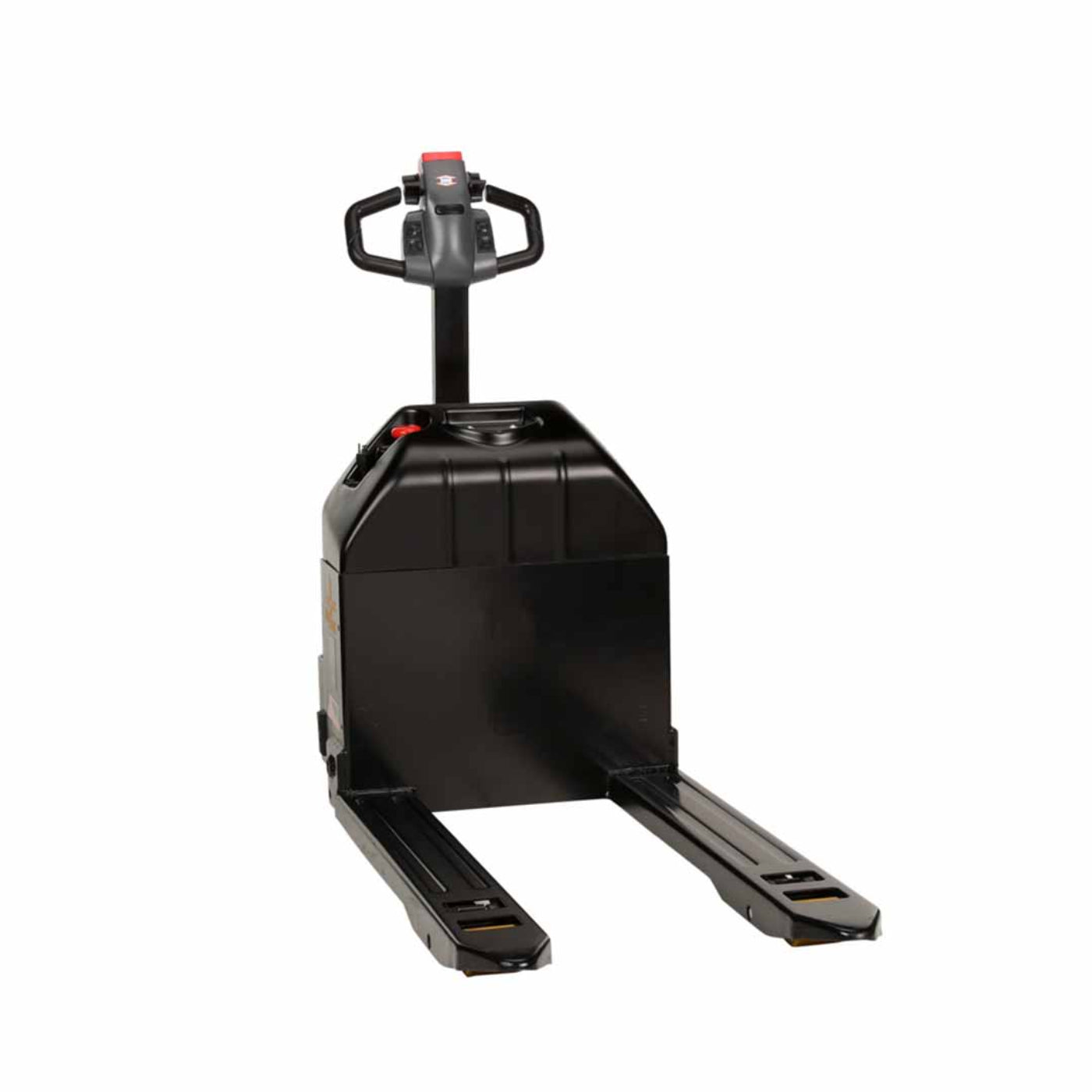

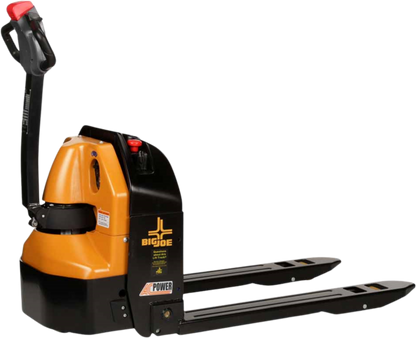

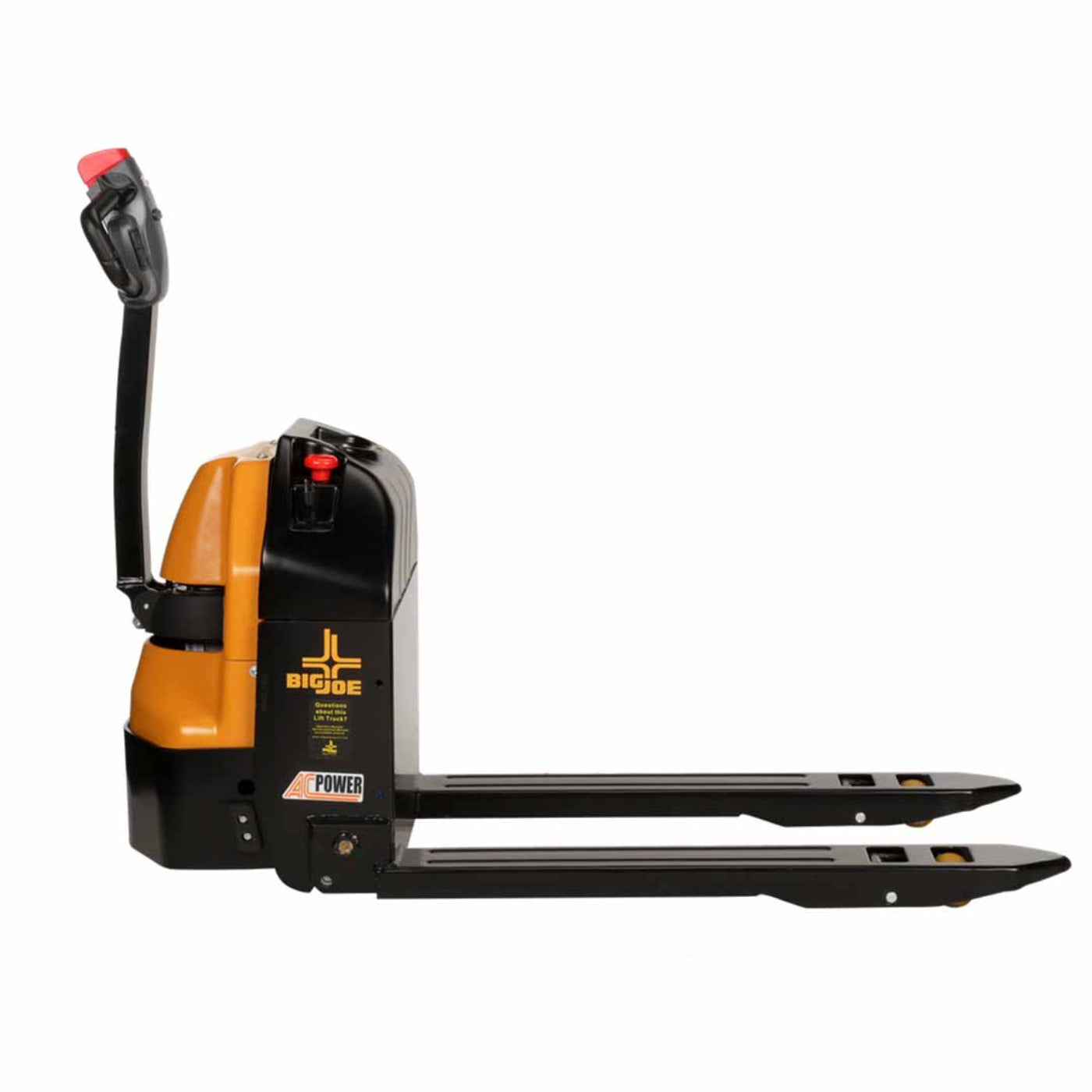

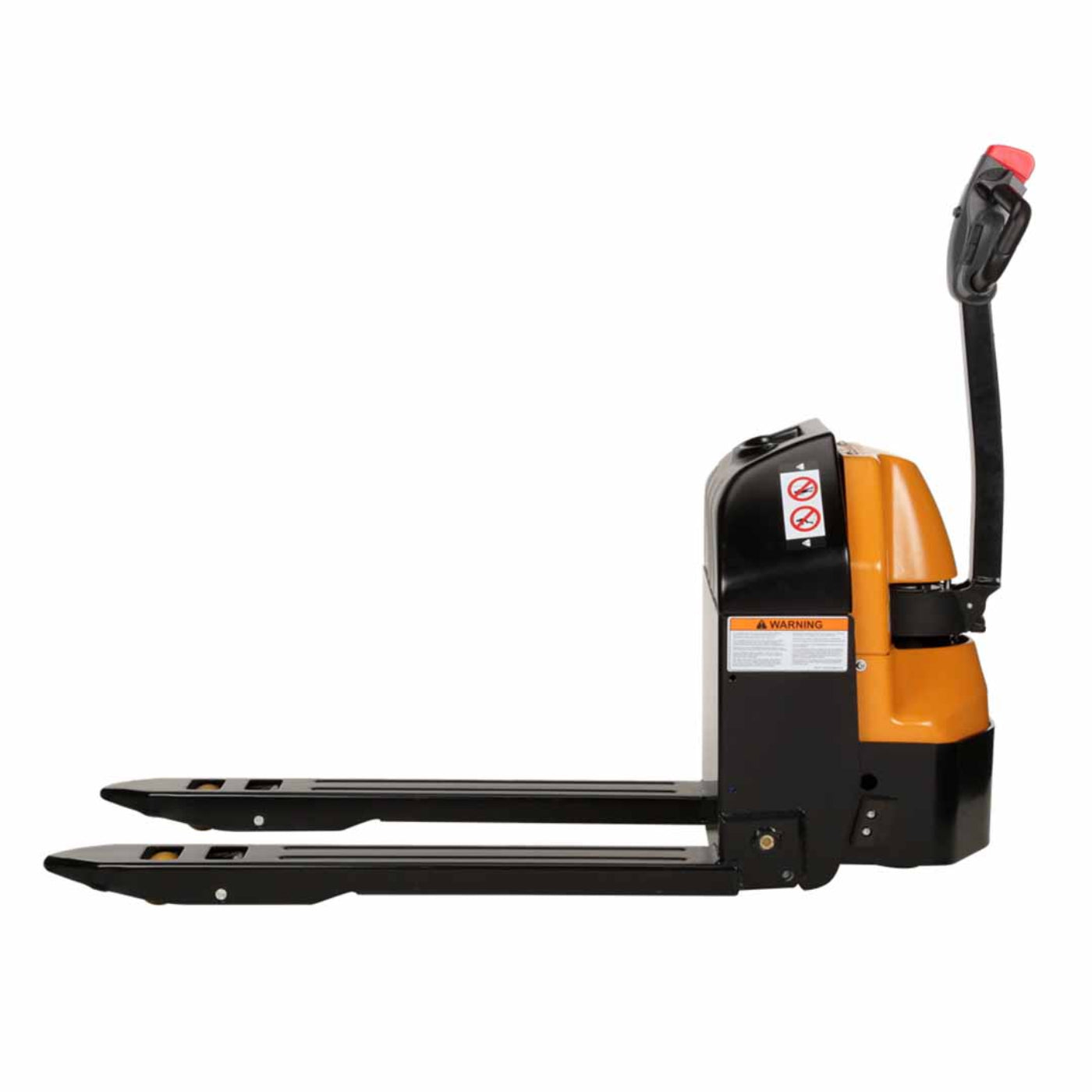

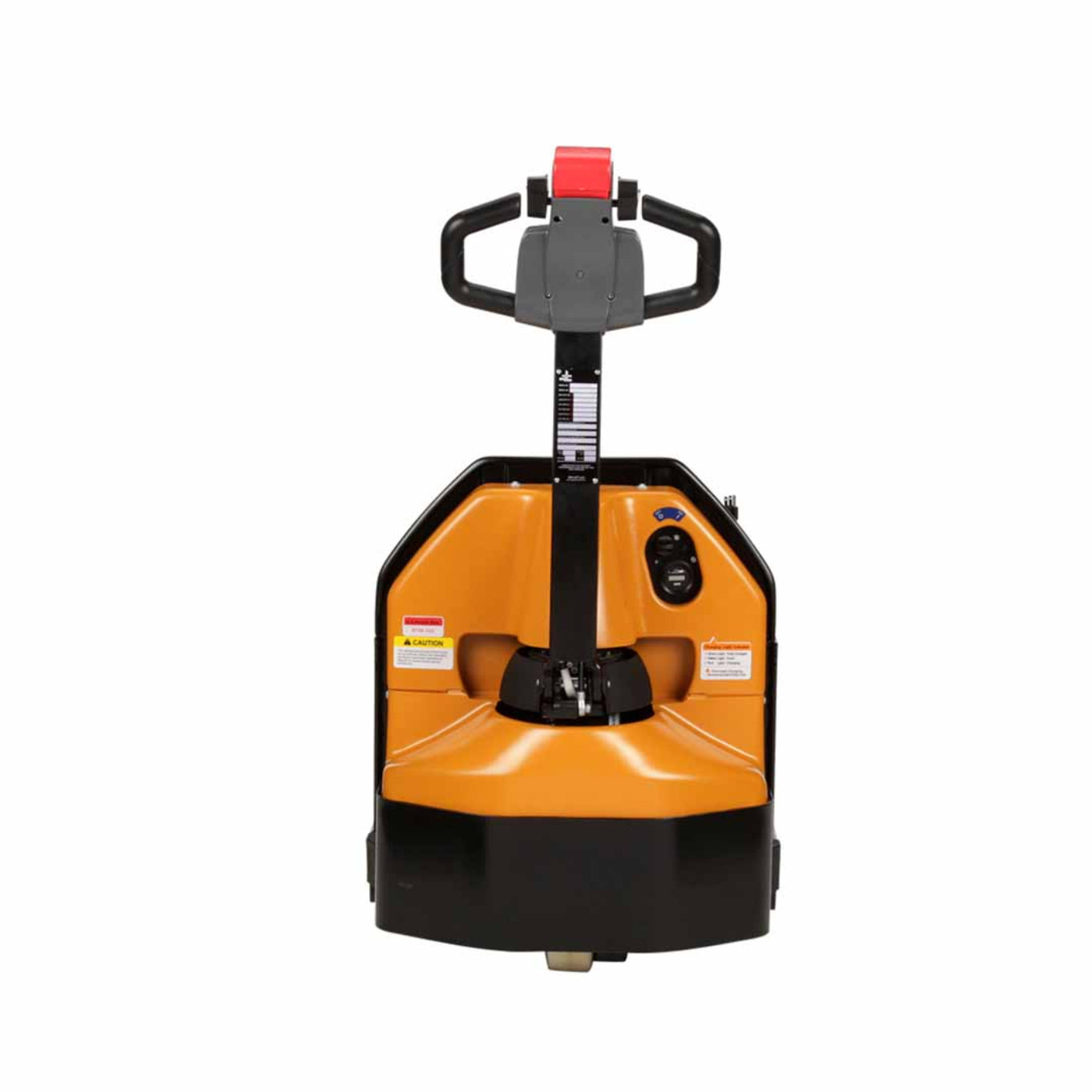

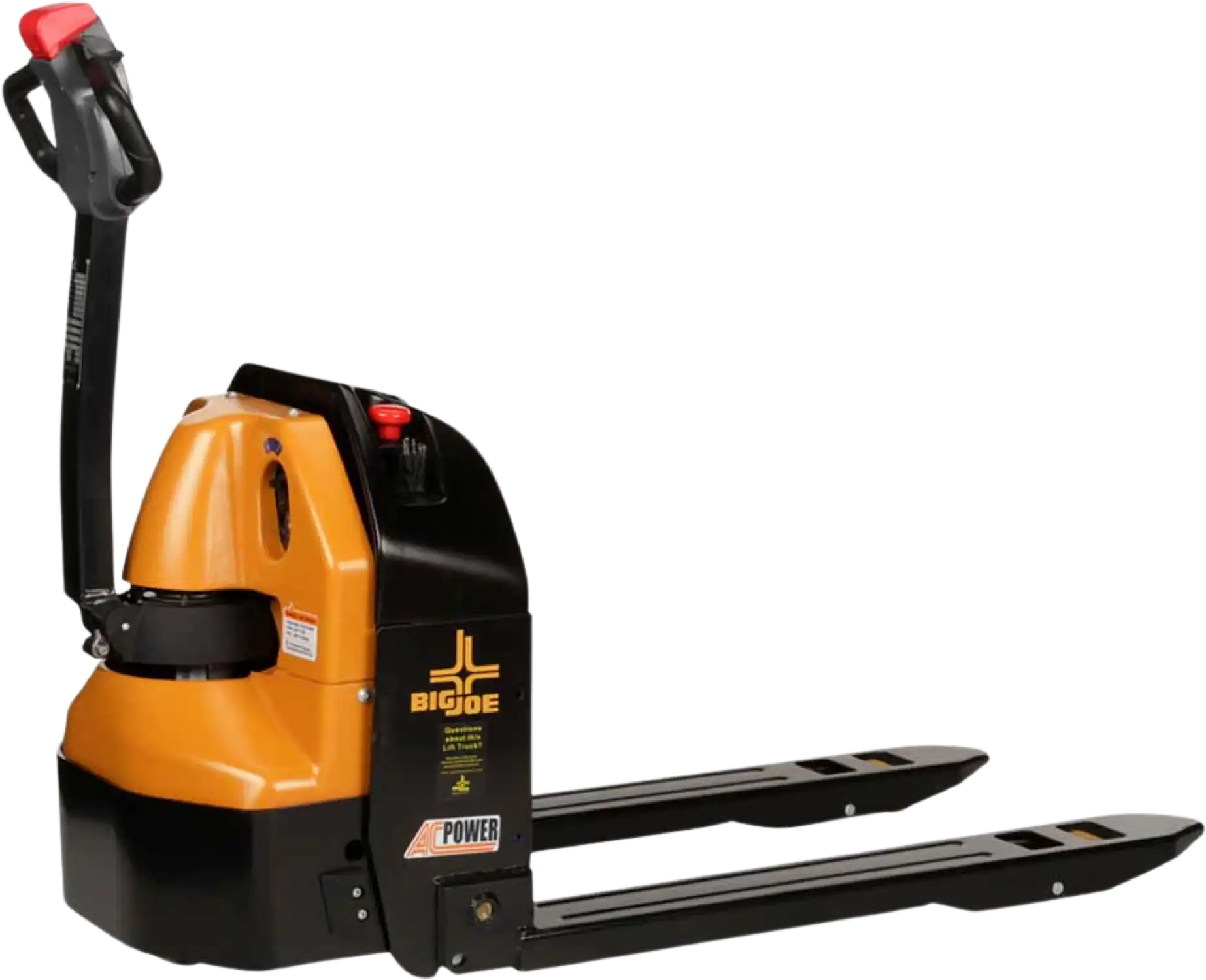

Big Joe D40 Electric Pallet Truck |
| User Manual |
|
What Our Experts Think
-
4000 lbs Capacity – Heavy-duty capacity ideal for handling large and heavy loads, enhancing productivity in demanding environments.
-
Electric Operation – Provides smooth and effortless lifting and moving with minimal manual effort, improving operator efficiency and reducing fatigue.
-
Easy Maneuverability – Compact design allows for seamless navigation in tight spaces, making it perfect for busy warehouses and loading docks.
-
Durable Construction – Built with high-quality materials for long-lasting durability, ensuring reliable performance even under heavy use.
-
New Condition – Ready for immediate use, ensuring top-tier performance and minimal downtime.
Q&A
Q: What is the maximum weight capacity of the Big Joe Electric Pallet Truck?
A: The electric pallet truck has a maximum weight capacity of 4,000 lbs, making it ideal for handling heavy loads in warehouses and industrial environments.
Q: How does the Big Joe Electric Pallet Truck operate?
A: The truck features electric drive and lift, allowing for effortless transportation and lifting of pallets with minimal manual effort.
Q: What is the power source for this pallet truck?
A: The Big Joe Electric Pallet Truck is powered by a rechargeable battery, providing efficient and long-lasting performance.
Q: Is it suitable for narrow aisles?
A: Yes, the compact design of the Big Joe Electric Pallet Truck allows for easy maneuverability in tight spaces and narrow aisles.
Q: Is the pallet truck easy to operate?
A: Yes, the electric controls are intuitive, making it easy to lift, lower, and move heavy loads with precision.
Q: What is the construction material of the pallet truck?
A: It is constructed from durable steel, ensuring strength and reliability for heavy-duty operations.
Q: Is this pallet truck new?
A: Yes, this is a brand new model, designed with the latest technology for optimal performance and safety.
Maintenance Tips
-
Battery Maintenance – Regularly check the battery charge level and ensure the terminals are clean and free from corrosion. Keep connections secure to extend battery life.
-
Forks and Wheels Inspection – Inspect forks for wear and cracks. Check wheels for any damage or debris and clean them regularly. Lubricate the wheels to maintain smooth movement.
-
Hydraulic System Check – Inspect the hydraulic system for leaks and ensure smooth lifting and lowering. Top up hydraulic fluid as needed for optimal operation.
-
Cleaning – Wipe down the pallet truck with a mild detergent and water to remove dust and debris. Avoid harsh chemicals that could damage the finish.
-
Brakes and Controls Check – Ensure that the brakes are functioning properly and test the controls before use to prevent malfunctions.
-
Routine Safety Checks – Conduct routine checks on the overall structure, battery, and lifting mechanisms before each use to ensure safe and efficient operation.
