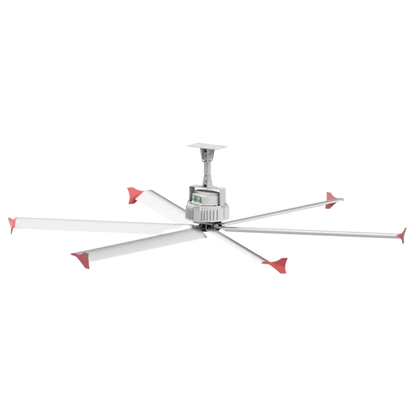

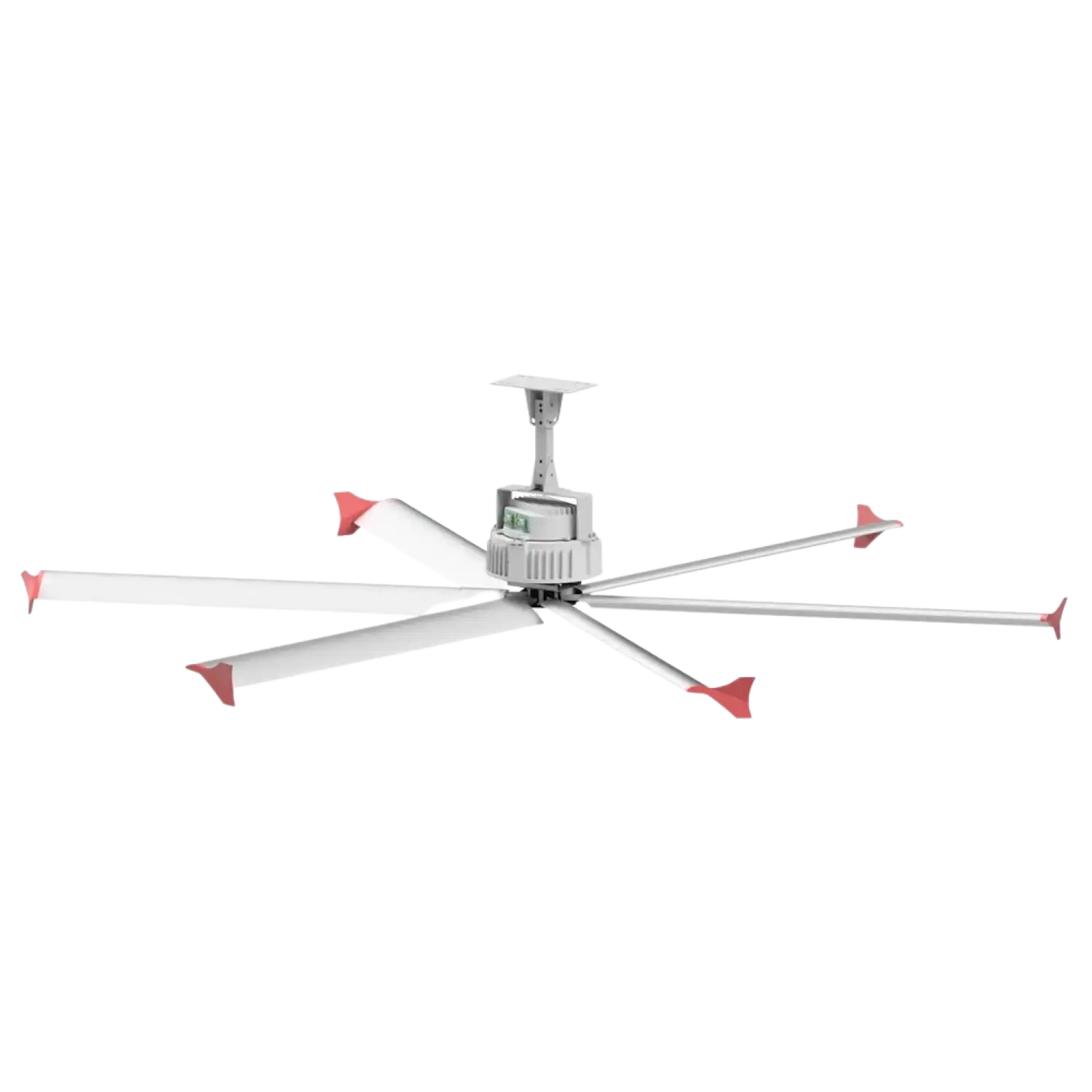

Canarm Hexa-Lite EC HVLS 18 Foot Blade Industrial Fan New - 6L18EC-230-1
Operating on a 1.35 HP EC motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Hexa-Lite EC HVLS Fan.During the heating season, the Hexa-Lite EC HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.
What our Experts Think
-
Wide‑area airflow tailored for large facilities
The Canarm Hexa‑Lite EC HVLS 18 Foot Blade Industrial Fan (6L18EC‑230‑1) is engineered to circulate air across ~25,400 sq ft, making it excellent for warehouses, workshops, factories, gyms, and expansive commercial spaces where balanced air movement improves comfort and air quality.
-
High‑efficiency EC motor with built‑in VFD
Its 1.35 HP EC motor with onboard variable frequency drive runs energy‑efficiently and with minimal draw, delivering strong airflow while lowering power costs relative to traditional large fans.
-
Year‑round comfort & HVAC support
In warm seasons it creates a gentle cooling breeze, and in colder months it destratifies heat by pushing warm air down—helping reduce HVAC cycling and improving overall temperature balance.
-
Quiet, low‑maintenance direct drive
The direct‑drive EC motor system (IP65 rated) reduces noise and requires less maintenance than gear‑driven alternatives, keeping operation smooth in busy environments.
-
Durable industrial construction
Six extruded aluminum airfoils with aerodynamic design and wingtip fences produce effective downward airflow while a powder‑coated steel and aluminum frame resists rust and corrosion for long‑term reliability.
-
Flexible installation & control options
Designed for ceiling mounting; compatible controllers are sold separately so you can tailor speed and automation to your facility’s needs.
Q&A
Q: What kind of fan is the Canarm 6L18EC‑230‑1?
A: It’s an 18 ft diameter HVLS (High Volume Low Speed) industrial ceiling fan that delivers wide‑area air circulation for large commercial and industrial spaces.
Q: What type of motor powers this fan?
A: It uses a 1.35 HP EC (electronically commutated) direct‑drive motor, designed for quiet, energy‑efficient operation.
Q: How much space can it cover?
A: The 18‑foot fan can influence airflow over roughly 25,400 sq ft with an effective airflow diameter up to 180 ft.
Q: How does this fan improve comfort and efficiency?
A: It promotes even airflow, helps reduce temperature stratification, and can enhance evaporative cooling effects to lower perceived temperatures, improving comfort and energy efficiency.
Q: What are its key design features?
A: Features six extruded aluminum airfoils with aerodynamic design and wingtip fences that direct airflow downward for maximum coverage. The chassis uses powder‑coated steel and aluminum for durability.
Q: Is noise and maintenance a concern?
A: The direct‑drive EC motor ensures quiet performance with minimal maintenance compared to belt‑driven fans.
Q: What safety and quality standards does it meet?
A: Designed to conform to CSA Standard 22.2 #133 and UL507 for industrial fan safety and reliability.
Maintenance Tips
-
Clean blades & housing regularly: Dust and debris on the six anodized aluminum airfoils reduce airflow efficiency and can cause imbalance — wipe with a soft cloth periodically.
-
Inspect mounting hardware: Check bolts, hangers, and brackets for tightness to ensure safe, vibration‑free installation.
-
Check electrical connections: Verify power and control wiring (including the onboard VFD/EC motor connections) are secure and free from corrosion for reliable operation.
-
Motor ventilation: Keep the EC motor and VFD areas clean so heat dissipates properly and efficiency stays high.
-
Test performance: Run the fan through speeds and control settings occasionally to confirm smooth airflow and responsiveness.
-
Blade balance & vibration: Look/listen for unusual noise or wobble; rebalance or tighten components as needed to protect bearings.
-
Maintain clearance: Ensure no obstructions in the fan’s operating zone so airflow isn’t restricted.
-
Annual professional inspection: Have a qualified technician check structure, electrical systems, and controls for preventive care.
