Nvent Hoffman Concept Wallmount - CSD20168SS

Nvent Hoffman Concept Wallmount - CSD20168SS

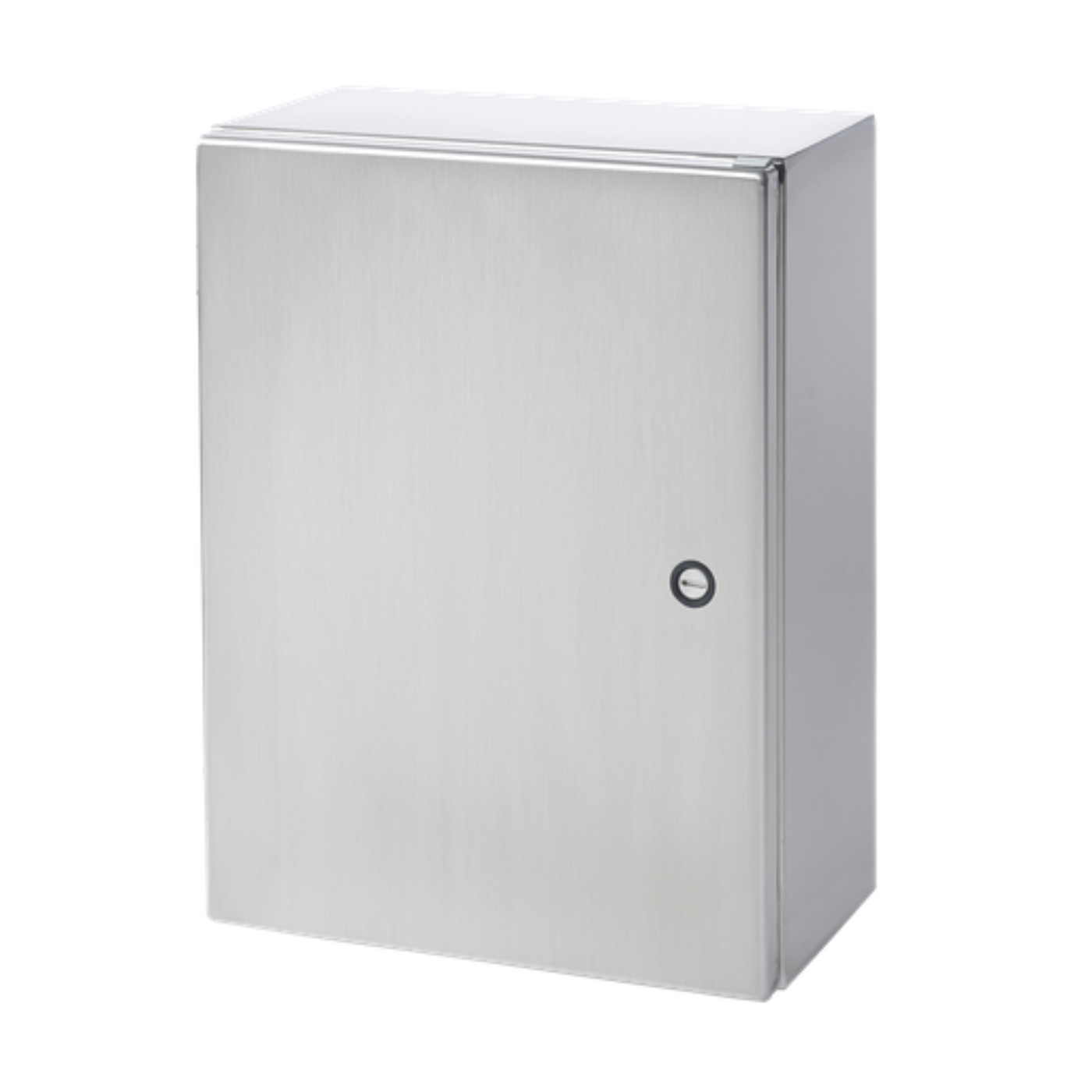

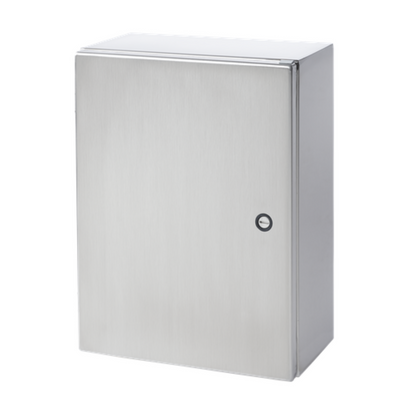

The nVent HOFFMAN CSD20168SS is a stainless steel wall-mount enclosure from the CONCEPT  series, designed for corrosion resistance and durability.

Features

• Material: Constructed from Type 304 stainless steel, offering durability and corrosion resistance.

• Dimensions: Measures 20 inches in height, 16 inches in width, and 8 inches in depth, providing ample space for various applications.

• Design: Features a sleek, brushed finish with flush quarter-turn latches for secure closure and a modern appearance.

• Door: Equipped with corner-formed doors that are interchangeable and can be easily removed by pulling clip-style hinge pins.

• Mounting: Includes mounting holes in the back of the body for direct mounting or optional external mounting brackets.

• NEMA Ratings: Compliant with Type 3R, 4, 4X, 12, and 13 standards, ensuring protection against various environmental conditions.

• IP Rating: Rated IP66, indicating a high level of protection against dust and water ingress.

What our Experts Think

• Top‑Tier Corrosion Resistance: 304‑grade stainless steel with a brushed finish stands up to chemicals, moisture, and outdoor conditions.
• Strong Environmental Protection: Rated NEMA 3R, 4, 4X, 12 with IP66 sealing for robust dust and water ingress defense.
• Professional Fit & Finish: Flush quarter‑turn latch and hidden hinges offer secure closure and clean aesthetics.
• Installation‑Ready Design: Back‑mounting holes and panel studs make panel placement and wall mounting straightforward.
• Versatile Use: Ideal for control components, junctions, and equipment housings in industrial or corrosive environments.

Q&A

Q: What is the CSD20168SS enclosure?
A: A Concept series wall‑mount, single‑door electrical enclosure made from Type 304 stainless steel with a brushed finish for corrosion resistance and industrial use.

Q: Where can it be used?
A: Suitable for indoor and outdoor applications requiring protection from dust, chemicals, rain, and water spray.

Q: What protection ratings does it have?
A: Rated NEMA/UL Type 3R, 4, 4X, 12, 13 and IP66, ensuring robust defense against environmental ingress.

Q: What are its key features?
A: Includes quarter‑turn flush latches, hidden stainless hinges, foam‑in‑place gasket, panel mounting studs, and provisions for internal accessories.

Q: What are the dimensions?
A: Approx 20″ H × 16″ W × 8″ D, providing ample space for controls, wiring, and mounted components.

Q: What are the benefits?
A: Delivers durable corrosion resistance, secure closure, organized internal mounting, and a professional enclosure solution for electrical or control equipment.

Maintenance Tips

• Routine Inspection: Check the enclosure, door, and hinges for dents, cracks, or corrosion.
• Cleaning: Wipe interior and exterior surfaces with a soft, damp cloth; avoid abrasive cleaners.
• Hinge Care: Lubricate hinge pivots lightly to ensure smooth door movement.
• Seal Maintenance: Inspect gaskets for wear or damage; replace to maintain proper sealing.
• Fastener Check: Ensure all screws and mounting hardware are tight.
• Replacement: Replace any damaged or deformed parts immediately to maintain protection and compliance.
