Nvent Hoffman Concept Single-Door Enclosure - CSD242410

Nvent Hoffman Concept Single-Door Enclosure - CSD242410

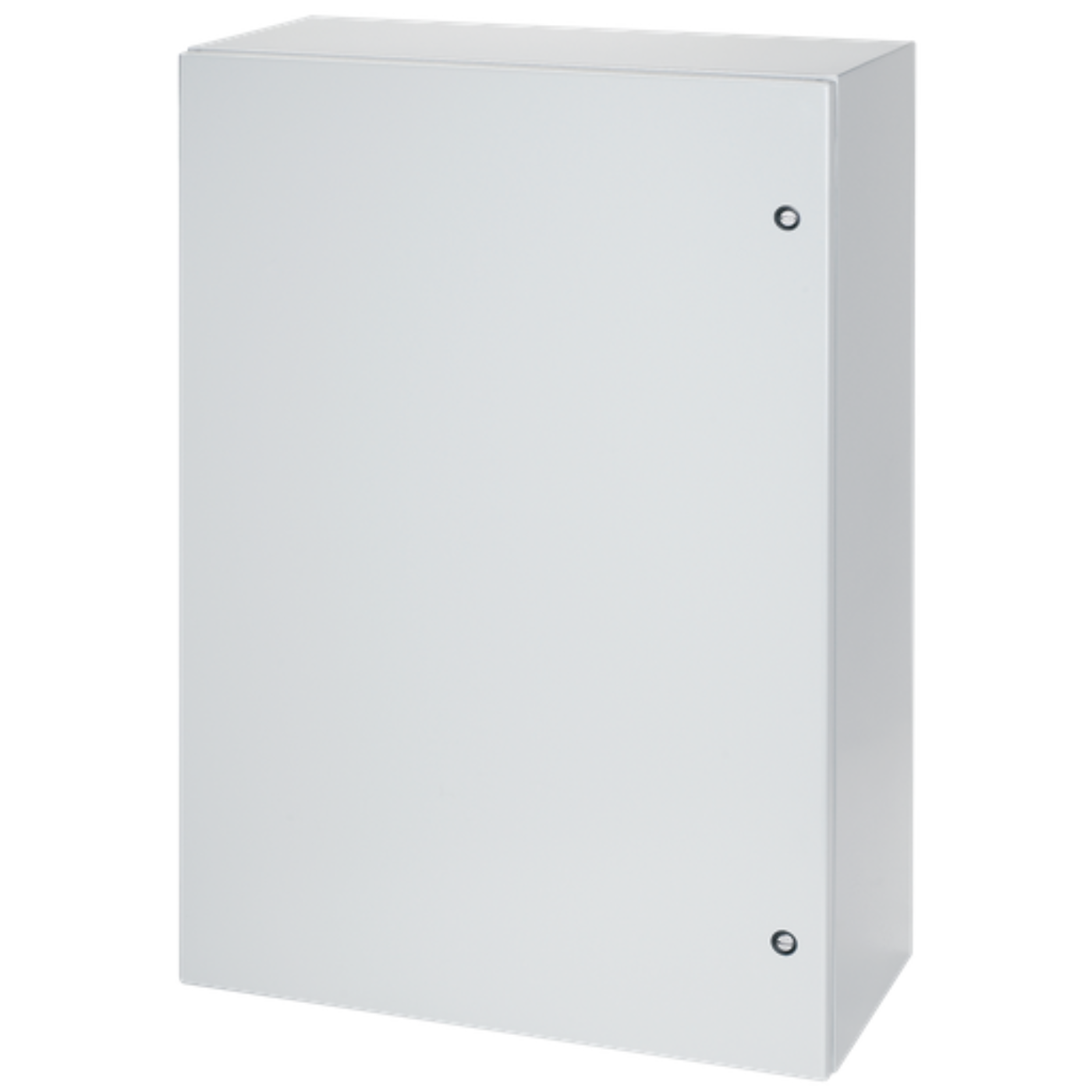

The Nvent Hoffman CSD242410 Concept Single-Door Enclosure is a durable, wall-mounted enclosure designed for secure protection in industrial and machine control environments. With a robust steel construction, Type 4/12 rating, and a convenient hinged door, this enclosure offers both strength and ease of access.

The Nvent Hoffman CSD242410 Concept Enclosure is engineered for applications requiring secure and organized equipment housing. Its 16-gauge steel body and 14-gauge door provide excellent durability, while the Type 4/12 rating ensures reliable protection against dust, dirt, oil, and water. The quarter-turn latches and 3-point latch system enhance security, ensuring the enclosure remains firmly closed during operation. Featuring a gray ANSI 61 finish, it blends seamlessly into industrial environments. With dimensions of 24" x 24" x 10", this enclosure offers ample space for electrical and control components.

Features

• Robust Construction: Built with a 16-gauge steel body and a 14-gauge steel door for superior strength and durability.
• Type 4/12 Rating: Provides protection against dust, oil, and non-corrosive liquids, making it ideal for demanding industrial environments.
• IP66 Protection: Ensures excellent resistance to dust ingress and powerful water jets.
• Wall-Mounted Design: Facilitates easy installation in machine control and automation setups.
• Hinged Door: Allows for smooth and convenient access to internal components for maintenance and adjustments.
• 3-Point Latch System: Ensures enhanced security by keeping the door tightly sealed.
• Quarter-Turn Latches: Provides quick and secure door closure with minimal effort.

What our Experts Think

• Rugged Industrial Protection: Designed with heavy‑gauge steel and a durable powder‑coated finish to withstand demanding environments. Rated NEMA 4/12 with IP66 sealing for excellent dust and water resistance.
• Reliable Access & Security: Flush quarter‑turn latches and a 3‑point latch system ensure tight closure and secure protection of internal electrical components.
• User‑Friendly Design: Hidden hinges and a door that opens up to 210° make installation, maintenance, and wiring access straightforward.
• Versatile Wall‑Mount Configuration: Ideal for control panels, machine interfaces, and junction installations where space and protection are priorities.
• Expandable with Accessories: Internal panels and optional mounting brackets allow customization to match specific project needs.

Q&A

Q: What is the CSD242410 enclosure?
A: A Concept series single‑door wall‑mount electrical enclosure made from durable steel with a gray powder‑coated finish for industrial use.

Q: What protection and ratings does it have?
A: Rated NEMA/UL Type 4 and 12 and IP66, offering protection against dust, splashing water and non‑corrosive liquids.

Q: What are the dimensions?
A: Measures 24″ H × 24″ W × 10″ D, providing ample space for control components and wiring.

Q: What are its key features?
A: Includes quarter‑turn flush latches, removable hinged door that opens up to 210°, foam‑in‑place gasket for a tight seal, and panel mounting studs for accessories.

Q: Where is this enclosure used?
A: Ideal for machine control applications, industrial automation, and electrical component protection in demanding environments.

Q: What benefits does it offer?
A: Provides robust environmental protection, easy access to internal components, and compatibility with internal panels and accessories.

Maintenance Tips

• Routine Inspection: Check door, hinges, and enclosure body for cracks, dents, or corrosion.
• Cleaning: Wipe interior and exterior with a soft, damp cloth; avoid harsh chemicals or abrasives.
• Hinge Lubrication: Apply light lubricant to hinge pivots for smooth operation.
• Seal Check: Inspect gaskets for wear or damage; replace as needed to maintain proper protection.
• Fastener Tightening: Ensure all screws and mounting hardware are secure.
• Replacement: Replace immediately if any components are damaged or deformed to maintain safety and compliance.
