Durston 1046 Agile Elite C140 Combo Rolling Mill with Reduction Gear & Extension Rolls - 128.1046

Durston 1046 Agile Elite C140 Combo Rolling Mill with Reduction Gear & Extension Rolls - 128.1046

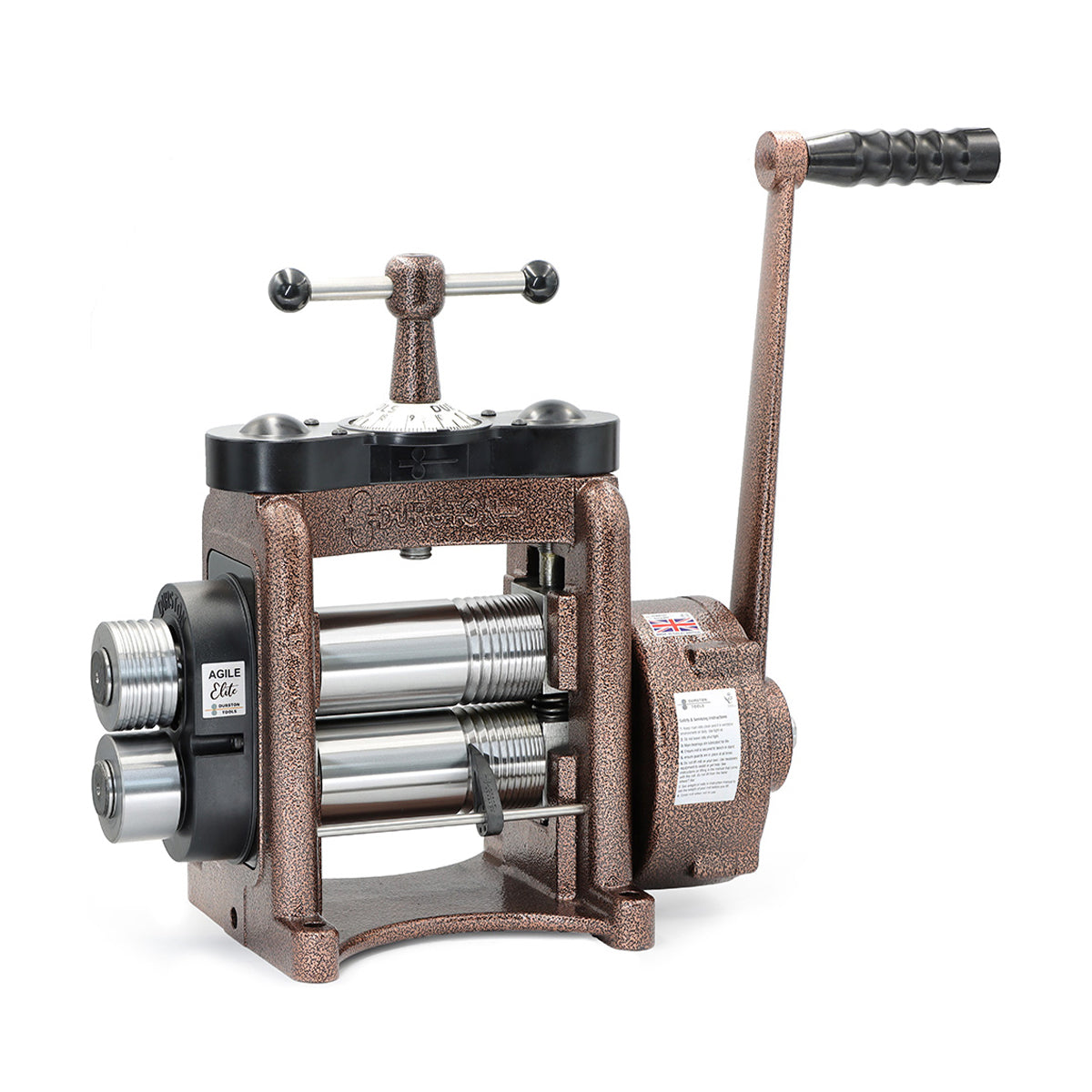

This Agile Elite C140 combination rolling mill with reduction gearbox and extension rolls is built for serious sheet and wire forming, pattern rolling, and daily production work. As you turn the revolving handle, metal flows smoothly through the polished rolls while the catch tray and guides keep each pass controlled and visible.

Features

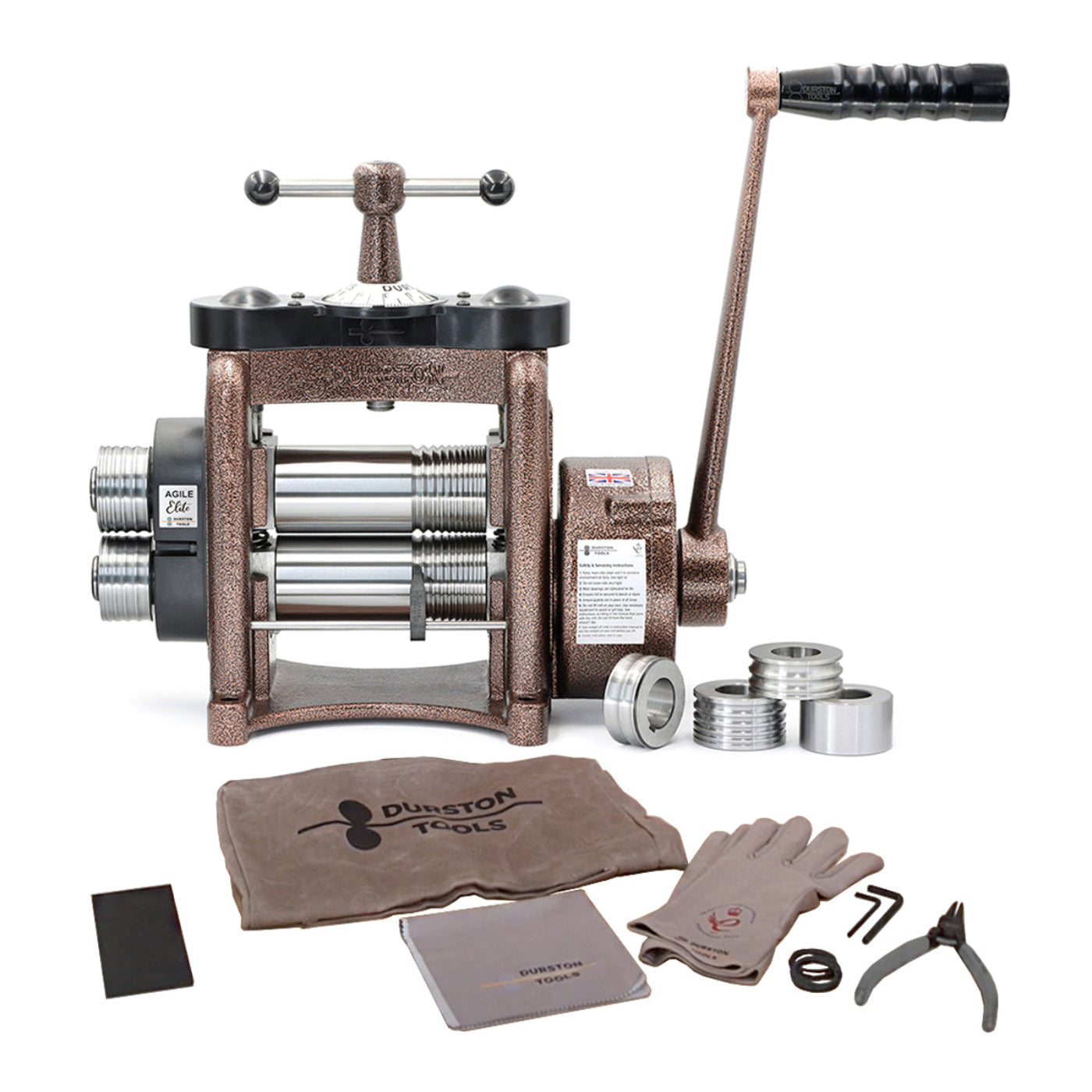

• Special introductory bundle with multiple extension rolls, comfort-fit rolls, pattern plate, and protective cover included.
• Combination mill design with both flat and square wire rolling capabilities for versatile bench use.
• Expanded 90 mm flat rolling area to accommodate larger sheet and pattern plate projects.

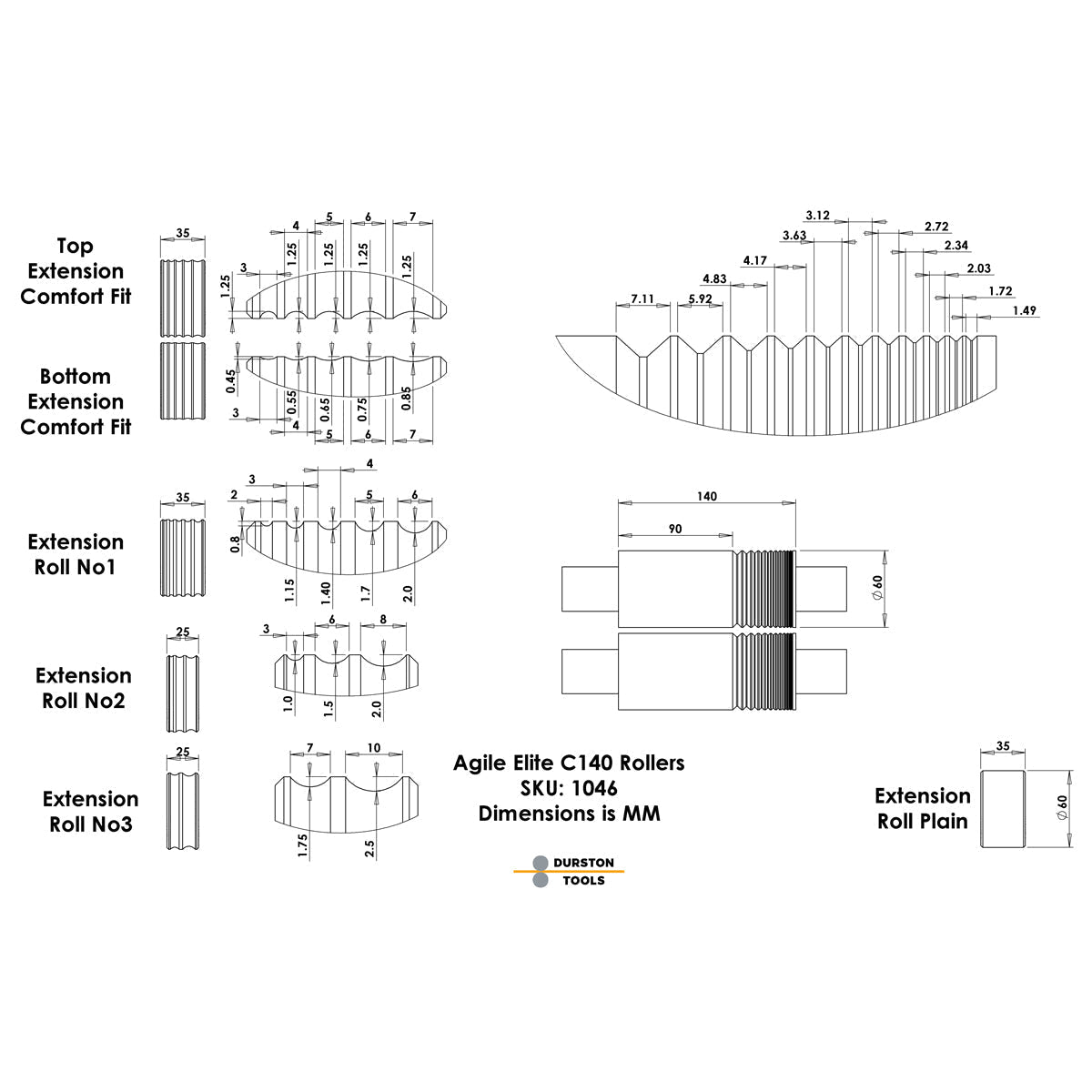

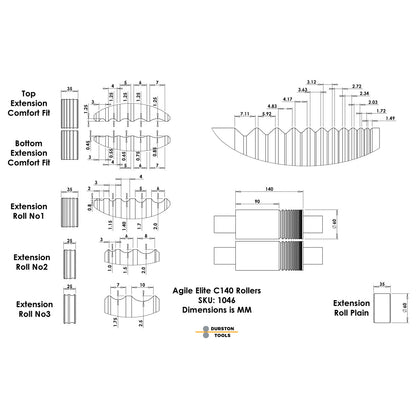

• Eleven square wire grooves from 1 mm to 7 mm for drawing wire to a range of standard sizes.
• 5:1 reduction gearbox and ergonomic revolving handle for smoother, lower-effort rolling.

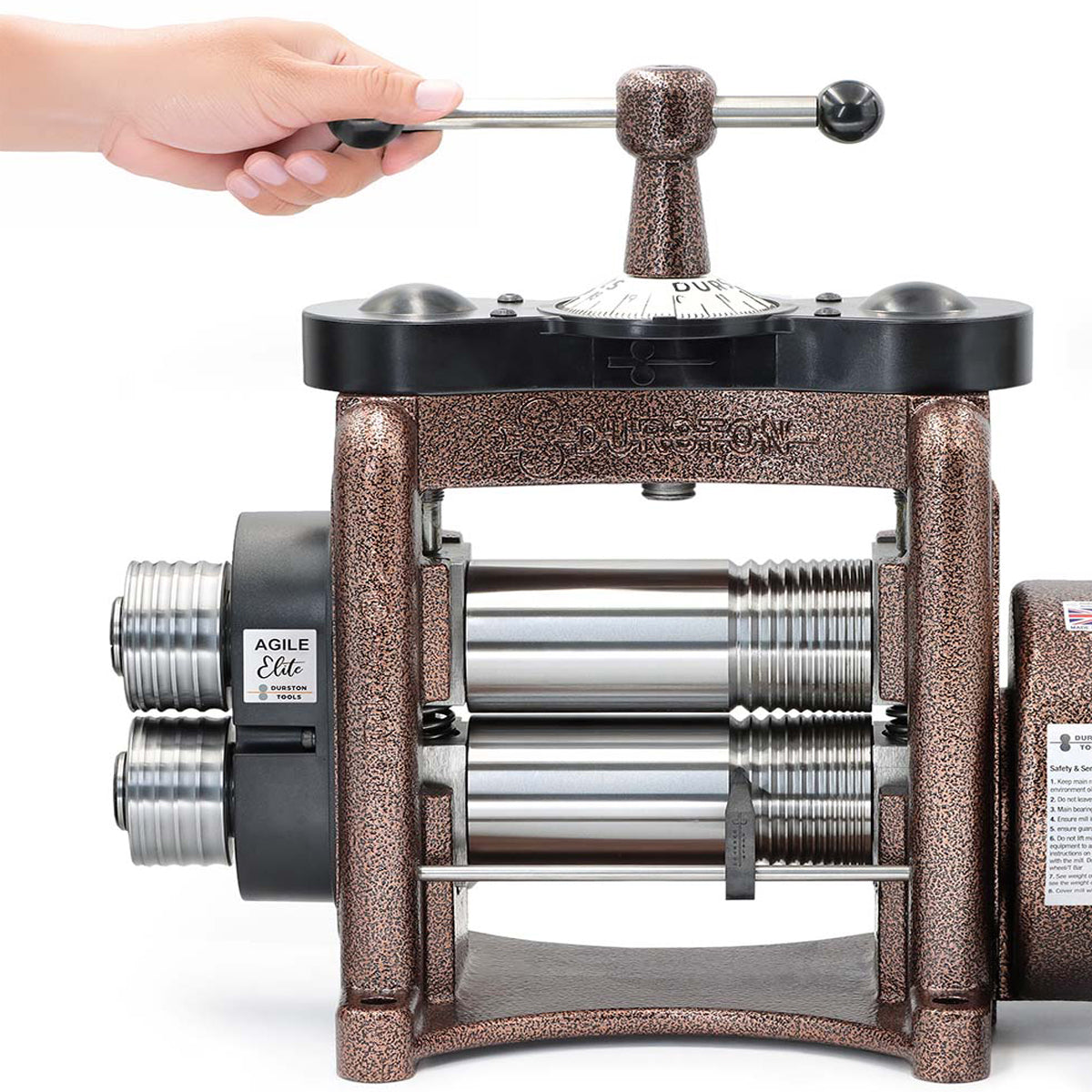

• Adjustable T-bar for fast, precise gap setting between passes.

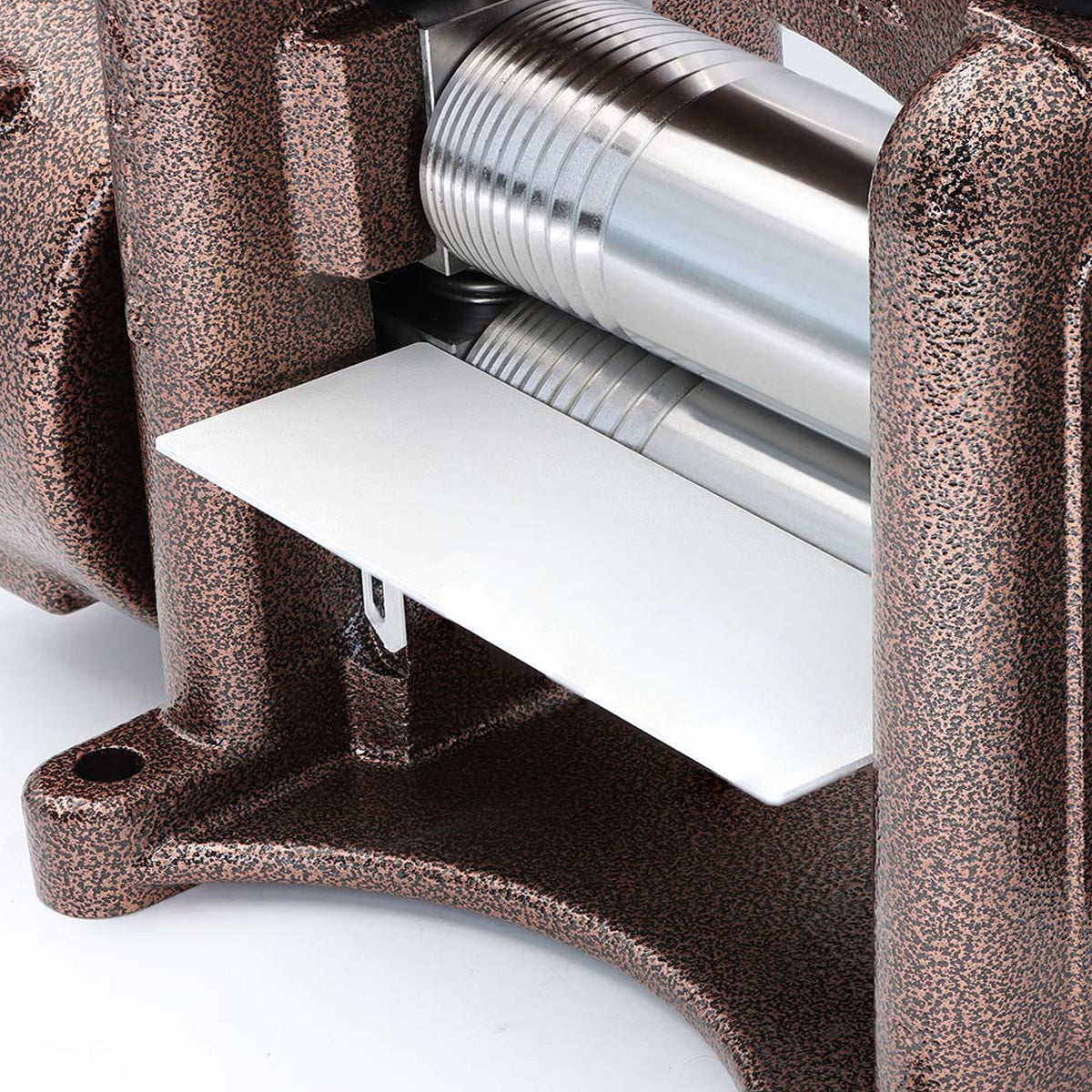

• White rear catch tray and groove pointer bar to improve visibility and alignment while rolling.
• Robust, powder-coated copper finish for long-term durability in busy workshops.

Specifications

What our Experts Think

• Premium Combo Performance in One Machine
  The Agile Elite C140 Combo integrates flat rolling + wire rolling + pattern capability, making it a highly versatile solution for jewelers who want maximum output from a single mill.
• Enhanced Flat Rolling Capacity
  Offers an expanded flat area (approx. 90mm), giving you more control and surface space for sheet reduction, texture work, and pattern plate use.
• Smooth Power with Reduction Gearbox
  Built with a 5:1 reduction gearbox, it delivers lighter, more controlled rolling force, reducing operator fatigue during heavy or repeated passes.
• All-in-One Extension System
  Includes multiple extension rolls and accessories for forming different wire profiles and comfort-fit shapes, expanding its usability beyond basic sheet work.
• Durston Build Quality & Longevity
  Features a robust cast construction and hardened rollers, designed for long-term precision, resistance to wear, and stable alignment under workshop stress.
• Workshop Efficiency Focused Design
  Combines T-bar adjustment, ergonomic handle, and catch tray system for faster workflow, cleaner operation, and improved accuracy.
• Ideal for Growing Studios
  Perfect for makers who need a single, scalable machine that supports both sheet production and wire forming without upgrading later.

Q&A

Maintenance Tips

• Clean after each use: Remove metal dust from rollers, extension sections, and frame to prevent scoring and buildup.
• Lubricate regularly: Apply light machine oil to gears, reduction gearbox, bearings, and adjustment screws for smooth rolling.
• Use gradual reductions: Avoid heavy passes; reduce thickness in stages to protect gears and maintain roller accuracy.
• Check gear system: Ensure reduction gear engages smoothly and shows no unusual resistance or noise.
• Align extension rolls: Keep extension components properly seated and aligned for consistent feeding.
• Use clean annealed metal: Prevent roller marking and reduce strain on the drive system.
• Protect from corrosion: Store in a dry environment and apply anti-rust oil when not in use.
