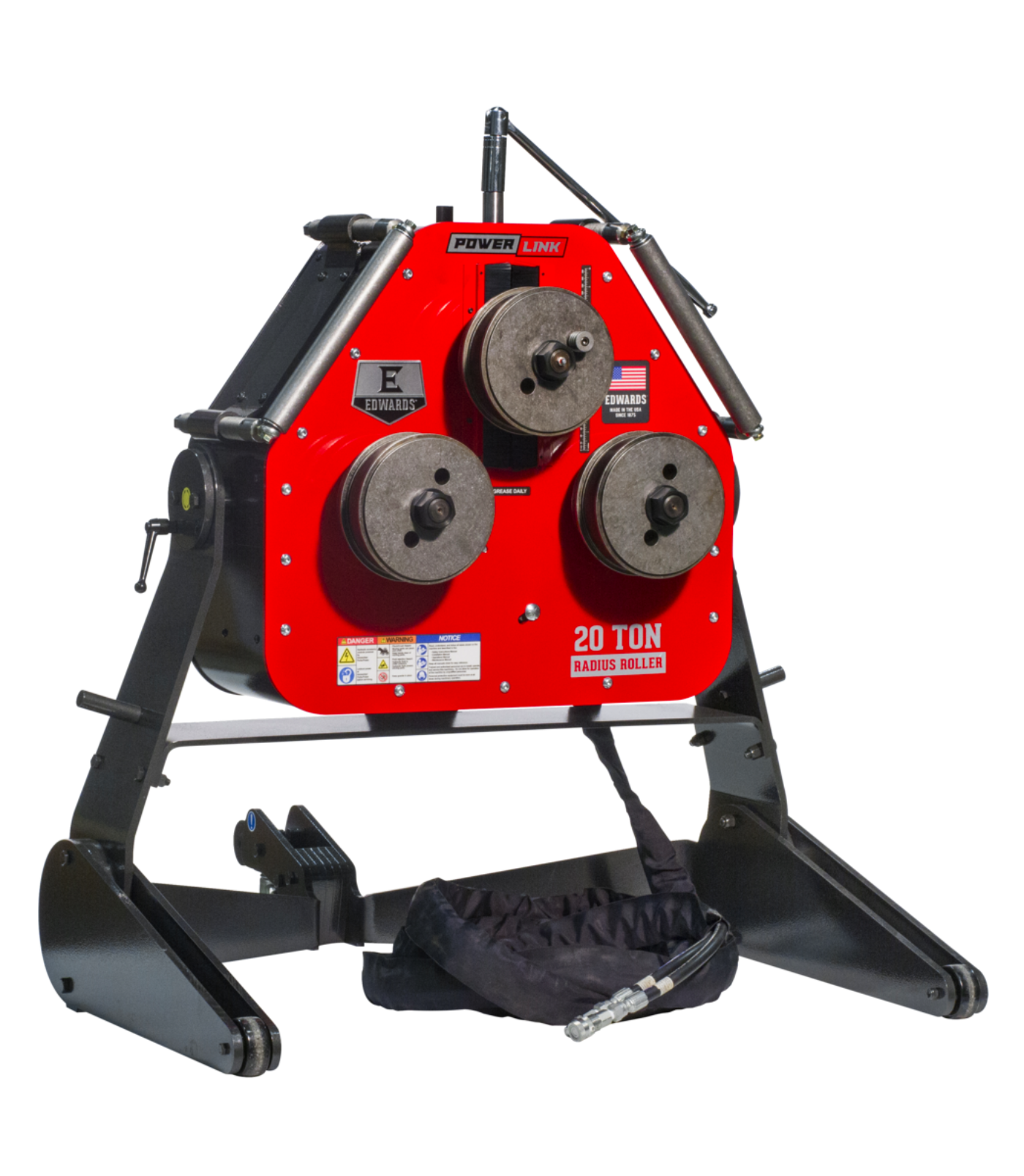

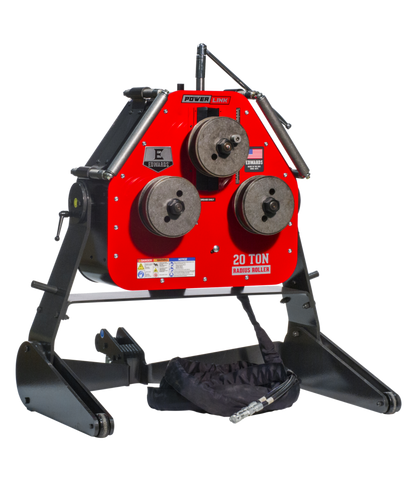

EDWARDS 20 Ton Radius Roller - ED9-HAT5000

• 20' quick-connect hoses for simple "plug & play" operation.
• Bends a smooth, long diameter curve for a wide variety of materials including pipe, tube, square tube, solid round, flat bar, angle iron, and channel.
• Built-in storage on the frame keeps your Dies conveniently close.
• Easy-to-use hand/jog controls with integrated E-Stop.
• Heavy-duty rolling base for easy movement.
• Horizontal or Vertical operation provides the user flexibility.
• Includes a 6 Universal Piece Die Set that accepts square tube, flat bar, angle iron, & channel.
• Optional dies available for round pipe, tube or solid round.
• Variable speed hydraulic drive allows users to dial in the appropriate speed for different materials.

Specifications

What our Experts Think

• Smooth, Controlled Curving: Expertly designed to form consistent radii in pipe, tube, and structural shapes with precision and minimal material distortion.
• Optimal 20 Ton Capacity: Ideal for light to medium structural and ornamental rolling—balancing power with control.
• Versatile Radius Adjustment: Easy changeover between curve sizes lets you tackle varied fabrication jobs without extra tooling.
• Robust Industrial Build: Heavy‑duty components and frame ensure long life and reliable performance in daily shop use.
• Streamlined Workflow: Intuitive setup and operation reduce cycle time, keeping projects moving efficiently.
• Perfect for Fabricators: Suited for metal shops, architectural work, and equipment fabrication where accurate radius bending is critical.

Q&A

Q: What is the Edwards 20 Ton Radius Roller used for?
A: A hydraulic radius bending attachment that forms smooth, long‑diameter curves in flat bar, angle iron, pipe, tube, square tube, and channel.

Q: What materials and capacities can it handle?
A: It rolls medium to heavy metals including flat bar, angle iron, pipe, and tube; typical capacities include up to ~3″ flat bar, ~2″ angle iron, ~2″ pipe, and ~2½″ tube.

Q: How does it operate?
A: Powered by an Edwards Ironworker with a PowerLink™ system or a portable hydraulic power unit, it runs with variable‑speed hydraulic drive and easy hand/jog controls with integrated E‑Stop.

Q: Can it be repositioned for different projects?
A: Yes — the radius roller can be used horizontally or vertically and features a heavy‑duty rolling base for easy movement.

Q: What comes included?
A: Includes a 6‑piece universal die set for flat bar, channel, angle, and square tube; optional dies are available for round pipe, tube, or solid bar.

Q: Who should use this product?
A: Ideal for metal fabricators, weld shops, and industrial facilities needing accurate, smooth radius bends in heavy‑duty materials.

Q: Why choose this Edwards radius roller?
A: It combines strong 20‑ton force, versatile material capability, flexible orientation, and intuitive controls to improve productivity in metal forming workflows.

Maintenance Tips

• Clean After Every Use – Remove metal shavings, dust, and debris from rollers and frame to prevent surface damage and ensure smooth operation.
• Lubricate Moving Parts – Apply light machine oil to bearings, shafts, and pivot points to reduce friction and wear.
• Inspect Rollers & Pins – Check for wear, cracks, or deformation to maintain precise radius bending and consistent results.
• Check Alignment – Ensure rollers are properly aligned to prevent uneven bends or material slippage.
• Tighten Mounting Hardware – Secure all bolts and fasteners to avoid vibration or misalignment during heavy bending.
• Monitor Material Limits – Do not exceed the rated tonnage or material thickness to protect tooling and maintain accuracy.
• Prevent Rust & Corrosion – Store in a dry environment and apply anti-corrosion coating when not in use.
