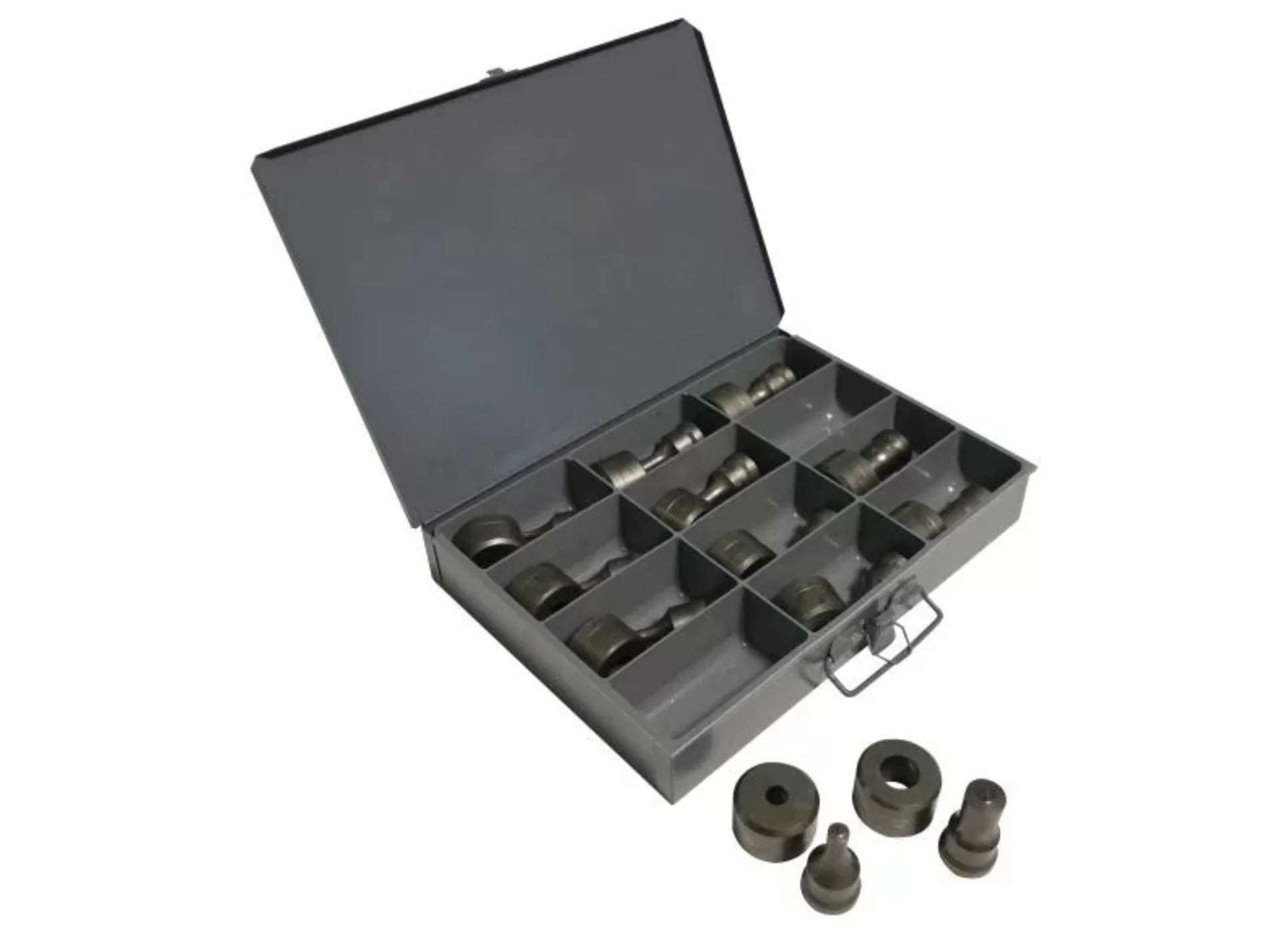

EDWARDS 12 PC. Round Metric Punch & Die Set w/ Storage Case - ED9-PD1240

EDWARDS 12 PC. Round Metric Punch & Die Set w/ Storage Case - ED9-PD1240

• 12 Piece Set.
• Storage Case Provided.

What our Experts Think

• Comprehensive Metric Punch & Die Kit — includes 12 round metric punch and die sets covering the most commonly used hole sizes from 6 mm up to 26 mm for versatile metalworking tasks.
• Precision Engineered Tool Steel — punches and dies are made from durable hardened steel for clean, consistent holes and long service life.
• Organized Storage Case — keeps all components neatly protected and easy to access, reducing setup time and minimizing lost tooling.
• Enhances Ironworker Productivity — expands the punching range of your machine and cuts down on secondary drilling operations.
• Ideal for Metric Applications — perfect for shops working with metric hardware and international fabrication standards.
• Plug‑and‑Play Compatible — fits standard pedestal die tables found on most Edwards ironworkers.

Q&A

Q1: What is the ED9‑PD1240?
A: A complete 12‑piece round metric punch and die set with a durable storage case designed for clean, precision punching of metric‑sized holes in metal fabrication work.

Q2: What sizes are included in this set?
A: Punches and dies for the most commonly used metric hole sizes: 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 21 mm, 22 mm, 24 mm, and 26 mm.

Q3: What material and construction quality does it have?
A: Made from durable tool steel for long‑lasting service and reliable hole quality in demanding shop environments.

Q4: What machines can it be used with?
A: Compatible with Edwards ironworkers using a standard pedestal die table, expanding your ironworker’s metric punching capability.

Q5: What is the benefit of the storage case?
A: Keeps all punches and dies organized, protected, and easily accessible for quick job setup and tool care.

Q6: What types of jobs is this set ideal for?
A: Ideal for precision hole punching in sheet metal, structural steel, and bolt‑hole layouts across fabrication and industrial applications.

Q7: Does this set cover common fastener sizes?
A: Yes — it covers many of the typical metric fastener hole sizes used in European and international manufacturing.

Q8: How heavy and portable is the set?
A: The complete kit weighs about 18 lbs (8.2 kg) with compact storage for easy transport and shop use.

Q9: Is there a thickness guideline when punching?
A: For best results, ensure the material thickness does not exceed the punch diameter being used.

Q10: What is the primary advantage of this metric set?
A: Offers versatile, precision metric hole punching in one neatly organized kit — reducing the need for multiple separate sets and helping speed up fabrication workflow.

Maintenance Tips

• Clean After Each Use: Wipe punches and dies to remove metal shavings and debris — this prevents wear and ensures cleaner holes.
• Lubricate Surfaces: Apply a light machine oil to punches and dies before storage to reduce friction and prevent rust.
• Inspect for Wear: Check for dull edges, chips, or deformation; replace or re‑sharpen worn punches/dies to maintain precision.
• Sharpen When Needed: Touch up cutting edges periodically to preserve clean punching performance and reduce press load.
• Store Properly in Case: Return each punch and die to its slot in the storage case after use to protect against damage and contamination.
• Match Clearances: When using, ensure the punch diameter meets or exceeds the material thickness and has proper die clearance for clean shearing.
