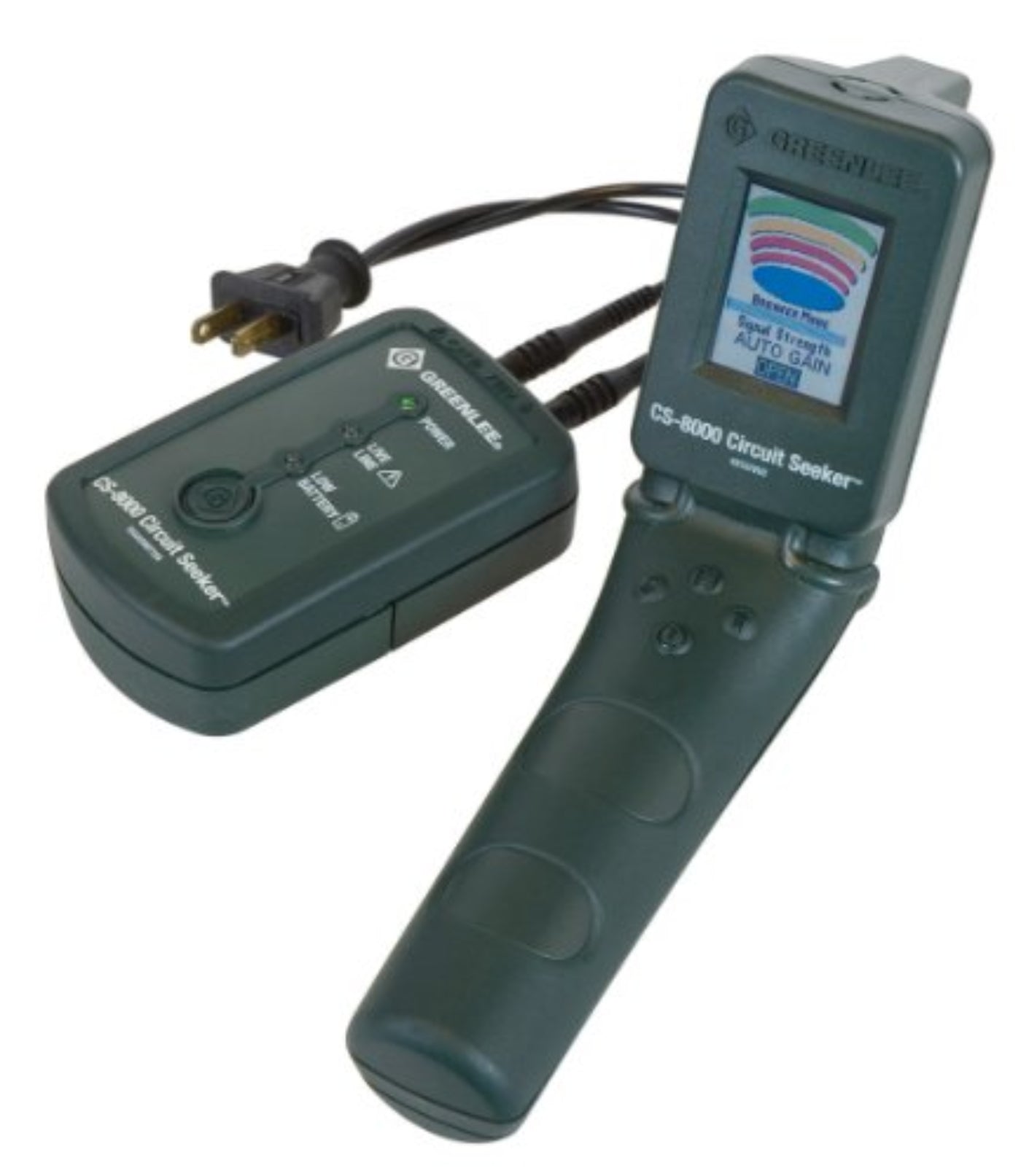

Greenlee Circuit Seeker Circuit Tracer - CS-8000
Master your jobs with advanced technology and accuracy with the Greenlee CS-8000 Circuit Seeker (catalog number CS-8000). A favorite of electrical experts, this innovative circuit locator is made with advanced patented non-directional sensing technology that provides superior sensitivity and functionality for accurate circuit tracing and locating jobs. It efficiently traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits and allows linemen to easily locate and identify blown fuses. Ergonomically designed, the circuit finder's receiver with information-filled, full-color graphical LCD display and low pitch, high volume audible signal make understanding tracing feedback quick and simple. To optimize the efficiency of your job, the circuit tracer tool supports transmitter-to-receiver distances of up to four miles for closed circuit tracing and features an automatic backlight on the receiver for maximum battery life. The user-selectable automatic or manual gain capability offers fast, convenient use on GFCI protected circuits. Greenlee: Professional. Nothing Less.ā¢ Advanced patented non-directional sensing technology. Superior sensitivity and functionality providing for accurate tracing and locating. Ergonomic receiver with information-rich full-color graphical LCD. Graphics and audible signal provide quick and easy to understand tracing feedback. Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits. Locates and identifies blown fuses. Finds shorts and breaks in conductors. Low pitch, high volume audible indicator. User-selectable automatic or manual gain capability for fast, convenient use. Can be used on GFCI protected circuits. Automatic backlight on receiver maximizes battery life. Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing. Lifetime limited warranty.
Features
- CIRCUIT LOCATING SEEKER: Advanced patented non-directional sensing technology provides superior sensitivity and functionality for accurate circuit tracing and locating jobs
- SUPERIOR TRACING CAPABILITIES: Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits and allows linemen to easily locate and identify blown fuses
- USER-FRIENDLY DESIGN: Ergonomic receiver with information-filled, full-color graphical LCD display and low pitch, high volume audible signal make understanding tracing feedback quick and easy
- OPTIMIZES JOB EFFICIENCY: Supports transmitter-to-receiver distances of up to 4 miles for closed circuit tracing and features an automatic backlight on the receiver for maximum battery life
- AUTOMATIC OR MANUAL USE: User-selectable automatic or manual gain capability offers fast, convenient use on GFCI protected circuits
What our Experts Think
-
Professional-grade accuracy you can trust
Advanced non-directional sensing delivers highly precise circuit tracingāeven in complex or concealed wiring setups.
-
Built for real-world electrical troubleshooting
Easily locates breakers, junction boxes, shorts, and open circuitsāmaking it ideal for service electricians and maintenance pros.
-
Exceptional range & power
Long-distance tracing (up to miles on closed circuits) sets it apart from standard tracers, especially for large facilities or outdoor runs.
-
Smart, user-friendly interface
Full-color LCD with clear graphical + audible feedback simplifies interpretation and reduces guesswork on the job.
-
Flexible performance control
Automatic and manual gain options allow fine-tuning for both quick scans and detailed diagnostics.
-
Handles demanding environments
Works on live, open, and even GFCI-protected circuitsācovering a wide range of professional applications.
Q&A
Q: What is the Greenlee CS-8000 Circuit Seeker used for?
A: The Greenlee CS-8000 is a professional circuit tracer designed to locate breakers, trace concealed wiring, and identify shorts, opens, and blown fuses in electrical systems.
Q: Can the CS-8000 trace both live and dead circuits?
A: Yes, it works on both energized and de-energized circuits, making it ideal for troubleshooting and maintenance tasks.
Q: How accurate is the Greenlee Circuit Seeker?
A: It features advanced non-directional sensing technology and high sensitivity for precise circuit tracing and fault detection.
Q: What is the maximum tracing distance?
A: The transmitter and receiver can operate up to 4 miles (6.5 km) apart for closed-circuit tracing.
Q: Does the CS-8000 work on GFCI circuits?
A: Yes, it is compatible with GFCI-protected circuits, expanding its usability in residential and commercial environments.
Q: What display features does the receiver include?
A: The ergonomic receiver includes a full-color graphical LCD with visual and audible indicators for easy interpretation.
Q: Can it detect hidden wiring and junction boxes?
A: Yes, it can trace concealed wiring and locate junction boxes behind walls or underground.
Q: Is the gain adjustable?
A: Yes, users can select automatic or manual gain for faster and more controlled tracing.
Q: What voltage range does it support?
A: The CS-8000 supports circuits from 0 to 750V AC/DC.
Maintenance Tips
-
Keep sensors clean: Wipe the receiverās sensing surface regularly to maintain accurate signal detection and tracing performance.
-
Check batteries frequently: Replace or recharge batteries to ensure consistent signal strength and avoid interruptions during use.
-
Inspect leads & accessories: Examine alligator clips, adapters, and extension leads for wear or damage before each job.
-
Store in protective case: Use the provided carrying case to prevent physical damage and extend tool lifespan.
-
Avoid extreme conditions: Keep away from moisture, dust, and extreme temperatures to protect internal electronics.
-
Calibrate & test before use: Run a quick functionality check to ensure accurate tracing, especially after transport.
-
Use proper gain settings: Adjust manual/auto gain correctly to reduce signal interference and maintain precision.
