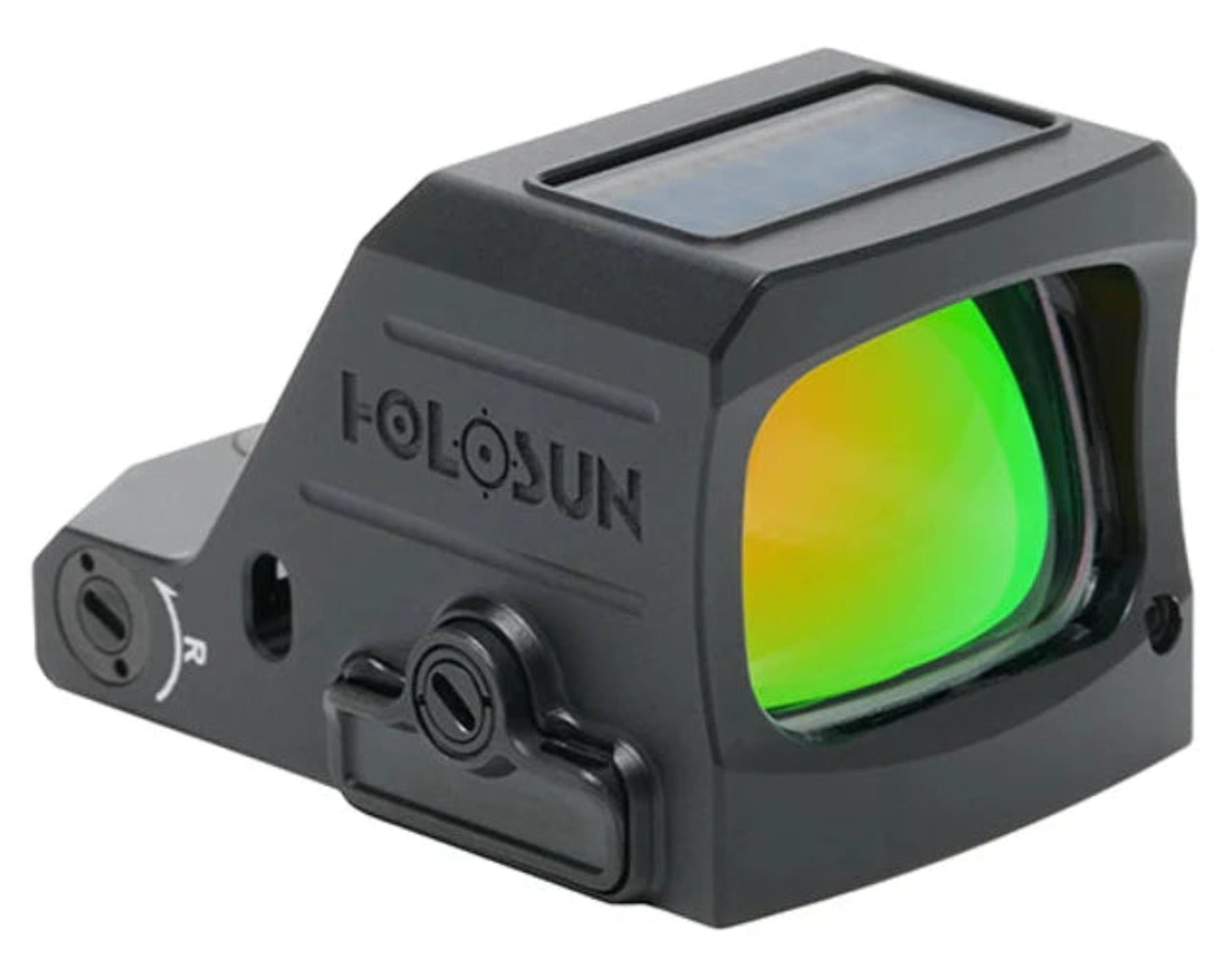

Holosun 2 MOA Dot & 32 MOA Circle Green Dot 7075 Aluminum Shake Awake - HE507C-X3-GR
The HE507C-X3-GR-MRS updates the proven 507C platform with a refined X3 housing and a high-visibility green Multi-Reticle System for adaptable speed and precision. Built on the RMR footprint, it combines Solar Failsafe, automatic brightness control, and Shake Awake to deliver reliable performance for carry, duty, and range use.
Features
- Green Multi Reticle System. High visibility green reticle with selectable 2 MOA dot, 32 MOA circle, or combined circle dot for precision aiming or rapid target acquisition.
- Enhanced Green Super LED. 540nm green emitter delivers strong contrast in bright conditions while maintaining up to 100,000 hours of battery life.
- Forward Light Sensor with Solar Failsafe. Front facing photodiode automatically adjusts brightness based on ambient light while Solar Failsafe supplements battery power when needed.
- Shake Awake Technology. Motion activated illumination powers the optic instantly when movement is detected and powers down during inactivity to preserve battery life.
- Lockout Mode. Prevents accidental brightness or reticle adjustments by locking the control buttons once preferred settings are selected.
- Side Loading Battery Tray. CR1632 side mounted battery allows quick replacement without removing the optic from the slide.
- Manual and Automatic Brightness Control. Eight daylight and four night vision compatible brightness settings with automatic brightness adjustment for changing lighting conditions.
- RMR Footprint Compatibility.
- 7075 Aluminum Housing. Hard anodized 7075 T6 aluminum construction provides durability and reliability for everyday carry or duty use.
- IP67 Weather Resistance. Sealed housing protects the optic from water and debris with IP67 waterproofing and 5000G vibration resistance.
Specifications
- Selectable Reticle: Yes
- Solar Power: Yes
- Shake Awake Technology: Yes
- Auto Off: Yes
- Memory: Yes
- Manual Brightness: Yes
- Lockout Mode: Yes
- Light Source: LED
- Wavelength: 540nm
- Reticle: 2 MOA Dot & 32 MOA Circle
- Magnification: 1x
- Parallax: No
- Unlimited Eye Relief: Yes
- Multi-Coatings: Yes
- Battery: CR1632
- Battery Life (Setting 6): 50,000 Hours
- Brightness Setting: 10 Daylight & 2 NV
- Removable Battery: Yes
- Battery Location: Side Tray
- Housing Material: 7075 T6 Aluminum
- Surface Finish: Anodized
- Housing Color: Black
- Adjustment Per Click: 1 MOA
- W&E Travel Range: ±50 MOA
- Storage Temperature: -40°C~70°C
- Working Temperature: -30°C~60°C
- Submersion: IP67
- Vibration: 5000G
- Window Size: 0.91" × 0.67"
- Body Dimensions: 1.78" × 1.31" × 1.1"
- Body Weight: 1.55 oz
What Our Experts Think
-
Exceptional Visibility: The green 2 MOA dot and 32 MOA circle reticle provide fast target acquisition and excellent visibility in bright daylight and low-light conditions.
-
Premium 7075 Aluminum Housing: Built from rugged aircraft-grade 7075 aluminum for superior durability without adding unnecessary weight.
-
Multi-Reticle Flexibility: Easily switch between dot, circle, or circle-dot configurations to match different shooting styles and applications.
-
Shake Awake Technology: Automatically activates with movement and conserves battery life when idle, ensuring the optic is always ready when needed.
-
Competition & Defensive Use: Large viewing window, crisp reticle, and reliable performance make it a strong choice for both competitive shooting and personal defense.
Q&A
Q: What reticle options does the HE507C-X3-GR offer?
A: The Multi-Reticle System includes a 2 MOA dot, 32 MOA circle, and Circle-Dot combination for fast target acquisition and precision aiming.
Q: Why choose a green reticle?
A: The green reticle can appear brighter to many shooters and is easier to pick up in various lighting conditions.
Q: Does this sight feature Shake Awake technology?
A: Yes. Shake Awake automatically activates the optic when motion is detected and helps maximize battery life when idle.
Q: Is the HE507C-X3-GR built for durability?
A: Yes. Its rugged 7075 aluminum housing is designed to withstand heavy use, recoil, and demanding environments.
Q: Does the optic have a solar backup feature?
A: Yes. Solar Failsafe technology provides a backup power source and helps keep the optic operational in changing light conditions.
Maintenance Tips
- Clean the optic window with a microfiber lens cloth; remove dust first to prevent scratches.
- Regularly inspect and tighten mounting screws to maintain zero and reliability.
- Replace the battery as needed and keep a spare available for extended use.
- Keep the lens free from fingerprints, oil, and moisture for maximum clarity.
- Store in a cool, dry location when not in use and use the protective cover during transport.
- Avoid harsh chemicals, alcohol, acetone, or abrasive cleaners on the lens and housing.
- Periodically test the Multi-Reticle System and Shake Awake function to ensure proper operation.
- Verify zero after heavy recoil, impacts, or long-distance travel.
