PaintLine ProDryingRack SD (PSDR)

What our Experts Think

• Professional vertical spray & drying system

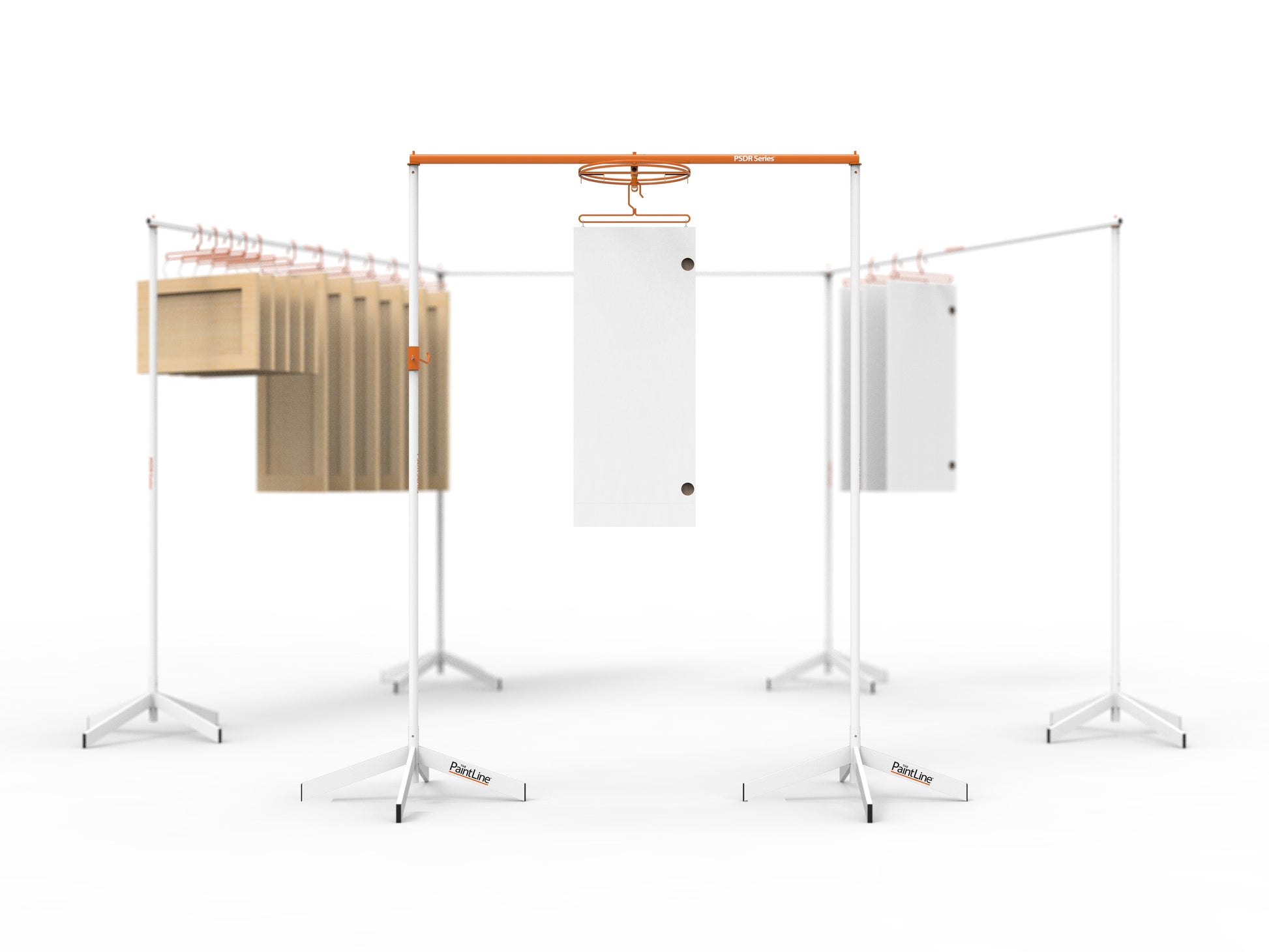

  The PSDR (ProDryingRack SD) is a complete cabinet door finishing system designed to spray, rotate, and dry parts in a vertical workflow for maximum efficiency.
• Built for high-volume cabinet shops
  Engineered to handle up to ~50 cabinet doors at once with tight spacing and controlled airflow, making it ideal for production environments.
• All-in-one workflow efficiency
  Integrates spraying, spinning, and drying in a single system—reducing handling time and improving finish consistency across batches.
• Spinner-controlled precision handling
  The built-in spinner assembly allows full 360° control of doors, enabling painters to spray all sides without re-hanging or repositioning.
• Heavy-duty industrial construction
  Uses powder-coated steel poles, bases, and hangers designed to withstand daily professional use and heavy cabinet loads.
• Space-saving vertical design
  Maximizes shop efficiency by allowing doors to be stored closely in a vertical drying line of roughly 18 feet of usable spacing.
• Fast setup and teardown system
  Tool-free assembly in under 10 minutes with quick breakdown into storage bags for mobile or on-site finishing work.


Q&A

Q: What is the PaintLine ProDryingRack SD (PSDR)?
A: It’s a professional vertical cabinet door painting and drying system designed to spray, hang, and dry doors and parts efficiently in a compact shop footprint.

Q: What is its main purpose?
A: The PSDR system lets cabinet doors be sprayed on all sides and then transferred directly into a controlled drying line, improving workflow speed and finish consistency.

Q: How does the system work?
A: Doors are hung using hooks or specialized hangers, placed on a spinner for spraying, then moved to a drying line where they hang vertically to cure evenly.

Q: How many doors can it hold?
A: It provides about 18 feet of drying line and can hold up to around 50 cabinet doors with tight, efficient spacing.

Q: What comes included in the system?
A: It typically includes poles, bases, hangers, cup hooks, a spinner, spray holder, and carry bags for transport and storage.

Q: What makes it different from traditional drying setups?
A: It replaces improvised setups like ladders or PVC racks with a modular, purpose-built system that improves speed, spacing, and finish quality.

Q: Is it portable?
A: Yes, it is designed for fast assembly and teardown, packing into carry bags for jobsite use or storage.

Q: What materials is it made from?
A: It uses heavy-duty powder-coated steel poles and hangers for durability in professional shop environments.

Q: What is the main benefit for cabinet shops?
A: It increases productivity by combining spraying and drying into one organized system, reducing handling time and improving finish consistency.

Q: Who is it best for?
A: Ideal for cabinet makers, woodworking shops, and professional painters handling batch production of doors and panels.


Maintenance Tips

• Clean poles and drying lines regularly: Remove overspray, dust, and cured finish from steel poles to maintain smooth hanger movement and prevent surface damage to cabinet doors.
• Keep spinner assembly free of buildup: Ensure the PSDR Spinner rotates smoothly by removing paint buildup from the hub and contact points for consistent door handling.
• Inspect hangers frequently: Check standard, wave, or hinge hooks for bending or coating damage to maintain safe load support and uniform spacing.
• Maintain stable base alignment: Ensure all bases are level and firmly locked to prevent wobble during loading or transport.
• Clean connectors and joints: Wipe down joints and locking points so the system assembles/disassembles quickly without friction or misalignment.
• Store in carry bags when not in use: Protect poles, hangers, and accessories from dust, moisture, and accidental bending for longer service life.
• Avoid overloading sections: Evenly distribute cabinet doors to maintain balance and prevent stress on poles and hangers.
• Dry thoroughly after cleaning: Prevent corrosion on powder-coated steel components by ensuring everything is fully dry before storage.
