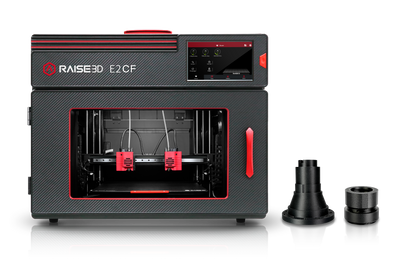

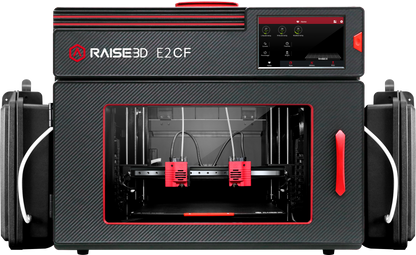

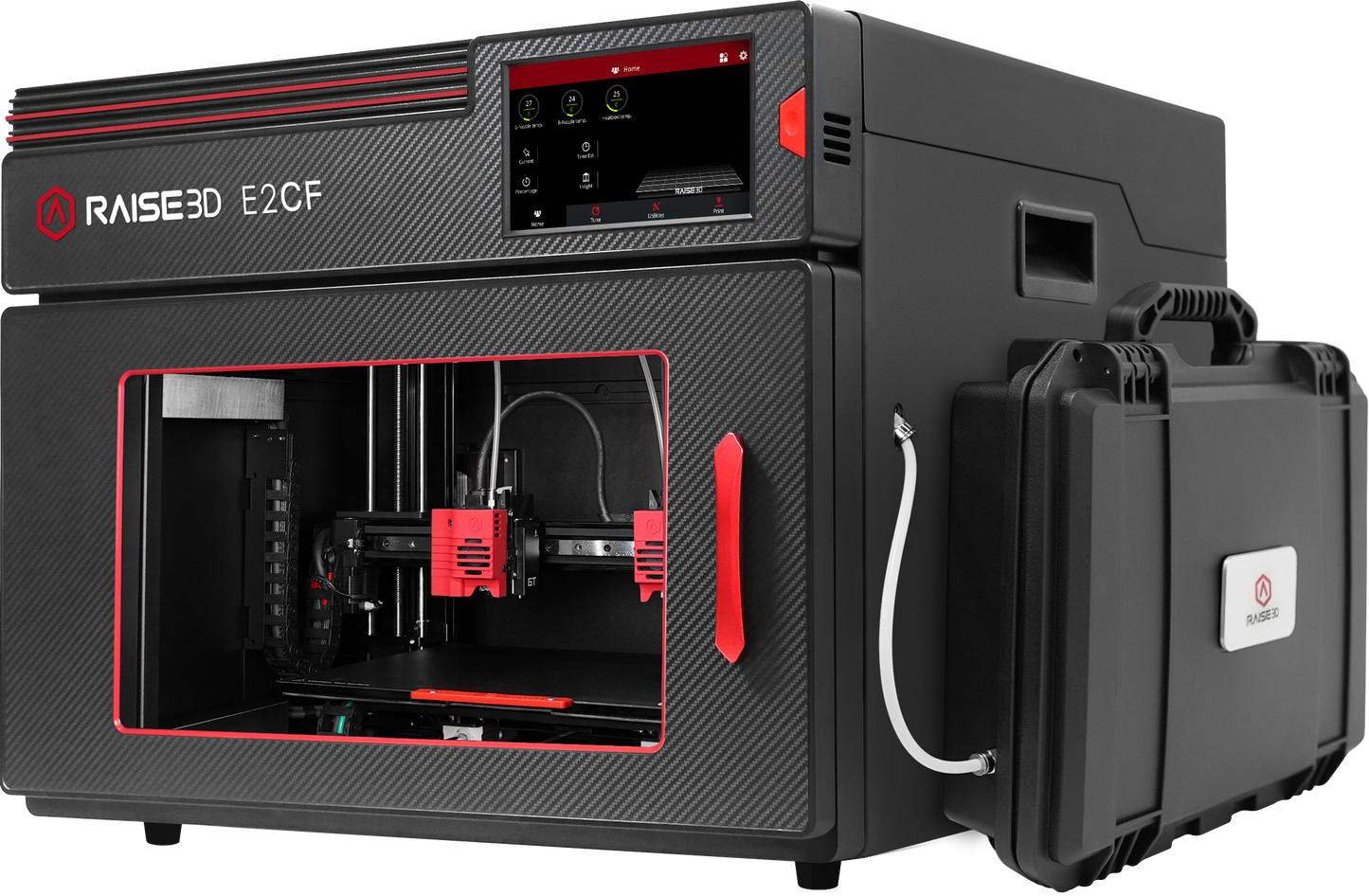

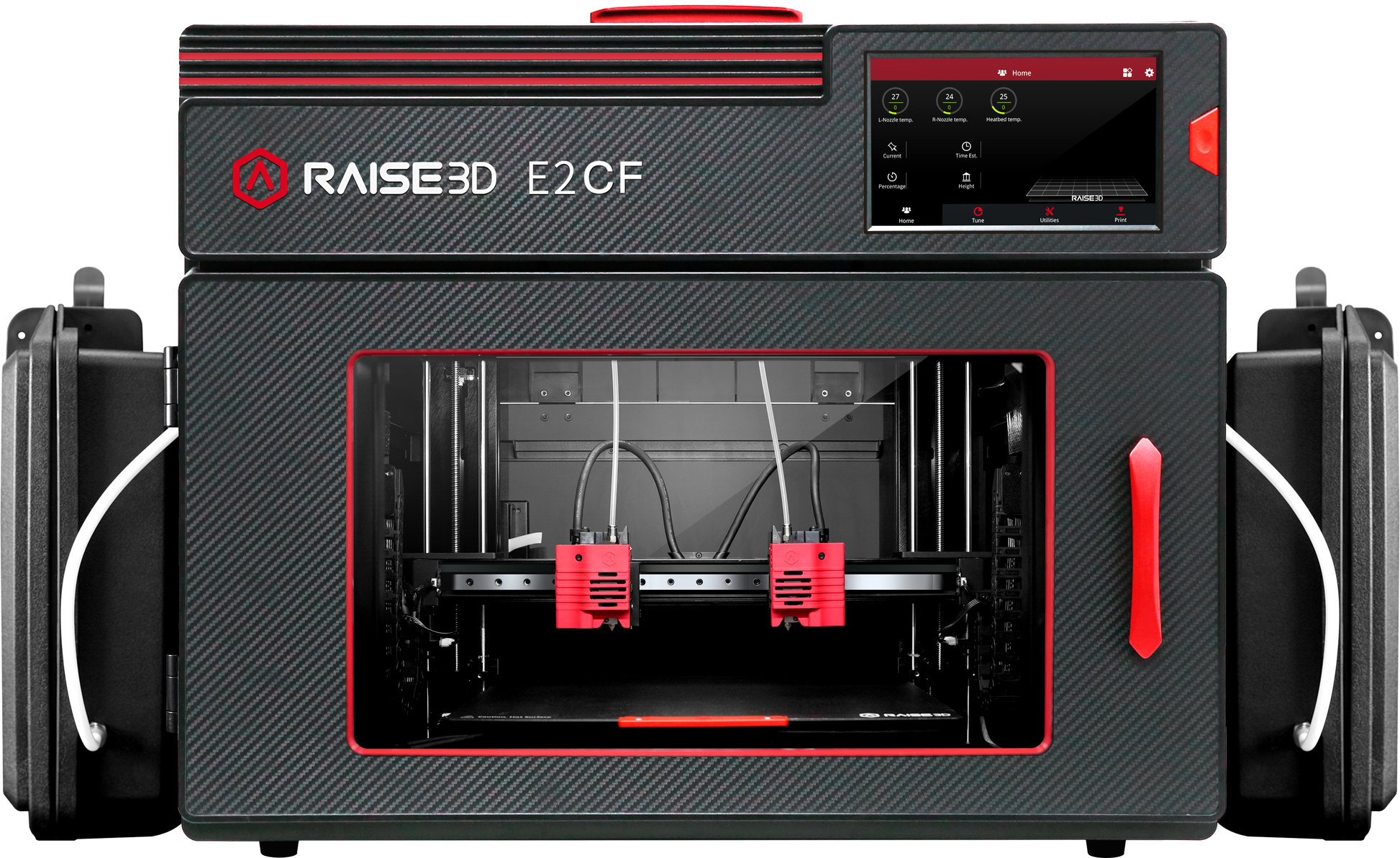

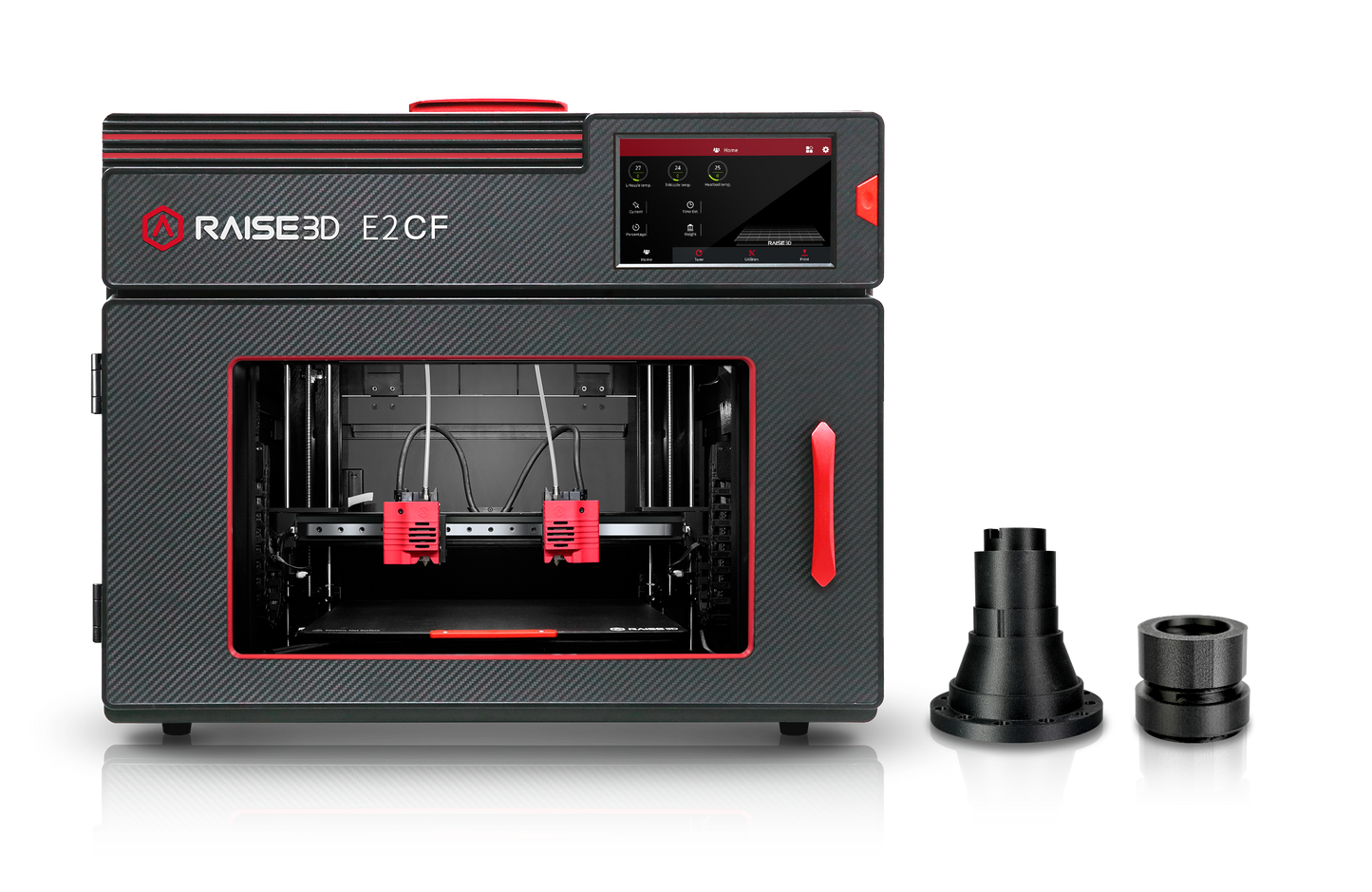

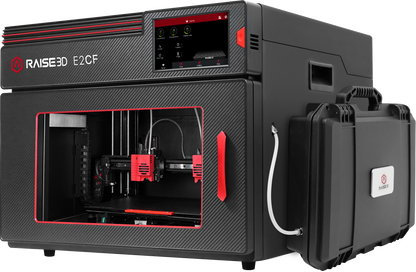

Raise3D E2CF Desktop Industrial 3D Printer - Optimized for Carbon Fiber 3D Printing - M-9DL-VJR5
-
Silicon Carbide Nozzles - excellent wear resistance and thermal conductivity for high durability, even when 3D printing abrasive carbon fiber composite filament
-
Double-gear Extrusion System - high hardness, heat treated steel gears are wear resistant, and the double gears engage tightly while operating to prevent filament slipping when extruding
-
Superior Compatibility with Carbon Fiber Composite Filament - E2CF is optimized for 3D printing with high-performance carbon fiber composite materials, such as Raise3D's PA12 CF, and other materials certified by the Raise3D Open Filament Program, like PA CF, PET CF, PPS CF, and more
-
Raise3D PA12 CF Support Filament - easy to remove break-away support material, specially developed for use with carbon fiber filament. PA12 CF Support Filament provides stable support structure with proper adhesion to printed surfaces and counteracts any tendency to warp
-
Improved calibration accuracy - improves nozzle height calibration accuracy, support adhesion, and first layer print performance
-

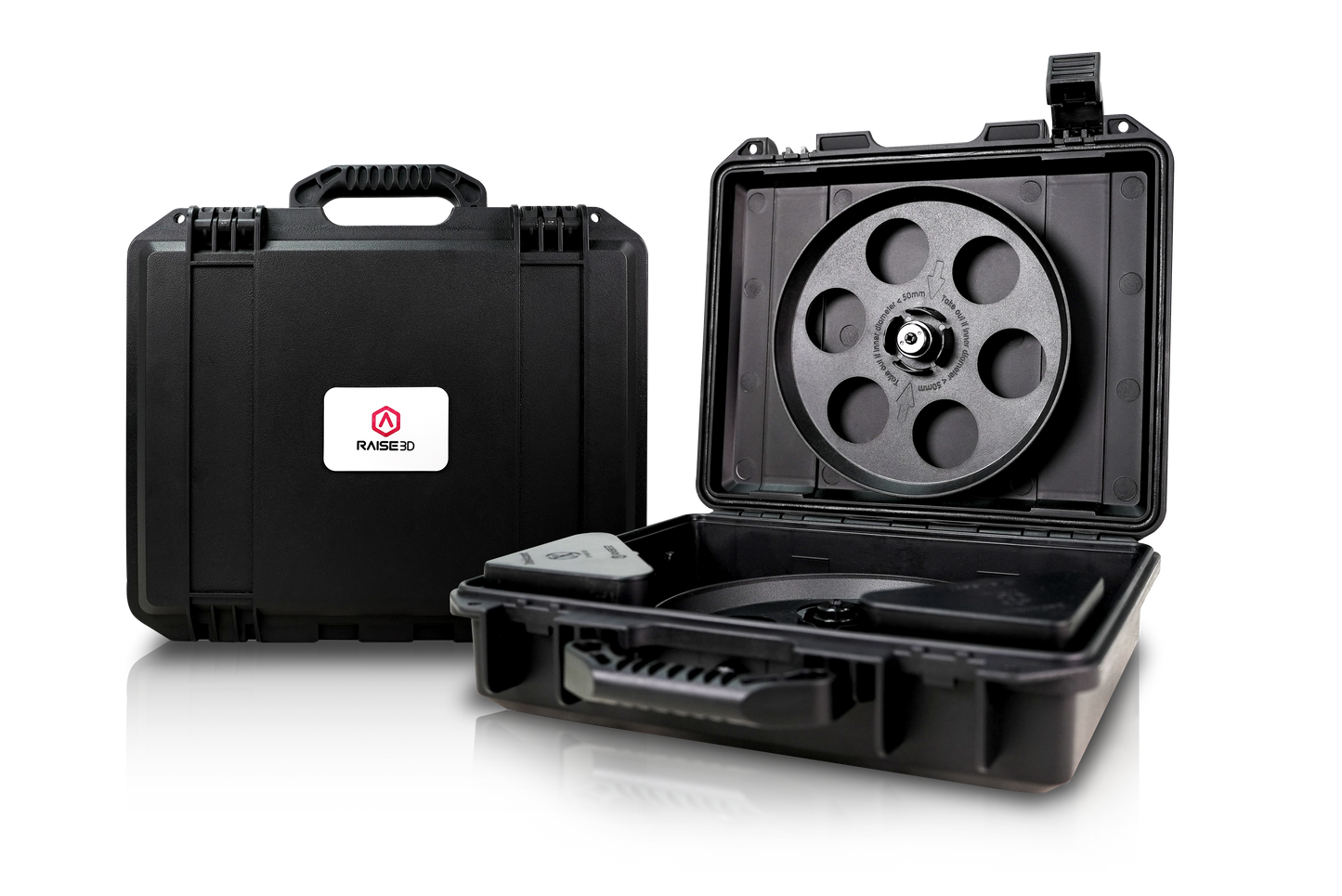

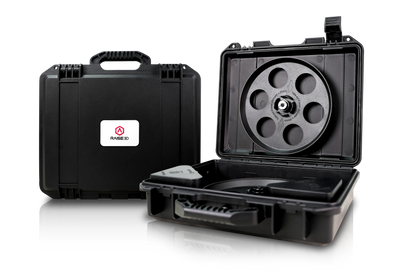

Sealed Dry Box Filament Compartments - protects filament from dust and moisture while smoothy feeding filament
-
Exclusive ideaMaker Slicing Profiles - easy, high-quality 3D printing using Raise3D's ideaMaker slicing software. Raise3D's engineers have repeatedly tested and verified the parameters in the slicing profiles, so there's no need for adjustments.
Features
-
IDEX (Independent Dual Extruders) - in addition to printing with two different colors or using soluble support material, E2CF's independent dual extruder system supports simultaneous dual prints using mirror mode or duplication mode
-
Mirror Mode prints a 3D model and its inverse simultaneously
-
Duplication Mode allows for synchronized printing with both extruders for double the production capacity
-
Auto Bed Leveling Video-assisted Offset Calibration System (industry first!)
-
Large Build Volume - up to 13×9.4×9.4 inch (330×240×240 mm) for single extruder printing, 11.6 x 9.4 x 9.4 inch for dual extruder printing
-
Added Safety Features - E2 detects if a door is opened and immediately pauses the 3D print
-
Power Saving Button turns off the display and LED lights for energy savings
-
Flexible Build Plate for easy removal of 3D printed models
-
Intuitive User Interface - Raise3D's 7-inch touchscreen control panel will full adjustment control and visual print progress indicator
-
Power Loss Recovery - E2 automatically saves progress if there's a power failure and resumes printing when power is restored
-
Filament Run-out Sensors - E2 automatically pauses the print if it runs out of filament--just add filament and resume your 3D printing project
-
HEPA Air Filtration removes nano-particles
-
Printer Cart (optional upgrade) - Raise3D's mobile cart is a great option for schools and large organizations that plan to share the 3D printer amongst multiple departments. Includes storage space for filament and tools.
What our Experts Think
-
Purpose-built for carbon fiber performance
Specifically engineered for carbon fiber-reinforced filaments, delivering exceptional strength-to-weight ratio, heat resistance, and durability—ideal for functional end-use parts.
-
IDEX dual extrusion = advanced production workflows
Independent dual extruders enable mirror mode, duplication mode, and multi-material printing, boosting efficiency for batch production and complex geometries.
-
Industrial-grade components for abrasive materials
Silicon carbide nozzles and hardened dual-drive gears are built to withstand wear from carbon fiber filaments, ensuring long-term reliability.
-
Wide compatibility with engineering materials
Supports CF-reinforced PLA, Nylon, PET, PC, and more—making it suitable for aerospace, automotive, tooling, and mechanical applications.
-
Consistent print quality with smart automation
Features like auto bed leveling, filament run-out detection, and power-loss recovery minimize failures and ensure consistent output.
-
Integrated dry storage improves material performance
Built-in dry box protects hygroscopic filaments, maintaining print quality and material integrity over long jobs.
-
Production-ready ecosystem & remote control
Seamless integration with ideaMaker and RaiseCloud enables remote monitoring, slicing optimization, and workflow management.
Q&A
Q: What is the Raise3D E2CF designed for?
A: It’s a professional desktop 3D printer specifically optimized for carbon fiber and fiber-reinforced filaments, ideal for functional prototyping and end-use parts.
Q: What makes it suitable for carbon fiber 3D printing?
A: It features wear-resistant silicon carbide nozzles, hardened dual-drive extruders, and sealed dry boxes to handle abrasive, moisture-sensitive carbon fiber materials reliably.
Q: Does it support dual extrusion printing?
A: Yes, the IDEX (Independent Dual Extruder) system enables advanced functions like dual-material printing, duplication mode, and mirror mode for increased productivity.
Q: What is the build volume of the Raise3D E2CF?
A: Up to 330 × 240 × 240 mm (single extrusion) and 295 × 240 × 240 mm (dual extrusion), making it suitable for medium-sized industrial parts.
Q: What materials can the E2CF print?
A: It supports a wide range of engineering-grade materials including carbon fiber-reinforced PLA, ABS, Nylon (PA12 CF), PETG, ASA, PC, and more.
Q: Is the printer easy to operate?
A: Yes, it includes auto bed leveling, pre-configured slicing profiles in ideaMaker, and a 7-inch touchscreen for simplified setup and operation.
Q: Can I monitor prints remotely?
A: Yes, built-in camera and RaiseCloud integration allow real-time remote monitoring and print management.
Maintenance Tips
-
Use hardened / silicon carbide nozzles only – carbon fiber filaments are highly abrasive; inspect regularly for wear and replace early to maintain accuracy.
-
Keep filament dry at all times – use the sealed dry boxes to prevent moisture absorption, which can ruin CF prints and clog extruders.
-
Clean dual direct-drive extruders to avoid gear wear and filament grinding—especially with reinforced materials.
-
Run auto bed leveling frequently for consistent first-layer adhesion and precision with fiber-filled filaments.
-
Inspect and clean build plate after each print to ensure strong adhesion and easy removal using the flexible plate.
-
Lubricate motion system & check frame stability to maintain high-precision industrial output.
-
Replace HEPA filter periodically to keep airflow clean and stable inside the enclosed chamber.
-
Monitor filament run-out & sensors to prevent failed prints and material waste.
-
Calibrate dual extruders (IDEX) for alignment—critical for mirror/duplication modes and multi-material accuracy.
-
Update ideaMaker & RaiseCloud software for optimized slicing profiles and performance improvements.
