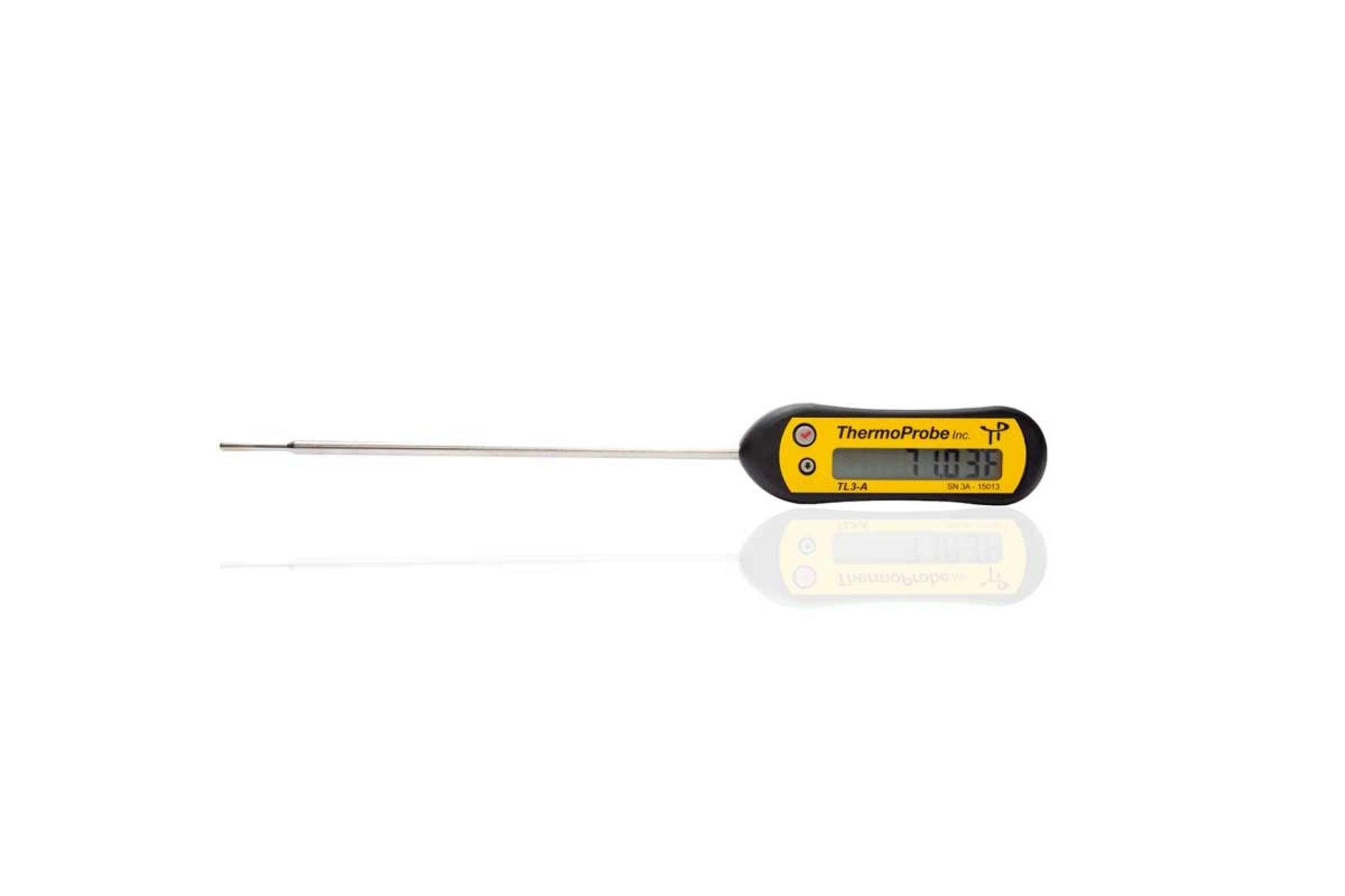

ThermoProbe TL3A Precision Thermometer - TL3A-08
The ThermoProbe TL3-A intrinsically safe thermometer is intended to be used anywhere a precision glass stem thermometer or other type thermometer may be used. The TL3-A series replaces the TL1-A series of Thermoprobe thermometers.
Please note that additional lengths are available. Please call for price and lead times.
This precision thermometer is an improved version of the original ThermoProbe model TL1. The TL1-A cordless thermometer incorporates glass thermometer simplicity and reliability with the ease of a digital display. Like precision mercury thermometers, the ThermoProbe TL1-A has accuracy, repeat-ability and long-term stability. But unlike those precision thermometers there will never be problems with mercury separation or hazardous material cleanup. Different from most electronic thermometers, the "Cordless" TL1-A has no wires to get in the way or break. Battery replacement is easily done through a sealed cover. Encoded calibration is unaffected by temperature, vibration, or battery removal. This cordless thermometer features a low battery display, and failure mode indications protect the user from false data.
4 Point NIST Traceable Calibration and a one year warranty included.
Features
- Auto-off after 20 minutes to save battery life
- Minimum reading
- Maximum reading
- Averaging
- Easy °F to °C switching
- Display arrows indicate increasing or decreasing temperature activity
Due to the special calibration on these meters, please allow approximately 7 to 10 days to ship. Includes certificate of calibration at the following approximate points: 32, 120, 199 (200) and 300 degrees F. We can also certify at 115 degrees F for an extra charge (See Options)
Specifications
Display:
|
LCD with 0.25 inch characters
Trend Indicating Arrows
Low Battery & Fault indication
|
User Functions:
|
Auto Off after 20 minutes or continuous operation
Lowest Reading, Highest Reading, Average Reading
Switchable in Units of °F or °C
Display tenths or hundredths resolution
|
Construction:
|
Stainless Steel temperature sensor; Standard Sensor length 8" (20cm)
Standard diameter 1/4" (6.35mm) with reduced diameter tip of 3/16" (4.76mm)
Sensor mount acetyl plastic
Electronics and display in 3.5" x 1.2" anodized Aluminum enclosure
Molded Silicone seal.
Highly durable display window, graphics and membrane switches.
|
Weight:
|
3 ounces, 93 grams
|
Temperature:
|
Resolution 0.01 Degrees
Calibrated Accuracy:
±0.1 °F from 14 to 320 °F
±0.06 °C from -10 to 160 °C
NIST Traceable Report of Test
|
Temperature Time Constant:
|
8 seconds in circulated water bath
(63.2% response to temperature change)
|
Electronics:
|
Microcontroller and precision 20 bit A/D Converter
FLASH memory
Recommended Temperature Range For best Accuracy 32 to 112 °F, 0 to 44 °C
100 Ohm, Class A Platinum RTD
Immersion depth 4", 11cm
|
Sensor:
|
100 Ohm, Class A 1/3 DIN RTD
Immersion depth 4", 11cm
|
Battery:
|
20mm Coin Size 3V Lithium, Duracell Type CR2032
Over 100 hours Service Life at 70 °F, 21 °C
Battery Operating Range -4 to 130 °F, -20 to 54 °C
Note: Battery may not provide adequate power if ambient temperature is below -4 °F, -20 °C or above 130 °F, 54 °C |
What Our Experts Think
-
High Precision – The TL3A-08 offers outstanding accuracy for critical temperature measurements, ensuring reliable results.
-
Sturdy & Long-Lasting – Built with durable materials for extended service life, even in harsh environments.
-
Quick Response – Delivers fast temperature readings, ideal for time-sensitive applications.
-
Versatile Use – Suitable for a wide range of industries, from laboratories to industrial settings.
-
Easy to Use – Simple controls and setup make it user-friendly, enhancing productivity.
Q&A
Q: What is the TL3A-08 Precision Thermometer?
A: A high-accuracy thermometer designed for precise temperature measurement in industrial, laboratory, and scientific applications.
Q: What makes the TL3A-08 a precision thermometer?
A: The TL3A-08 features advanced calibration and sensor technology to ensure accurate and consistent readings.
Q: What is the temperature range of the TL3A-08?
A: The TL3A-08 provides a wide temperature range, making it suitable for a variety of precision measurement needs.
Q: Is the TL3A-08 suitable for laboratory use?
A: Yes, it is perfect for laboratory settings where exact temperature measurements are crucial.
Q: How durable is the TL3A-08 thermometer?
A: Built with high-quality materials, the TL3A-08 is designed for durability and long-term performance in demanding environments.
Q: How do I maintain the TL3A-08 thermometer?
A: Ensure regular calibration and store the thermometer in a dry, secure place when not in use to maintain accuracy.
Maintenance Tips
-
Clean After Use: Use a soft, damp cloth to wipe the thermometer and remove dirt or moisture.
-
Inspect for Damage: Check for physical damage like cracks or corrosion, especially on the probe and casing.
-
Calibrate Periodically: Ensure accurate readings by calibrating the thermometer as needed.
-
Avoid Harsh Chemicals: Clean with mild, non-abrasive solutions to protect the sensor.
-
Store Properly: When not in use, store in a dry and safe location to avoid physical damage.
